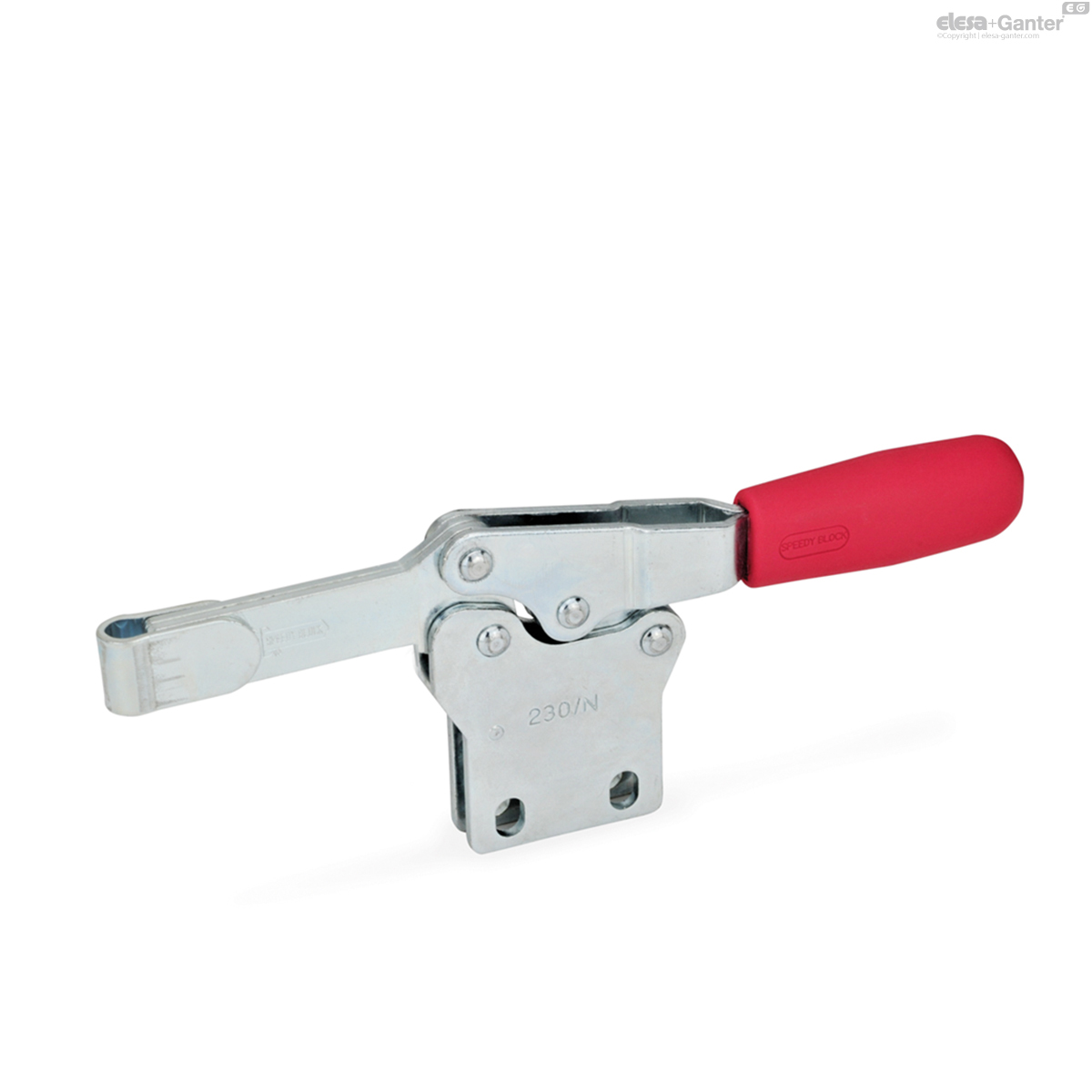

GN 820.2Horizontale snelspanners

Staal

Staal/roestvrij staal, met verticale montagebasis

Technical datasheet

GN 820.2

Reset

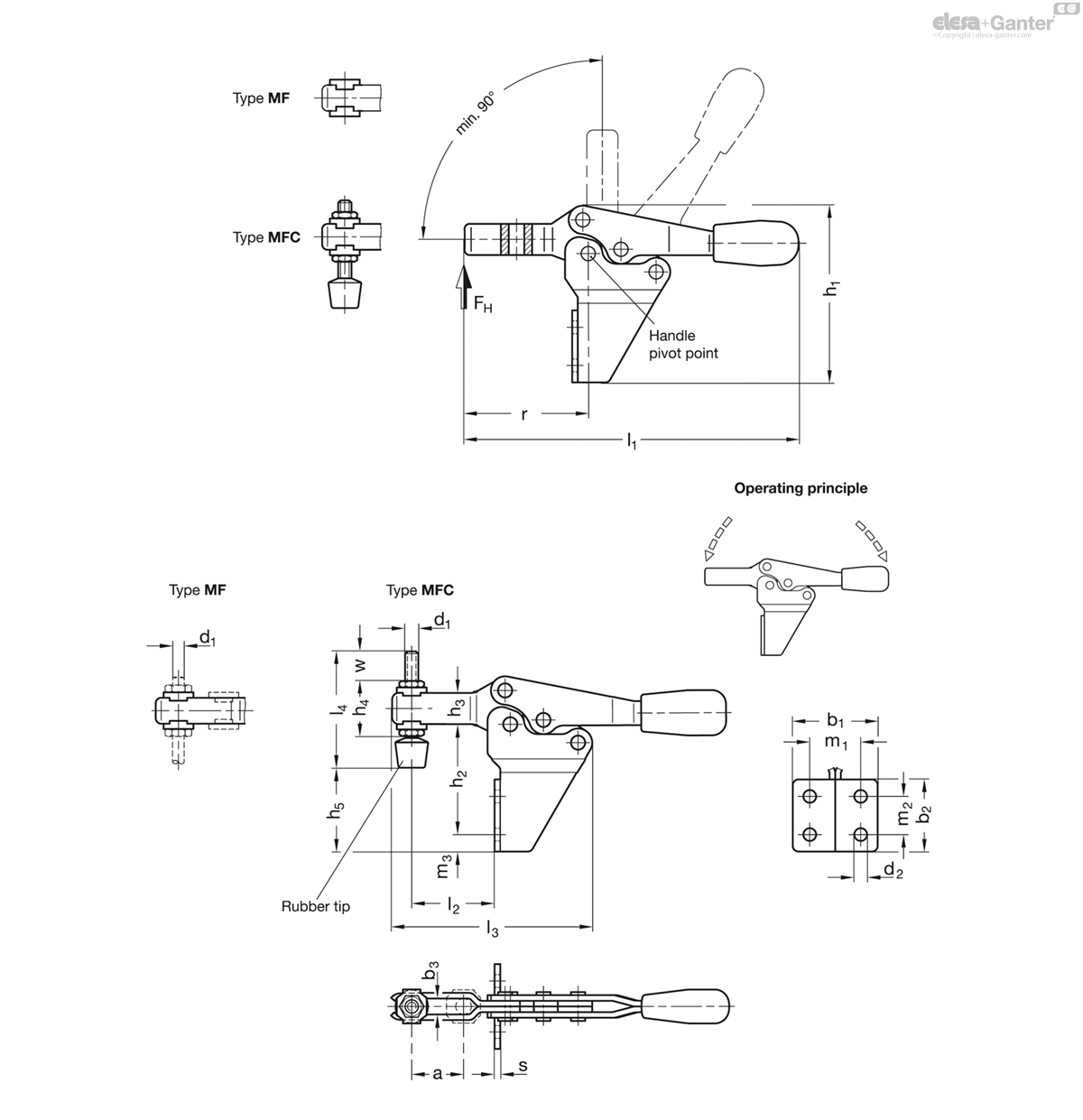

Code	Size	F_h in N	a ≈	b₁	b₂	b₃	d₁	d₂	h₁	h₂	h₃	h₄

GN 820.2-75-MF	75	900	20	30	25.5	5.5	M 5	4.5	62	39	11	-
GN 820.2-130-MF	130	1000	32	39	35	6.5	M 6	5.5	85	57.5	16	-
GN 820.2-230-MF	230	1700	37	43	40	8.5	M 8	6.5	102	69	18	-
GN 820.2-355-MF	355	1800	58	52	52	10.5	M 10	8.5	135	92	22	-
GN 820.2-75-MFC	75	900	20	30	25.5	5.5	M 5	4.5	62	39	11	19
GN 820.2-130-MFC	130	1000	32	39	35	6.5	M 6	5.5	85	57.5	16	25.5
GN 820.2-230-MFC	230	1700	37	43	40	8.5	M 8	6.5	102	69	18	30
GN 820.2-355-MFC	355	1800	58	52	52	10.5	M 10	8.5	135	92	22	37

Types

Type MF: U-bar version, with two flanged washers

Type MFC: U-bar version, with two flanged washers and GN 708.1 spindle assembly

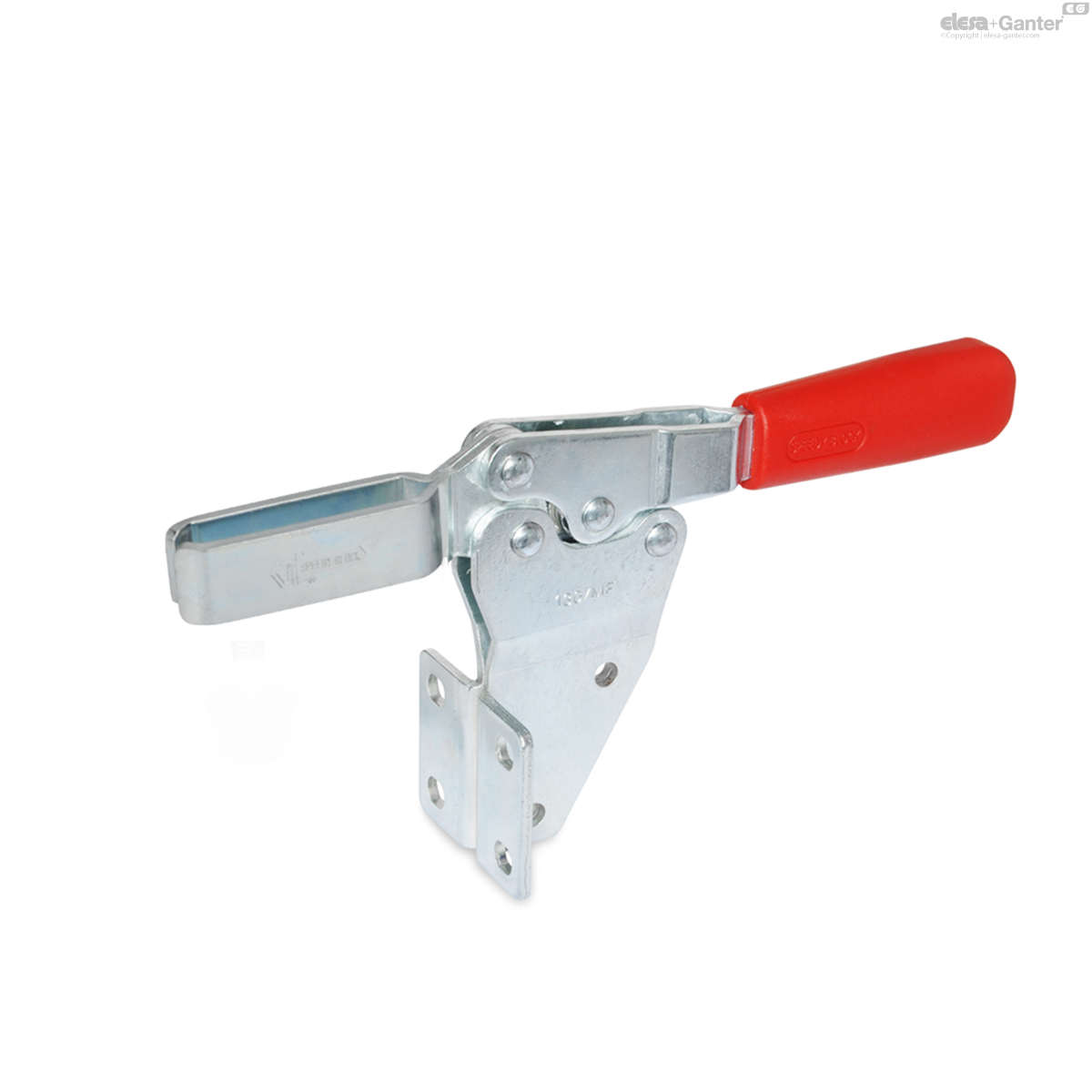

Version in Steel

Case-hardened Steel C10, zinc plated, blue passivated

Bearing pins tempered

Bearing rivets (for size 355 and up), case-hardened

All moving parts

lubricated with special grease

Hand grip

High quality, oil resistant red plastic

Spindle assembly GN 708.1, Type A

Steel, zinc plated

Rubber tip 85 Shore A

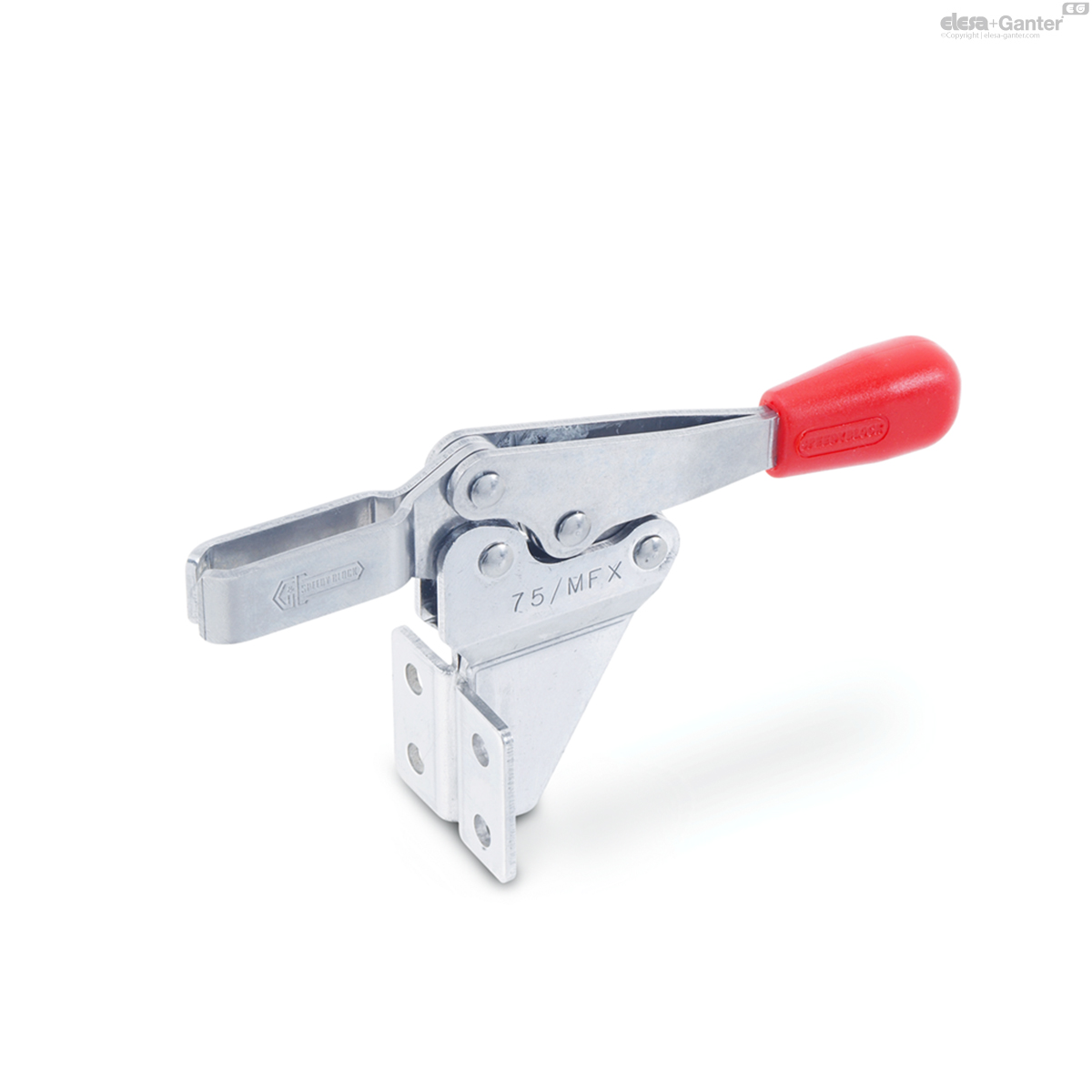

Version in Stainless Steel NI

Stainless Steel AISI 304

All moving parts

lubricated with special grease

Hand grip

High quality, oil resistant red plastic

Spindle assembly GN 708.1, Type A

Stainless Steel AISI 304

Rubber tip 85 Shore A

GN 820.2 horizontal acting toggle clamps work according to the toggle principle: lever and clamping bar move in the opposite direction.

They require less space for the clamping action. In the clamped position the operating lever is in its horizontal position. The 90° rotated mounting surface allows a space-saving installation in addition to the clamping point.

Horizontal acting toggle clamps in the U-bar version with two flanged washers (Type MF) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type MFC.
