Technical datasheet
GN 801Klemverbindingen
Klemverbindingen
voor snelspanners met gevorkte klemarm
GN 801
|

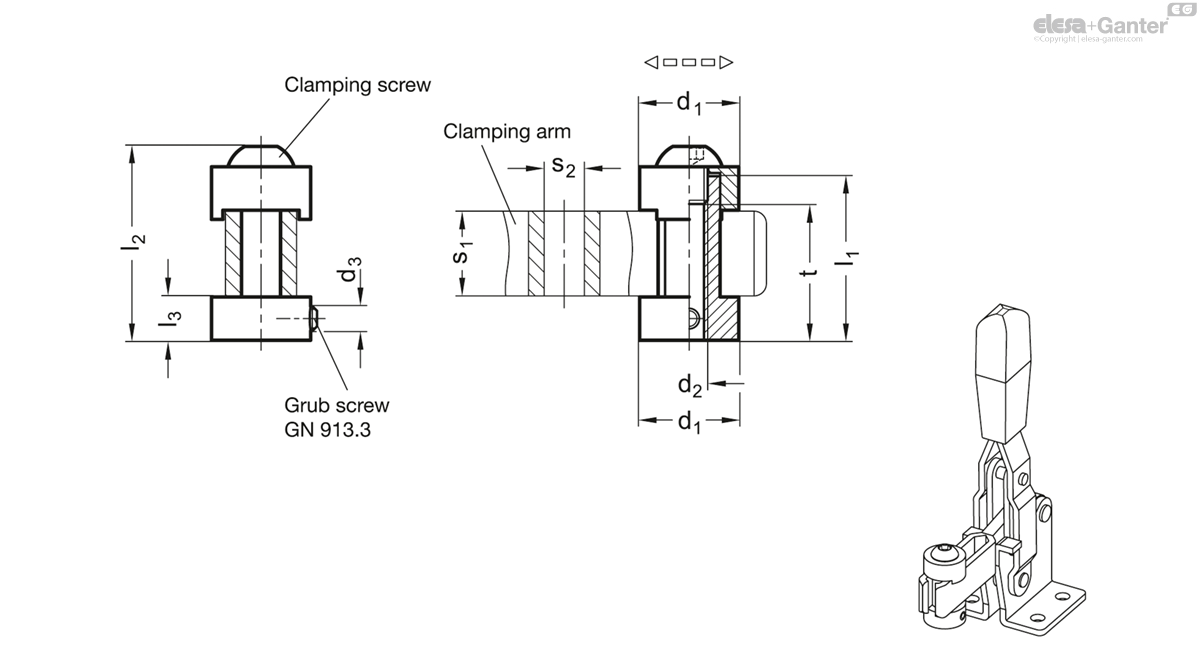

Code
|
d1
|
d2
|
l1
|
l2
|
l3
|
d3
|
s1
|
s2
|
t
|
For toggle clamps
GN 810 GN 810.1 |
GN 812
GN 812.1 |
GN 820
GN 820.1 GN 820.2 GN 820.3 GN 820.4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN 801-16-M6
|
16
|
M 6
|
26.5
|
33 (31)*
|
7
|
M 4
|
16 (14)*
|
6.5
|
24 (22)*
|
130
|
-
|
130
|
|
GN 801-18-M8
|
18
|
M 8
|
31
|
38 (37)**
|
8
|
M 5
|
18 (17)**
|
8.5
|
26 (25)**
|
230
|
200
|
230
|
|
GN 801-22-M10
|
22
|
M 10
|
37
|
47 (45)***
|
8
|
M 5
|
22 (20)***
|
10.5
|
30 (28)***
|
330
|
300
|
355
|
|
GN 801-24-M10
|
24
|
M 10
|
41
|
49
|
8
|
M 5
|
24
|
10
|
32
|
-
|
-
|
-
|
|
GN 801-26-M10
|
26
|
M 10
|
39
|
48
|
8
|
M 5
|
22
|
12.5
|
30
|
430
|
-
|
-
|
* Dimension in (...) applies to GN 860** Dimension in (...) applies to GN 812, GN 812.1, GN 862 and GN 862.1*** Dimension in (...) applies to GN 812, GN 812.1, GN 860, GN 862 and GN 862.1
Steel
zinc plated, blue passivated

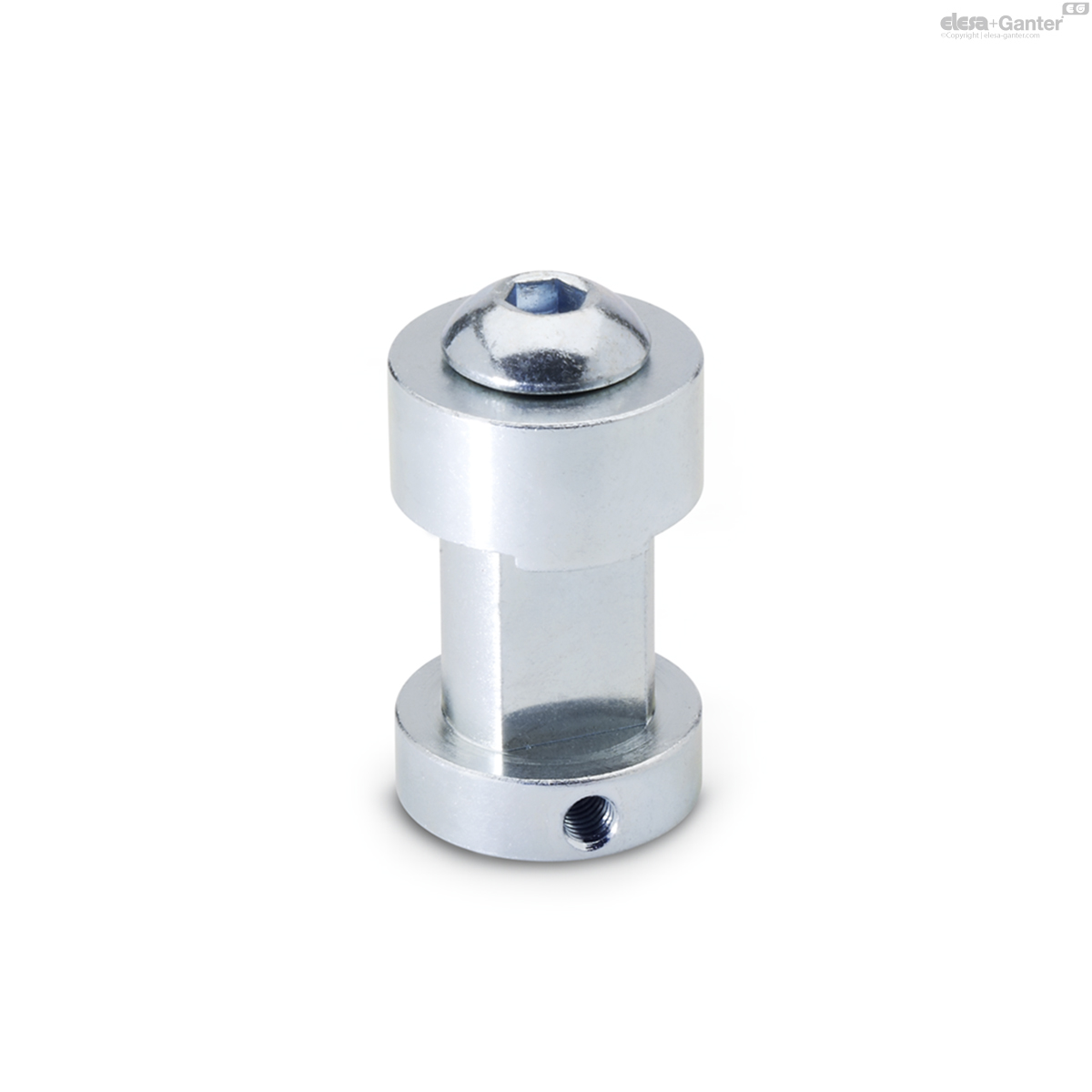

GN 801 clamp mounts have been developed for use with toggle clamps that are designed with a forked clamping arm.
The clamp mounts can be moved along the clamping arm. Once the desired position is reached, you can secure the mount in place with the clamping screw.
The thread d2 serves to hold the wide variety of toggle clamp spindle assemblies, spring elements and similar devices.
The ideal clamping height can be adjusted without loosening the clamp mount on the forked clamping arm.
