GN 820.1Horizontale snelspanners

Staal

Staal/roestvrij staal, met verticale montagebasis

Technical datasheet

GN 820.1

Reset

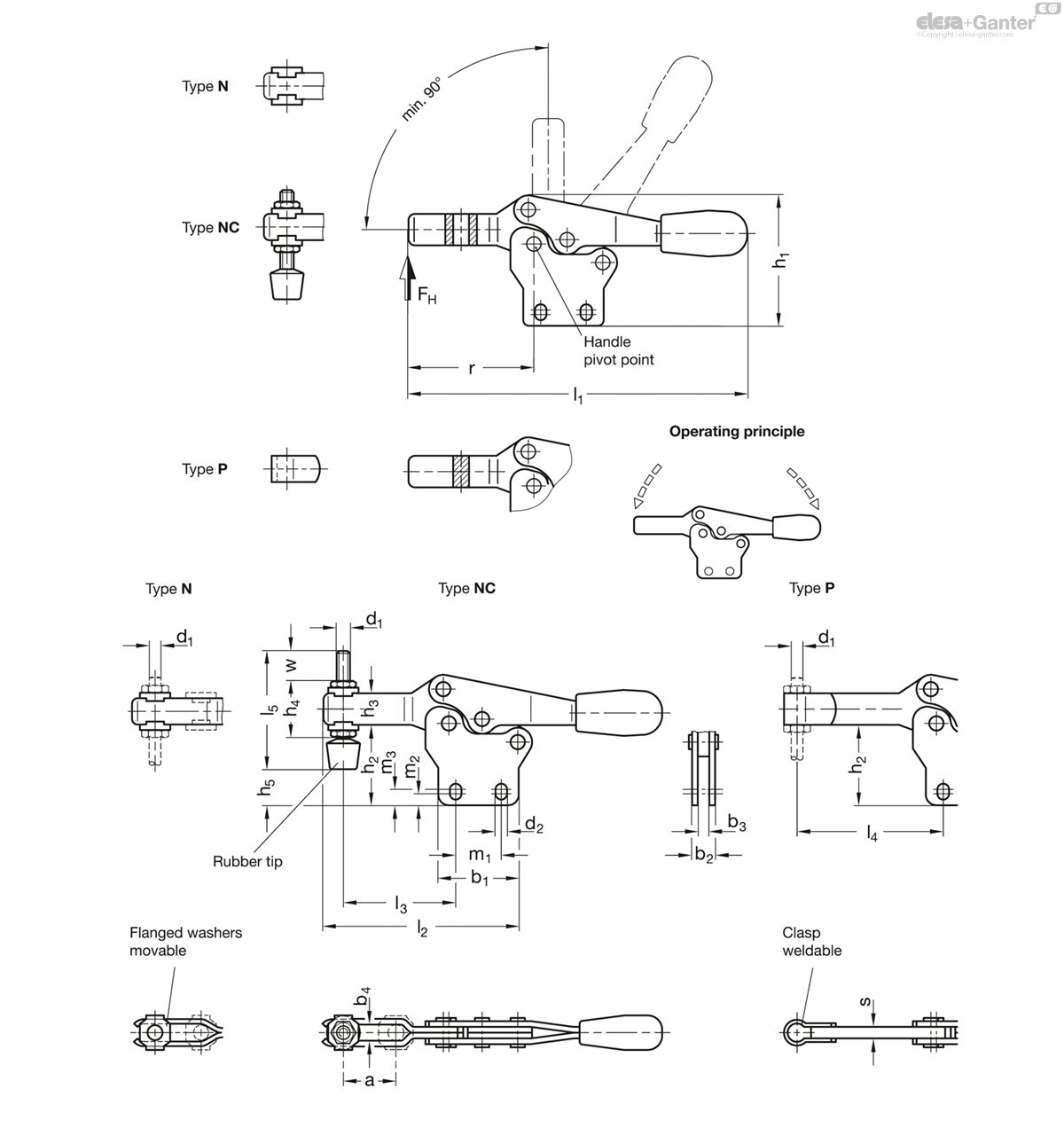

Code	Size	F_H in N	a ≈	b₁	b₂	b₃	b₄	d₁	d₂	h₁ ≈	h₂	h₃

GN 820.1-75-N	75	900	20	28	8	4	5.5	M 5	4.5	45.5	27.5	11
GN 820.1-75-P	75	900	-	28	8	4	-	M 5	4.5	45.5	27.5	11
GN 820.1-75-NC	75	900	20	28	8	4	5.5	M 5	4.5	45.5	27.5	11
GN 820.1-130-N	130	1000	32	36	10	5	6.5	M 6	5.5	64	44	16
GN 820.1-130-P	130	1000	-	36	10	5	-	M 6	5.5	64	44	16
GN 820.1-130-NC	130	1000	32	36	10	5	6.5	M 6	5.5	64	44	16
GN 820.1-230-P	230	1700	-	44	12	6	-	M 8	6.5	75	50	18
GN 820.1-230-NC	230	1700	37	44	12	6	8.5	M 8	6.5	75	50	18
GN 820.1-230-N	230	1700	37	44	12	6	8.5	M 8	6.5	75	50	18
GN 820.1-355-NC	355	1800	58	60	14	7	10.4	M 10	8.5	102	69	22
GN 820.1-355-P	355	1800	-	60	14	7	-	M 10	8.5	102	69	22
GN 820.1-355-N	355	1800	58	60	14	7	10.4	M 10	8.5	102	69	22
GN 820.1-455-NC	455	3200	65	70	18	10	12.4	M 12	8.5	119	80.5	26
GN 820.1-455-N	455	3200	65	70	18	10	12.4	M 12	8.5	119	80.5	26
GN 820.1-455-P	455	3200	-	70	18	10	-	M 12	8.5	119	80.5	26

Types

Type N: U-bar version, with two flanged washers

Type NC: U-bar version, with two flanged washers and GN 708.1 spindle assembly

Type P: Solid bar version, with clasp

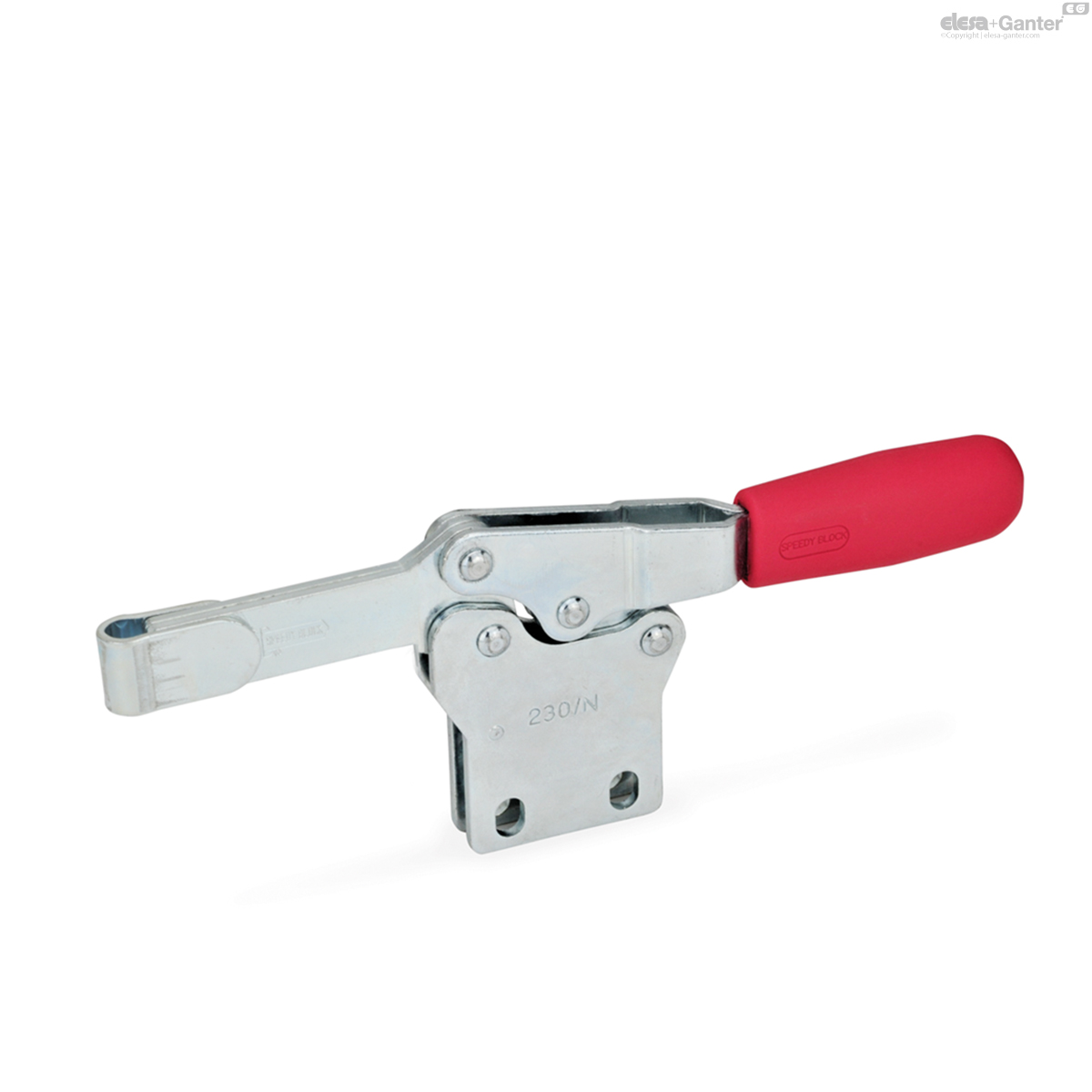

Version in Steel

Case-hardened Steel C10, zinc plated, blue passivated

Bearing pins tempered

Bearing rivets (for size 355 and up), case-hardened

All moving parts

lubricated with special grease

Hand grip

High quality, oil resistant red plastic

Spindle assembly GN 708.1, Type A

Steel, zinc plated

Rubber tip 85 Shore A

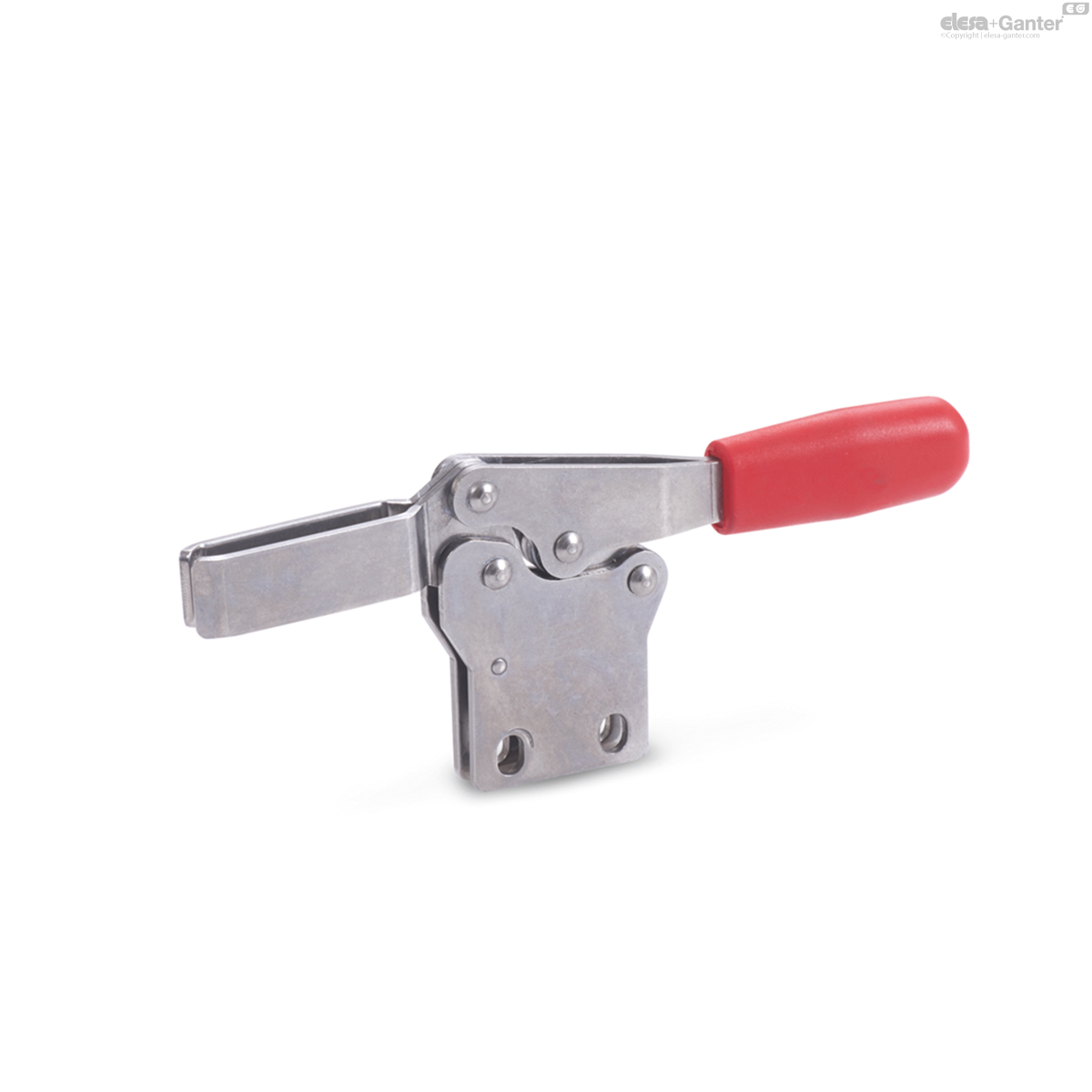

Version in Stainless Steel NI

Stainless Steel AISI 304

All moving parts

lubricated with special grease

Hand grip

High quality, oil resistant red plastic

Spindle assembly GN 708.1, Type A

Stainless Steel AISI 304

Rubber tip 85 Shore A

GN 820.1 horizontal acting toggle clamps work according to the toggle principle: lever and clamping bar move in the opposite direction.

They require less space for the clamping action. In the clamped position the operating lever is in its horizontal position.

Horizontal acting toggle clamps in the U-bar version with two flanged washers (Type N) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type NC.

Type P version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with the GN 809 clamp mounts to hold the work piece in place.
