Technical datasheet
GN 807Klemschroeven

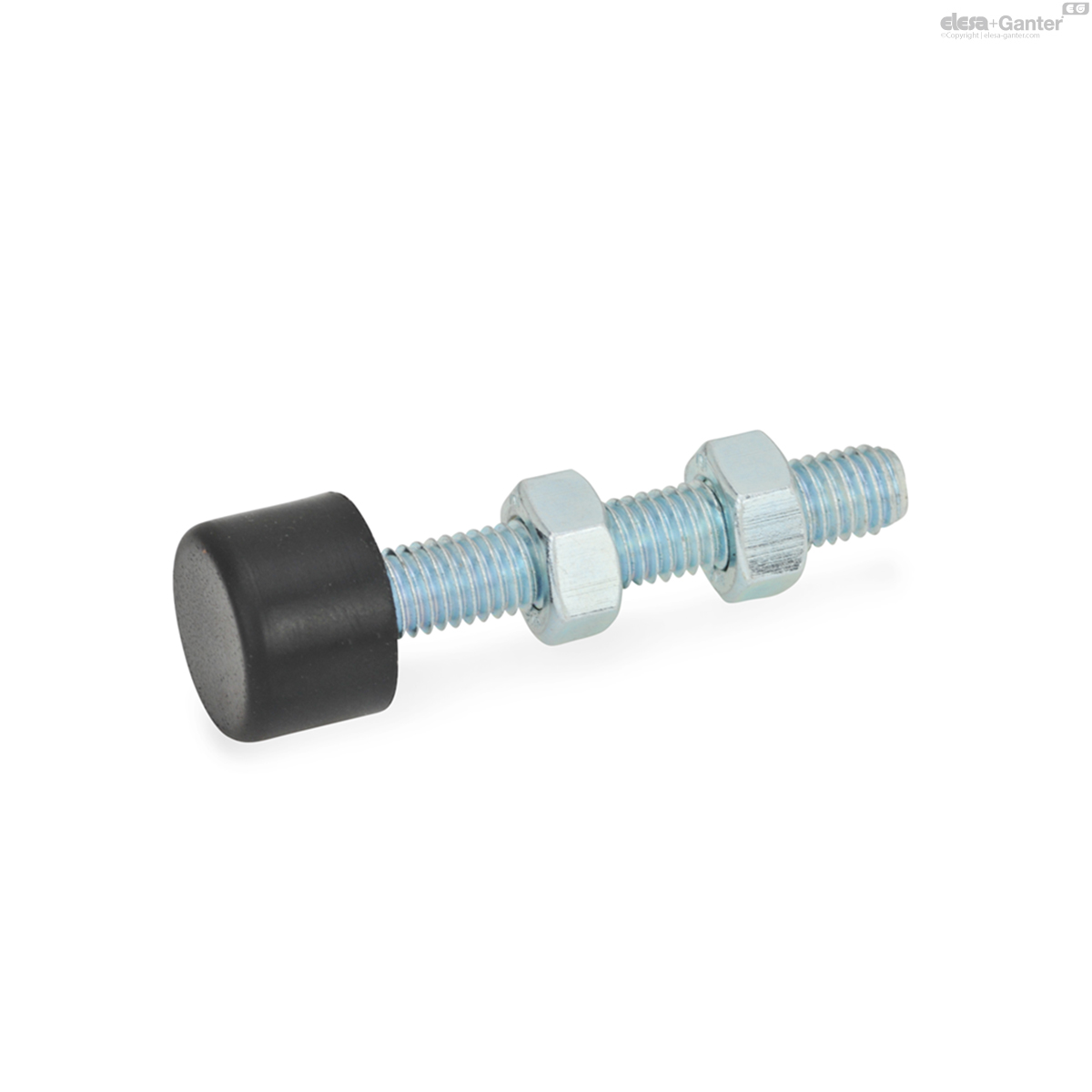

Staal
Staal/roestvrij staal, met/zonder beschermdop
|
Code
|
d1
|
l1
|
d2
|
h1
|
h2
|
l2
|
m
|
A/F
|
|
|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
GN 807-M4-23-A
|
M 4
|
23
|
11
|
3
|
6.5
|
2.5
|
3.2
|
7
|
5
|
|
GN 807-M5-38-A
|
M 5
|
38
|
12.5
|
3.5
|
8
|
2.5
|
4.7
|
8
|
9
|
|
GN 807-M6-29-A
|
M 6
|
29
|
15
|
4
|
10
|
4
|
5.2
|
10
|
11
|
|
GN 807-M6-49-A
|
M 6
|
49
|
15
|
4
|
10
|
4
|
5.2
|
10
|
16
|
|
GN 807-M8-36-A
|
M 8
|
36
|
19
|
5.5
|
13
|
5.5
|
6.8
|
13
|
24
|
|
GN 807-M8-56-A
|
M 8
|
56
|
19
|
5.5
|
13
|
5.5
|
6.8
|
13
|
26
|
|
GN 807-M8-96-A
|
M 8
|
96
|
19
|
5.5
|
13
|
5.5
|
6.8
|
13
|
43
|
|
GN 807-M10-43-A
|
M 10
|
43
|
24
|
6.5
|
16
|
7
|
8.4
|
16
|
47
|
|
GN 807-M10-77-A
|
M 10
|
77
|
24
|
6.5
|
16
|
7
|
8.4
|
16
|
66
|
|
GN 807-M10-127-A
|
M 10
|
127
|
24
|
6.5
|
16
|
7
|
8.4
|
16
|
92
|
|
GN 807-M12-53-A
|
M 12
|
53
|
26
|
7.5
|
19
|
8.5
|
10.8
|
18
|
75
|
|
GN 807-M12-88-A
|
M 12
|
88
|
26
|
7.5
|
19
|
8.5
|
10.8
|
18
|
107
|
|
GN 807-M12-128-A
|
M 12
|
128
|
26
|
7.5
|
19
|
8.5
|
10.8
|
18
|
13
|
|
GN 807-M14-54-A
|
M 14
|
54
|
-
|
9
|
-
|
-
|
12.8
|
21
|
109
|
|
GN 807-M4-23-B
|
M 4
|
23
|
11
|
3
|
6.5
|
2.5
|
3.2
|
7
|
4
|
|
GN 807-M5-38-B
|
M 5
|
38
|
12.5
|
3.5
|
8
|
2.5
|
4.7
|
8
|
10
|
|
GN 807-M6-29-B
|
M 6
|
29
|
15
|
4
|
10
|
4
|
5.2
|
10
|
14
|
|
GN 807-M6-49-B
|
M 6
|
49
|
15
|
4
|
10
|
4
|
5.2
|
10
|
18
|
|
GN 807-M8-36-B
|
M 8
|
36
|
19
|
5.5
|
13
|
5.5
|
6.8
|
13
|
28
|
|
GN 807-M8-56-B
|
M 8
|
56
|
19
|
5.5
|
13
|
5.5
|
6.8
|
13
|
35
|
|
GN 807-M8-96-B
|
M 8
|
96
|
19
|
5.5
|
13
|
5.5
|
6.8
|
13
|
47
|
|
GN 807-M10-43-B
|
M 10
|
43
|
24
|
6.5
|
16
|
7
|
8.4
|
16
|
54
|
|
GN 807-M10-77-B
|
M 10
|
77
|
24
|
6.5
|
16
|
7
|
8.4
|
16
|
74
|
|
GN 807-M10-127-B
|
M 10
|
127
|
24
|
6.5
|
16
|
7
|
8.4
|
16
|
99
|
|
GN 807-M12-53-B
|
M 12
|
53
|
26
|
7.5
|
19
|
8.5
|
10.8
|
18
|
85
|
|
GN 807-M12-88-B
|
M 12
|
88
|
26
|
7.5
|
19
|
8.5
|
10.8
|
18
|
111
|
|
GN 807-M12-128-B
|
M 12
|
128
|
26
|
7.5
|
19
|
8.5
|
10.8
|
18
|
139
|

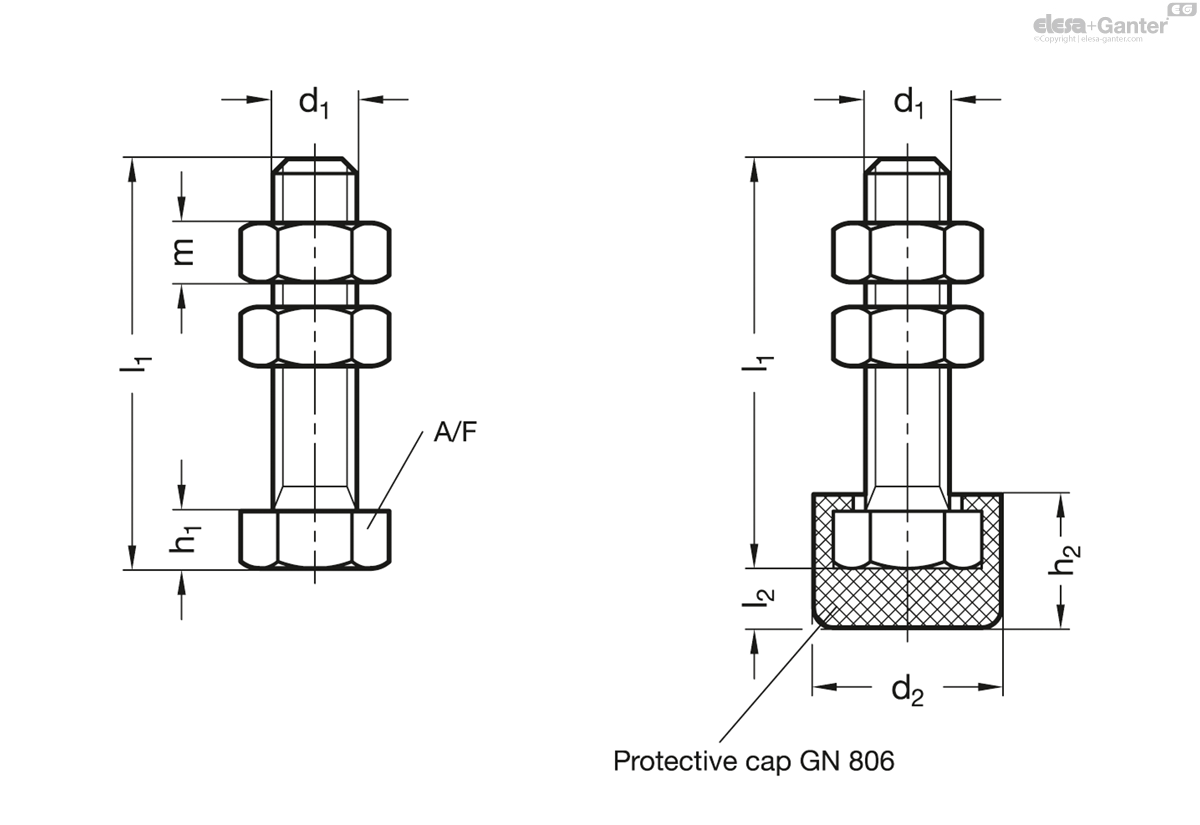

Types
- Type A: Without protective cap
- Type B: With protective cap
Version in Steel
- Hex head screw ISO 4017 / DIN 933
Property class 8.8
- Zinc plated, blue passivated
Version in Stainless Steel
Stainless steel AISI 304 NI
- Hex head screw ISO 4017 / DIN 933
- Hex nuts ISO 4032
The two hex nuts are included parts of the order.
