GN 900.5Roterende platen

Roterende platen

voor instelbare sleden GN 900

Technical datasheet

GN 900.5

Code	b Size of the slide	l₁	d	h₁	h₂	h₃	l₂	s

GN 900.5-30-41	30	41	M 2.5	18.4	10	4.2	35.4	6	58
GN 900.5-50-67	50	67	M 3	28	14	7	58	9	209
GN 900.5-80-105	80	105	M 4	39	14	12.5	92	9	568
GN 900.5-120-145	120	145	M 5	47.6	20	13.8	131.8	12	1398

Specification
Information

Aluminium

anodized, natural colour

Socket head screws DIN 912

Stainless Steel

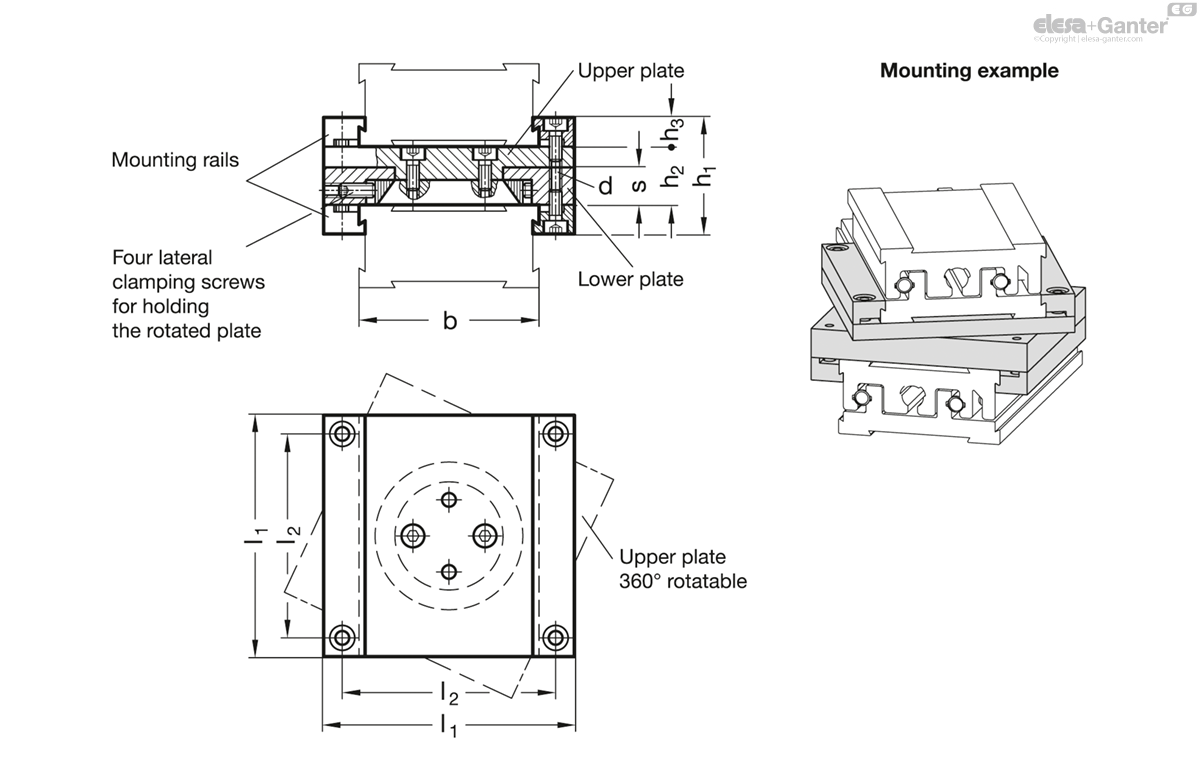

Rotary plates GN 900.5 allow rotation of one of the adjustable slide units at an off-set angle to the other. This possibility offers an additional axis configuration.

The alternative adaptor consists of two plates connected together in the center so they may be rotated. The lower plate is clamped to the lower sliding part, while the upper one is clamped to the stationary base of the upper sliding unit.

All parts required are included.
