Technical datasheet

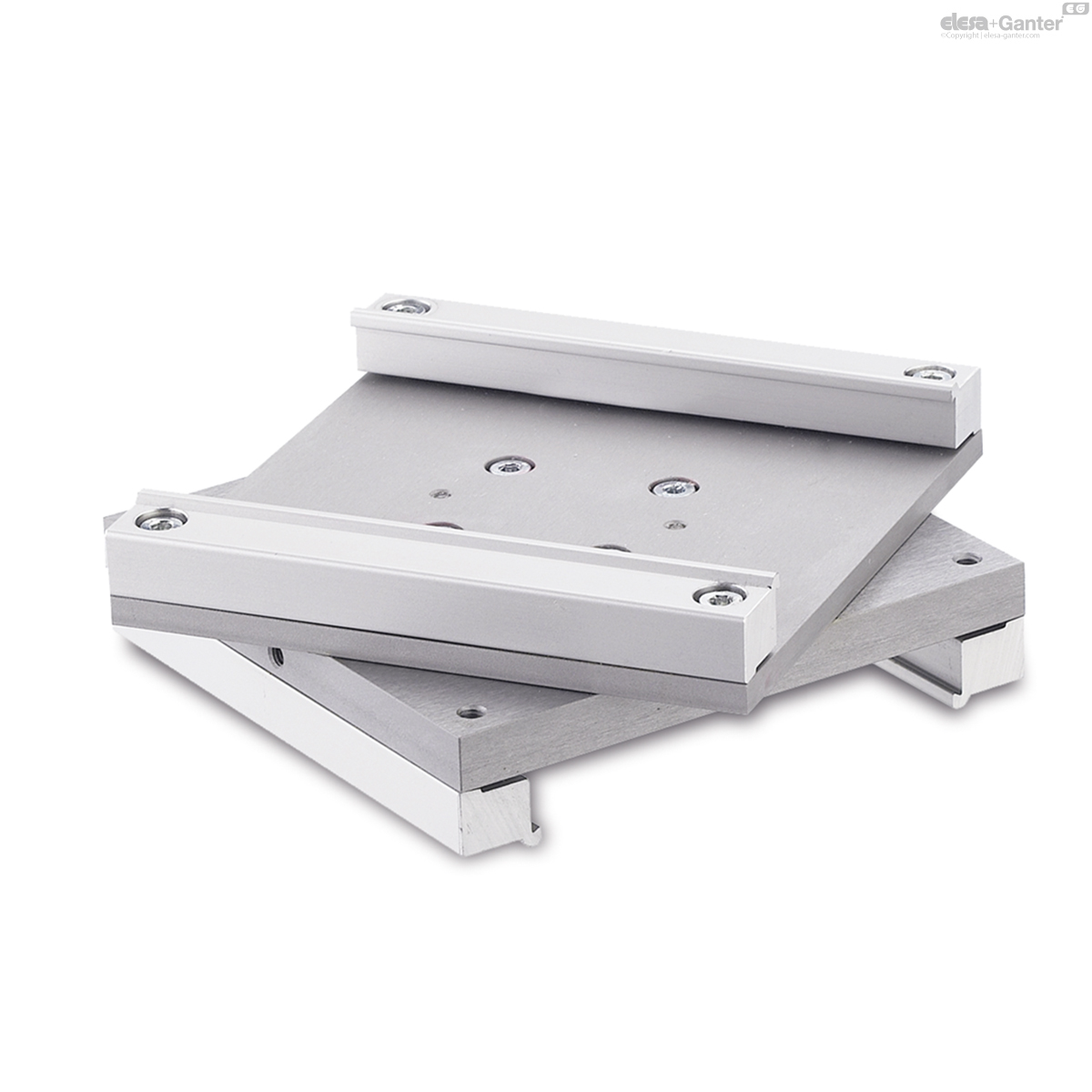

GN 900.5Plaques rotatives
Plaques rotatives
pour unités coulissantes réglables GN 900
|
Code
|
b Size of
the slide |
l1
|
d
|
h1
|
h2
|
h3
|
l2
|
s
|
|
|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
GN 900.5-30-41
|
30
|
41
|
M 2.5
|
18.4
|
10
|
4.2
|
35.4
|
6
|
58
|
|
GN 900.5-50-67
|
50
|
67
|
M 3
|
28
|
14
|
7
|
58
|
9
|
209
|
|
GN 900.5-80-105
|
80
|
105
|
M 4
|
39
|
14
|
12.5
|
92
|
9
|
568
|
|
GN 900.5-120-145
|
120
|
145
|
M 5
|
47.6
|
20
|
13.8
|
131.8
|
12
|
1398
|
Aluminium
anodized, natural colour
Socket head screws DIN 912
Stainless Steel

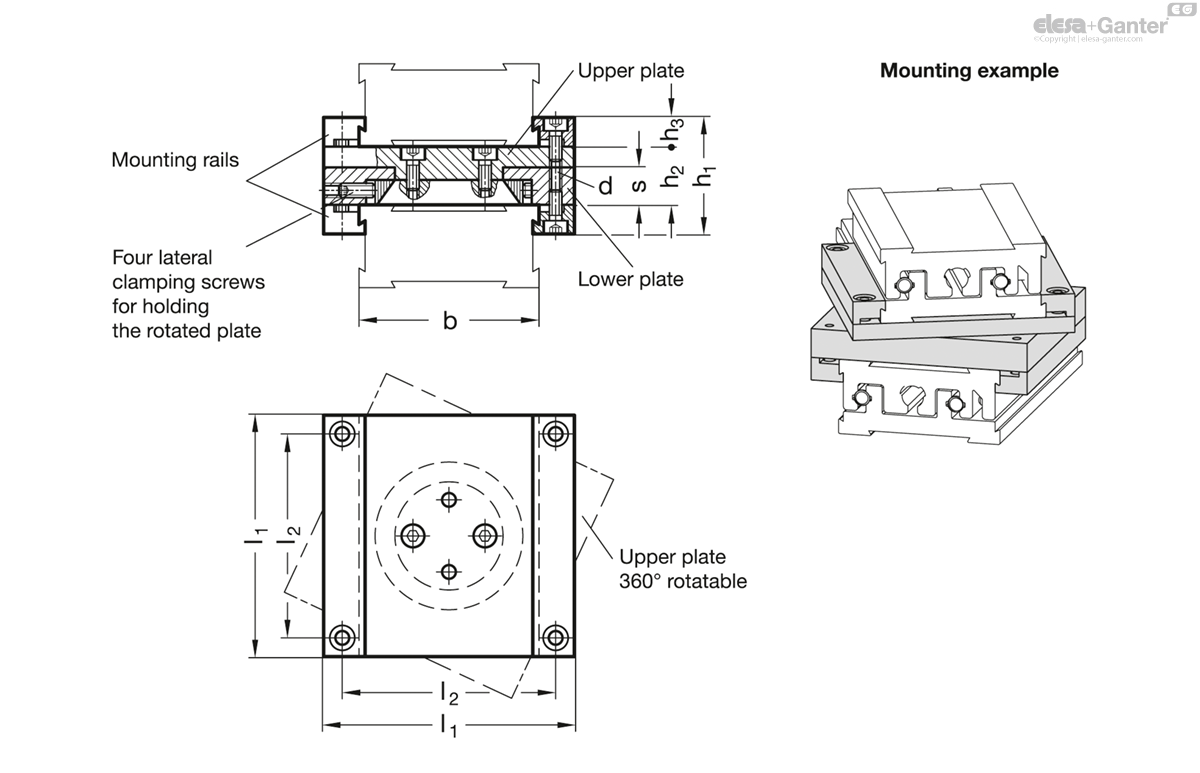

Rotary plates GN 900.5 allow rotation of one of the adjustable slide units at an off-set angle to the other. This possibility offers an additional axis configuration.
The alternative adaptor consists of two plates connected together in the center so they may be rotated. The lower plate is clamped to the lower sliding part, while the upper one is clamped to the stationary base of the upper sliding unit.
All parts required are included.
