GN 900.5 Roterende platen
voor instelbare sleden GN 900
Lt: 1-2 weken Alle maten en varianten van GN 900.5
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- GN 900.5-120-145
- b Size of
the slide - 120
- l1
- 145
- d
- M 5
- h1
- 47.6
- h2
- 20
- h3
- 13.8
- l2
- 131.8
- s
- 12
- 1398
Aluminium
anodized, natural colour
Socket head screws DIN 912
Stainless Steel

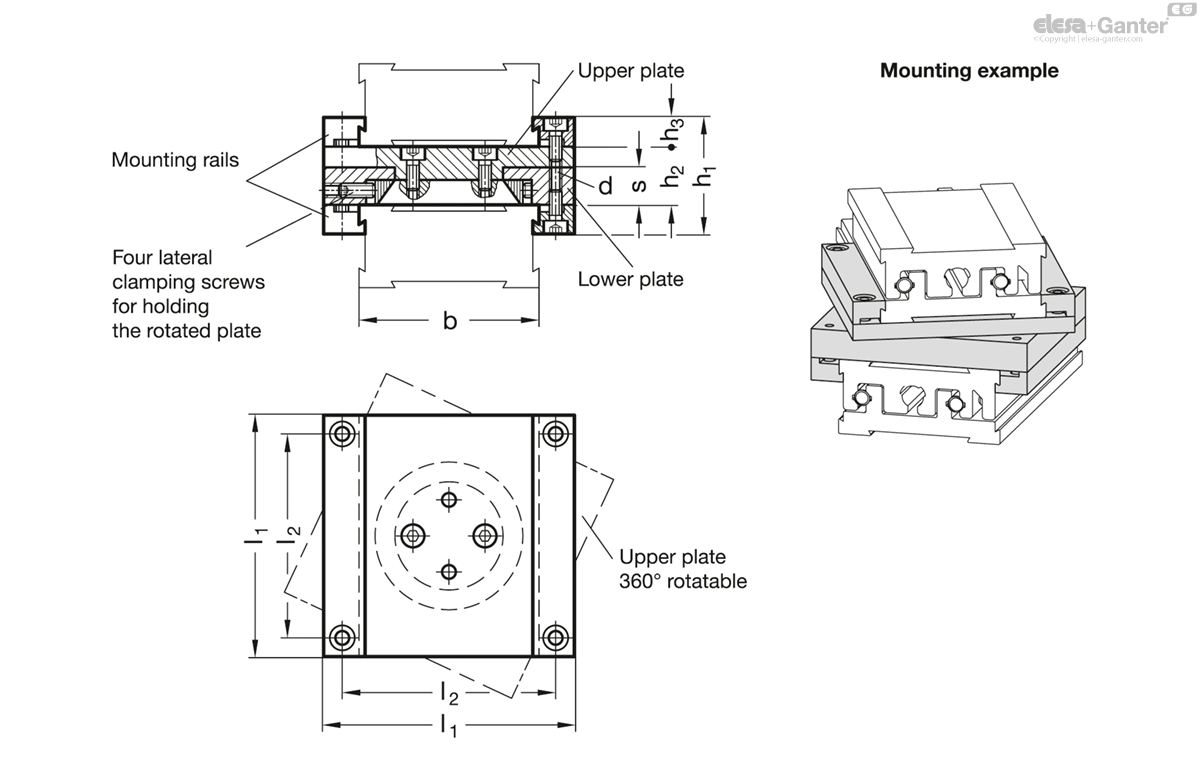

Rotary plates GN 900.5 allow rotation of one of the adjustable slide units at an off-set angle to the other. This possibility offers an additional axis configuration.
The alternative adaptor consists of two plates connected together in the center so they may be rotated. The lower plate is clamped to the lower sliding part, while the upper one is clamped to the stationary base of the upper sliding unit.
All parts required are included.
