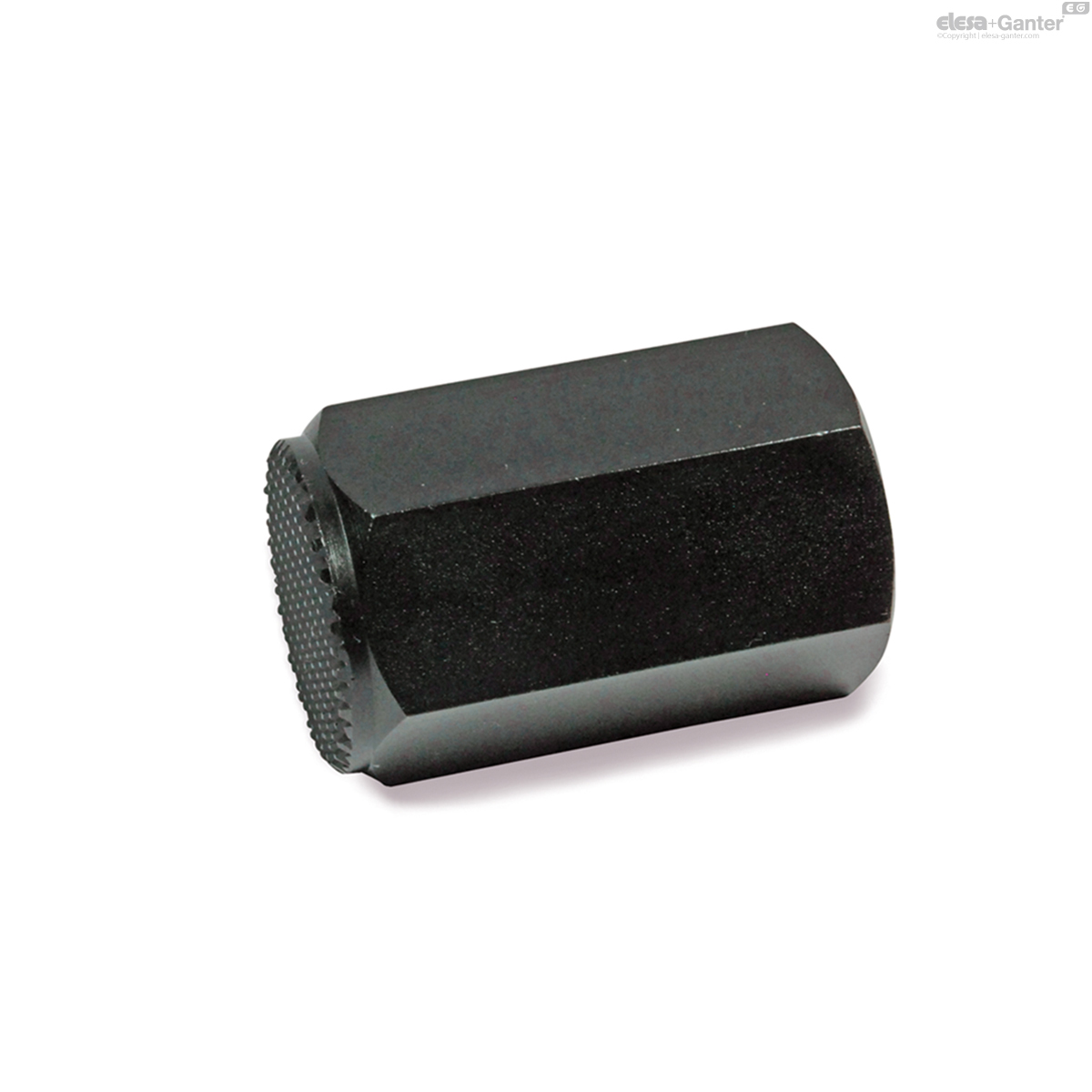

GN 409.2Positioneringselementen

Positioneringselementen

met binnendraad

  • Icons/__logo__RoHS__.png
Positioneringselementen
Positioneringselementen

GN 409.2

Reset
Code
h ±0.01
h ±0.1
d1
d2
t min.
A/F
e
GN 409.2-15-M8-K
-
15
M 8
-
6
17
19.4
25
GN 409.2-15-M8-B
15
-
M 8
17
6
17
19.4
25
GN 409.2-15-M8-R
-
15
M 8
17
6
17
19.4
25
GN 409.2-20-M10-K
-
20
M 10
-
10
19
21.9
39
GN 409.2-20-M10-R
-
20
M 10
19
10
19
21.9
39
GN 409.2-20-M10-B
20
-
M 10
19
10
19
21.9
39
GN 409.2-20-M12-R
-
20
M 12
22
10
22
25.2
52
GN 409.2-20-M12-K
-
20
M 12
-
10
22
25.2
52
GN 409.2-20-M12-B
20
-
M 12
22
10
22
25.2
52
GN 409.2-25-M8-K
-
25
M 8
-
12
17
19.4
42
GN 409.2-25-M8-B
25
-
M 8
17
12
17
19.4
42
GN 409.2-25-M8-R
-
25
M 8
17
12
17
19.4
42
GN 409.2-25-M12-K
-
25
M 12
-
15
22
25.2
63
GN 409.2-25-M12-B
25
-
M 12
22
15
22
25.2
63
GN 409.2-25-M12-R
-
25
M 12
22
15
22
25.2
63
GN 409.2-30-M10-R
-
30
M 10
19
15
19
21.9
61
GN 409.2-30-M10-B
30
-
M 10
19
15
19
21.9
61
GN 409.2-30-M10-K
-
30
M 10
-
15
19
21.9
61
GN 409.2-30-M12-R
-
30
M 12
22
18
22
25.2
79
GN 409.2-30-M12-K
-
30
M 12
-
18
22
25.2
79
GN 409.2-30-M12-B
30
-
M 12
22
18
22
25.2
79
GN 409.2-30-M16-R
-
30
M 16
30
20
30
33
136
GN 409.2-30-M16-K
-
30
M 16
-
20
30
33
136
GN 409.2-30-M16-B
30
-
M 16
30
20
30
33
136
GN 409.2-40-M10-K
-
40
M 10
-
15
19
21.9
85
GN 409.2-40-M10-R
-
40
M 10
19
15
19
21.9
85
GN 409.2-40-M10-B
40
-
M 10
19
15
19
21.9
85
GN 409.2-40-M12-B
40
-
M 12
22
18
22
25,2
110
GN 409.2-40-M12-K
-
40
M 12
-
18
22
25.2
110
GN 409.2-40-M12-R
-
40
M 12
22
18
22
25.2
110
GN 409.2-50-M12-K
-
50
M 12
-
18
22
25.2
142
GN 409.2-50-M12-R
-
50
M 12
22
18
22
25.2
142
GN 409.2-50-M12-B
50
-
M 12
22
18
22
25.2
142
GN 409.2-50-M16-B
50
-
M 16
30
24
30
33
270
GN 409.2-50-M16-R
-
50
M 16
30
24
30
33
270
GN 409.2-50-M16-K
-
50
M 16
-
24
30
33
270

Types

  • Type B: Smooth contact face
  • Type K: Spherical contact face
  • Type R: Serrated contact face

Steel

  • hardened
  • blackened

Positioning elements GN 409.2 with male thread are designe for use as locating plungers, stops and thrust blocks.

Gerelateerde producten

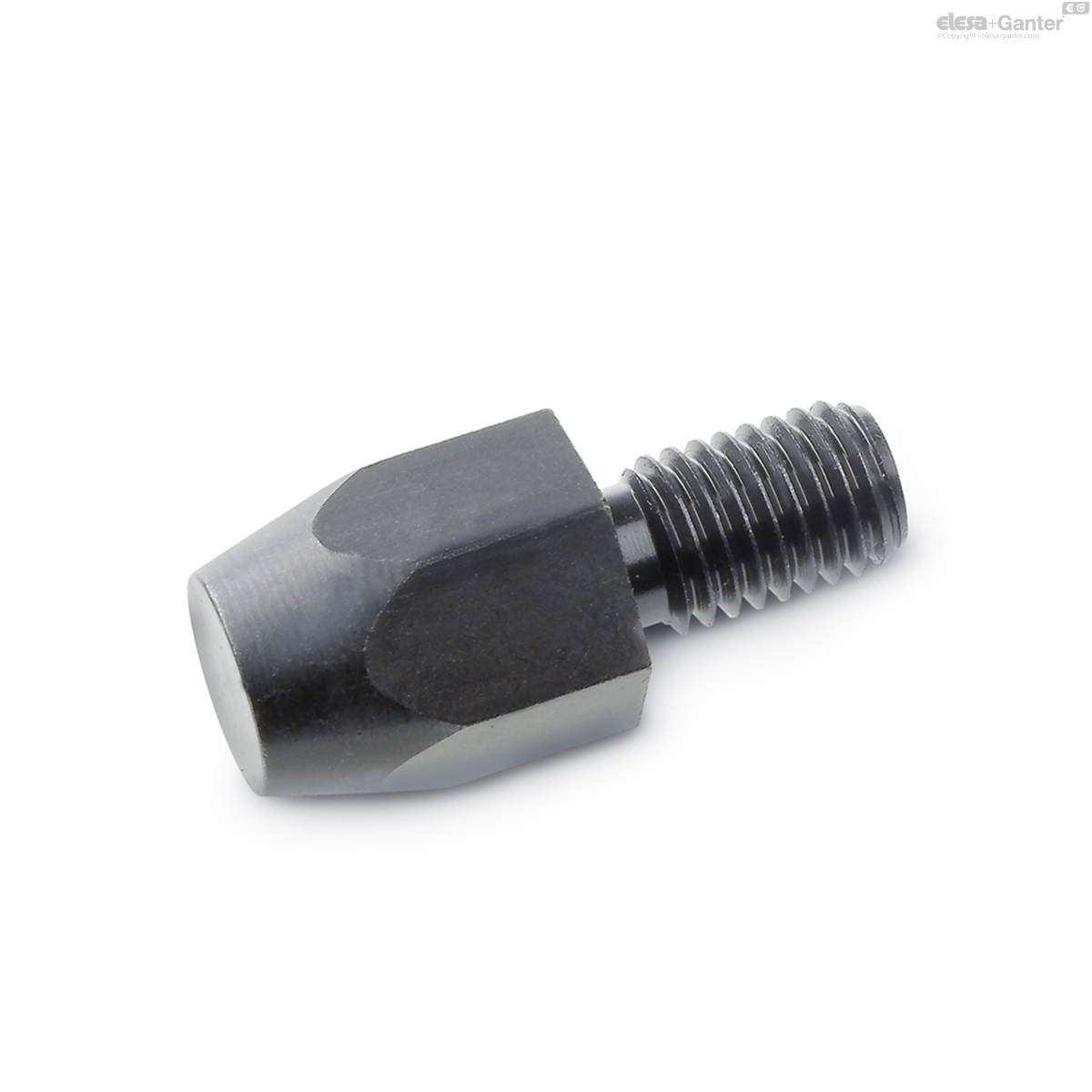

Voeten

DIN 6320

Voeten
Positioneerbouten/steunen

DIN 6321

Positioneerbouten/steunen

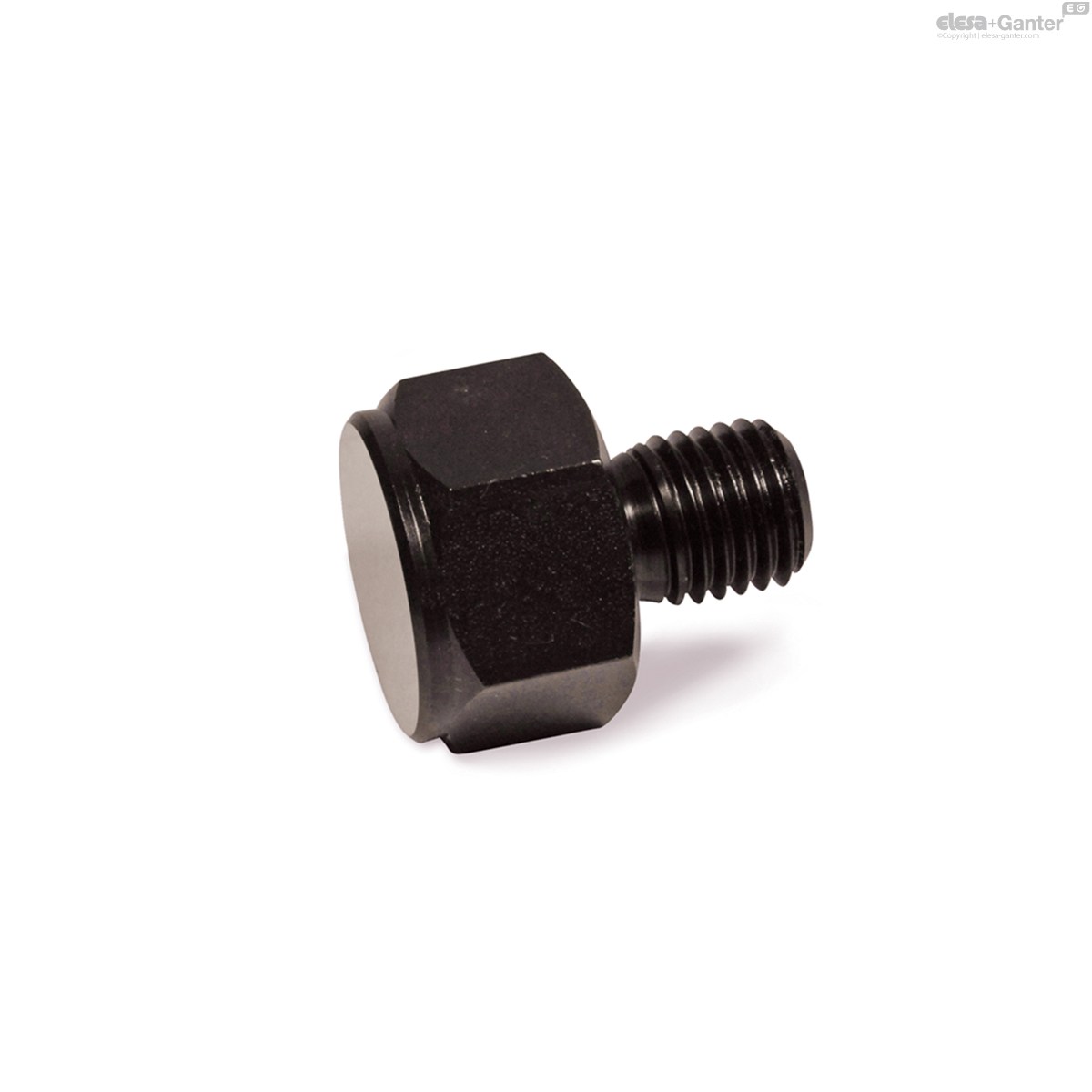

Positioneringselementen

GN 409.1

Positioneringselementen met draadstang

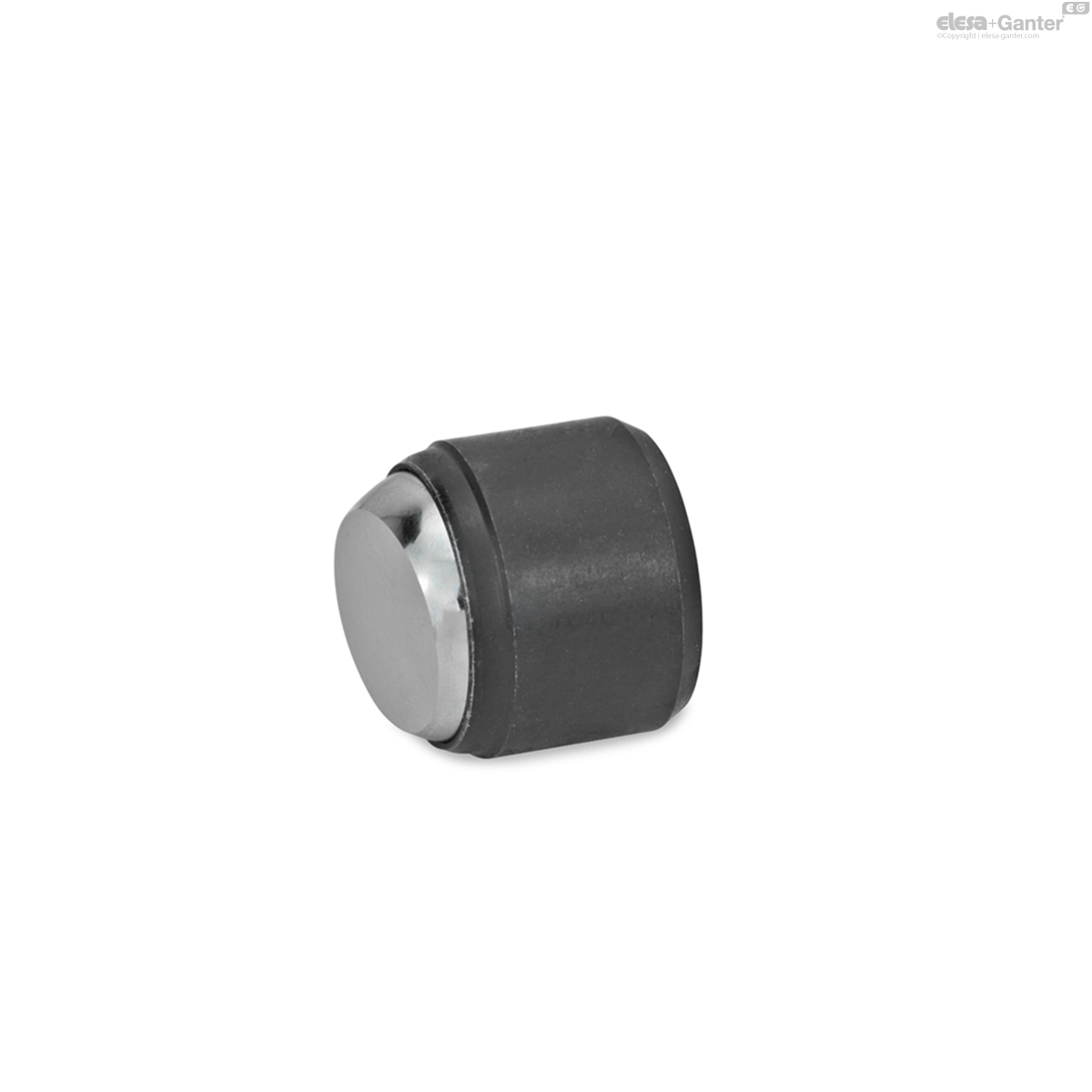

Glad contactvlak

GN 709.2-B

Pendelelementen met binnendraad

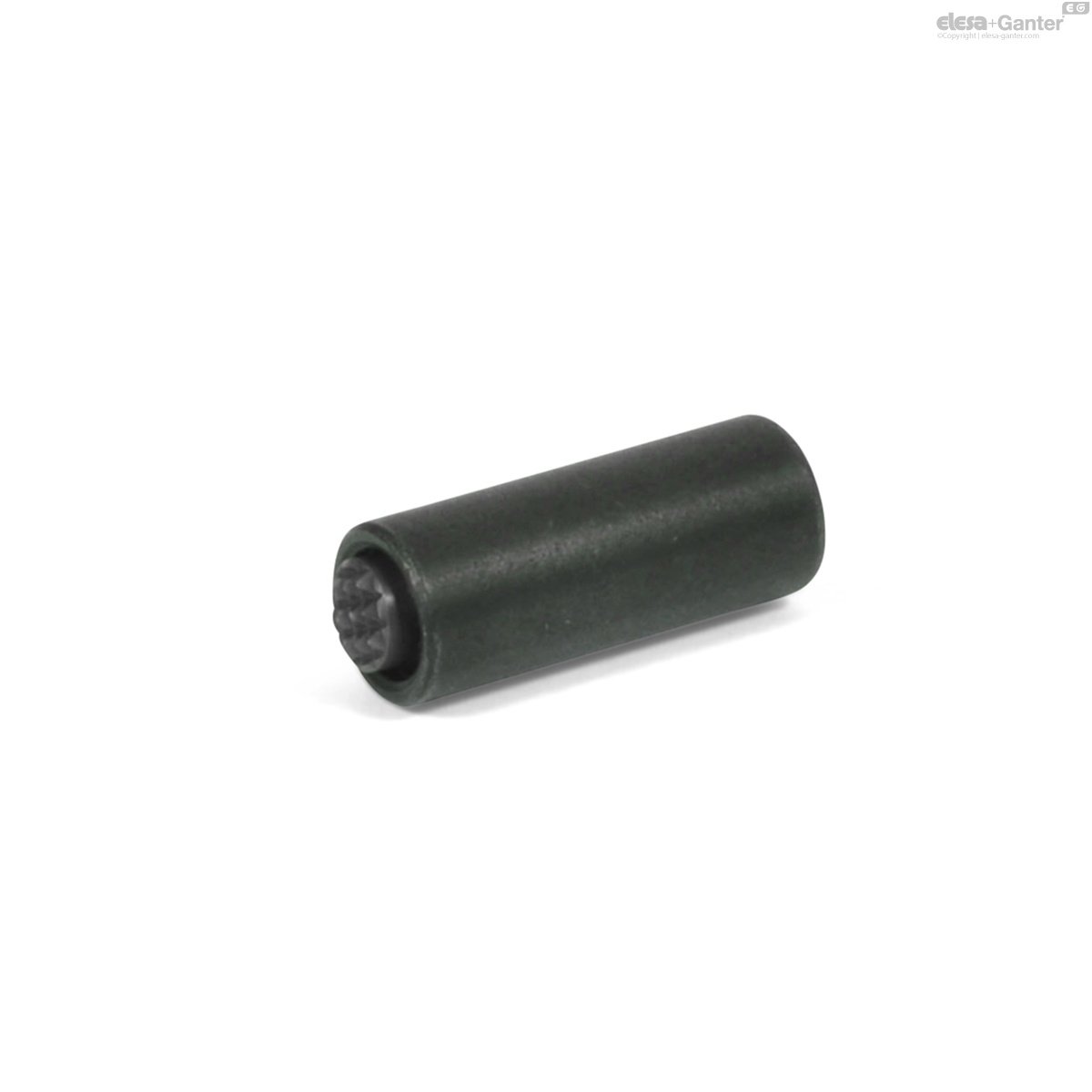

Pendelelementen
