GN 709.7Pendelelementen

Pendelelementen

met binnendraad

  • Icons/__logo__RoHS__.png
Pendelelementen
Pendelelementen

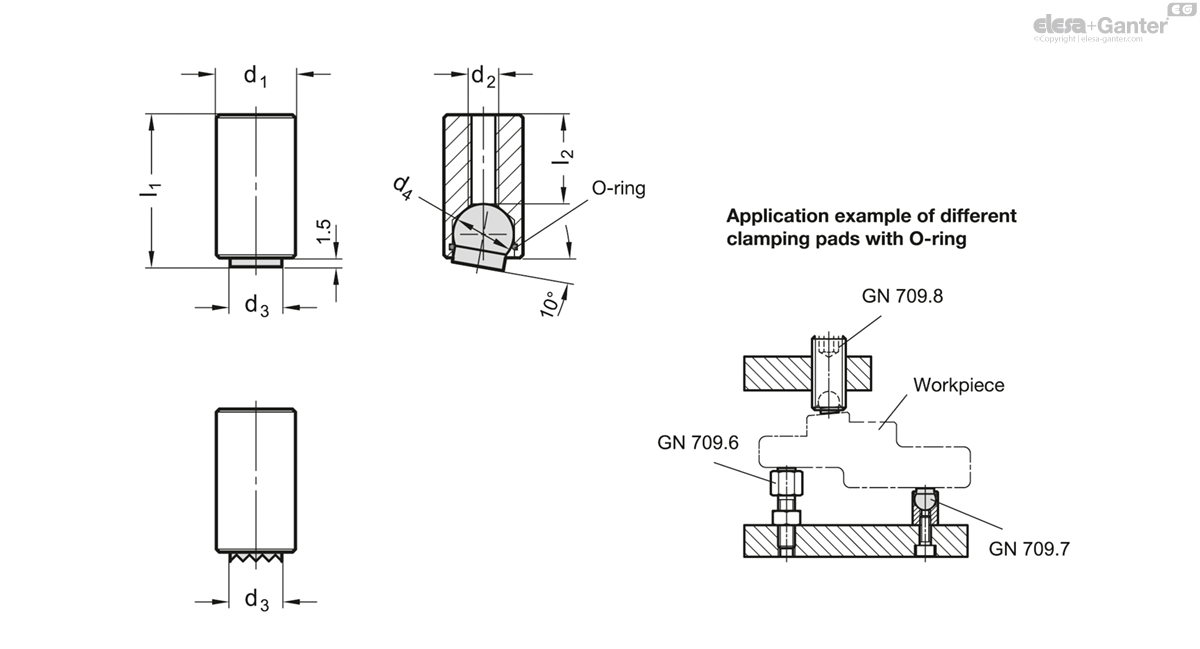

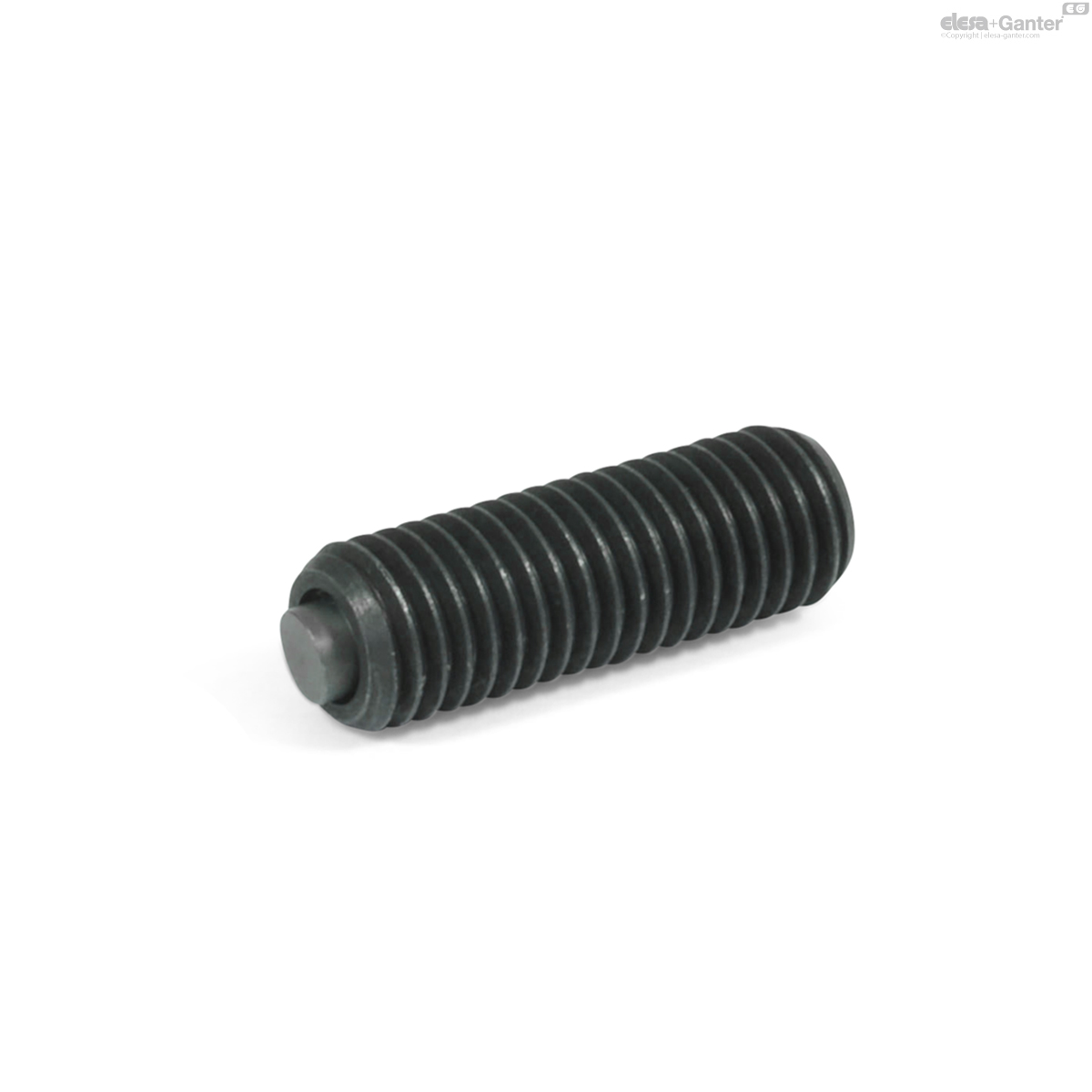

GN 709.7

Code
d1 h9
l1 ±0.13
d2
d3
d4
l2
Static load
max. in kN
10
12
M 4
6
7
4.1
12
7
10
25
M 4
6
7
17.1
12
14
13
16
M 5
8.5
10
5.7
20
16
13
25
M 5
8.5
10
14.7
20
24
10
12
M 4
6
7
4.1
2
6
10
25
M 4
6
7
17.1
2
12
13
16
M 5
8.5
10
5.7
4
12
13
25
M 5
8.5
10
14.7
4
20
10
12
M 4
6
7
4.1
6
7
10
25
M 4
6
7
17.1
6
14
13
16
M 5
8.5
10
5.7
9
16
13
25
M 5
8.5
10
14.7
9
24

Types

  • Type B: Ball steel, smooth contact face
  • Type R: Ball steel, serrated contact face
  • Type K: Ball plastic, smooth contact face

Steel

  • tempered
  • Tensile strength class 10.9

Ball

Type B and R:

Steel hardened (54+2 HRC)

Type K:

Plastic (Polyacetal POM)

O-Ring

Rubber NBR (Perbunan®)

Clamping pads GN 709.7 are also used in jig and fixture construction, for example for clamping workpieces, as movable bearing surface or as stop. The swivel-mounted ball compensates uneven and non-parallel contact surfaces by as much as 10°. It is also secured against further twisting.

The O-ring holds the ball in position and prevents dirt from penetrating, resulting in a long service life and constant mobility.
