Technical datasheet

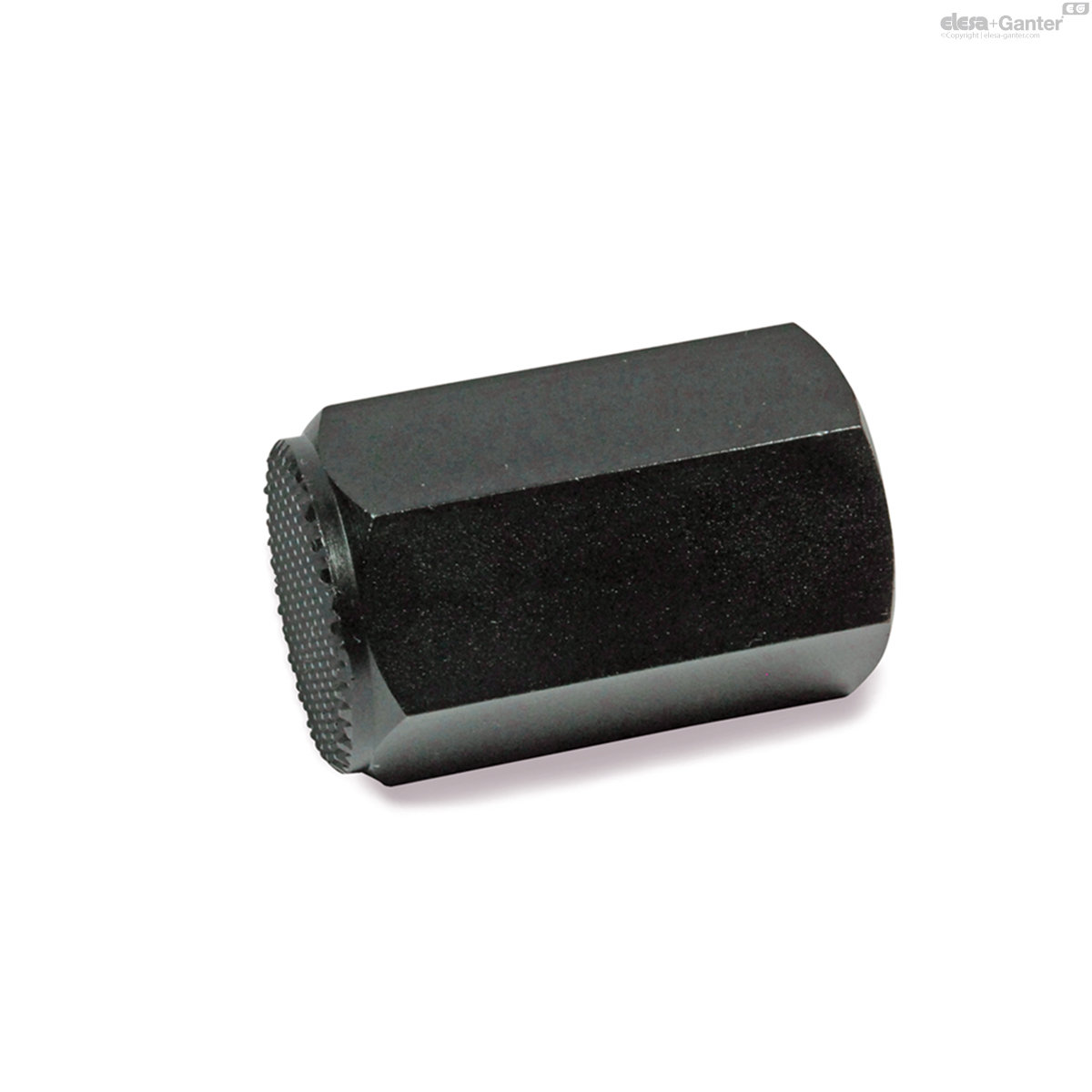

GN 409.2Positionier-Elemente
Positionier-Elemente
mit Innengewinde
|
Katalog
|
h ±0.01
|
h ±0.1
|
d1
|
d2
|
t min.
|
A/F
|
e
|
|
|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
GN 409.2-15-M8-K
|
-
|
15
|
M 8
|
-
|
6
|
17
|
19.4
|
25
|
|
GN 409.2-15-M8-B
|
15
|
-
|
M 8
|
17
|
6
|
17
|
19.4
|
25
|
|
GN 409.2-15-M8-R
|
-
|
15
|
M 8
|
17
|
6
|
17
|
19.4
|
25
|
|
GN 409.2-20-M10-K
|
-
|
20
|
M 10
|
-
|
10
|
19
|
21.9
|
39
|
|
GN 409.2-20-M10-R
|
-
|
20
|
M 10
|
19
|
10
|
19
|
21.9
|
39
|
|
GN 409.2-20-M10-B
|
20
|
-
|
M 10
|
19
|
10
|
19
|
21.9
|
39
|
|
GN 409.2-20-M12-R
|
-
|
20
|
M 12
|
22
|
10
|
22
|
25.2
|
52
|
|
GN 409.2-20-M12-K
|
-
|
20
|
M 12
|
-
|
10
|
22
|
25.2
|
52
|
|
GN 409.2-20-M12-B
|
20
|
-
|
M 12
|
22
|
10
|
22
|
25.2
|
52
|
|
GN 409.2-25-M8-K
|
-
|
25
|
M 8
|
-
|
12
|
17
|
19.4
|
42
|
|
GN 409.2-25-M8-B
|
25
|
-
|
M 8
|
17
|
12
|
17
|
19.4
|
42
|
|
GN 409.2-25-M8-R
|
-
|
25
|
M 8
|
17
|
12
|
17
|
19.4
|
42
|
|
GN 409.2-25-M12-K
|
-
|
25
|
M 12
|
-
|
15
|
22
|
25.2
|
63
|
|
GN 409.2-25-M12-B
|
25
|
-
|
M 12
|
22
|
15
|
22
|
25.2
|
63
|
|
GN 409.2-25-M12-R
|
-
|
25
|
M 12
|
22
|
15
|
22
|
25.2
|
63
|
|
GN 409.2-30-M10-R
|
-
|
30
|
M 10
|
19
|
15
|
19
|
21.9
|
61
|
|
GN 409.2-30-M10-B
|
30
|
-
|
M 10
|
19
|
15
|
19
|
21.9
|
61
|
|
GN 409.2-30-M10-K
|
-
|
30
|
M 10
|
-
|
15
|
19
|
21.9
|
61
|
|
GN 409.2-30-M12-R
|
-
|
30
|
M 12
|
22
|
18
|
22
|
25.2
|
79
|
|
GN 409.2-30-M12-K
|
-
|
30
|
M 12
|
-
|
18
|
22
|
25.2
|
79
|
|
GN 409.2-30-M12-B
|
30
|
-
|
M 12
|
22
|
18
|
22
|
25.2
|
79
|
|
GN 409.2-30-M16-R
|
-
|
30
|
M 16
|
30
|
20
|
30
|
33
|
136
|
|
GN 409.2-30-M16-K
|
-
|
30
|
M 16
|
-
|
20
|
30
|
33
|
136
|
|
GN 409.2-30-M16-B
|
30
|
-
|
M 16
|
30
|
20
|
30
|
33
|
136
|
|
GN 409.2-40-M10-K
|
-
|
40
|
M 10
|
-
|
15
|
19
|
21.9
|
85
|
|
GN 409.2-40-M10-R
|
-
|
40
|
M 10
|
19
|
15
|
19
|
21.9
|
85
|
|
GN 409.2-40-M10-B
|
40
|
-
|
M 10
|
19
|
15
|
19
|
21.9
|
85
|
|
GN 409.2-40-M12-B
|
40
|
-
|
M 12
|
22
|
18
|
22
|
25,2
|
110
|
|
GN 409.2-40-M12-K
|
-
|
40
|
M 12
|
-
|
18
|
22
|
25.2
|
110
|
|
GN 409.2-40-M12-R
|
-
|
40
|
M 12
|
22
|
18
|
22
|
25.2
|
110
|
|
GN 409.2-50-M12-K
|
-
|
50
|
M 12
|
-
|
18
|
22
|
25.2
|
142
|
|
GN 409.2-50-M12-R
|
-
|
50
|
M 12
|
22
|
18
|
22
|
25.2
|
142
|
|
GN 409.2-50-M12-B
|
50
|
-
|
M 12
|
22
|
18
|
22
|
25.2
|
142
|
|
GN 409.2-50-M16-B
|
50
|
-
|
M 16
|
30
|
24
|
30
|
33
|
270
|
|
GN 409.2-50-M16-R
|
-
|
50
|
M 16
|
30
|
24
|
30
|
33
|
270
|
|
GN 409.2-50-M16-K
|
-
|
50
|
M 16
|
-
|
24
|
30
|
33
|
270
|

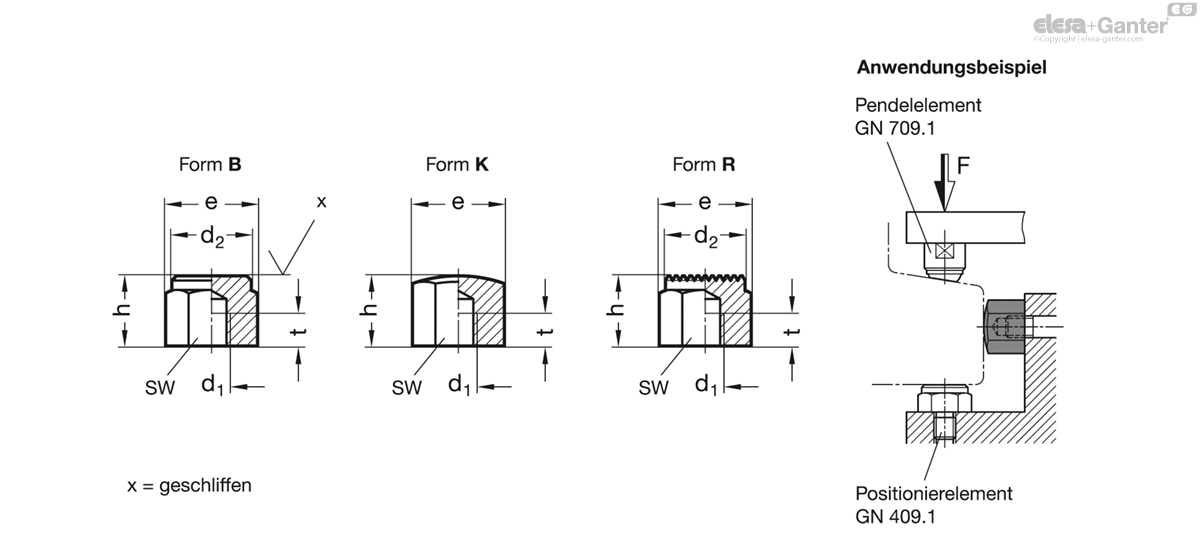

Form
- B: Druckfläche plan
- K: Druckfläche gewölbt
- R: Druckfläche geriffelt
Stahl
- gehärtet
- brüniert
Positionierelemente GN 409.2 mit Innengewinde werden als Auflagen, Anschläge und Druckstücke verwendet.
Verwandte Produkte
DIN 6320

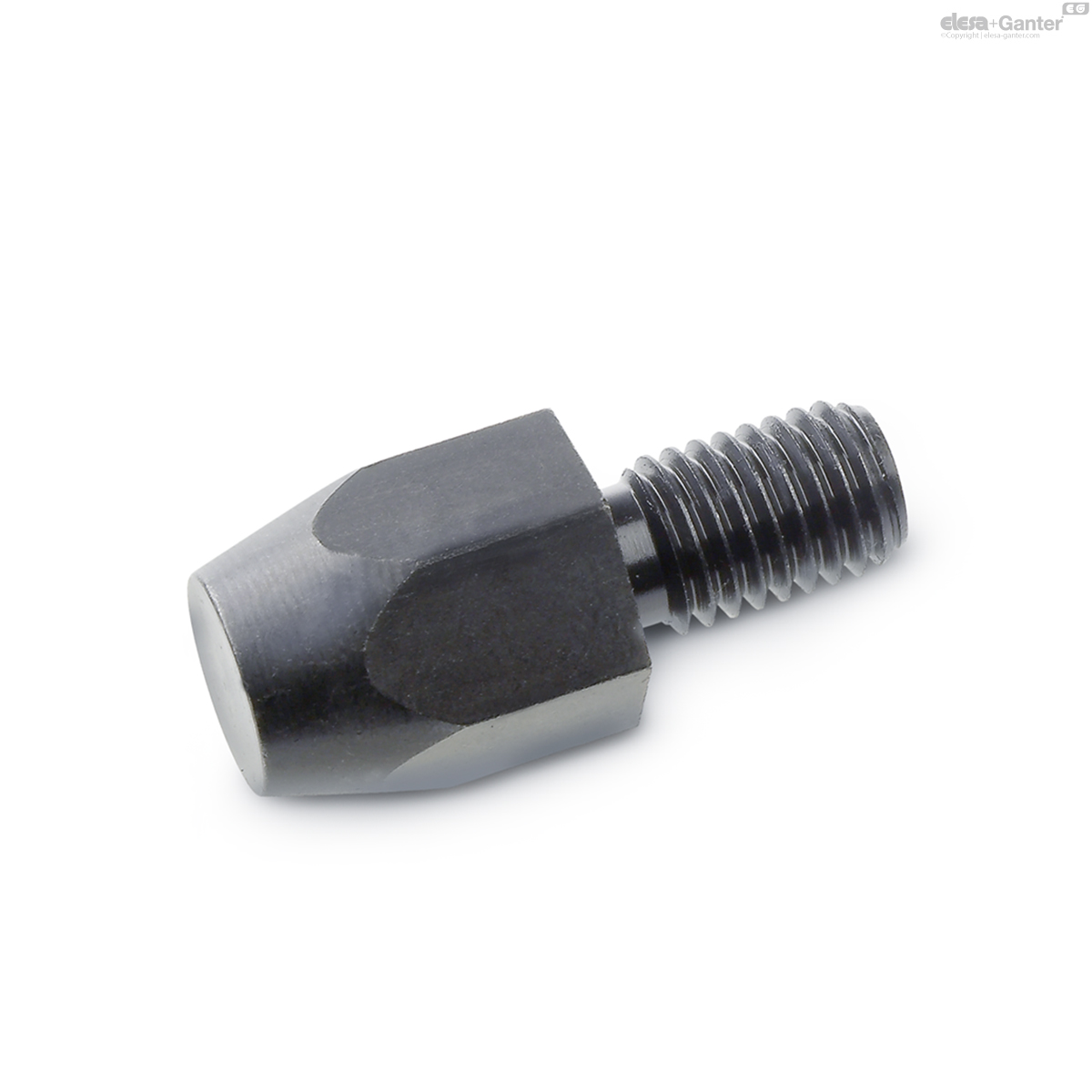

Füße
DIN 6321
Aufnahme-/Auflagebolzen
GN 409.1

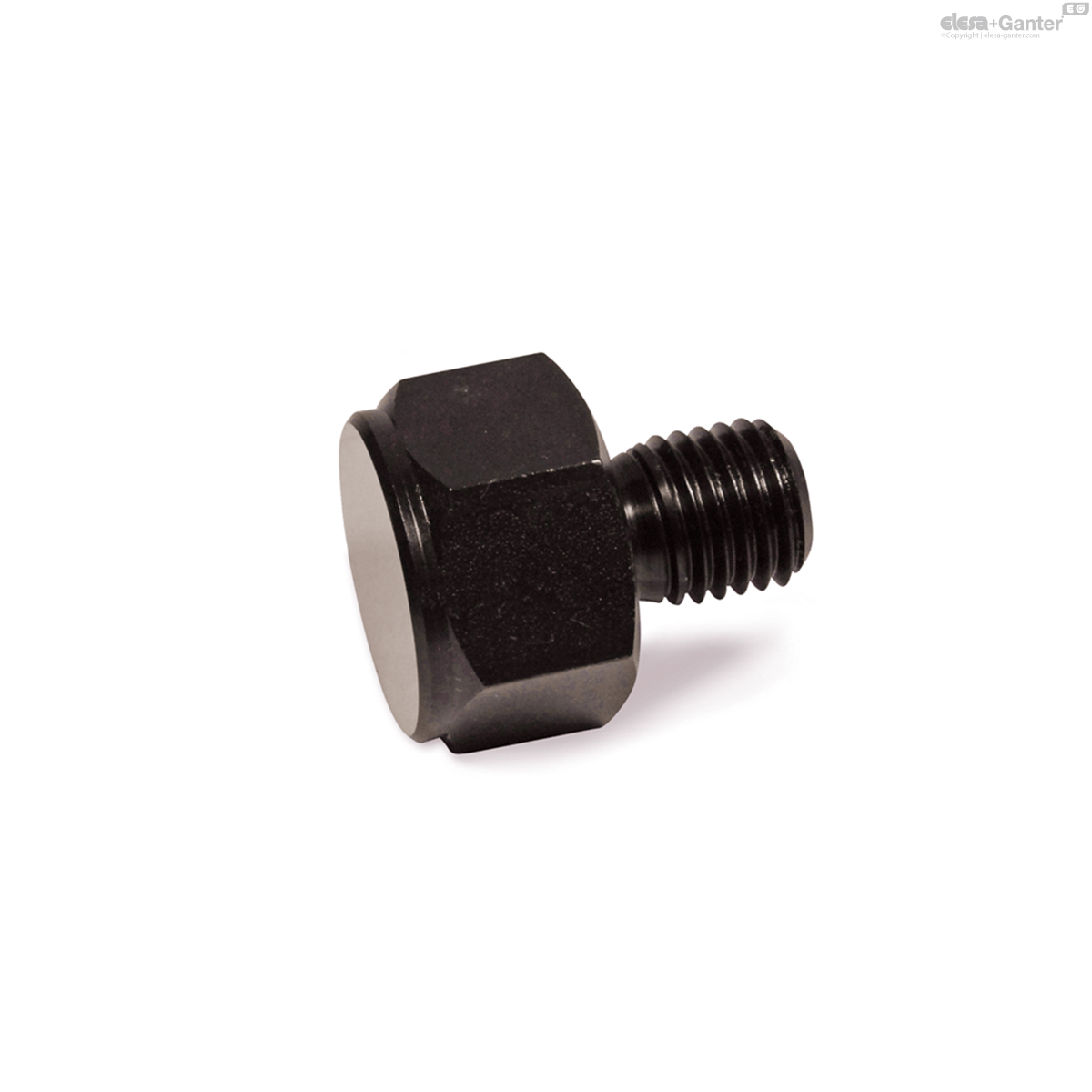

Positionier-Elemente
