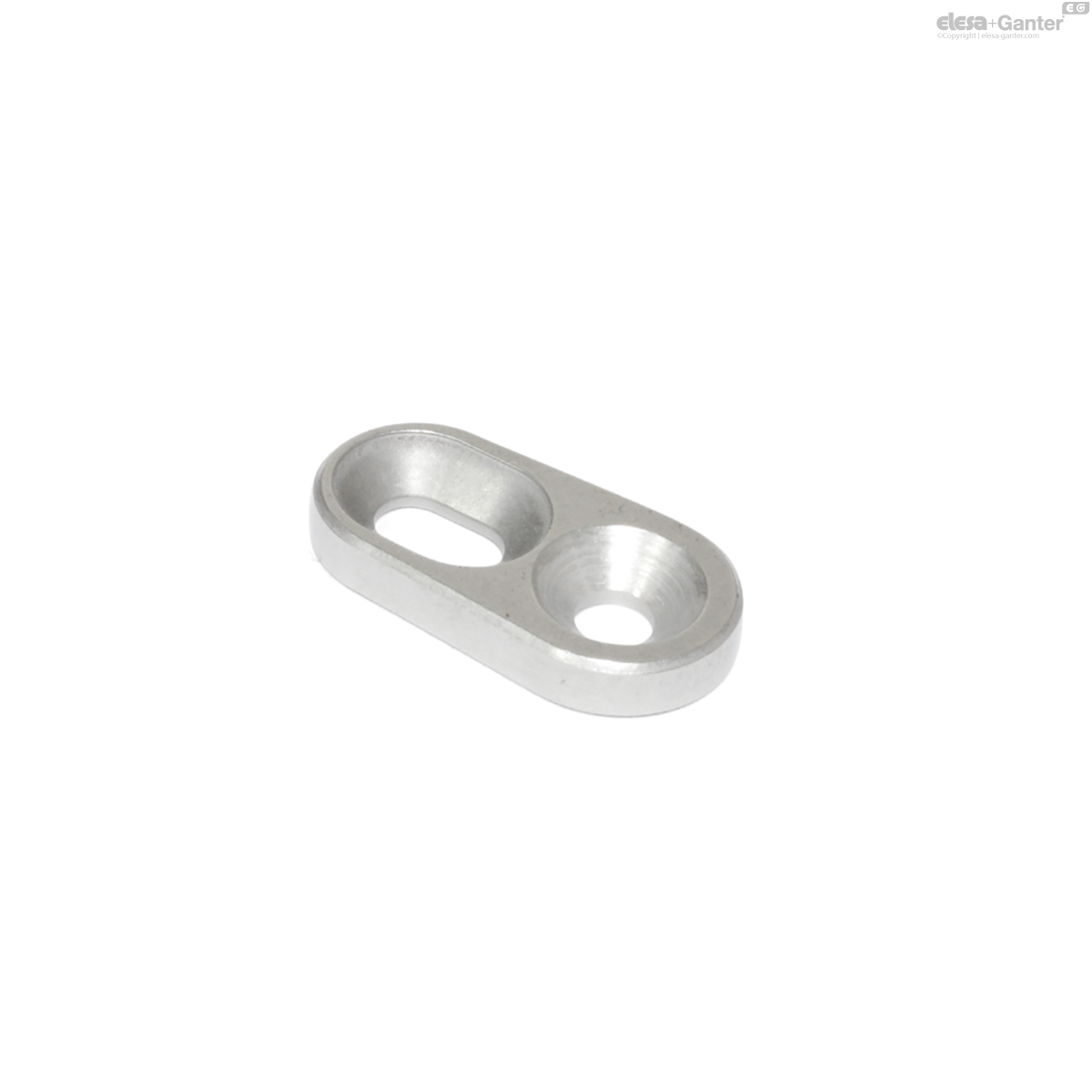

GN 2344Roestvrijstalen borgringen

Roestvrijstalen borgringen

  • INOX
  • RoHS
Roestvrijstalen borgringen
Roestvrijstalen borgringen

GN 2344

Code
d1
d2
d3
d4
d5
h
l1
l2
l3
l4
l5
s1
4.3
12
9.2
2.5
6
7
13.5
10.8
-
-
-
3
4.3
15
9.2
2.5
6.3
7
15
12.3
-
-
-
3
5.3
17
11.5
3
7.2
7
18.5
15
-
-
-
4
5.3
22
11.5
3
7.5
9
21
17.5
-
-
-
4
6.4
26
13.7
3.5
8.1
9
24
20.3
-
-
-
4
4.3
12
9.2
-
-
-
-
-
18
10
2
-
4.3
15
9.2
-
-
-
-
-
21
11
4
-
5.3
17
11.5
-
-
-
-
-
23
12
4
-
5.3
22
11.5
-
-
-
-
-
28
15
6
-
6.4
26
13.7
-
-
-
-
-
31
17
6
-

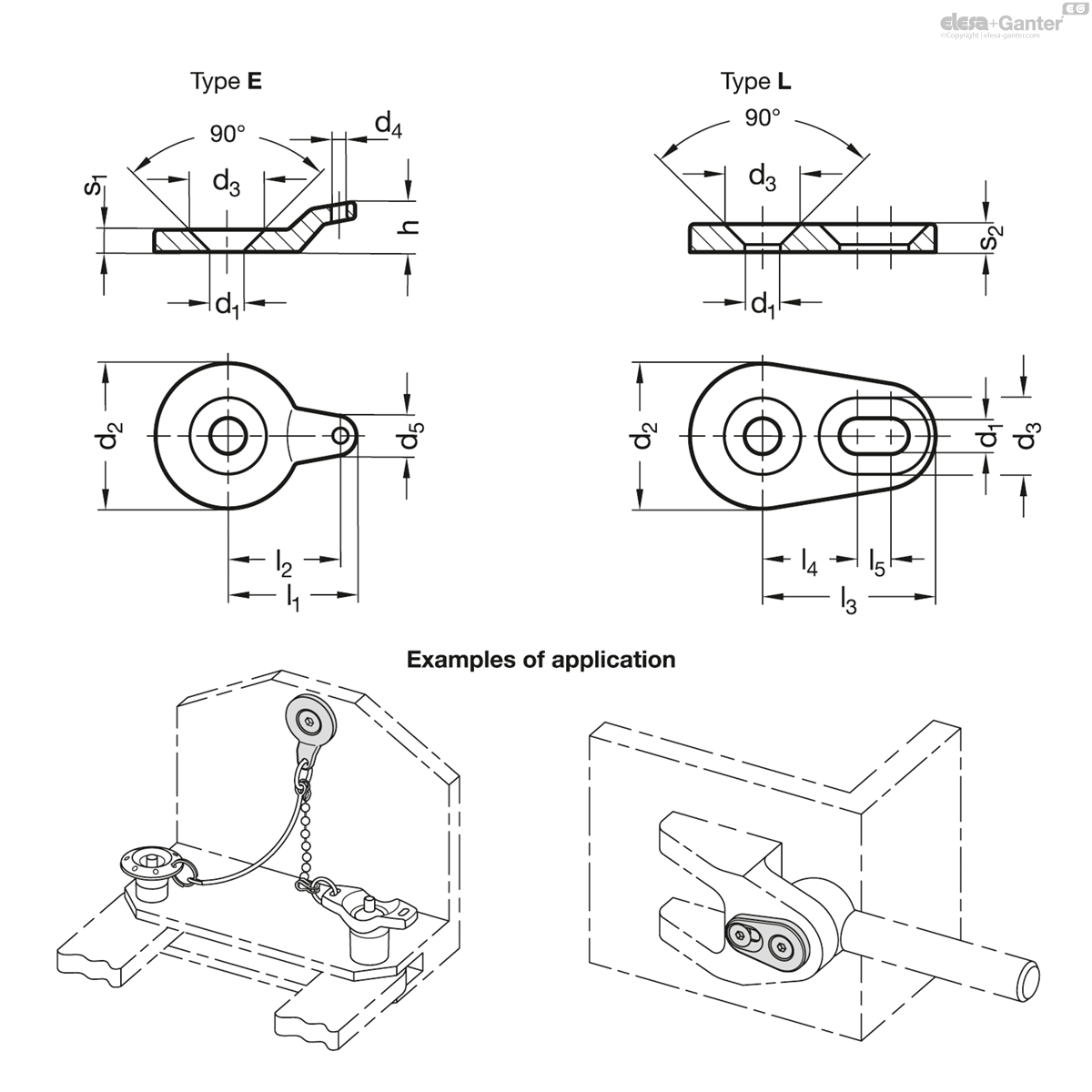

Types

  • Type E: with eyelet
  • Type L: with mounting shackle

Stainless Steel NI

  • Type E: metal injection molded, AISI 316 LHC, ground
  • Type L: sintered AISI 316 LHC, ground

GN 2344 Stainless Steel-Retaining washers are universally usable standard parts.

Type E is suitable for use in connection with retaining cables and ball chains to mount other standard or securing parts in order to prevent loss.

Type L is suitable, for example, for mounting bolts or axes, which can thereby simultaneously be secured in an axial and also in a radial position.
