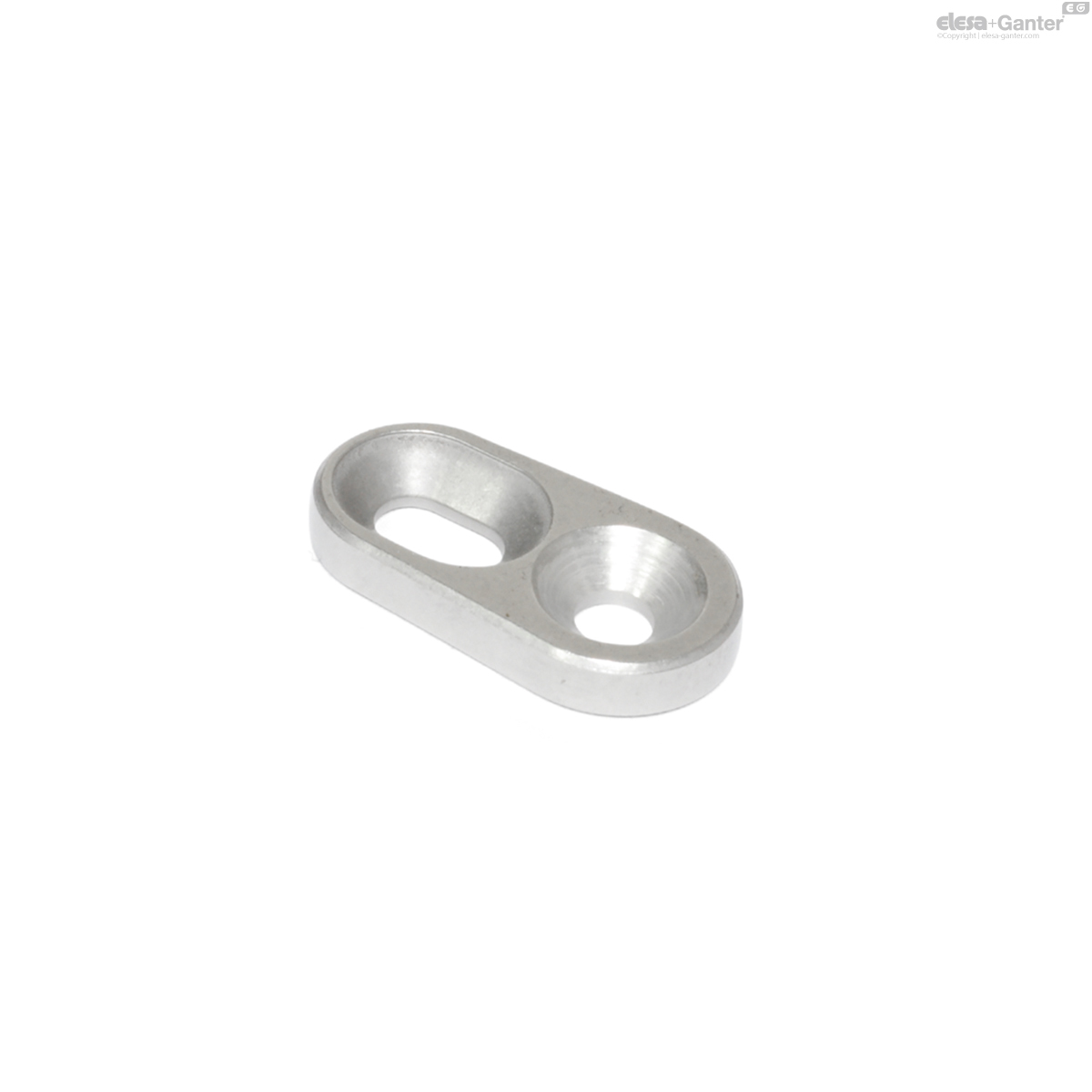

2344-NI-5,3-17-L GN 2344 Roestvrijstalen borgringen
Verwachte levertermijn 5-7 werkdagen
Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- GN 2344-NI-5,3-17-L
- d1
- 5.3
- d2
- 17
- d3
- 11.5
- l3
- 23
- l4
- 12
- l5
- 4
- s2
- 4.5
- 11
Types
- Type E: with eyelet
- Type L: with mounting shackle
Stainless Steel NI
- Type E: metal injection molded, AISI 316 LHC, ground
- Type L: sintered AISI 316 LHC, ground
GN 2344 Stainless Steel-Retaining washers are universally usable standard parts.
Type E is suitable for use in connection with retaining cables and ball chains to mount other standard or securing parts in order to prevent loss.
Type L is suitable, for example, for mounting bolts or axes, which can thereby simultaneously be secured in an axial and also in a radial position.
