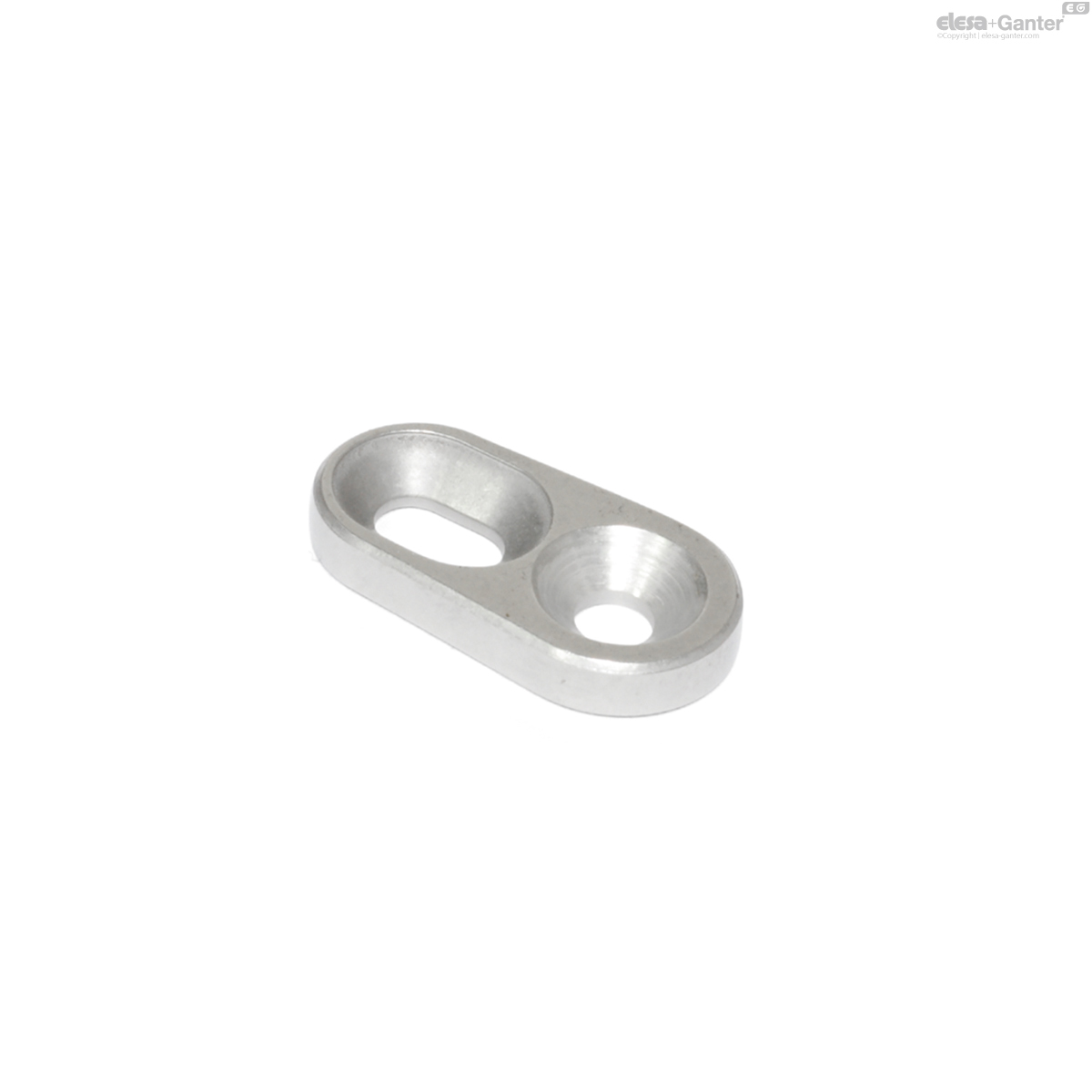

2344-NI-4,3-12-E GN 2344 Roestvrijstalen borgringen
Lt: 1-2 weken
Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- GN 2344-NI-4,3-12-E
- d1
- 4.3
- d2
- 12
- d3
- 9.2
- d4
- 2.5
- d5
- 6
- h
- 7
- l1
- 13.5
- l2
- 10.8
- s1
- 3
- Suitable key rings
for type E - Ø14
- 3
Types
- Type E: with eyelet
- Type L: with mounting shackle
Stainless Steel NI
- Type E: metal injection molded, AISI 316 LHC, ground
- Type L: sintered AISI 316 LHC, ground
GN 2344 Stainless Steel-Retaining washers are universally usable standard parts.
Type E is suitable for use in connection with retaining cables and ball chains to mount other standard or securing parts in order to prevent loss.
Type L is suitable, for example, for mounting bolts or axes, which can thereby simultaneously be secured in an axial and also in a radial position.
