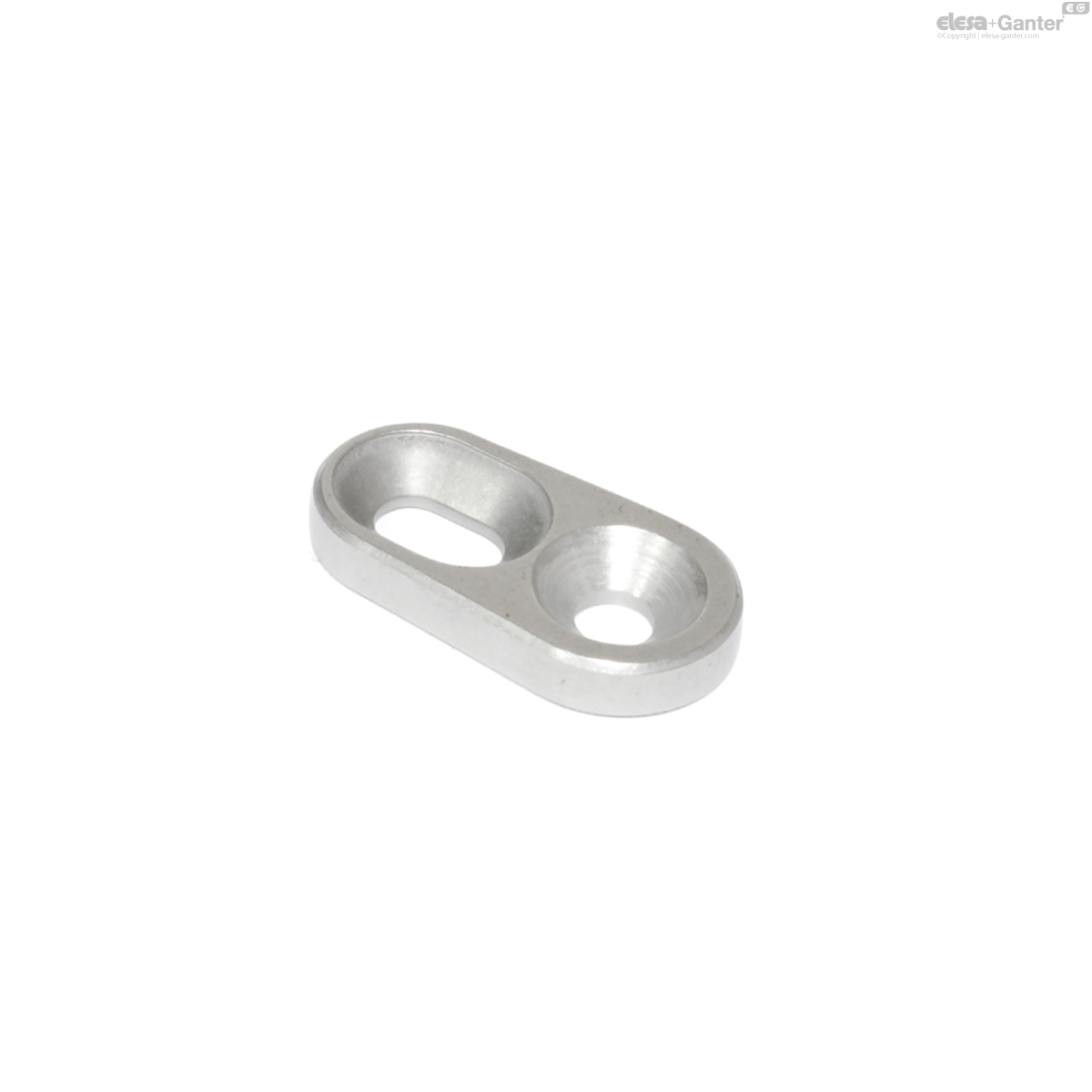

2344-NI-5,3-22-E GN 2344 Roestvrijstalen borgringen
Verwachte levertermijn 5-7 werkdagen
Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- GN 2344-NI-5,3-22-E
- d1
- 5.3
- d2
- 22
- d3
- 11.5
- d4
- 3
- d5
- 7.5
- h
- 9
- l1
- 21
- l2
- 17.5
- s1
- 4
- Suitable key rings
for type E - Ø14 Ø18
- 12
Types
- Type E: with eyelet
- Type L: with mounting shackle
Stainless Steel NI
- Type E: metal injection molded, AISI 316 LHC, ground
- Type L: sintered AISI 316 LHC, ground
GN 2344 Stainless Steel-Retaining washers are universally usable standard parts.
Type E is suitable for use in connection with retaining cables and ball chains to mount other standard or securing parts in order to prevent loss.
Type L is suitable, for example, for mounting bolts or axes, which can thereby simultaneously be secured in an axial and also in a radial position.
