413-8-M16X1,5-A-ST GN 413 Staal

413-8-M16X1,5-A-ST

GN 413 Staal

Staal / roestvrij staal, met en zonder rustpositie
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 413

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 413-8-M16x1,5-A-ST
d1 Pin -0.05/-0.10
Bore
H7
8
d2
M 16 x 1.5
d3
2
l1 min.
9
l2
34
l4
25
m
22
Spring load in N ≈
initial
7
Spring load in N ≈
end
27
45

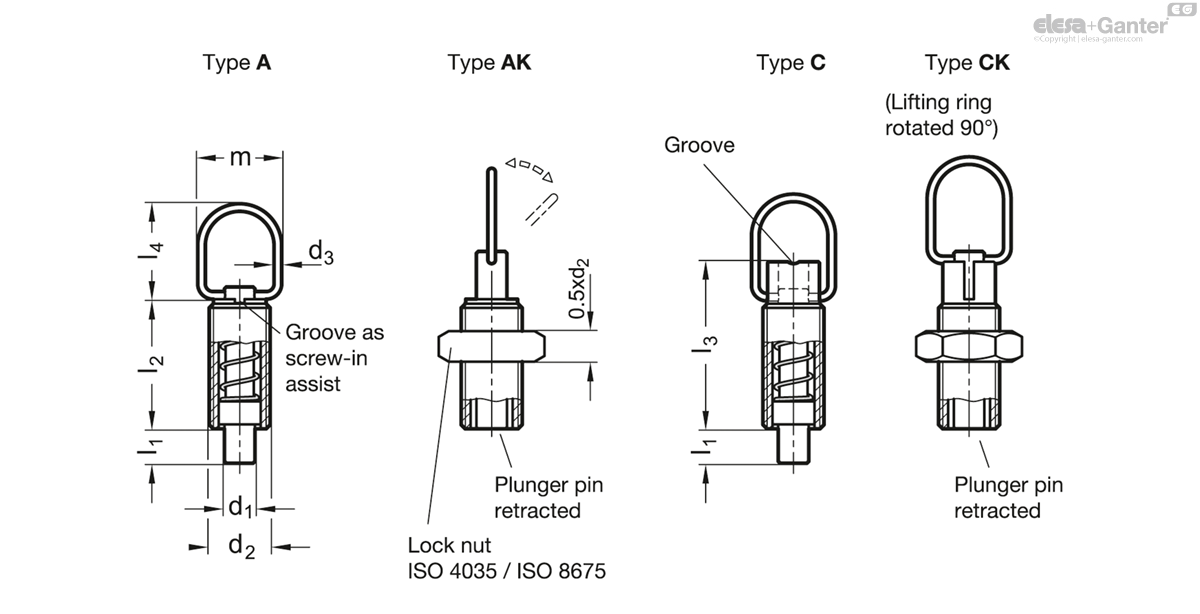

413-8-M16X1,5-A-ST drawing

Types

  • Type A: without rest position, without lock nut
  • Type AK: without rest position, with lock nut
  • Type C: with rest position, without lock nut
  • Type CK: with rest position, with lock nut

Guide (Threaded socket)

Version in Steel ST

blackened

Guide (Threaded socket)

Version in Stainless Steel AISI 303 NI

Pin

Stainless Steel AISI 303

chemically nickel plated

Spring / Lifting ring

Stainless Steel AISI 301

Owing to its shape, the lifting ring of the indexing plungers GN 413 can be used both as a screw-in assist during assembly or as indexing lock (Type C / Type CK).

Indexing plungers with rest position are used when the indexing pin is temporarily not allowed to protrude. After the pin is pulled in, turn the pull ring by 90°. The ring is held in position by an indexing notch.
