413-8-M16X1,5-A-ST GN 413 Steel

413-8-M16X1,5-A-ST

GN 413 Steel

Steel / Stainless Steel, with and without rest position
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 413

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 413-8-M16x1,5-A-ST
d1 Pin -0.05/-0.10
Bore
H7
8
d2
M 16 x 1.5
d3
2
l1 min.
9
l2
34
l4
25
m
22
Spring load in N ≈
initial
7
Spring load in N ≈
end
27
45

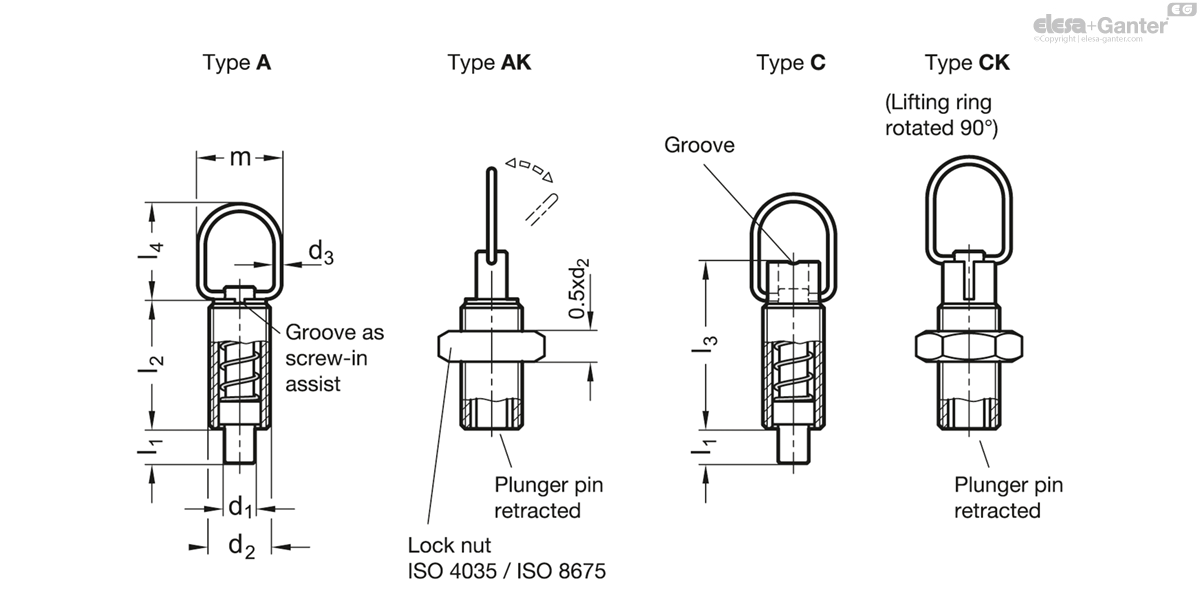

413-8-M16X1,5-A-ST drawing

Types

  • Type A: without rest position, without lock nut
  • Type AK: without rest position, with lock nut
  • Type C: with rest position, without lock nut
  • Type CK: with rest position, with lock nut

Guide (Threaded socket)

Version in Steel ST

blackened

Guide (Threaded socket)

Version in Stainless Steel AISI 303 NI

Pin

Stainless Steel AISI 303

chemically nickel plated

Spring / Lifting ring

Stainless Steel AISI 301

Owing to its shape, the lifting ring of the indexing plungers GN 413 can be used both as a screw-in assist during assembly or as indexing lock (Type C / Type CK).

Indexing plungers with rest position are used when the indexing pin is temporarily not allowed to protrude. After the pin is pulled in, turn the pull ring by 90°. The ring is held in position by an indexing notch.
