413-8-M16X1,5-A-ST GN 413 Acier

413-8-M16X1,5-A-ST

GN 413 Acier

Acier / Acier inoxydable, avec et sans position de repos
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de GN 413

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 413-8-M16x1,5-A-ST
d1 Pin -0.05/-0.10
Bore
H7
8
d2
M 16 x 1.5
d3
2
l1 min.
9
l2
34
l4
25
m
22
Spring load in N ≈
initial
7
Spring load in N ≈
end
27
45

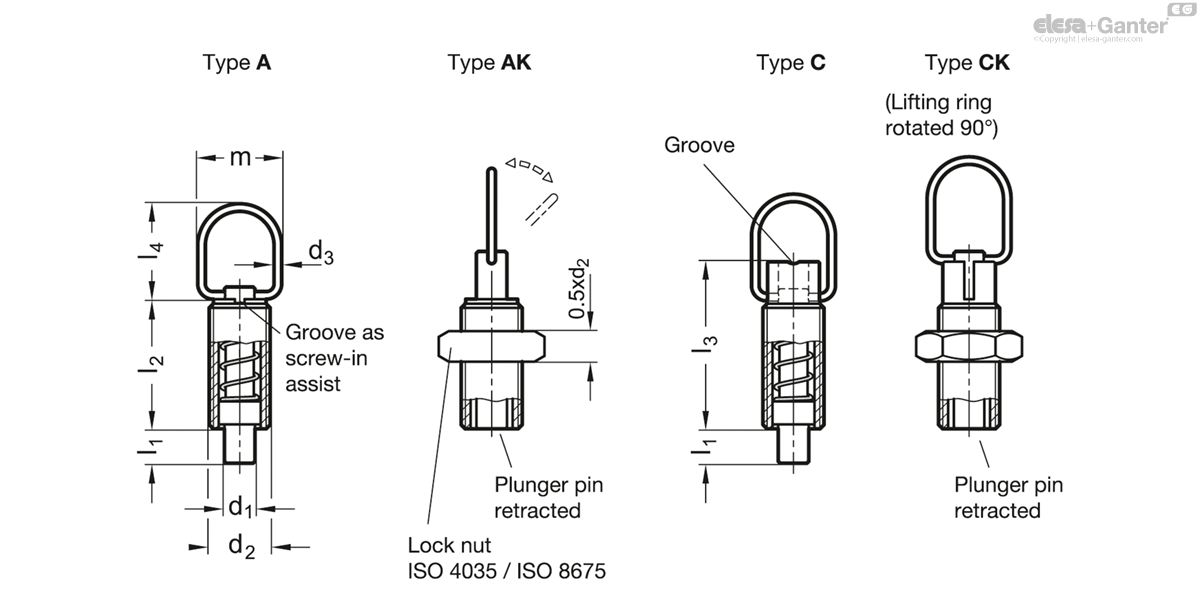

413-8-M16X1,5-A-ST drawing

Types

  • Type A: without rest position, without lock nut
  • Type AK: without rest position, with lock nut
  • Type C: with rest position, without lock nut
  • Type CK: with rest position, with lock nut

Guide (Threaded socket)

Version in Steel ST

blackened

Guide (Threaded socket)

Version in Stainless Steel AISI 303 NI

Pin

Stainless Steel AISI 303

chemically nickel plated

Spring / Lifting ring

Stainless Steel AISI 301

Owing to its shape, the lifting ring of the indexing plungers GN 413 can be used both as a screw-in assist during assembly or as indexing lock (Type C / Type CK).

Indexing plungers with rest position are used when the indexing pin is temporarily not allowed to protrude. After the pin is pulled in, turn the pull ring by 90°. The ring is held in position by an indexing notch.
