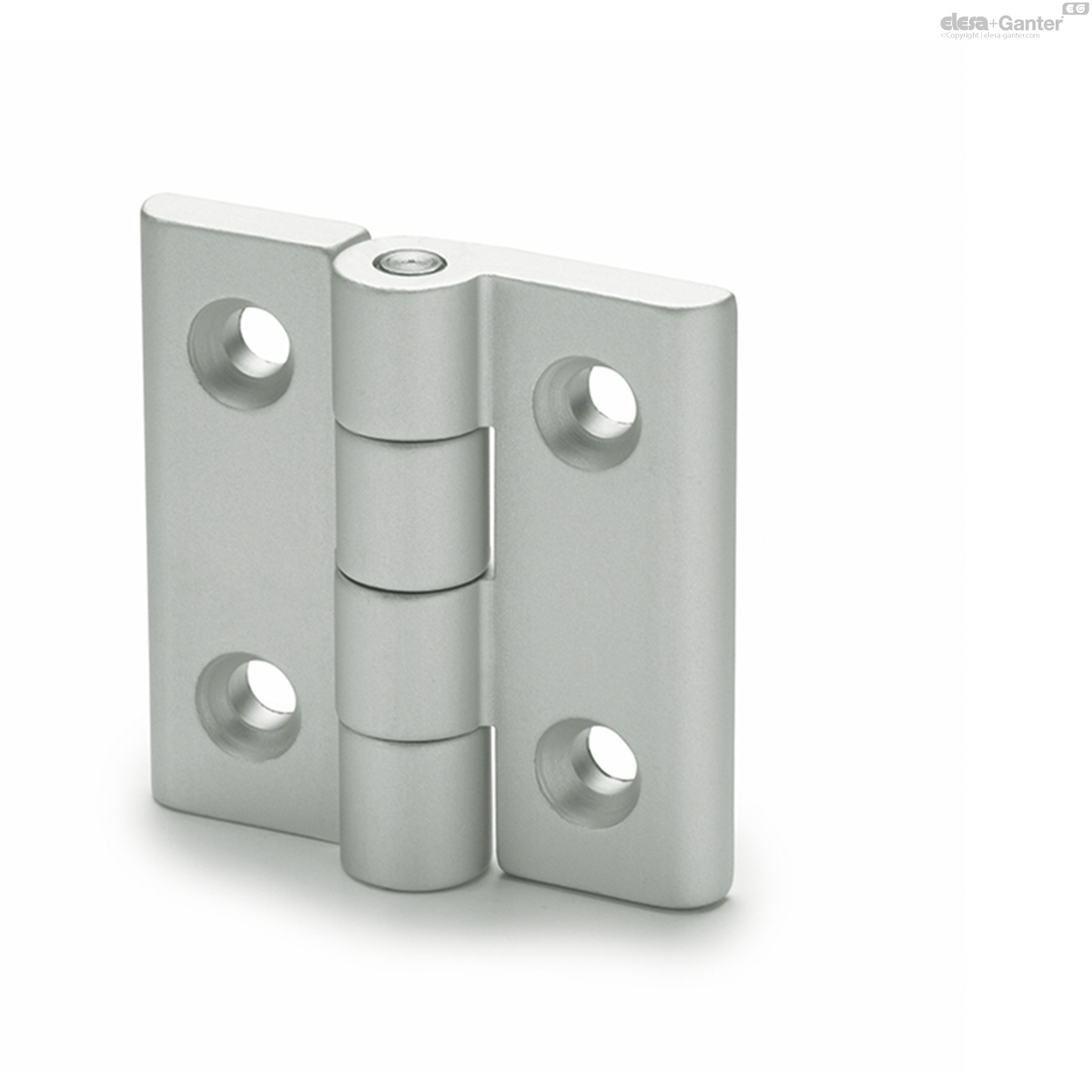

CMM-AL-50-SH-5 CMM-AL Scharnieren

CMM-AL-50-SH-5

CMM-AL Scharnieren

Aluminium
  • Icons/__logo__RoHS__.png

Op voorraad Alle maten en varianten van CMM-AL

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
428651
L
50
d3
5.5
d4
11
f
30
H
12.5
h1
6.5
h2
6
b1
17
d
6
49
CMM-AL-50-SH-5 drawing
CMM-AL-50-SH-5 drawing
CMM-AL-50-SH-5 drawing

Material

Anodised aluminium, natural colour, matte finish.

Rotating pin

AISI 304 stainless steel.

Standard execution

Pass-through holes for countersunk head screws.

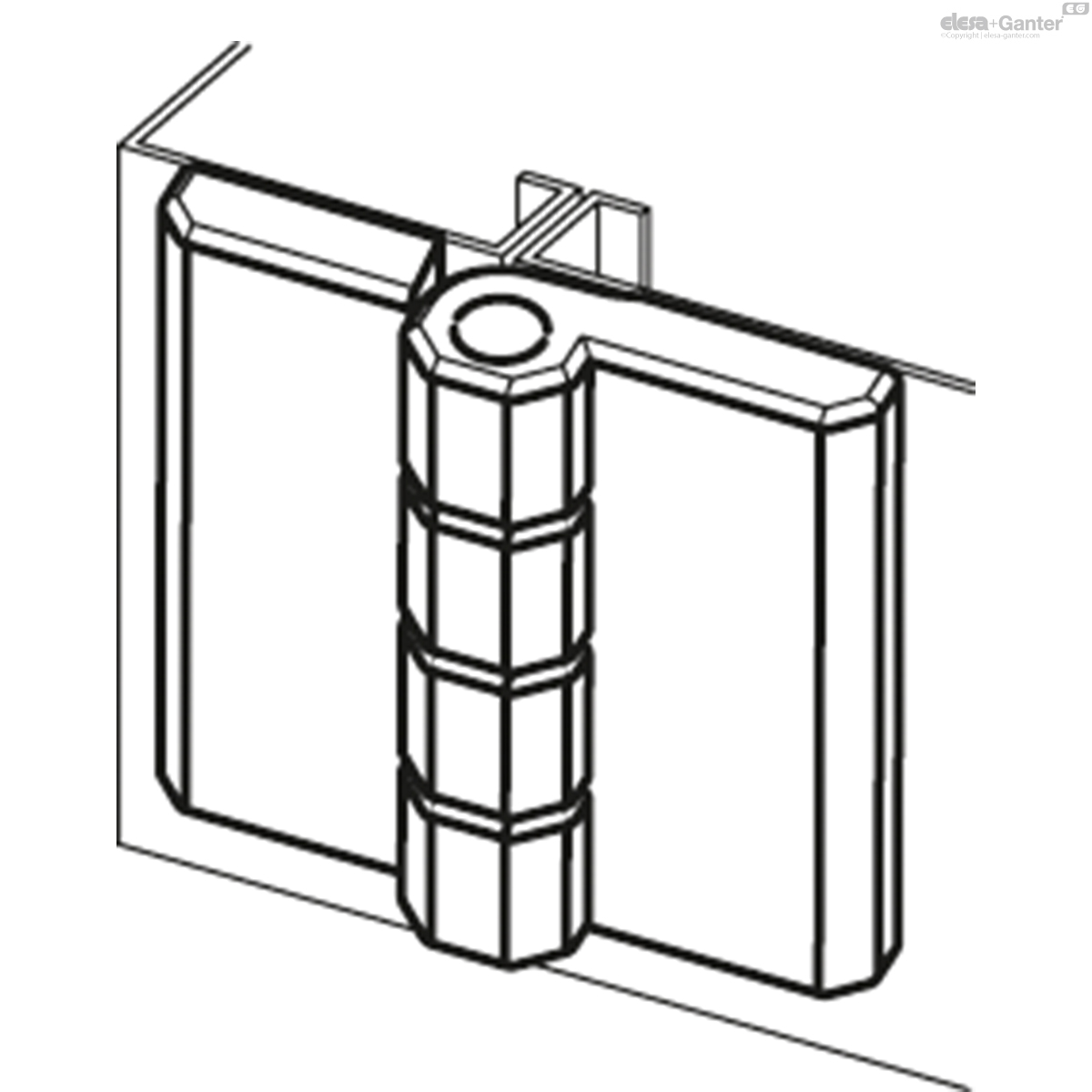

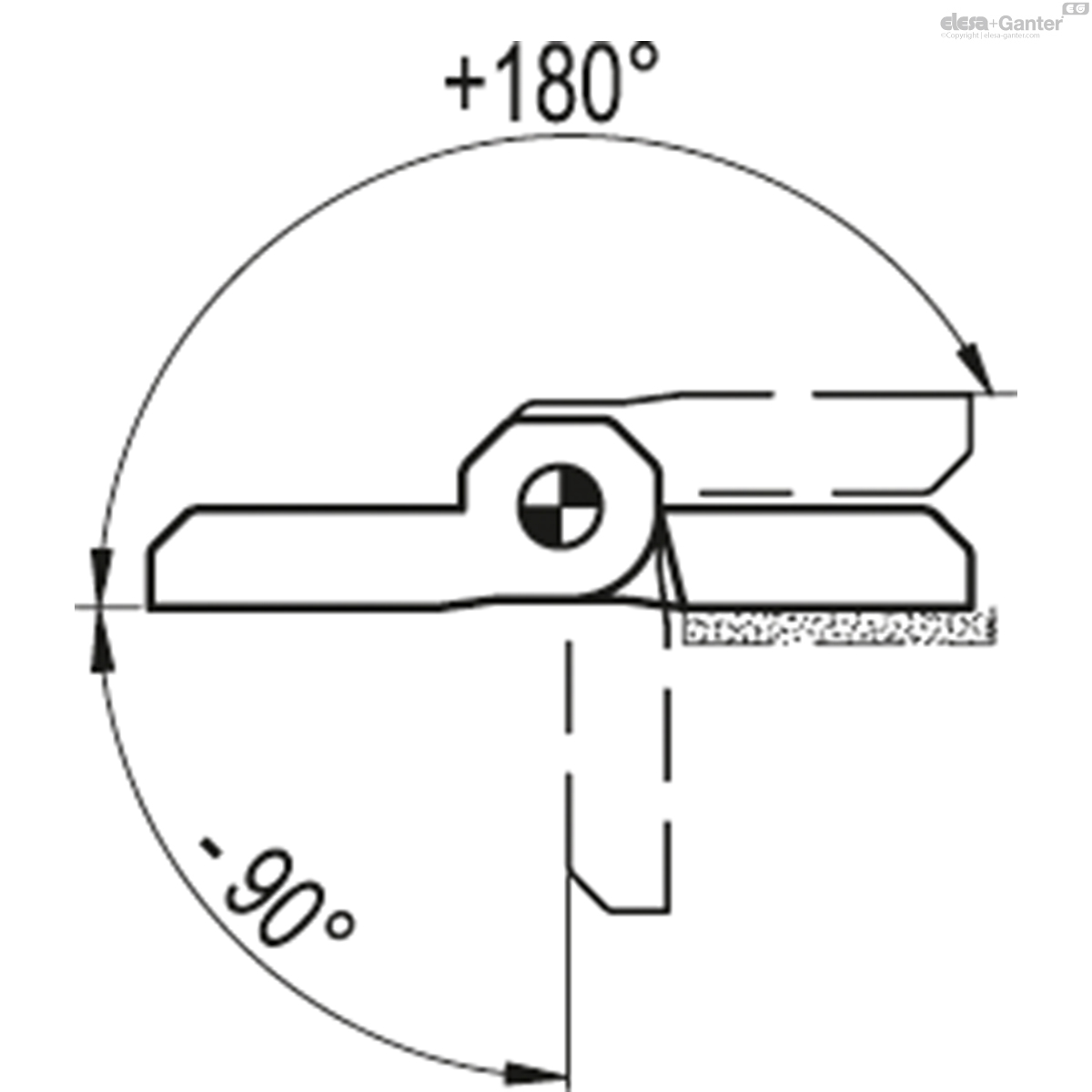

Rotation angle (approximate value)

Max 270° (-90° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).

Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.
