CMM-AL-50-SH-5
CMM-AL Hinges
Aluminium
In stock All sizes and variants of CMM-AL
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- 428651
- L
- 50
- d3
- 5.5
- d4
- 11
- f
- 30
- H
- 12.5
- h1
- 6.5
- h2
- 6
- b1
- 17
- d
- 6
- 49
Material
Anodised aluminium, natural colour, matte finish.
Rotating pin
AISI 304 stainless steel.
Standard execution
Pass-through holes for countersunk head screws.

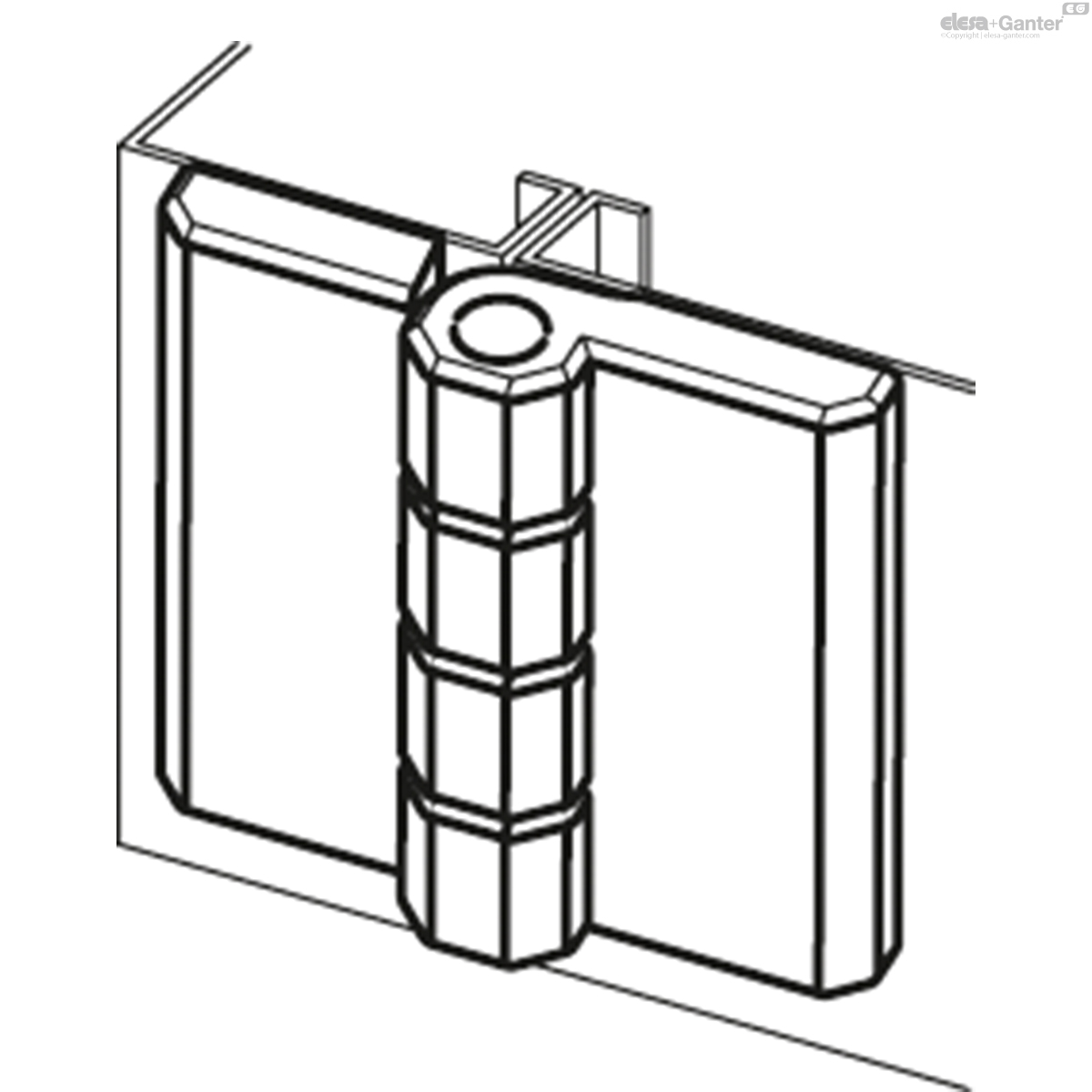

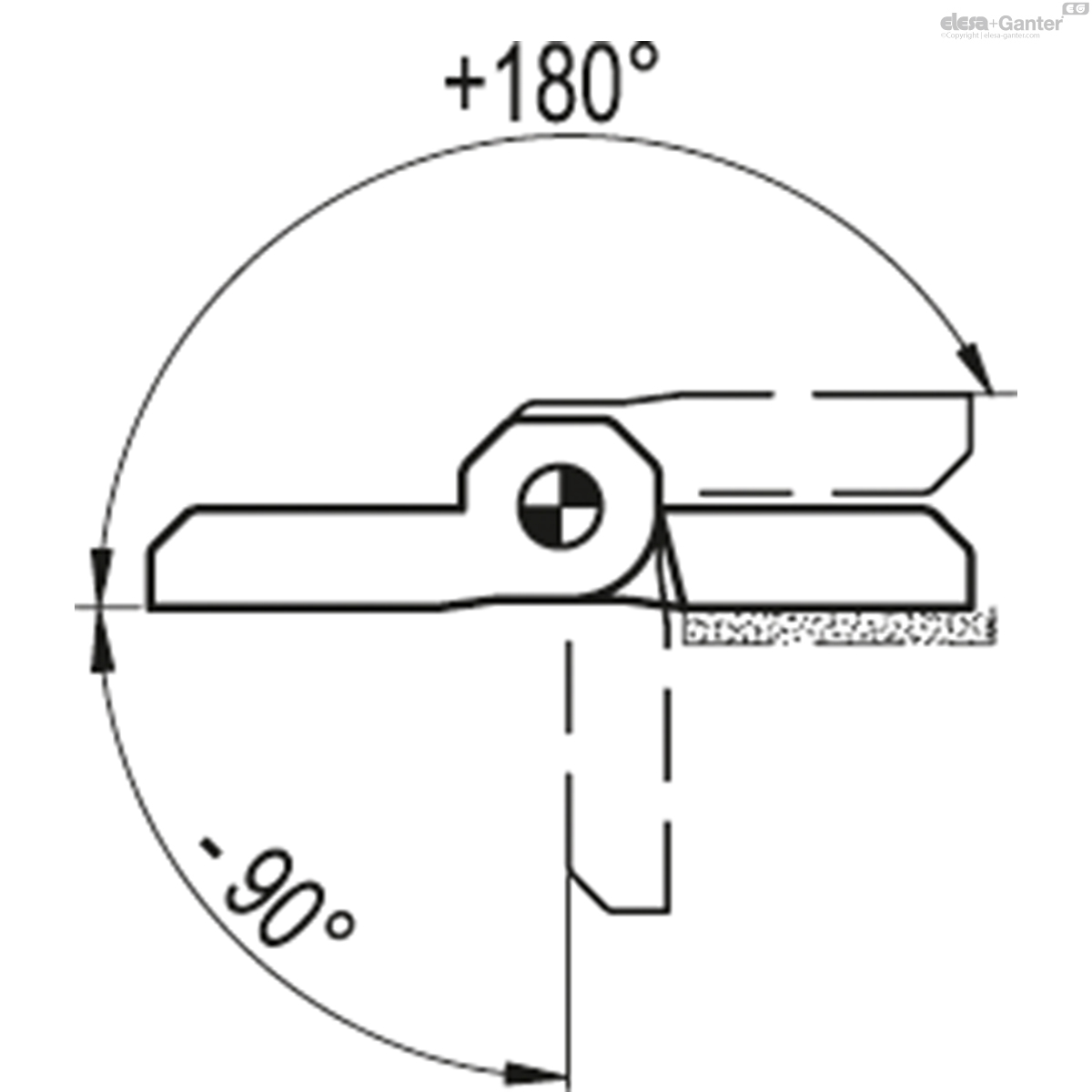

Rotation angle (approximate value)
Max 270° (-90° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).
Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.
