GN 900.5 Plaques rotatives
Délai: 1-2 semaines Toutes les tailles et variantes de GN 900.5
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 900.5-80-105
- b Size of
the slide - 80
- l1
- 105
- d
- M 4
- h1
- 39
- h2
- 14
- h3
- 12.5
- l2
- 92
- s
- 9
- 568
Aluminium
anodized, natural colour
Socket head screws DIN 912
Stainless Steel

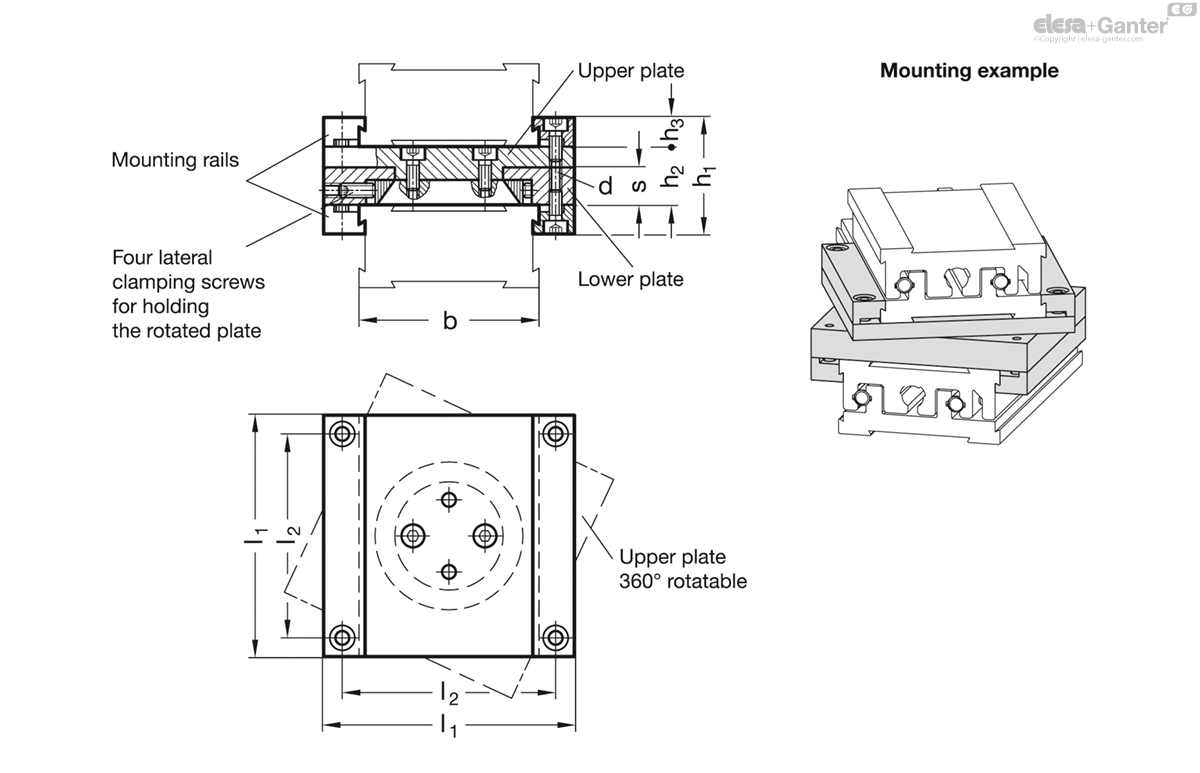

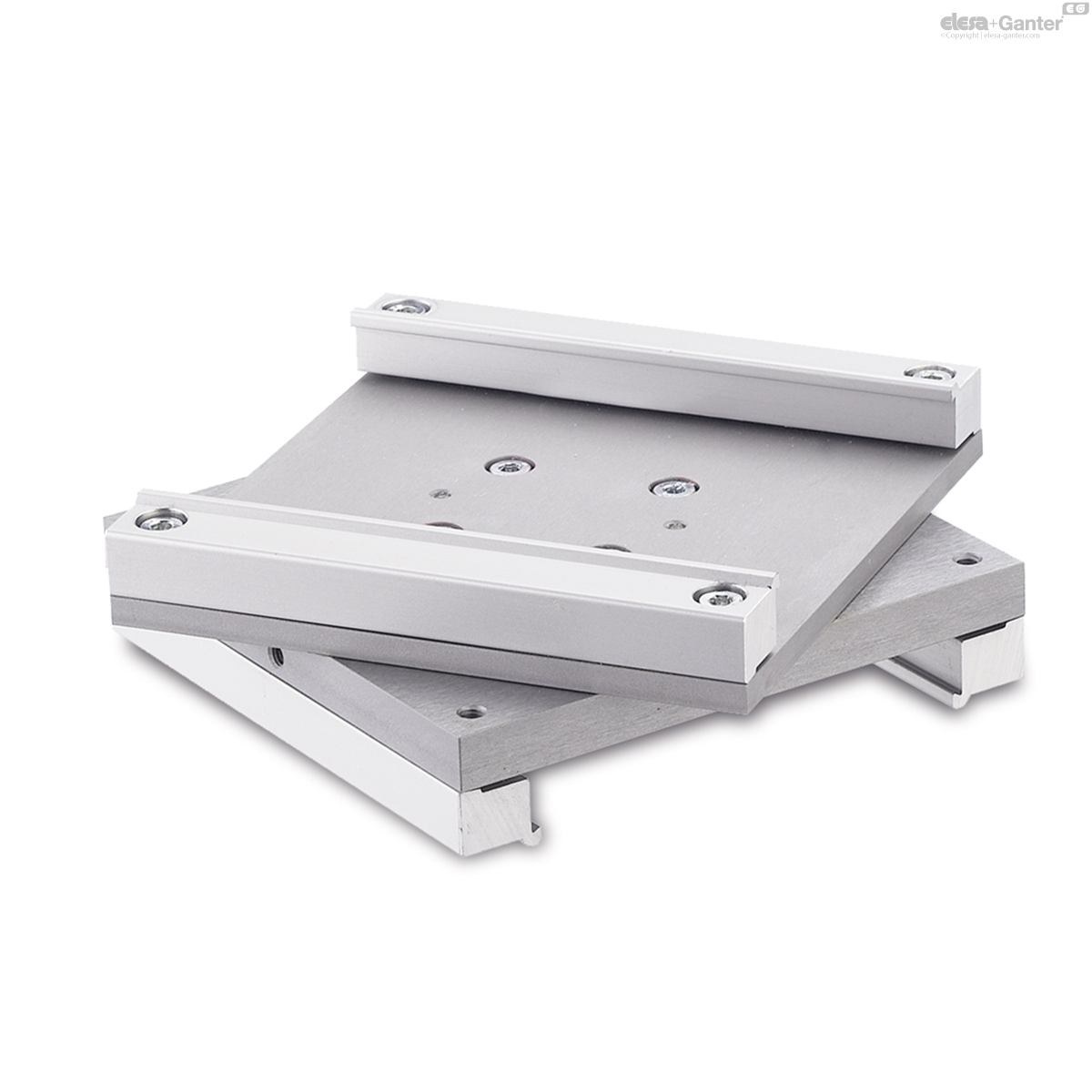

Rotary plates GN 900.5 allow rotation of one of the adjustable slide units at an off-set angle to the other. This possibility offers an additional axis configuration.
The alternative adaptor consists of two plates connected together in the center so they may be rotated. The lower plate is clamped to the lower sliding part, while the upper one is clamped to the stationary base of the upper sliding unit.
All parts required are included.
