Technical datasheet
GN 7336.5-MSVis moletées
Pivot en laiton
Plastic, tige en Inox , Laiton / Plastique / Pivot sphérique
|

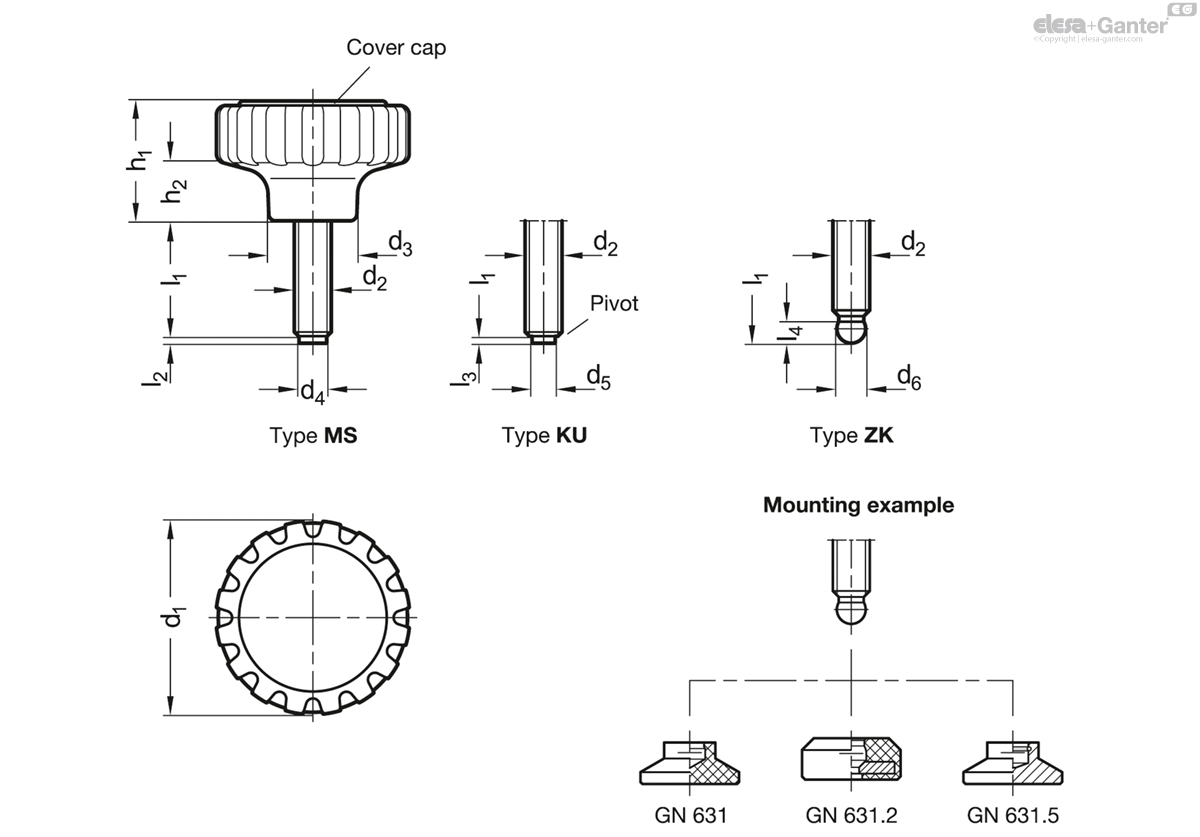

Code
|
d1
|
d2
|
l1
|
d3
|
d4
|
d5
|
d6 +0.05
|
h1
|
h2
|
l2
|
l3
|
l4 ≈
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN 7336.5-34-M6-15-MS
|
34
|
M 6
|
15
|
16
|
4
|
3.5
|
4.5
|
21
|
10.5
|
1
|
1.3
|
5.1
|
|
GN 7336.5-34-M6-20-MS
|
34
|
M 6
|
20
|
16
|
4
|
3.5
|
4.5
|
21
|
10.5
|
1
|
1.3
|
5.1
|
|
GN 7336.5-34-M6-25-MS
|
34
|
M 6
|
25
|
16
|
4
|
3.5
|
4.5
|
21
|
10.5
|
1
|
1.3
|
5.1
|
|
GN 7336.5-34-M6-30-MS
|
34
|
M 6
|
30
|
16
|
4
|
3.5
|
4.5
|
21
|
10.5
|
1
|
1.3
|
5.1
|
|
GN 7336.5-42-M8-20-MS
|
42
|
M 8
|
20
|
19
|
6
|
5
|
6.1
|
26
|
13
|
1.5
|
1.6
|
6.2
|
|
GN 7336.5-42-M8-25-MS
|
42
|
M 8
|
25
|
19
|
6
|
5
|
6.1
|
26
|
13
|
1.5
|
1.6
|
6.2
|
|
GN 7336.5-42-M8-30-MS
|
42
|
M 8
|
30
|
19
|
6
|
5
|
6.1
|
26
|
13
|
1.5
|
1.6
|
6.2
|
|
GN 7336.5-42-M8-40-MS
|
42
|
M 8
|
40
|
19
|
6
|
5
|
6.1
|
26
|
13
|
1.5
|
1.6
|
6.2
|
|
GN 7336.5-53-M10-25-MS
|
53
|
M 10
|
25
|
24
|
8
|
6.5
|
7.8
|
32
|
16
|
2
|
1.9
|
7.3
|
|
GN 7336.5-53-M10-30-MS
|
53
|
M 10
|
30
|
24
|
8
|
6.5
|
7.8
|
32
|
16
|
2
|
1.9
|
7.3
|
|
GN 7336.5-53-M10-40-MS
|
53
|
M 10
|
40
|
24
|
8
|
6.5
|
7.8
|
32
|
16
|
2
|
1.9
|
7.3
|
|
GN 7336.5-53-M10-50-MS
|
53
|
M 10
|
50
|
24
|
8
|
6.5
|
7.8
|
32
|
16
|
2
|
1.9
|
7.3
|
Types
Types
- Type MS: Brass pivot
- Type KU: Plastic pivot, Polyacetal (POM)
- Type ZK: Spherical pivot
Knob
Knob
Plastic, Polyamide (PA)
- Glass fiber reinforced
- Operating temperature -30 °C to +130 °C
- Black, matte finish
Threaded stud
Threaded stud
Stainless steel AISI 304
Cover cap
Cover cap
Plastic, Polyamide (PA)
Light gray, matte finish
Knurled screws GN 7336.5, type MS/KU with brass or plastic pivots are used when pressure dents or damage must be avoided.

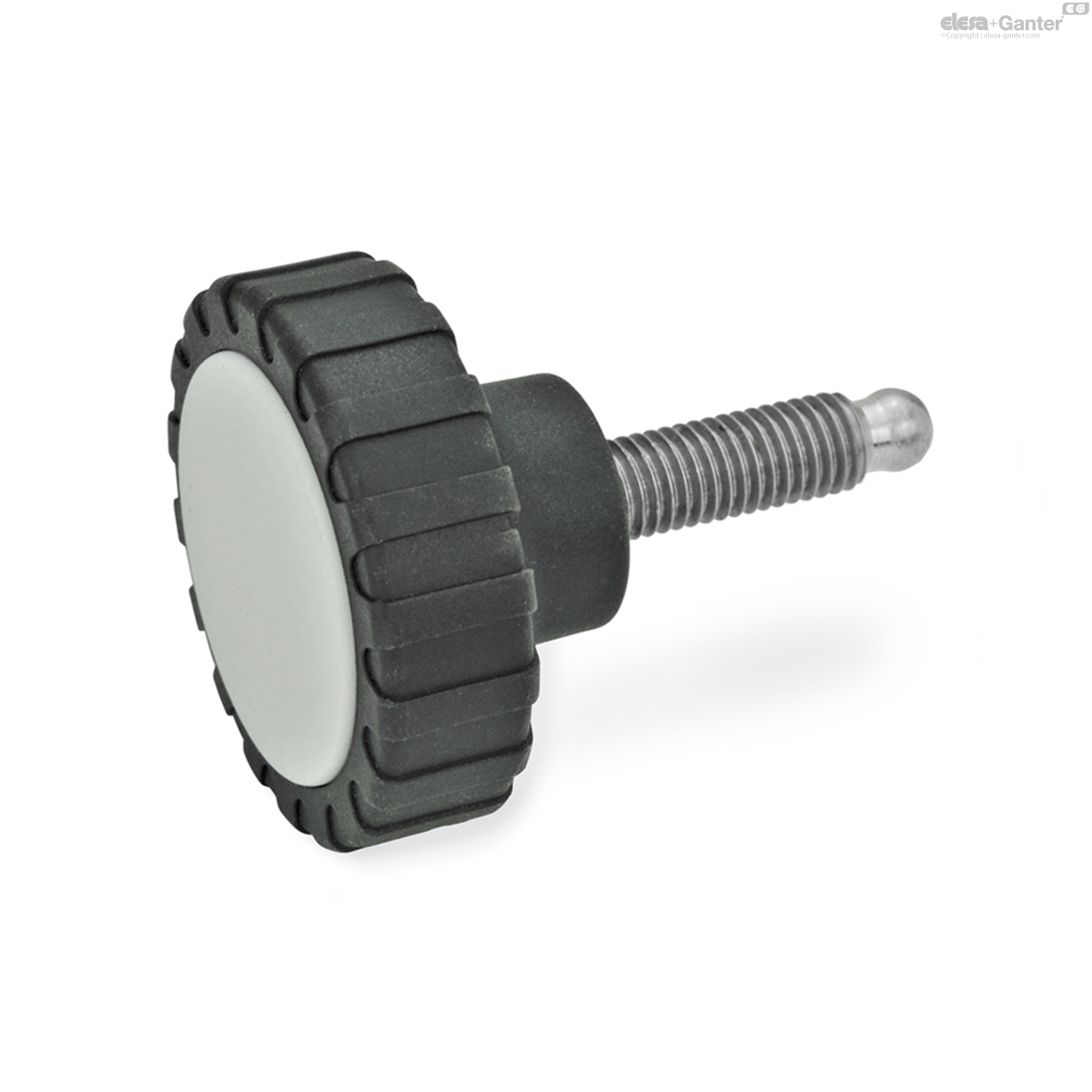

Knurled screws GN 7336.5, type ZK feature a spherical pivot whose Ø d6 is smaller than the core Ø of the thread. The version with spherical pivot is suitable for holding thrust pads GN 631 / GN 631.5 , which must be ordered separately.
The knurled screws GN 7336.5 distinguish an attractive design in combination with closed shape (no recess on the underside of the handles).
Produits associés
DIN 653
Vis moletées plates
Acier / Acier inoxydable , Type plat
EWN-SST-p-P
Boutons à ailes
Tampon en technopolymère,
GN 5335
Boutons étoile en inox imperdables + goujon fileté
Acier inoxydable AISI 303 (A1)
GN 7336-ST
Boutons moletés / Vis moletées
MBT-B
Boutons moletés taillés en diamant
Technopolymère
MCT.
Boutons cannelés
Assemblage en technopolymère, avec vis
VC.692-SST-p-P

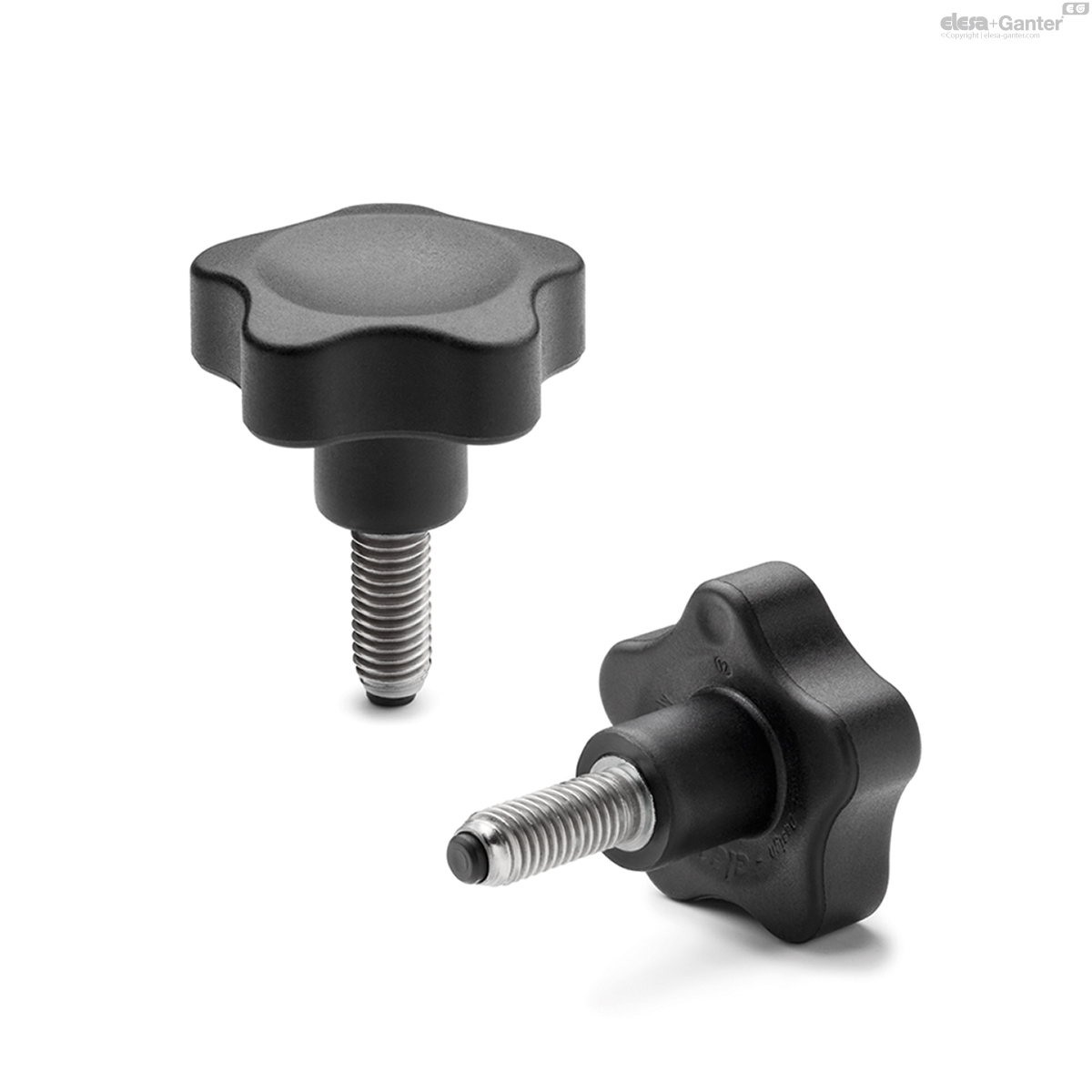

Boutons à lobes avec section pleine
