GN 7336.5-MSKnurled Screws

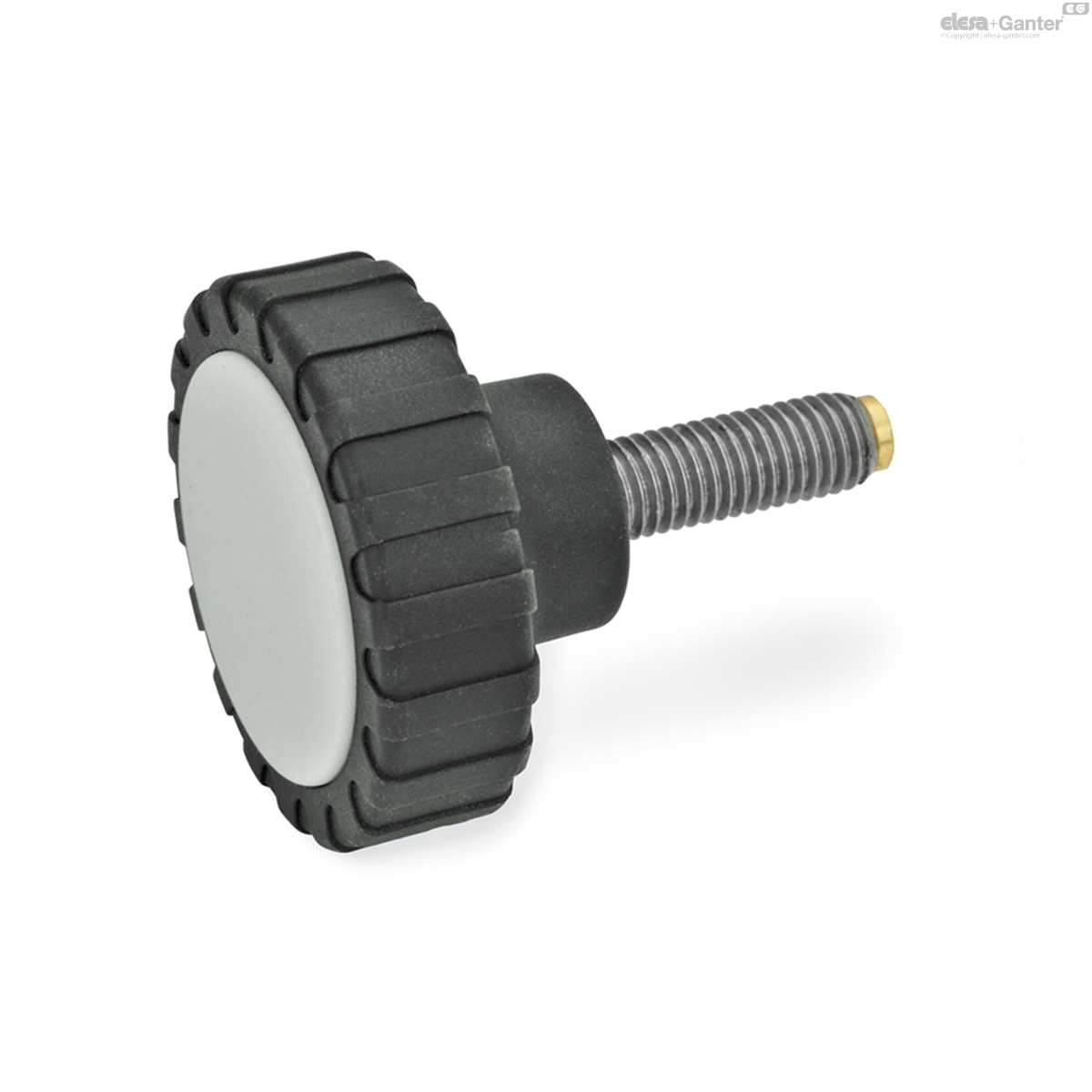

Brass pivot

Plastic, Threaded Stud Stainless Steel, Brass / Plastic / Spherical Pivot

Technical datasheet

Plastic pivot, Polyacetal (POM)

GN 7336.5-MS

Reset

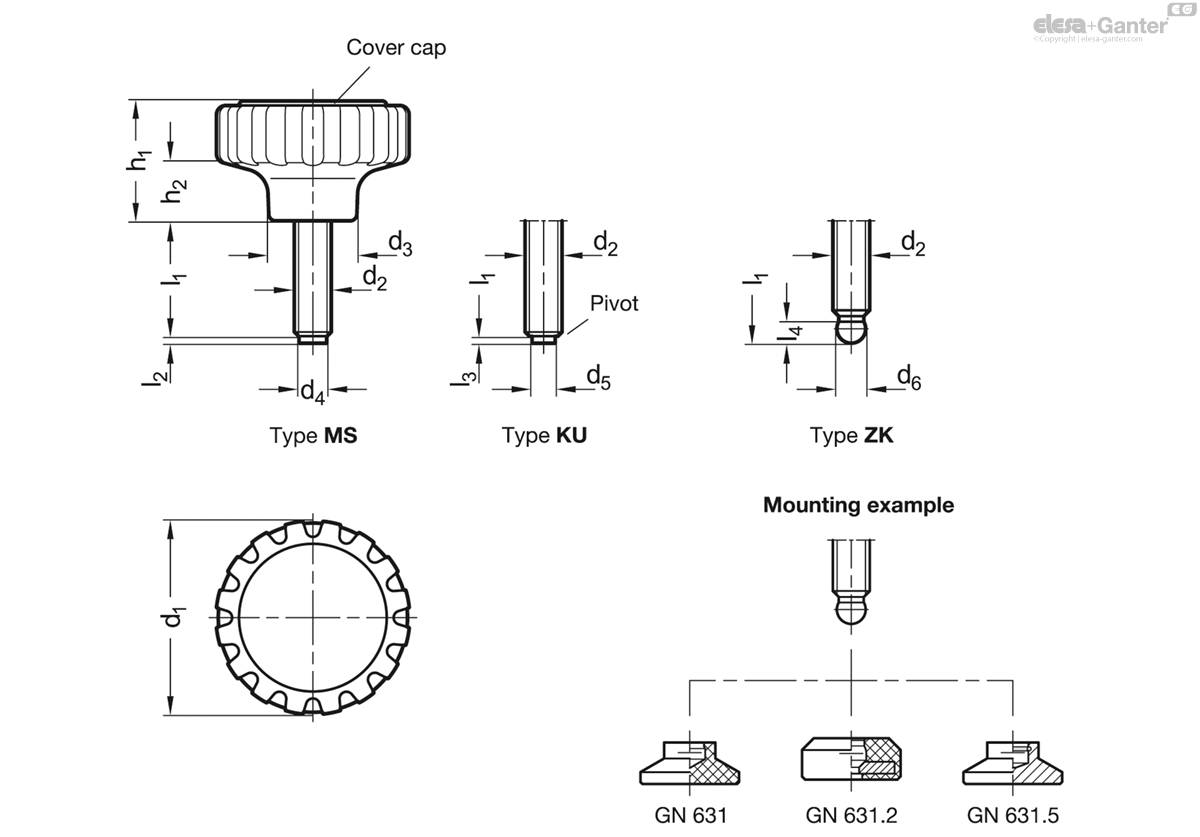

Catalogue	d₁	d₂	l₁	d₃	d₄	d₅	d₆ +0.05	h₁	h₂	l₂	l₃	l₄ ≈

GN 7336.5-34-M6-15-MS	34	M 6	15	16	4	3.5	4.5	21	10.5	1	1.3	5.1
GN 7336.5-34-M6-20-MS	34	M 6	20	16	4	3.5	4.5	21	10.5	1	1.3	5.1
GN 7336.5-34-M6-25-MS	34	M 6	25	16	4	3.5	4.5	21	10.5	1	1.3	5.1
GN 7336.5-34-M6-30-MS	34	M 6	30	16	4	3.5	4.5	21	10.5	1	1.3	5.1
GN 7336.5-42-M8-20-MS	42	M 8	20	19	6	5	6.1	26	13	1.5	1.6	6.2
GN 7336.5-42-M8-25-MS	42	M 8	25	19	6	5	6.1	26	13	1.5	1.6	6.2
GN 7336.5-42-M8-30-MS	42	M 8	30	19	6	5	6.1	26	13	1.5	1.6	6.2
GN 7336.5-42-M8-40-MS	42	M 8	40	19	6	5	6.1	26	13	1.5	1.6	6.2
GN 7336.5-53-M10-25-MS	53	M 10	25	24	8	6.5	7.8	32	16	2	1.9	7.3
GN 7336.5-53-M10-30-MS	53	M 10	30	24	8	6.5	7.8	32	16	2	1.9	7.3
GN 7336.5-53-M10-40-MS	53	M 10	40	24	8	6.5	7.8	32	16	2	1.9	7.3
GN 7336.5-53-M10-50-MS	53	M 10	50	24	8	6.5	7.8	32	16	2	1.9	7.3

Types

Type MS: Brass pivot
Type KU: Plastic pivot, Polyacetal (POM)
Type ZK: Spherical pivot

Knob

Plastic, Polyamide (PA)

Glass fiber reinforced

Operating temperature -30 °C to +130 °C

Black, matte finish

Threaded stud

Stainless steel AISI 304

Cover cap

Plastic, Polyamide (PA)

Light gray, matte finish

Knurled screws GN 7336.5, type MS/KU with brass or plastic pivots are used when pressure dents or damage must be avoided.

Knurled screws GN 7336.5, type ZK feature a spherical pivot whose Ø d₆ is smaller than the core Ø of the thread. The version with spherical pivot is suitable for holding thrust pads GN 631 / GN 631.5 , which must be ordered separately.

The knurled screws GN 7336.5 distinguish an attractive design in combination with closed shape (no recess on the underside of the handles).
