7336.5-34-M6-20-MS GN 7336.5-MS Pivot en laiton

7336.5-34-M6-20-MS

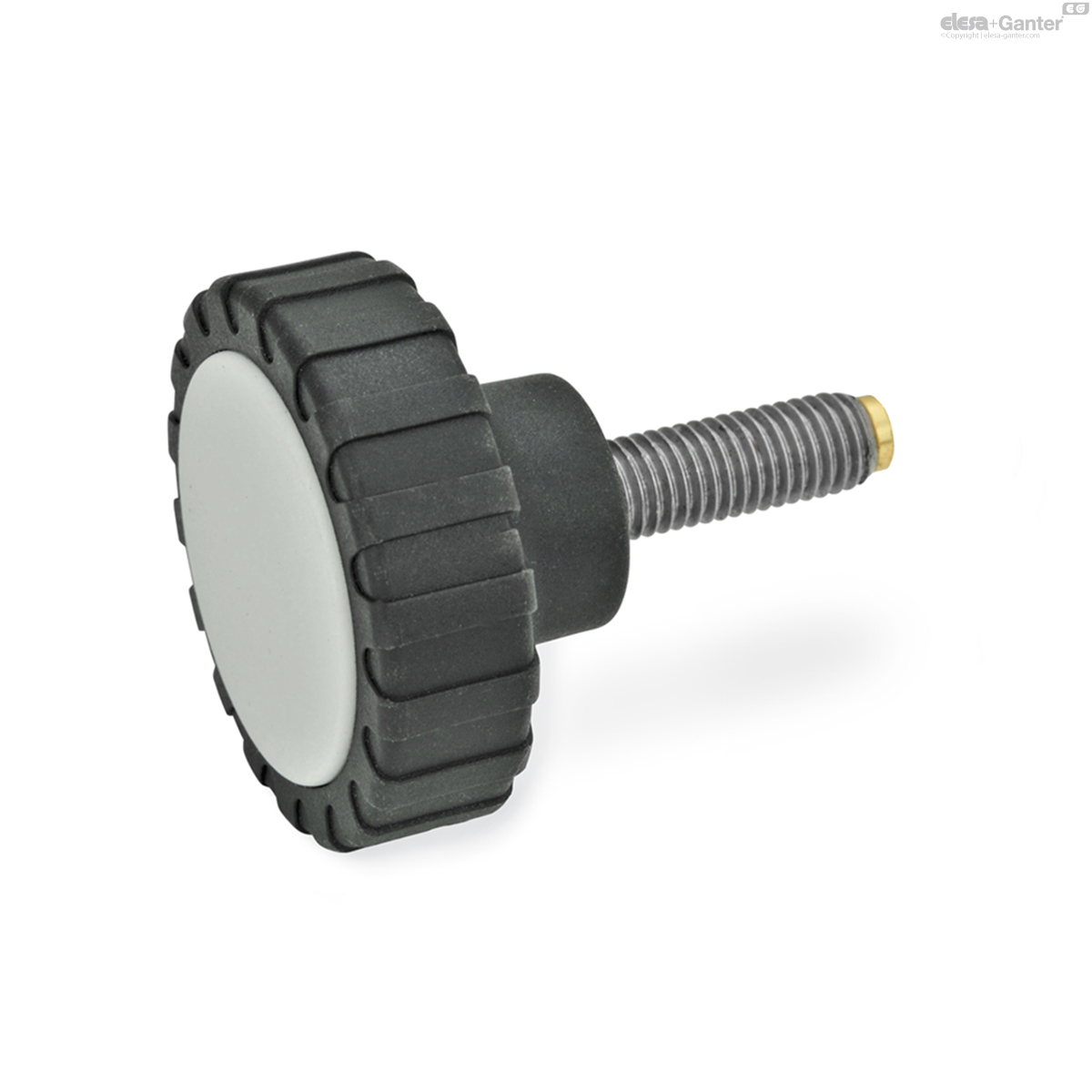

GN 7336.5-MS Pivot en laiton

Plastic, tige en Inox , Laiton / Plastique / Pivot sphérique
  • INOX
  • RoHS

Délai: 1-2 semaines Toutes les tailles et variantes de GN 7336.5

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 7336.5-34-M6-20-MS
d1
34
d2
M 6
l1
20
d3
16
d4
4
d5
3.5
d6 +0.05
4.5
h1
21
h2
10.5
l2
1
l3
1.3
l4 ≈
5.1
17

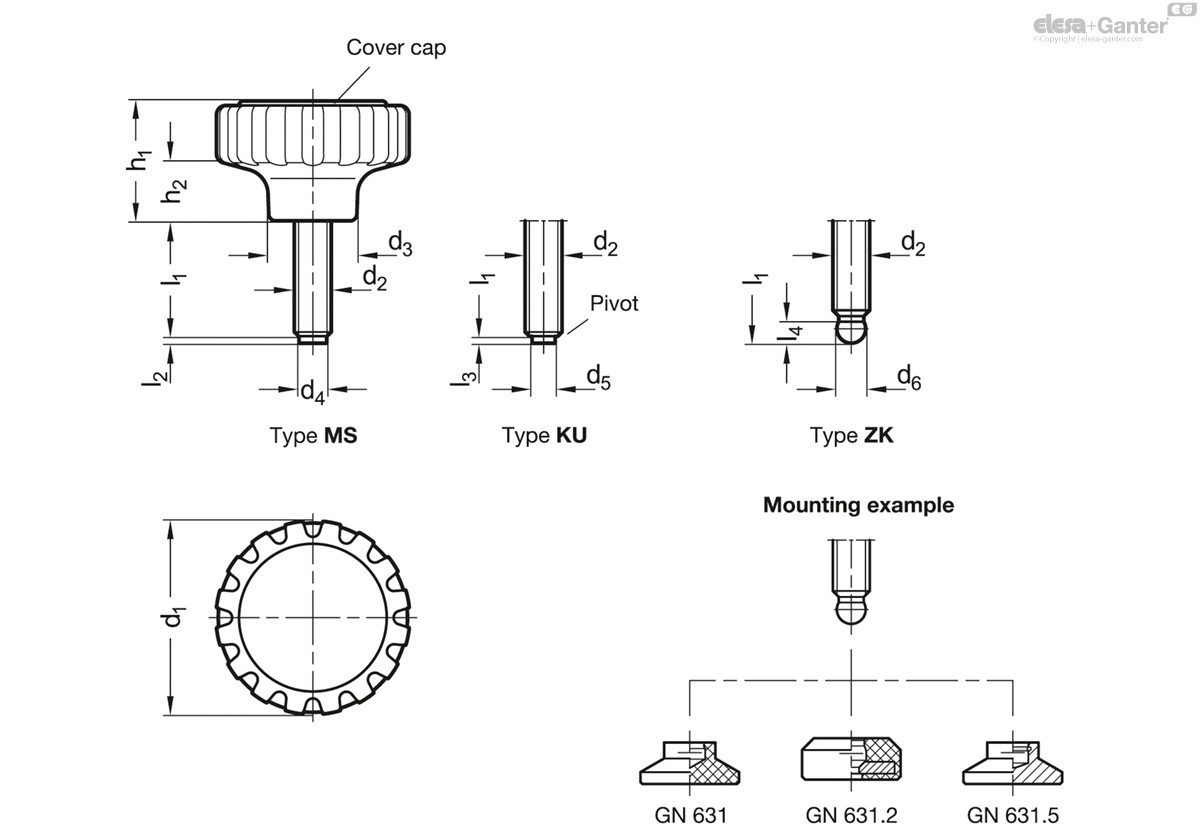

7336.5-34-M6-20-MS drawing

Types

  • Type MS: Brass pivot
  • Type KU: Plastic pivot, Polyacetal (POM)
  • Type ZK: Spherical pivot

Knob

Plastic, Polyamide (PA)

  • Glass fiber reinforced
  • Operating temperature -30 °C to +130 °C
  • Black, matte finish

Threaded stud

Stainless steel AISI 304

Cover cap

Plastic, Polyamide (PA)

Light gray, matte finish

Knurled screws GN 7336.5, type MS/KU with brass or plastic pivots are used when pressure dents or damage must be avoided.

Knurled screws GN 7336.5, type ZK feature a spherical pivot whose Ø d6 is smaller than the core Ø of the thread. The version with spherical pivot is suitable for holding thrust pads GN 631 / GN 631.5 , which must be ordered separately.

The knurled screws GN 7336.5 distinguish an attractive design in combination with closed shape (no recess on the underside of the handles).
