VVL-33-N Caoutchouc naturel, sans support

VVL-33-N Caoutchouc naturel, sans support

Ventouses à soufflets multiples pour emballage alimentaire
Toutes les tailles et variantes
  • RoHS

Délai de livraison prévu 5-7 jours ouvrables

Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
VV.56055
d
33
d1
14
d2
7
d3
26
h
38
h1
12.5
F*
[Kg]
2.13
Volume#
[cm3]
12
weight
7

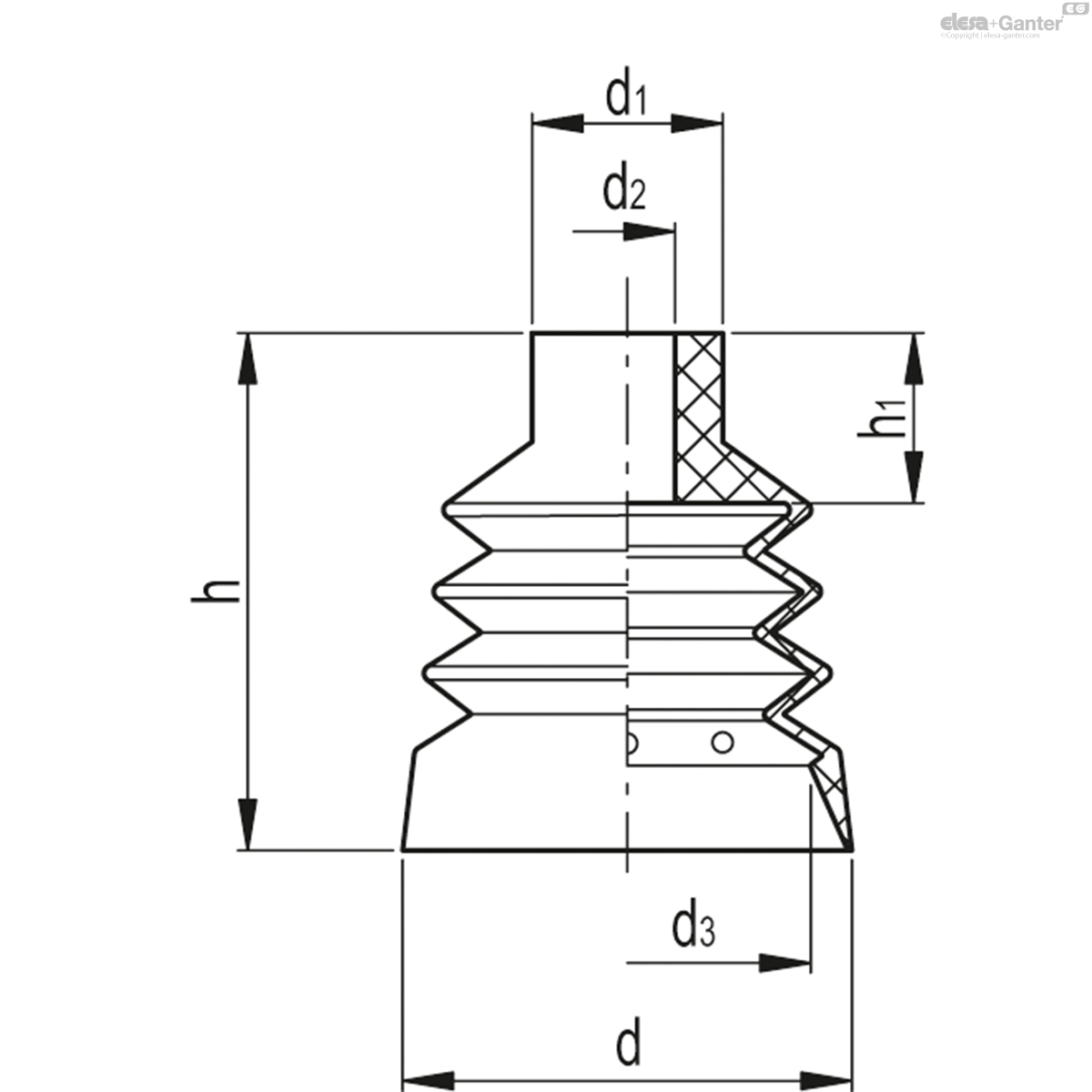

VVL-33-N drawing
* The force of the vacuum cups indicated in the table represents 1/3 of the value of the theoretical force calculated at a vacuum level of -75 KPa and a safety coefficient of 3.# Indicates the internal geometric volume of the vacuum cup and represents th
Video: VVL-33

Material

Vacuum cup in natural rubber (NR), or silicone rubber (VMQ).

Nickel-plated brass support.

Standard executions

  • VVL-33-N: natural rubber, without support.
  • VVL-33-S: silicone rubber, without support.
  • VVL-33-T-N: natural rubber, with support.
  • VVL-33-T-S: silicone rubber, with support.

Features and applications

They are specifically used in the food packaging sector where the size and the shape of the vacuum cup allow the handling of different shaped and sized packages. The adaptability to different surfaces, including irregular ones or with imperfect flatness, mean that these vacuum cups are suitable for use in various sectors including paper processing for trading cards, labels and sheets of paper and the plastic sector for laminates and small parts.

The effective stroke of the bellows is 9 mm.

See Technical Data for vacuum cups.
