VVL-33-N Natural rubber, without support

VVL-33-N Natural rubber, without support

Diameter 33 mm, with or without support, rubber
All sizes and variants
  • RoHS

Expected delivery time 5-7 working days

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
VV.56055
d
33
d1
14
d2
7
d3
26
h
38
h1
12.5
F*
[Kg]
2.13
Volume#
[cm3]
12
weight
7

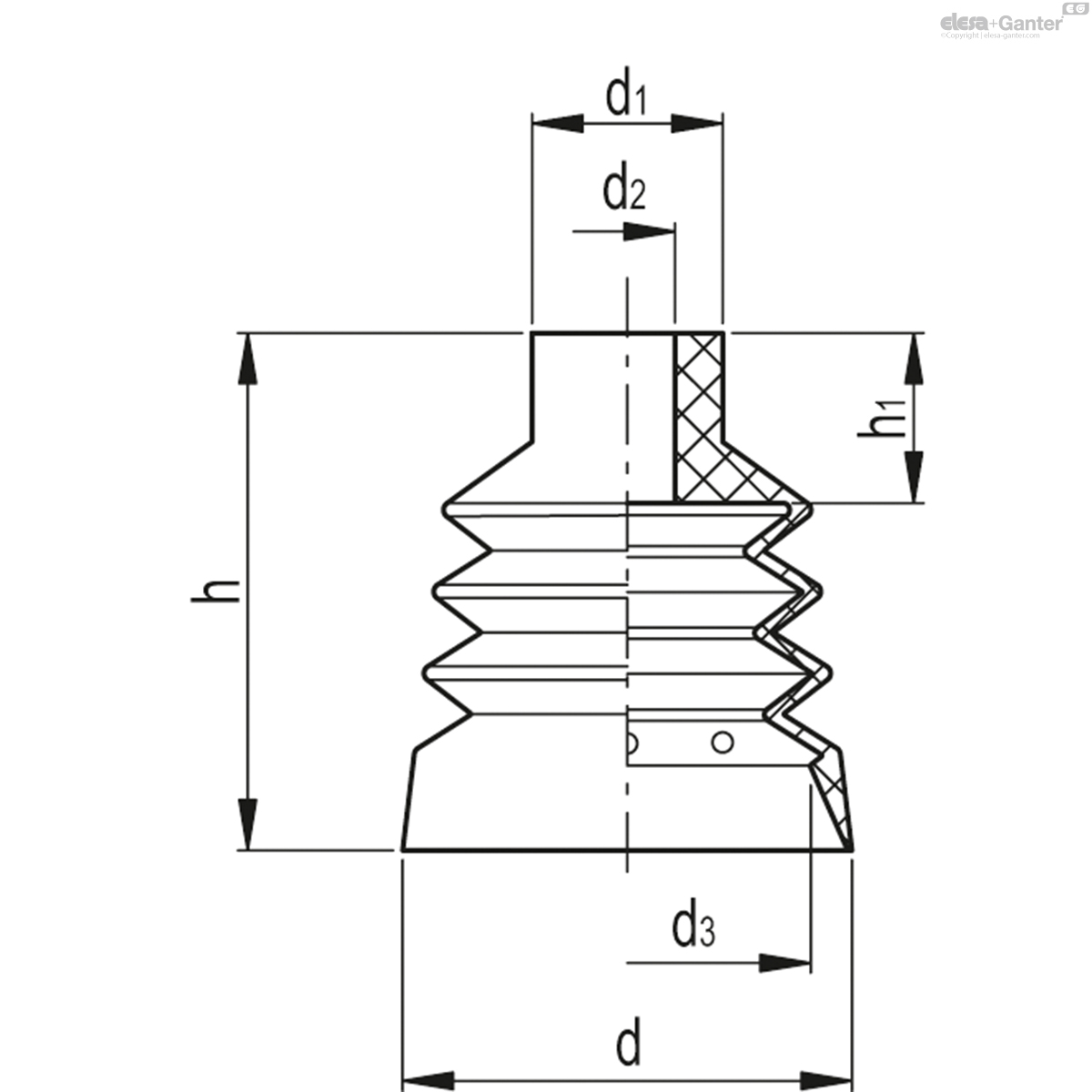

VVL-33-N drawing
* The force of the vacuum cups indicated in the table represents 1/3 of the value of the theoretical force calculated at a vacuum level of -75 KPa and a safety coefficient of 3.# Indicates the internal geometric volume of the vacuum cup and represents th
Video: VVL-33

Material

Vacuum cup in natural rubber (NR), or silicone rubber (VMQ).

Nickel-plated brass support.

Standard executions

  • VVL-33-N: natural rubber, without support.
  • VVL-33-S: silicone rubber, without support.
  • VVL-33-T-N: natural rubber, with support.
  • VVL-33-T-S: silicone rubber, with support.

Features and applications

They are specifically used in the food packaging sector where the size and the shape of the vacuum cup allow the handling of different shaped and sized packages. The adaptability to different surfaces, including irregular ones or with imperfect flatness, mean that these vacuum cups are suitable for use in various sectors including paper processing for trading cards, labels and sheets of paper and the plastic sector for laminates and small parts.

The effective stroke of the bellows is 9 mm.

See Technical Data for vacuum cups.
