VVL-33-N Natuurrubber, zonder steun

VVL-33-N Natuurrubber, zonder steun

Multi-balg vacuümcups voor voedselverpakkingen
Alle maten en varianten
  • RoHS

Verwachte levertermijn 5-7 werkdagen

Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
VV.56055
d
33
d1
14
d2
7
d3
26
h
38
h1
12.5
F*
[Kg]
2.13
Volume#
[cm3]
12
weight
7

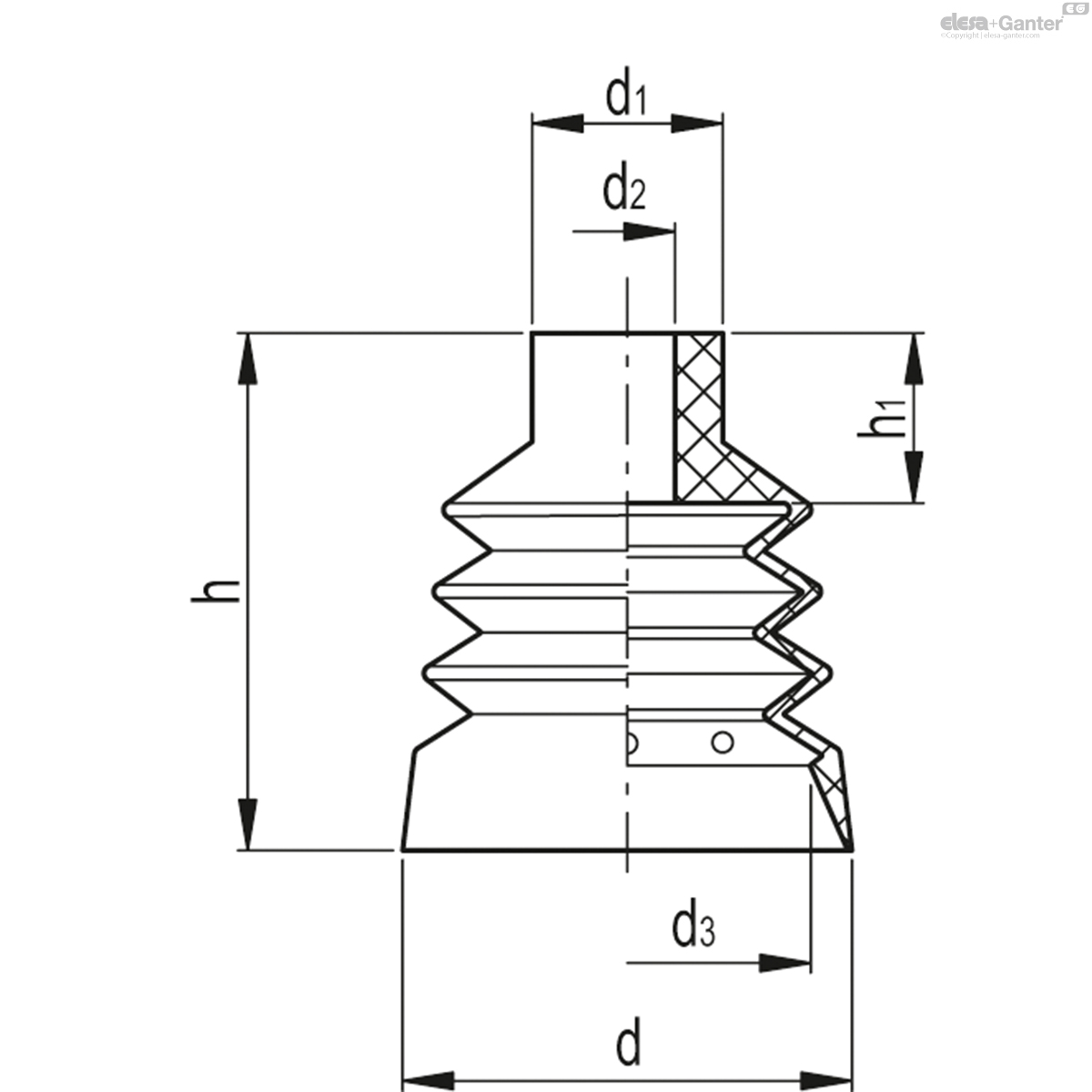

VVL-33-N drawing
* The force of the vacuum cups indicated in the table represents 1/3 of the value of the theoretical force calculated at a vacuum level of -75 KPa and a safety coefficient of 3.# Indicates the internal geometric volume of the vacuum cup and represents th
Video: VVL-33

Material

Vacuum cup in natural rubber (NR), or silicone rubber (VMQ).

Nickel-plated brass support.

Standard executions

  • VVL-33-N: natural rubber, without support.
  • VVL-33-S: silicone rubber, without support.
  • VVL-33-T-N: natural rubber, with support.
  • VVL-33-T-S: silicone rubber, with support.

Features and applications

They are specifically used in the food packaging sector where the size and the shape of the vacuum cup allow the handling of different shaped and sized packages. The adaptability to different surfaces, including irregular ones or with imperfect flatness, mean that these vacuum cups are suitable for use in various sectors including paper processing for trading cards, labels and sheets of paper and the plastic sector for laminates and small parts.

The effective stroke of the bellows is 9 mm.

See Technical Data for vacuum cups.
