GN 933.5Stainless Steel Hex Head Screws

Stainless Steel Hex Head Screws

with Brass / Plastic / Spherical Pivot

Technical datasheet

GN 933.5

Catalogue	d₁	l₁	d₂	d₃	d₄ +0.05	l₂	l₃	l₄	l₅ ≈	A/F
GN 933.5-M6-16-MS	M 6	16	4	-	-	1	-	4	-	10	5
GN 933.5-M6-20-MS	M 6	20	4	-	-	1	-	4	-	10	6
GN 933.5-M6-25-MS	M 6	25	4	-	-	1	-	4	-	10	7
GN 933.5-M6-30-MS	M 6	30	4	-	-	1	-	4	-	10	8
GN 933.5-M6-35-MS	M 6	35	4	-	-	1	-	4	-	10	9
GN 933.5-M8-20-MS	M 8	20	6	-	-	1.5	-	5.3	-	13	13
GN 933.5-M8-25-MS	M 8	25	6	-	-	1.5	-	5.3	-	13	14
GN 933.5-M8-30-MS	M 8	30	6	-	-	1.5	-	5.3	-	13	15
GN 933.5-M8-35-MS	M 8	35	6	-	-	1.5	-	5.3	-	13	17
GN 933.5-M8-45-MS	M 8	45	6	-	-	1.5	-	5.3	-	13	20
GN 933.5-M10-25-MS	M 10	25	8	-	-	2	-	6.4	-	17	24
GN 933.5-M10-30-MS	M 10	30	8	-	-	2	-	6.4	-	17	27
GN 933.5-M10-35-MS	M 10	35	8	-	-	2	-	6.4	-	17	30
GN 933.5-M10-45-MS	M 10	45	8	-	-	2	-	6.4	-	17	34
GN 933.5-M10-55-MS	M 10	55	8	-	-	2	-	6.4	-	17	39
GN 933.5-M6-16-KU	M 6	16	-	3.5	-	-	1.3	4	-	10	5
GN 933.5-M6-20-KU	M 6	20	-	3.5	-	-	1.3	4	-	10	6
GN 933.5-M6-25-KU	M 6	25	-	3.5	-	-	1.3	4	-	10	6
GN 933.5-M6-30-KU	M 6	30	-	3.5	-	-	1.3	4	-	10	7
GN 933.5-M6-35-KU	M 6	35	-	3.5	-	-	1.3	4	-	10	8
GN 933.5-M8-20-KU	M 8	20	-	5	-	-	1.6	5.3	-	13	11
GN 933.5-M8-25-KU	M 8	25	-	5	-	-	1.6	5.3	-	13	13
GN 933.5-M8-30-KU	M 8	30	-	5	-	-	1.6	5.3	-	13	14
GN 933.5-M8-35-KU	M 8	35	-	5	-	-	1.6	5.3	-	13	16
GN 933.5-M8-45-KU	M 8	45	-	5	-	-	1.6	5.3	-	13	19
GN 933.5-M10-25-KU	M 10	25	-	6.5	-	-	1.9	6.4	-	17	23
GN 933.5-M10-30-KU	M 10	30	-	6.5	-	-	1.9	6.4	-	17	25
GN 933.5-M10-35-KU	M 10	35	-	6.5	-	-	1.9	6.4	-	17	28
GN 933.5-M10-45-KU	M 10	45	-	6.5	-	-	1.9	6.4	-	17	32
GN 933.5-M10-55-KU	M 10	55	-	6.5	-	-	1.9	6.4	-	17	37
GN 933.5-M6-20-ZK	M 6	20	-	-	4.5	-	-	4	5.1	10	6
GN 933.5-M6-25-ZK	M 6	25	-	-	4.5	-	-	4	5.1	10	6
GN 933.5-M6-30-ZK	M 6	30	-	-	4.5	-	-	4	5.1	10	7
GN 933.5-M6-35-ZK	M 6	35	-	-	4.5	-	-	4	5.1	10	8
GN 933.5-M8-25-ZK	M 8	25	-	-	6.1	-	-	5.3	6.2	13	12
GN 933.5-M8-30-ZK	M 8	30	-	-	6.1	-	-	5.3	6.2	13	14
GN 933.5-M8-35-ZK	M 8	35	-	-	6.1	-	-	5.3	6.2	13	16
GN 933.5-M8-45-ZK	M 8	45	-	-	6.1	-	-	5.3	6.2	13	19
GN 933.5-M10-30-ZK	M 10	30	-	-	7.8	-	-	6.4	7.3	17	25
GN 933.5-M10-35-ZK	M 10	35	-	-	7.8	-	-	6.4	7.3	17	27
GN 933.5-M10-45-ZK	M 10	45	-	-	7.8	-	-	6.4	7.3	17	32
GN 933.5-M10-55-ZK	M 10	55	-	-	7.8	-	-	6.4	7.3	17	38

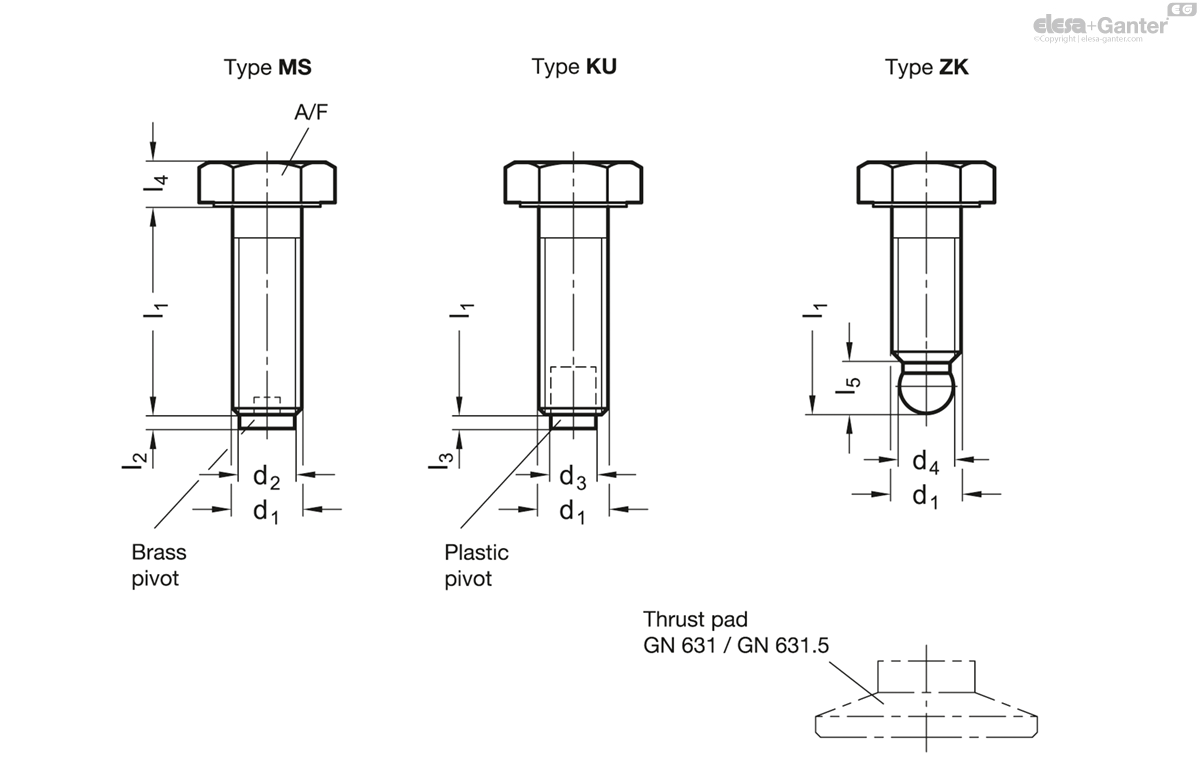

Types

Type MS: Brass pivot

Type KU: Plastic pivot (Polyacetal POM)

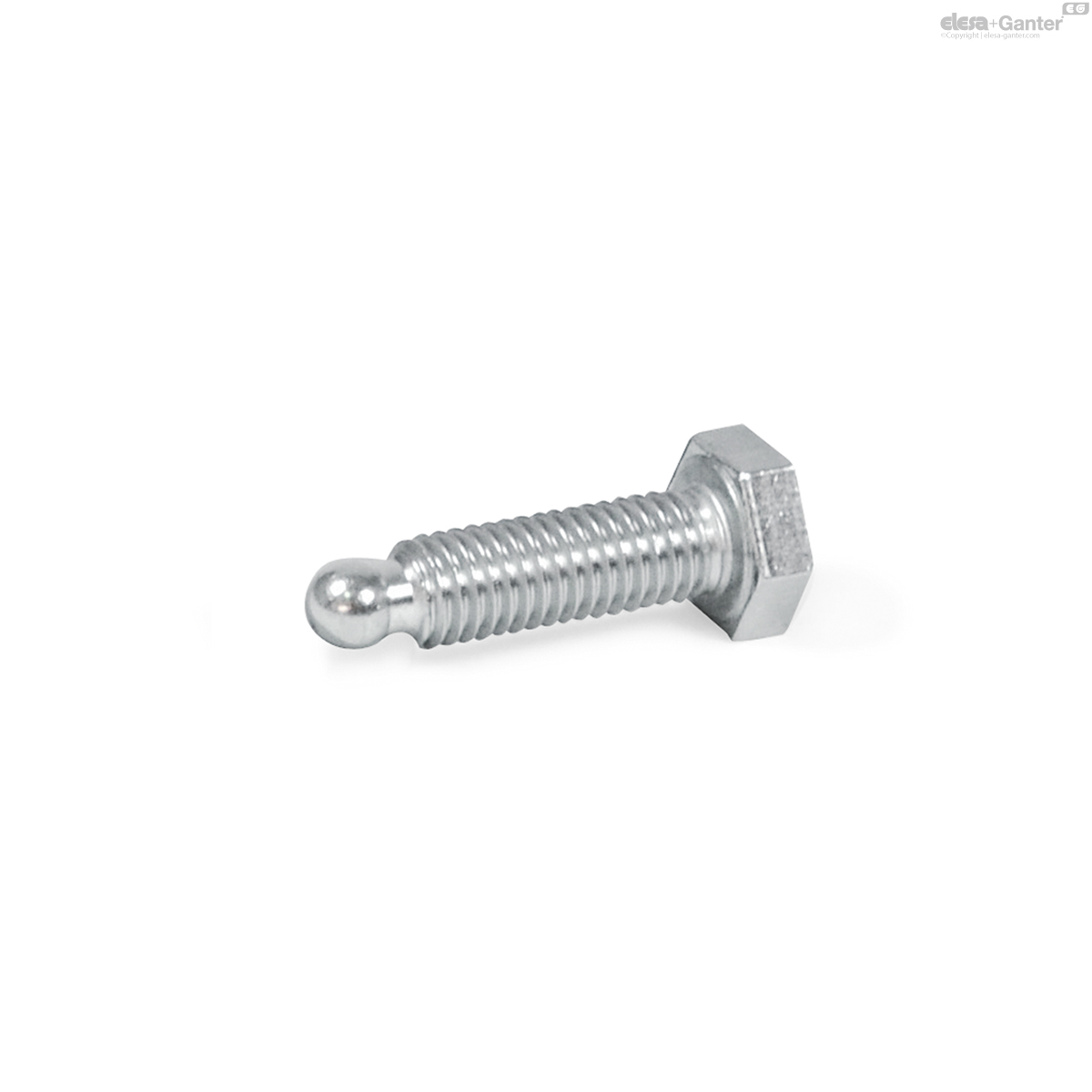

Type ZK: Spherical pivot

Hexagon head screw

Stainless Steel AISI 304 (A2)

Stainless Steel-Hexagon head screws GN 933.5 with brass or plastic pivots are used when pressure dents or damage to the clamping surface must be avoided.

Stainless Steel-Hexagon head screws GN 933.5, type ZK, feature a spherical pivot whose diameter d₄ is smaller than the core diameter d₁ of the thread. This makes them suitable for holding thrust pads GN 631 / GN 631.5 which must be ordered separately.
