933.5-M8-45-KU GN 933.5 Stainless Steel Hex Head Screws

933.5-M8-45-KU

GN 933.5 Stainless Steel Hex Head Screws

with Brass / Plastic / Spherical Pivot
  • INOX
  • RoHS

Eta: 1-2 weeks All sizes and variants of GN 933.5

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 933.5-M8-45-KU
d1
M 8
l1
45
d3
5
l3
1.6
l4
5.3
A/F
13
19

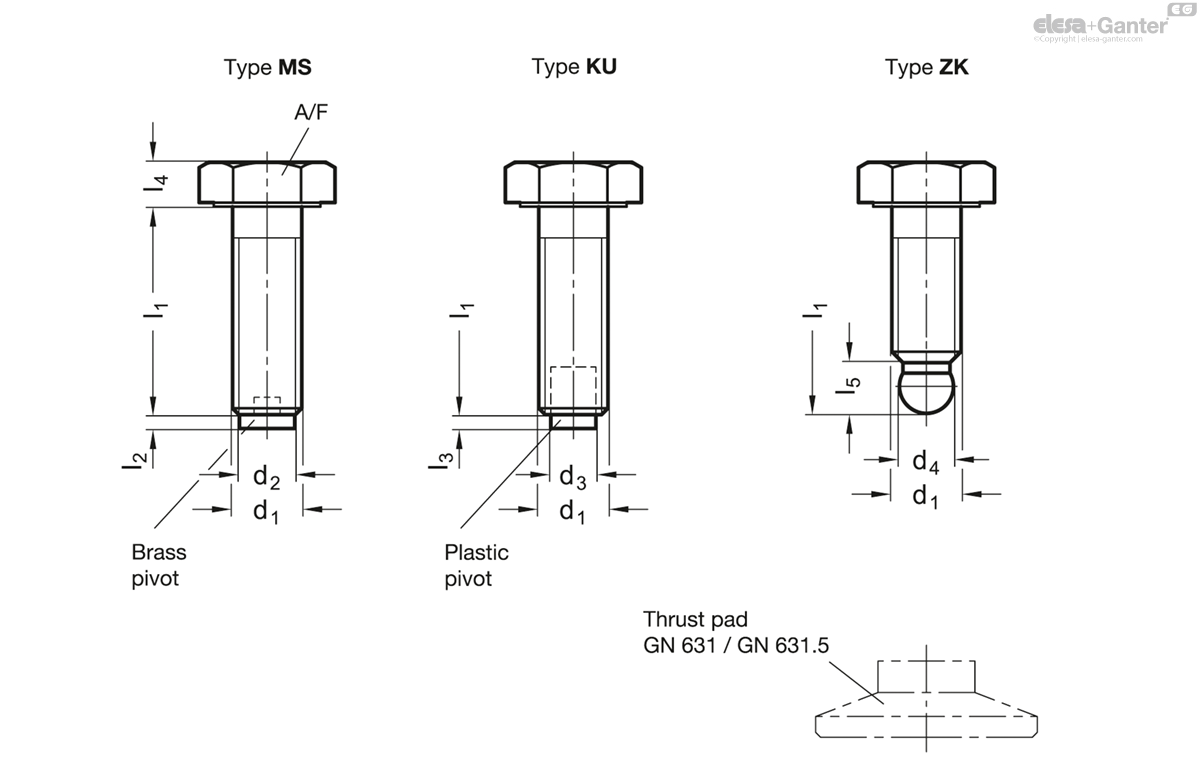

933.5-M8-45-KU drawing
Types
  • Type MS: Brass pivot
  • Type KU: Plastic pivot (Polyacetal POM)
  • Type ZK: Spherical pivot

Hexagon head screw

Stainless Steel AISI 304 (A2)

Stainless Steel-Hexagon head screws GN 933.5 with brass or plastic pivots are used when pressure dents or damage to the clamping surface must be avoided.

Stainless Steel-Hexagon head screws GN 933.5, type ZK, feature a spherical pivot whose diameter d4 is smaller than the core diameter d1 of the thread. This makes them suitable for holding thrust pads GN 631  / GN 631.5  which must be ordered separately.
