GN 606Ball point screws

Steel

Steel / Stainless Steel

  • INOX
  • RoHS
Steel
Steel
Stainless Steel
GN 606-NI
Stainless Steel
Steel
GN 606
Steel

GN 606

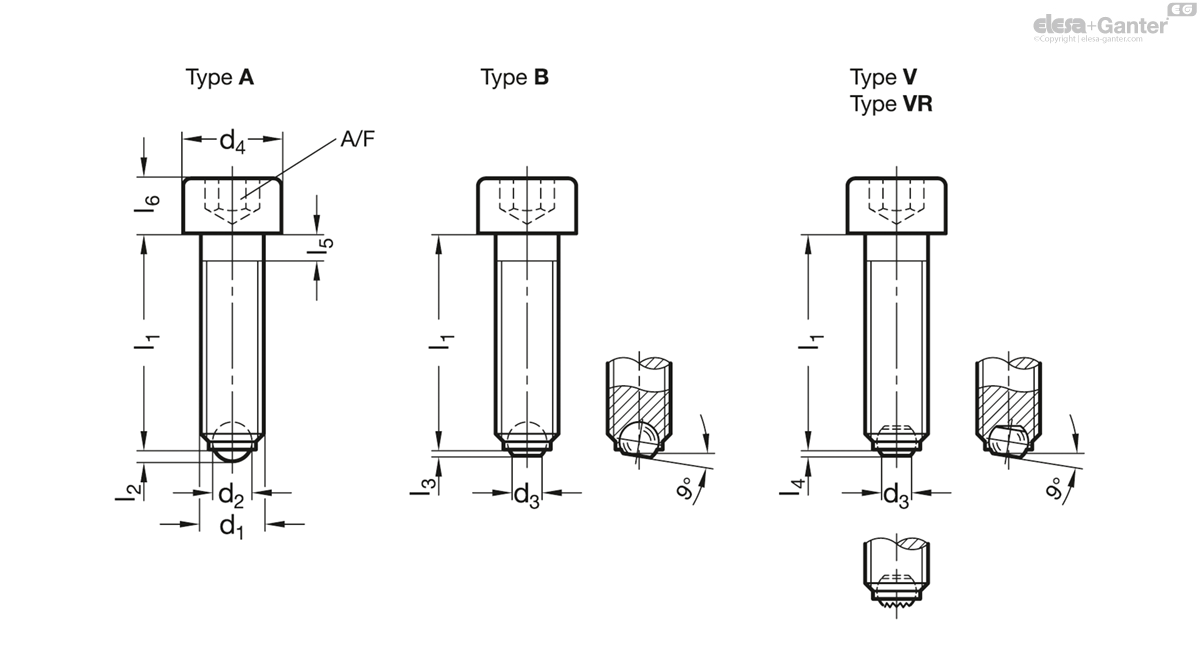

Catalogue
d1
l1
d2
d3
d4
l2 ≈
l3 ≈
l4 ≈
l5
l6
A/F
Static load in N
M 4
10
2.5
-
7
0.8
-
-
2.1
4
3
3500
M 4
12
2.5
-
7
0.8
-
-
2.1
4
3
3500
M 4
16
2.5
-
7
0.8
-
-
2.1
4
3
3500
M 4
20
2.5
-
7
0.8
-
-
2.1
4
3
3500
M 4
25
2.5
-
7
0.8
-
-
2.1
4
3
3500
M 5
12
3
-
8.5
1
-
-
2.4
5
4
5000
M 5
16
3
-
8.5
1
-
-
2.4
5
4
5000
M 5
20
3
-
8.5
1
-
-
2.4
5
4
5000
M 5
25
3
-
8.5
1
-
-
2.4
5
4
5000
M 5
30
3
-
8.5
1
-
-
2.4
5
4
5000
M 6
16
4
-
10
1.3
-
-
3
6
5
9000
M 6
20
4
-
10
1.3
-
-
3
6
5
9000
M 6
25
4
-
10
1.3
-
-
3
6
5
9000
M 6
30
4
-
10
1.3
-
-
3
6
5
9000
M 6
40
4
-
10
1.3
-
-
3
6
5
9000
M 8
20
5.5
-
13
1.8
-
-
3.5
8
6
15000
M 8
30
5.5
-
13
1.8
-
-
3.5
8
6
15000
M 8
35
5.5
-
13
1.8
-
-
3.5
8
6
15000
M 8
40
5.5
-
13
1.8
-
-
3.5
8
6
15000
M 8
50
5.5
-
13
1.8
-
-
3.5
8
6
15000
M 10
25
7
-
16
2.3
-
-
4.5
10
8
24000
M 10
30
7
-
16
2.3
-
-
4.5
10
8
24000
M 10
40
7
-
16
2.3
-
-
4.5
10
8
24000
M 10
50
7
-
16
2.3
-
-
4.5
10
8
24000
M 10
60
7
-
16
2.3
-
-
4.5
10
8
24000
M 12
30
8.5
-
18
2.8
-
-
5
12
10
30000
M 12
50
8.5
-
18
2.8
-
-
5
12
10
30000
M 12
80
8.5
-
18
2.8
-
-
5
12
10
30000
M 16
40
12
-
24
4.3
-
-
6
16
14
73000
M 16
60
12
-
24
4.3
-
-
6
16
14
73000
M 16
80
12
-
24
4.3
-
-
6
16
14
73000
M 4
10
-
2
7
-
0.2
-
2.1
4
3
3500
M 4
12
-
2
7
-
0.2
-
2.1
4
3
3500
M 4
16
-
2
7
-
0.2
-
2.1
4
3
3500
M 4
20
-
2
7
-
0.2
-
2.1
4
3
3500
M 4
25
-
2
7
-
0.2
-
2.1
4
3
3500
M 5
12
-
2.5
8.5
-
0.4
-
2.4
5
4
5000
M 5
16
-
2.5
8.5
-
0.4
-
2.4
5
4
5000
M 5
20
-
2.5
8.5
-
0.4
-
2.4
5
4
5000
M 5
25
-
2.5
8.5
-
0.4
-
2.4
5
4
5000
M 5
30
-
2.5
8.5
-
0.4
-
2.4
5
4
5000
M 6
16
-
3.2
10
-
0.6
-
3
6
5
9000
M 6
20
-
3.2
10
-
0.6
-
3
6
5
9000
M 6
25
-
3.2
10
-
0.6
-
3
6
5
9000
M 6
30
-
3.2
10
-
0.6
-
3
6
5
9000
M 6
40
-
3.2
10
-
0.6
-
3
6
5
9000
M 8
20
-
4.5
13
-
0.8
-
3.5
8
6
15000
M 8
30
-
4.5
13
-
0.8
-
3.5
8
6
15000
M 8
35
-
4.5
13
-
0.8
-
3.5
8
6
15000
M 8
40
-
4.5
13
-
0.8
-
3.5
8
6
15000
M 8
50
-
4.5
13
-
0.8
-
3.5
8
6
15000
M 10
25
-
6
16
-
0.8
-
4.5
10
8
24000
M 10
30
-
6
16
-
0.8
-
4.5
10
8
24000
M 10
40
-
6
16
-
0.8
-
4.5
10
8
24000
M 10
50
-
6
16
-
0.8
-
4.5
10
8
24000
M 10
60
-
6
16
-
0.8
-
4.5
10
8
24000
M 12
30
-
7.2
18
-
1
-
5
12
10
30000
M 12
50
-
7.2
18
-
1
-
5
12
10
30000
M 12
80
-
7.2
18
-
1
-
5
12
10
30000
M 16
40
-
10.7
24
-
1.3
-
6
16
14
73000
M 16
60
-
10.7
24
-
1.3
-
6
16
14
73000
M 16
80
-
10.7
24
-
1.3
-
6
16
14
73000
M 6
16
-
3.2
10
-
-
0.45
3
6
5
-
M 6
20
-
3.2
10
-
-
0.45
3
6
5
-
M 6
25
-
3.2
10
-
-
0.45
3
6
5
-
M 6
30
-
3.2
10
-
-
0.45
3
6
5
-
M 6
40
-
3.2
10
-
-
0.45
3
6
5
-
M 8
20
-
4.5
13
-
-
0.5
3.5
8
6
-
M 8
30
-
4.5
13
-
-
0.5
3.5
8
6
-
M 8
35
-
4.5
13
-
-
0.5
3.5
8
6
-
M 8
40
-
4.5
13
-
-
0.5
3.5
8
6
-
M 8
50
-
4.5
13
-
-
0.5
3.5
8
6
-
M 10
25
-
6
16
-
-
0.6
4.5
10
8
-
M 10
30
-
6
16
-
-
0.6
4.5
10
8
-
M 10
40
-
6
16
-
-
0.6
4.5
10
8
-
M 10
50
-
6
16
-
-
0.6
4.5
10
8
-
M 10
60
-
6
16
-
-
0.6
4.5
10
8
-
M 12
30
-
7.2
18
-
-
0.75
5
12
10
-
M 12
50
-
7.2
18
-
-
0.75
5
12
10
-
M 12
80
-
7.2
18
-
-
0.75
5
12
10
-
M 16
40
-
10.7
24
-
-
1
6
16
14
-
M 16
60
-
10.7
24
-
-
1
6
16
14
-
M 16
80
-
10.7
24
-
-
1
6
16
14
-
M 6
16
-
3.2
10
-
-
0.45
3
6
5
-
M 6
20
-
3.2
10
-
-
0.45
3
6
5
-
M 6
25
-
3.2
10
-
-
0.45
3
6
5
-
M 6
30
-
3.2
10
-
-
0.45
3
6
5
-
M 6
40
-
3.2
10
-
-
0.45
3
6
5
-
M 8
20
-
4.5
13
-
-
0.5
3.5
8
6
-
M 8
30
-
4.5
13
-
-
0.5
3.5
8
6
-
M 8
35
-
4.5
13
-
-
0.5
3.5
8
6
-
M 8
40
-
4.5
13
-
-
0.5
3.5
8
6
-
M 8
50
-
4.5
13
-
-
0.5
3.5
8
6
-
M 10
25
-
6
16
-
-
0.6
4.5
10
8
-
M 10
30
-
6
16
-
-
0.6
4.5
10
8
-
M 10
40
-
6
16
-
-
0.6
4.5
10
8
-
M 10
50
-
6
16
-
-
0.6
4.5
10
8
-
M 10
60
-
6
16
-
-
0.6
4.5
10
8
-
M 12
30
-
7.2
18
-
-
0.75
5
12
10
-
M 12
50
-
7.2
18
-
-
0.75
5
12
10
-
M 12
80
-
7.2
18
-
-
0.75
5
12
10
-
M 16
40
-
10.7
24
-
-
1
6
16
14
-
M 16
60
-
10.7
24
-
-
1
6
16
14
-
M 16
80
-
10.7
24
-
-
1
6
16
14
-

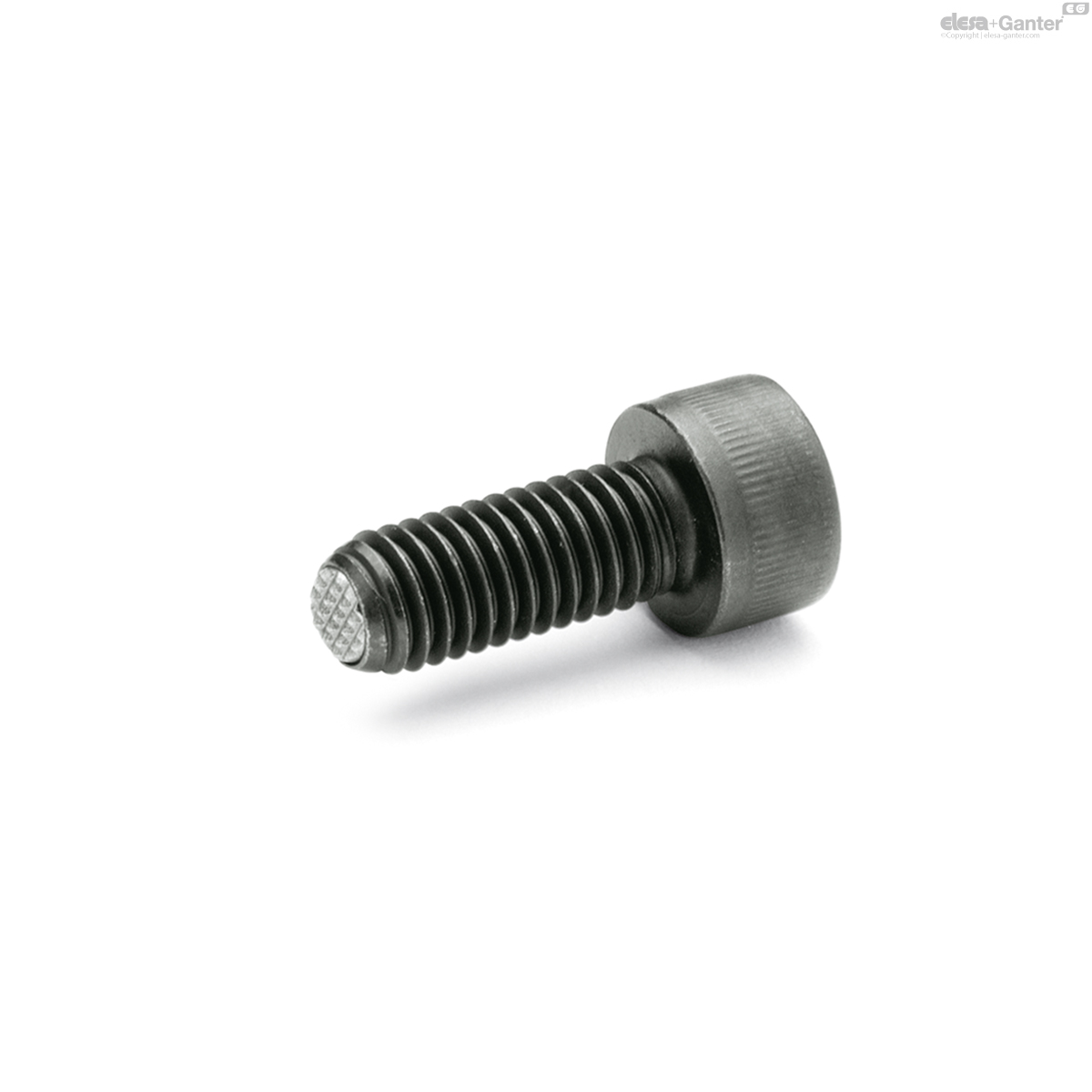

Version in Steel

Types

  • Type A: full ball
  • Type B: flat ball
  • Type V: flat ball, with swivel limiting stop
  • Type VR: flat ball, with swivel limiting stop, corrugated

Steel

  • Tensile strength class 12.9
  • blackened

Ball

  • hardened
  • blank

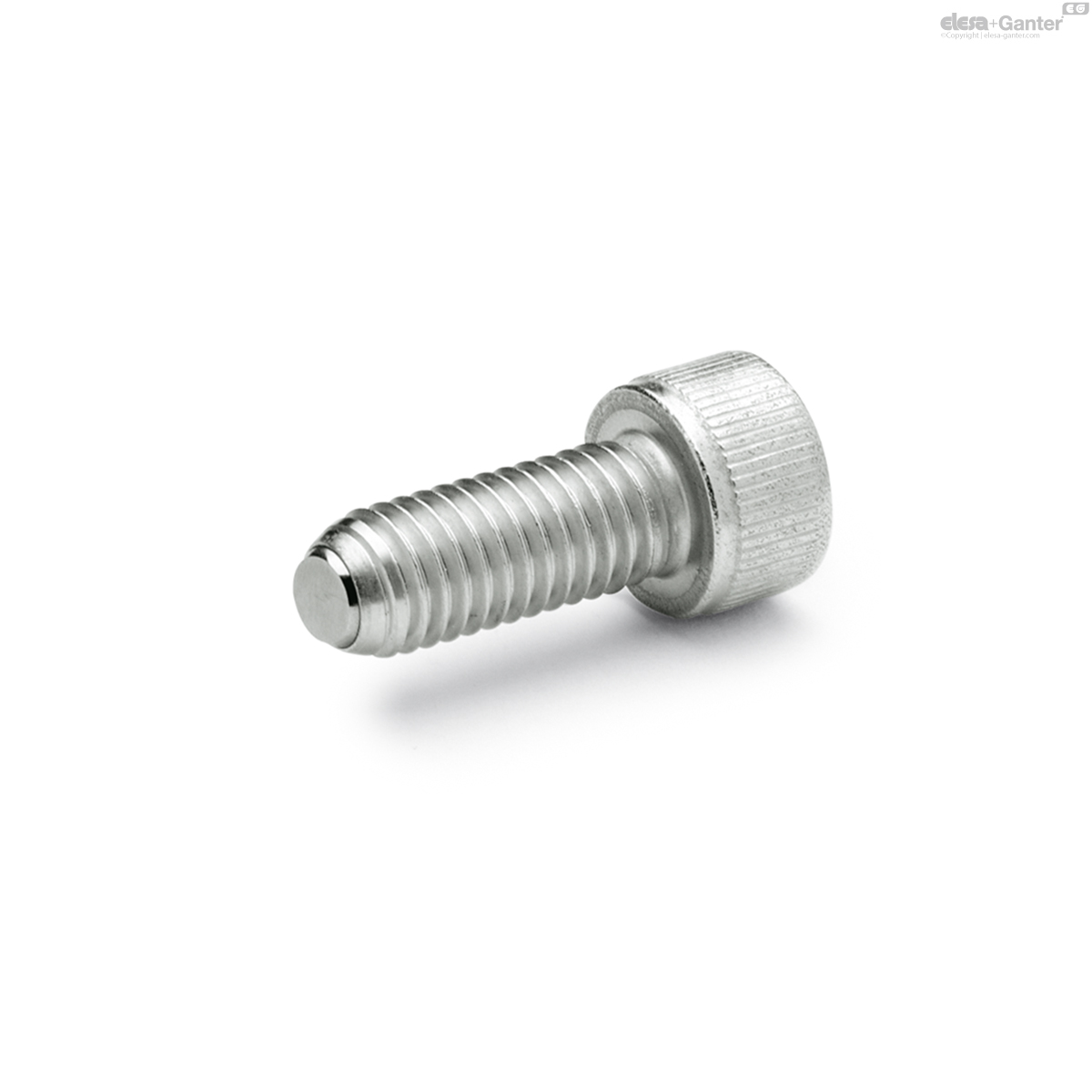

Version in Stainless Steel

Types

  • Type AN: full ball
  • Type BN: flat ball
  • Type VN: flat ball, with swivel limiting stop
  • Type VRN: flat ball, with swivel limiting stop, corrugated

Screw

Stainless Steel AISI 304

Ball

Stainless Steel AISI 440C

hardened

Ball point screws GN 606 with full ball (Type A / Type AN) are used in applications where a ball point contact is required.

The flat faced moving ball (Type B / Type BN) allows a clamping or supporting of non parallel surfaces.

The ball of Type V/VN/VR/VRN can be swivelled to a maximum of 9° to ensure that clamping is always maintained on the flat section of the ball.
