Technical datasheet
GN 933.5Roestvrijstalen zeskantschroeven
Roestvrijstalen zeskantschroeven
met messing/kunststof/bolvormig draaipunt
GN 933.5
|
Code
|
d1
|
l1
|
d2
|
d3
|
d4 +0.05
|
l2
|
l3
|
l4
|
l5 ≈
|
A/F
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M 6
|
16
|
4
|
-
|
-
|
1
|
-
|
4
|
-
|
10
|
5
| ||
|
M 6
|
20
|
4
|
-
|
-
|
1
|
-
|
4
|
-
|
10
|
6
| ||
|
M 6
|
25
|
4
|
-
|
-
|
1
|
-
|
4
|
-
|
10
|
7
| ||
|
M 6
|
30
|
4
|
-
|
-
|
1
|
-
|
4
|
-
|
10
|
8
| ||
|
M 6
|
35
|
4
|
-
|
-
|
1
|
-
|
4
|
-
|
10
|
9
| ||
|
M 8
|
20
|
6
|
-
|
-
|
1.5
|
-
|
5.3
|
-
|
13
|
13
| ||
|
M 8
|
25
|
6
|
-
|
-
|
1.5
|
-
|
5.3
|
-
|
13
|
14
| ||
|
M 8
|
30
|
6
|
-
|
-
|
1.5
|
-
|
5.3
|
-
|
13
|
15
| ||
|
M 8
|
35
|
6
|
-
|
-
|
1.5
|
-
|
5.3
|
-
|
13
|
17
| ||
|
M 8
|
45
|
6
|
-
|
-
|
1.5
|
-
|
5.3
|
-
|
13
|
20
| ||
|
M 10
|
25
|
8
|
-
|
-
|
2
|
-
|
6.4
|
-
|
17
|
24
| ||
|
M 10
|
30
|
8
|
-
|
-
|
2
|
-
|
6.4
|
-
|
17
|
27
| ||
|
M 10
|
35
|
8
|
-
|
-
|
2
|
-
|
6.4
|
-
|
17
|
30
| ||
|
M 10
|
45
|
8
|
-
|
-
|
2
|
-
|
6.4
|
-
|
17
|
34
| ||
|
M 10
|
55
|
8
|
-
|
-
|
2
|
-
|
6.4
|
-
|
17
|
39
| ||
|
M 6
|
16
|
-
|
3.5
|
-
|
-
|
1.3
|
4
|
-
|
10
|
5
| ||
|
M 6
|
20
|
-
|
3.5
|
-
|
-
|
1.3
|
4
|
-
|
10
|
6
| ||
|
M 6
|
25
|
-
|
3.5
|
-
|
-
|
1.3
|
4
|
-
|
10
|
6
| ||
|
M 6
|
30
|
-
|
3.5
|
-
|
-
|
1.3
|
4
|
-
|
10
|
7
| ||
|
M 6
|
35
|
-
|
3.5
|
-
|
-
|
1.3
|
4
|
-
|
10
|
8
| ||
|
M 8
|
20
|
-
|
5
|
-
|
-
|
1.6
|
5.3
|
-
|
13
|
11
| ||
|
M 8
|
25
|
-
|
5
|
-
|
-
|
1.6
|
5.3
|
-
|
13
|
13
| ||
|
M 8
|
30
|
-
|
5
|
-
|
-
|
1.6
|
5.3
|
-
|
13
|
14
| ||
|
M 8
|
35
|
-
|
5
|
-
|
-
|
1.6
|
5.3
|
-
|
13
|
16
| ||
|
M 8
|
45
|
-
|
5
|
-
|
-
|
1.6
|
5.3
|
-
|
13
|
19
| ||
|
M 10
|
25
|
-
|
6.5
|
-
|
-
|
1.9
|
6.4
|
-
|
17
|
23
| ||
|
M 10
|
30
|
-
|
6.5
|
-
|
-
|
1.9
|
6.4
|
-
|
17
|
25
| ||
|
M 10
|
35
|
-
|
6.5
|
-
|
-
|
1.9
|
6.4
|
-
|
17
|
28
| ||
|
M 10
|
45
|
-
|
6.5
|
-
|
-
|
1.9
|
6.4
|
-
|
17
|
32
| ||
|
M 10
|
55
|
-
|
6.5
|
-
|
-
|
1.9
|
6.4
|
-
|
17
|
37
| ||
|
M 6
|
20
|
-
|
-
|
4.5
|
-
|
-
|
4
|
5.1
|
10
|
6
| ||
|
M 6
|
25
|
-
|
-
|
4.5
|
-
|
-
|
4
|
5.1
|
10
|
6
| ||
|
M 6
|
30
|
-
|
-
|
4.5
|
-
|
-
|
4
|
5.1
|
10
|
7
| ||
|
M 6
|
35
|
-
|
-
|
4.5
|
-
|
-
|
4
|
5.1
|
10
|
8
| ||
|
M 8
|
25
|
-
|
-
|
6.1
|
-
|
-
|
5.3
|
6.2
|
13
|
12
| ||
|
M 8
|
30
|
-
|
-
|
6.1
|
-
|
-
|
5.3
|
6.2
|
13
|
14
| ||
|
M 8
|
35
|
-
|
-
|
6.1
|
-
|
-
|
5.3
|
6.2
|
13
|
16
| ||
|
M 8
|
45
|
-
|
-
|
6.1
|
-
|
-
|
5.3
|
6.2
|
13
|
19
| ||
|
M 10
|
30
|
-
|
-
|
7.8
|
-
|
-
|
6.4
|
7.3
|
17
|
25
| ||
|
M 10
|
35
|
-
|
-
|
7.8
|
-
|
-
|
6.4
|
7.3
|
17
|
27
| ||
|
M 10
|
45
|
-
|
-
|
7.8
|
-
|
-
|
6.4
|
7.3
|
17
|
32
| ||
|
M 10
|
55
|
-
|
-
|
7.8
|
-
|
-
|
6.4
|
7.3
|
17
|
38
|
Types

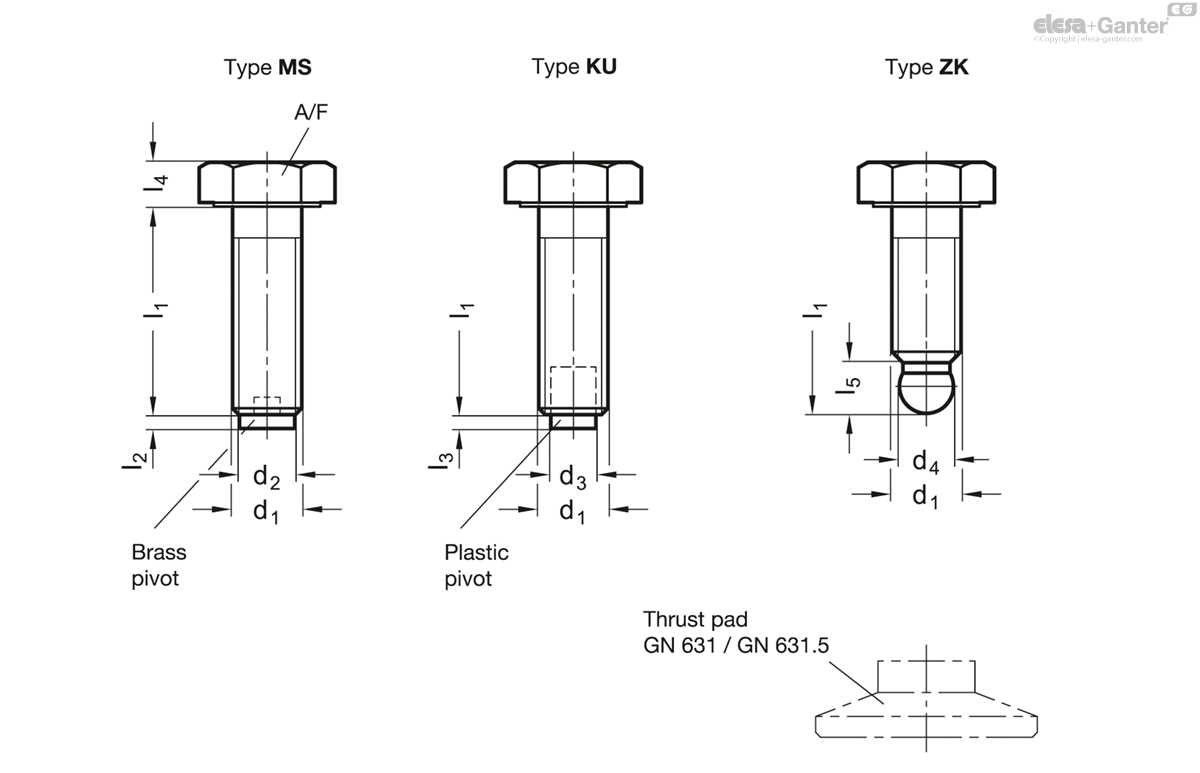

- Type MS: Brass pivot
- Type KU: Plastic pivot (Polyacetal POM)
- Type ZK: Spherical pivot
Hexagon head screw
Stainless Steel AISI 304 (A2)

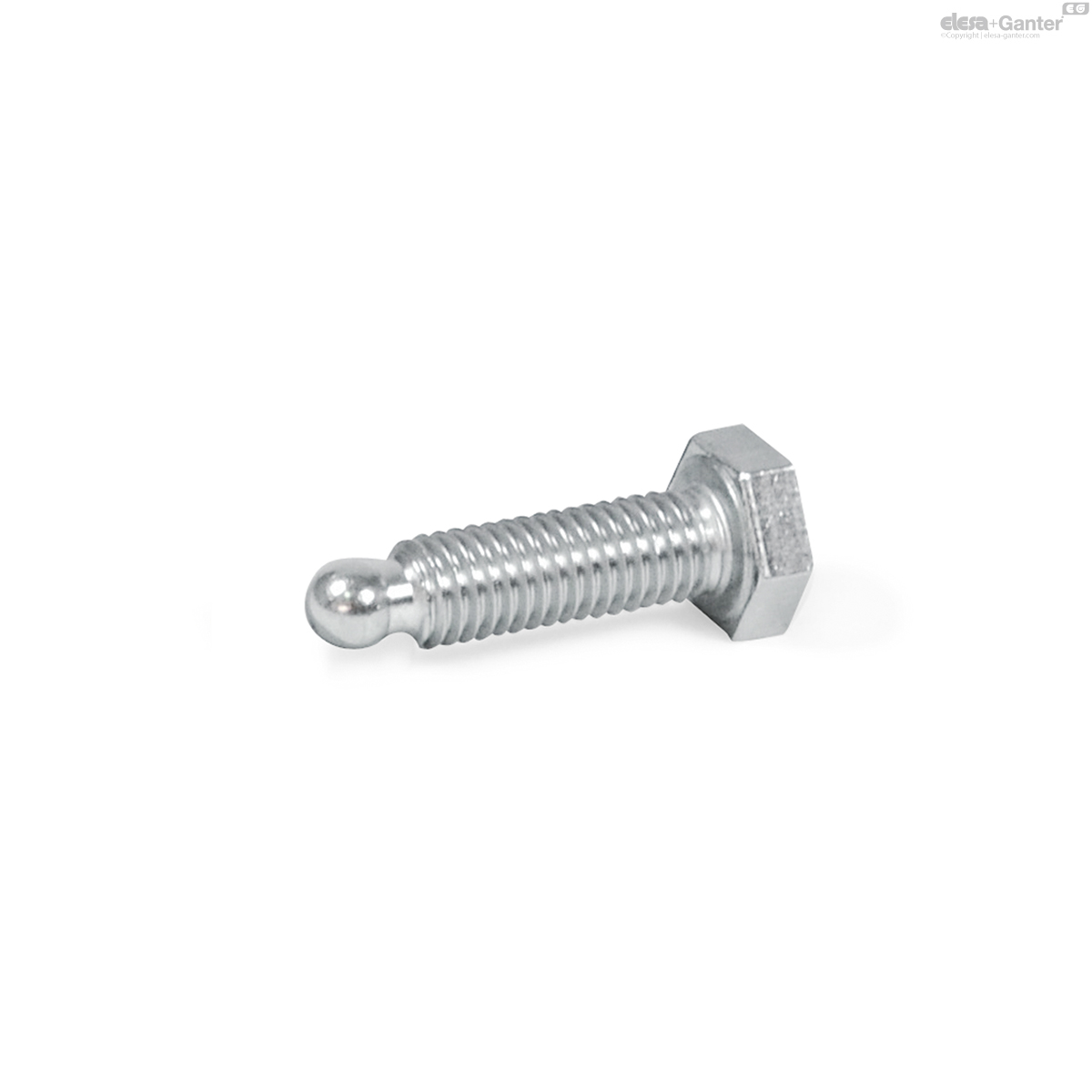

Stainless Steel-Hexagon head screws GN 933.5 with brass or plastic pivots are used when pressure dents or damage to the clamping surface must be avoided.
Stainless Steel-Hexagon head screws GN 933.5, type ZK, feature a spherical pivot whose diameter d4 is smaller than the core diameter d1 of the thread. This makes them suitable for holding thrust pads GN 631 / GN 631.5 which must be ordered separately.
