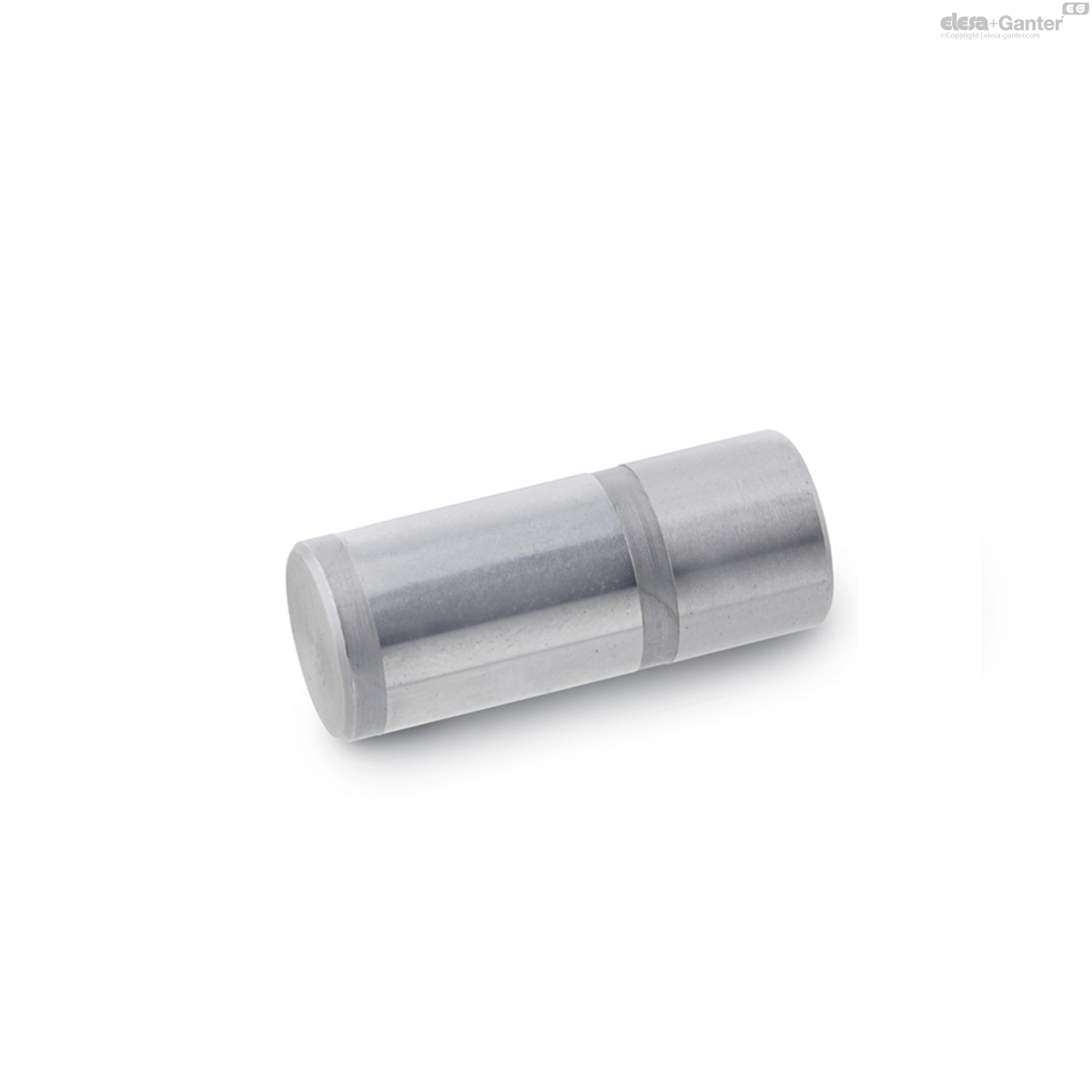

GN 771.1Guide pins

Guide pins

cylindrical, for guide bushings DIN 172 / DIN 179

  • Icons/__logo__RoHS__.png
Guide pins
Guide pins

GN 771.1

Reset
Catalogue
d p6/h6
l1
l2
l3
GN 771.1-4-16-8
4
16
8
1.5
2
GN 771.1-5-18-8
5
18
8
1.5
3
GN 771.1-6-22-10
6
22
10
1.5
5
GN 771.1-8-24-10
8
24
10
2
9
GN 771.1-10-28-12
10
28
12
2
15
GN 771.1-12-30-12
12
30
12
2.5
26
GN 771.1-16-36-16
16
36
16
2.5
59

Steel

  • hardened (HRC 60 ±2)
  • Fit sizes d p6 / d h6 ground

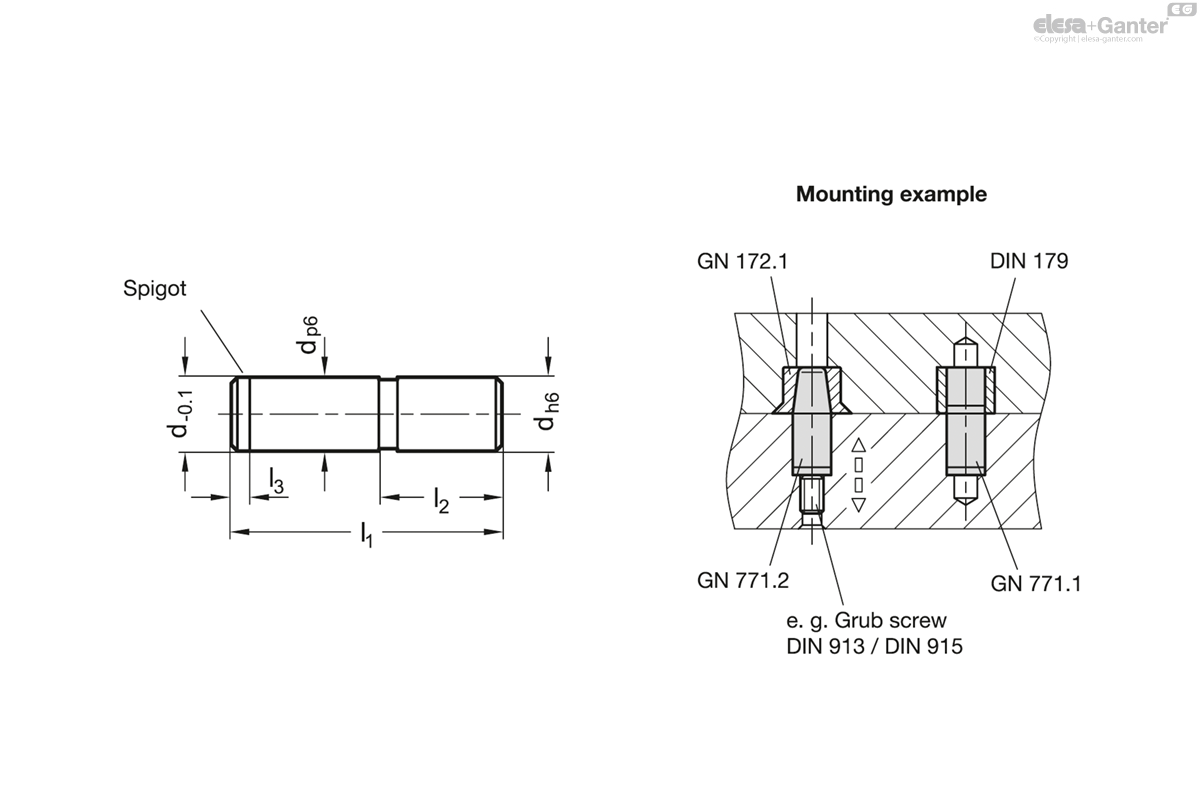

Guide pins GN 771.1 are used in combination with DIN 172 / DIN 179  guide bushings.

The shaft tolerance p6 guarantees a perfect pressfit in a mounting borehole H7. The spigot l3 makes the installation easier.
