GN 771.1 Guide pins

cylindrical, for guide bushings DIN 172 / DIN 179
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 771.1

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 771.1-8-24-10
d p6/h6
8
l1
24
l2
10
l3
2
9

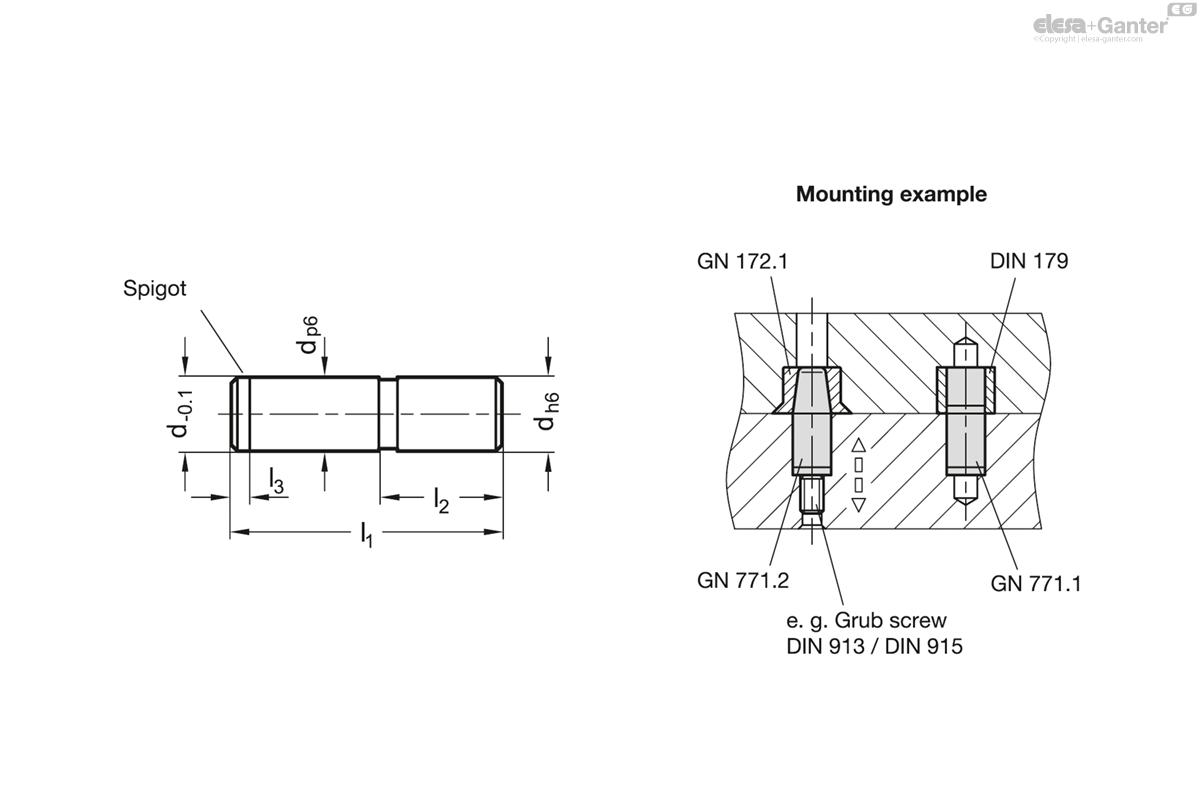

771.1-8-24-10 drawing

Steel

  • hardened (HRC 60 ±2)
  • Fit sizes d p6 / d h6 ground

Guide pins GN 771.1 are used in combination with DIN 172 / DIN 179  guide bushings.

The shaft tolerance p6 guarantees a perfect pressfit in a mounting borehole H7. The spigot l3 makes the installation easier.
