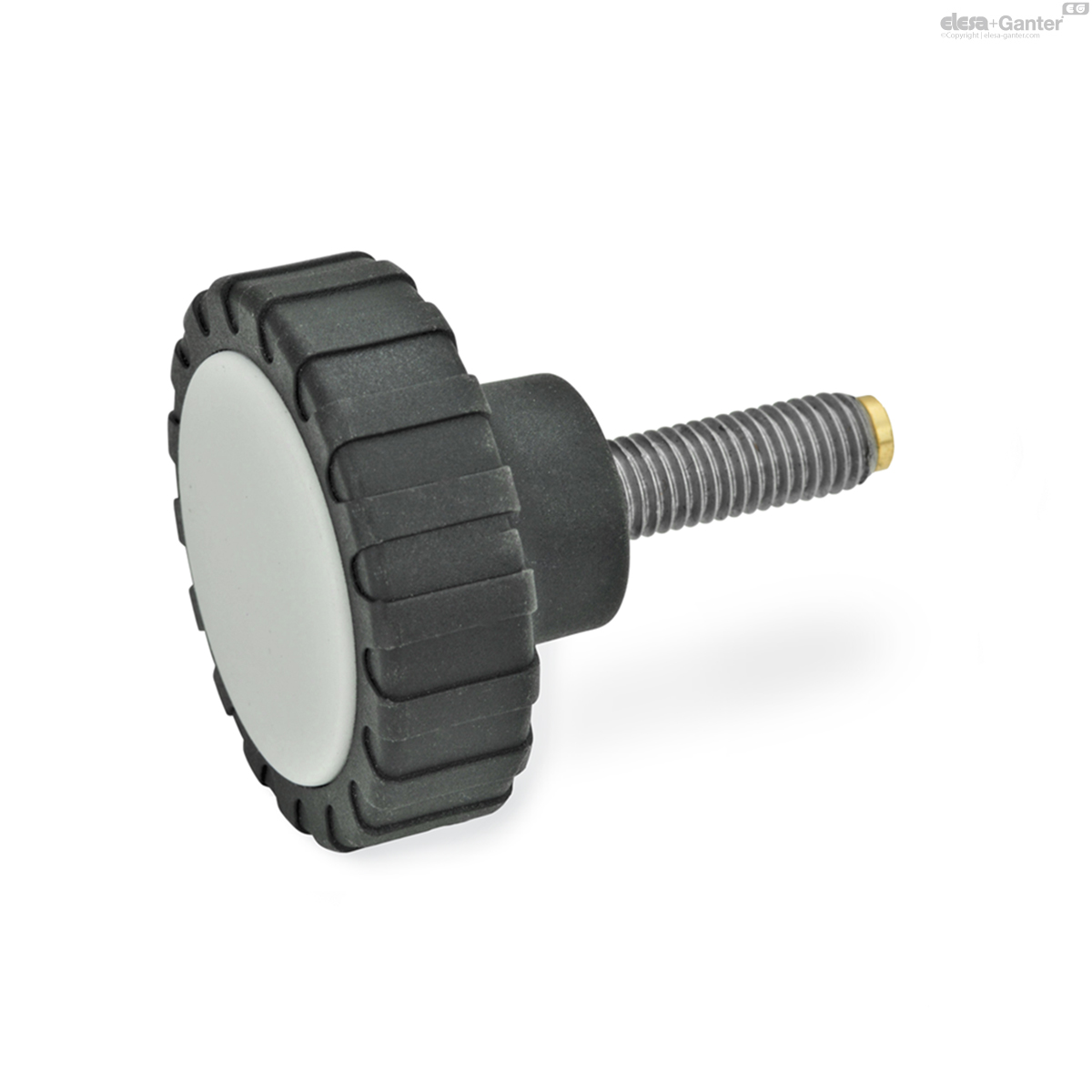

7336.5-42-M8-40-MS GN 7336.5-MS Brass pivot

7336.5-42-M8-40-MS

GN 7336.5-MS Brass pivot

Plastic, Threaded Stud Stainless Steel, Brass / Plastic / Spherical Pivot
  • INOX
  • RoHS

Eta: 1-2 weeks All sizes and variants of GN 7336.5

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 7336.5-42-M8-40-MS
d1
42
d2
M 8
l1
40
d3
19
d4
6
d5
5
d6 +0.05
6.1
h1
26
h2
13
l2
1.5
l3
1.6
l4 ≈
6.2
37
7336.5-42-M8-40-MS drawing

Types

  • Type MS: Brass pivot
  • Type KU: Plastic pivot, Polyacetal (POM)
  • Type ZK: Spherical pivot

Knob

Plastic, Polyamide (PA)

  • Glass fiber reinforced
  • Operating temperature -30 °C to +130 °C
  • Black, matte finish

Threaded stud

Stainless steel AISI 304

Cover cap

Plastic, Polyamide (PA)

Light gray, matte finish

Knurled screws GN 7336.5, type MS/KU with brass or plastic pivots are used when pressure dents or damage must be avoided.

Knurled screws GN 7336.5, type ZK feature a spherical pivot whose Ø d6 is smaller than the core Ø of the thread. The version with spherical pivot is suitable for holding thrust pads GN 631 / GN 631.5 , which must be ordered separately.

The knurled screws GN 7336.5 distinguish an attractive design in combination with closed shape (no recess on the underside of the handles).
