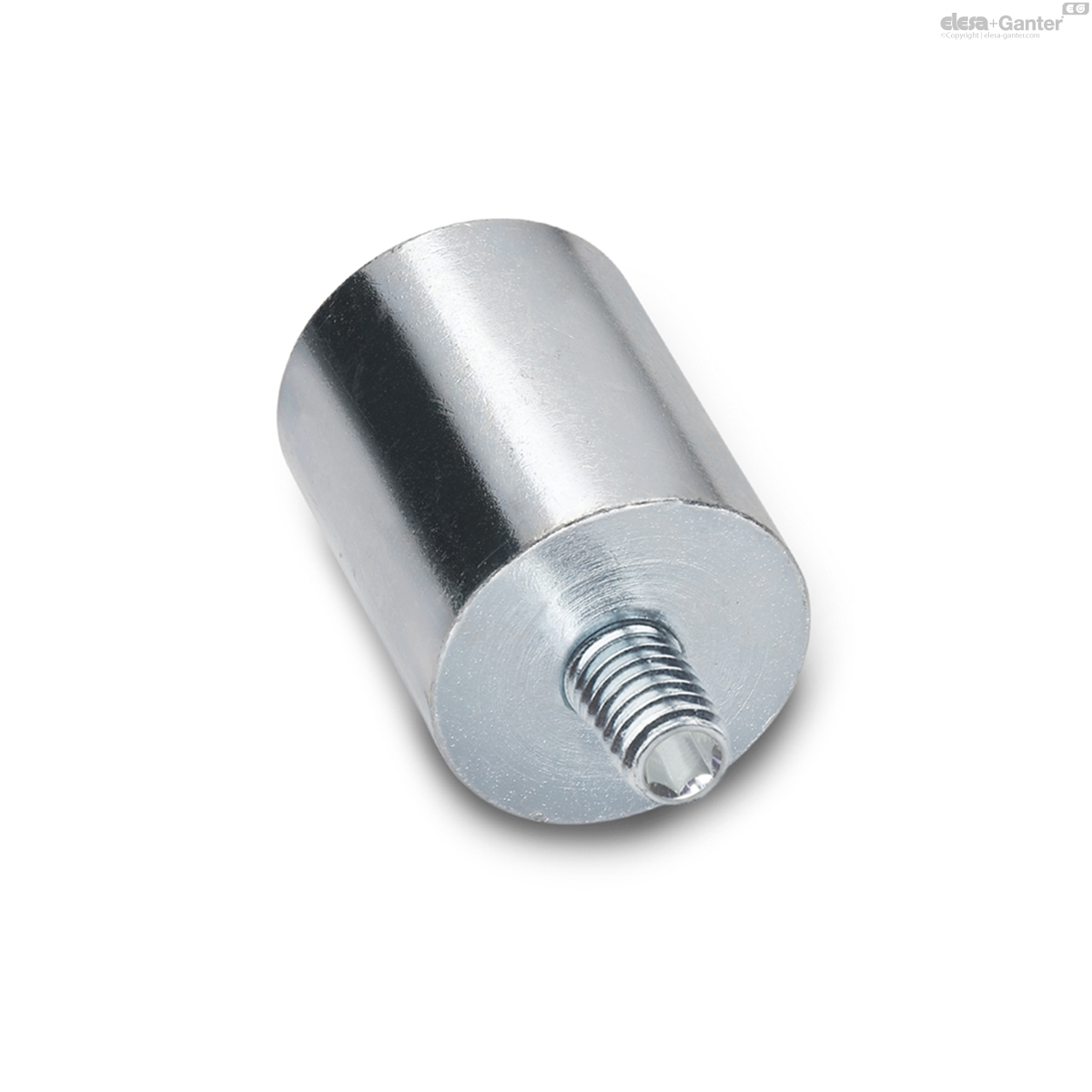

GN 52.4Retaining Magnets

Retaining Magnets

Rod-Shaped, with Threaded Stud

  • Icons/__logo__RoHS__.png
Retaining Magnets
Retaining Magnets

GN 52.4

Catalogue
d1 ±0.1
d2
h ±0.2
l
A/F
Nominal adhesive forces in N
6
M 3
20
7
1.5
2
5
8
M 3
20
7
1.5
4
8
10
M 4
20
8
2
8.5
13
13
M 4
20
8
2
12
21
16
M 4
20
10
2
20
26
20
M 6
25
10
3
40
60
25
M 6
35
10
3
60
125
32
M 8
40
12
4
160
217
40
M 8
50
15
4
240
458
50
M 10
60
15
5
400
855
63
M 12
65
20
6
660
1345
6
M 3
20
7
1.5
6
5
8
M 3
20
7
1.5
12
9
10
M 4
20
8
2
24
14
13
M 4
20
8
2
60
23
16
M 4
20
10
2
90
32
20
M 6
25
10
3
135
62
25
M 6
35
10
3
190
127
32
M 8
40
12
4
340
220
40
M 8
50
15
4
700
461
50
M 10
60
15
5
1000
860
63
M 12
65
20
6
1700
1350

Type

  • Type E: with threaded stud

Housing

Steel, zinc plated

Materials of the magnet:

AlNiCo AN

Aluminium, nickel, cobalt

Temperature resistant up to 450 °C

NdFeB ND

Neodymium, iron, boron

Temperature resistant up to 80 °C

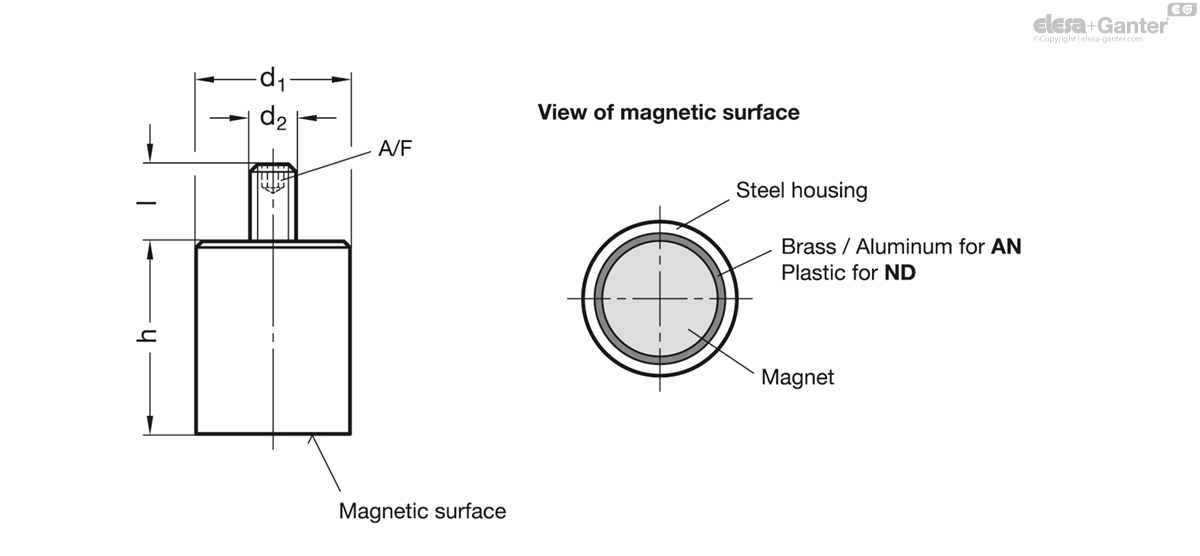

Retaining magnets GN 52.4 are combined with a steel housing and insulation of brass/aluminum or plastic into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
