GN 52.1Retaining magnets

Retaining magnets

rod-shaped, without bore, with / without fit tolerance

  • Icons/__logo__RoHS__.png
Retaining magnets
Retaining magnets

GN 52.1

Catalogue

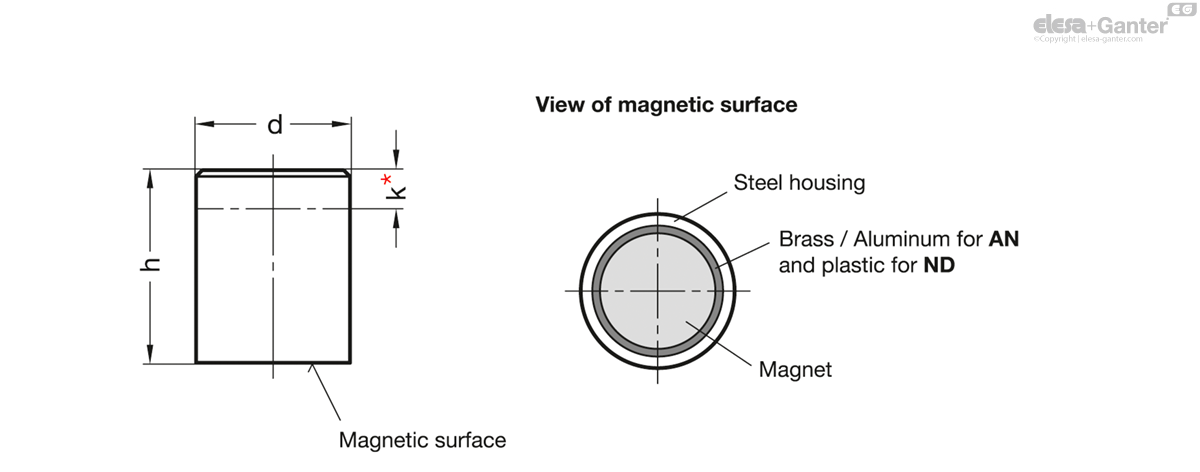

d
h ±0.2
k*
Nominal
magnetic forces
in N
6
20
12
2
5
8
20
11
4
8
10
20
10
8.5
12
13
20
8
12
19
16
20
6
20
60
20
25
5
40
58
25
35
13
60
125
32
40
9
160
220
40
50
10
240
440
50
60
10
400
813
63
65
10
660
1306
6
10
2
2
2
8
12
3
4
5
10
16
6
8.5
10
13
18
6
12
18
16
20
6
20
30
20
25
5
40
57
25
30
7
60
106
32
35
4
160
187
40
45
5
240
390
50
50
-
400
639
63
60
5
660
1175
4
20
15
2.5
2
5
20
15
4.5
4
6
20
15
6
5
8
20
15
12
8
10
20
15
24
12
13
20
15
60
21
16
20
15
90
31
20
25
18
135
61
25
35
27
190
133
32
40
32
340
249
4
10
7
2.5
1
5
10
6
4.5
1
6
10
5
6
2
8
12
7
12
4
10
16
11
24
9
13
18
13
60
18
16
20
15
90
31
20
25
18
135
60
25
30
22
190
115
32
35
27
340
218
* k is the maximum dimension by which the retaining magnet can be shorted without losing its properties.

Identification No.

  • No. 1: Tolerance d = ±0.1
  • No. 2: Tolerance d = h6

Housing

Steel

  • Identification No. 1: zinc plated
  • Identification No. 2: blank

Materials of the magnet:

AlNiCo AN

Aluminium, nickel, cobalt

temperature resistant up to 450 °C

NdFeB ND

Neodymium, iron, boron

temperature resistant up to 80 °C

Retaining magnets GN 52.1 are combined with a steel housing and insulation of brass/aluminum or plastic into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.

The retaining magnets are easy to fasten securely by pressing, shrinking or gluing.
