GN 52.2Retaining magnets

Retaining magnets

rod-shaped, with female thread

Technical datasheet

GN 52.2

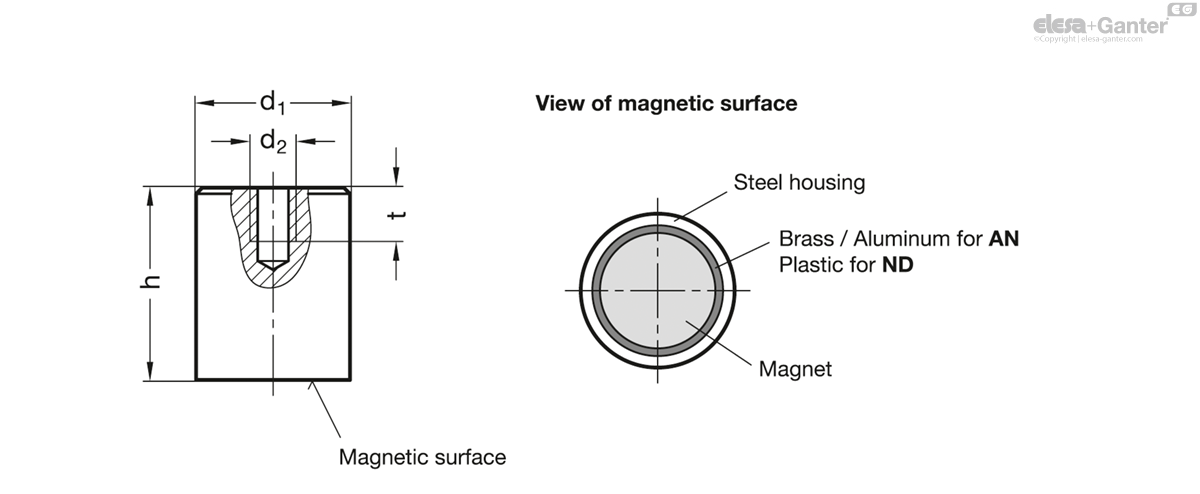

Catalogue	d₁ ±0.1	d₁ ±0.2	h ±0.2	d₂	t min.	Nominal adhesive forces in N
GN 52.2-AN-6	6	6	20	M 3	5	2	4
GN 52.2-AN-8	8	8	20	M 3	5	4	8
GN 52.2-AN-10	10	10	20	M 4	7	8.5	12
GN 52.2-AN-13	13	13	20	M 4	7	12	19
GN 52.2-AN-16	16	16	20	M 4	7	20	30
GN 52.2-AN-20	20	20	25	M 6	9	40	53
GN 52.2-AN-25	25	25	35	M 6	9	60	121
GN 52.2-AN-32	32	32	40	M 8	12	160	200
GN 52.2-AN-40	40	40	50	M 8	12	240	437
GN 52.2-AN-50	50	50	60	M 10	12	400	793
GN 52.2-AN-63	63	63	65	M 12	14	660	1273
GN 52.2-ND-6	6	6	20	M 3	5	6	4
GN 52.2-ND-8	8	8	20	M 3	5	12	8
GN 52.2-ND-10	10	10	20	M 4	7	24	11
GN 52.2-ND-13	13	13	20	M 4	7	60	18
GN 52.2-ND-16	16	16	20	M 4	7	90	30
GN 52.2-ND-20	20	20	25	M 6	9	135	58
GN 52.2-ND-25	25	25	35	M 6	9	190	131
GN 52.2-ND-32	32	32	40	M 8	12	340	243
GN 52.2-ND-40	40	40	50	M 8	12	600	480
GN 52.2-ND-50	50	50	60	M 10	12	900	904
GN 52.2-ND-63	63	63	65	M 12	14	1300	1555

Specification
Information

Housing

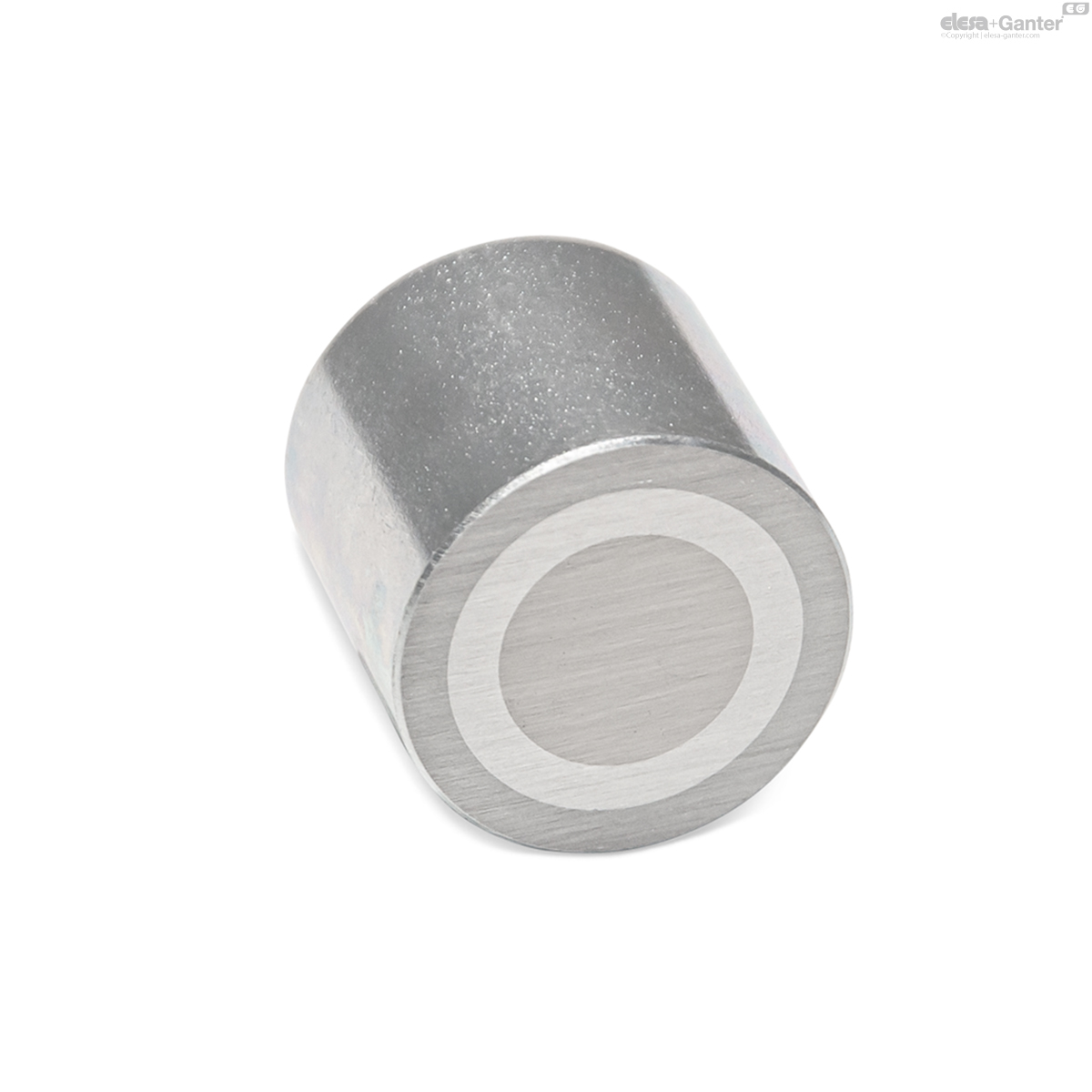

Steel, zinc plated

Materials of the magnet:

AlNiCo AN

Aluminium, nickel, cobalt

temperature resistant up to 450 °C

NdFeB ND

Neodymium, iron, boron

temperature resistant up to 80 °C

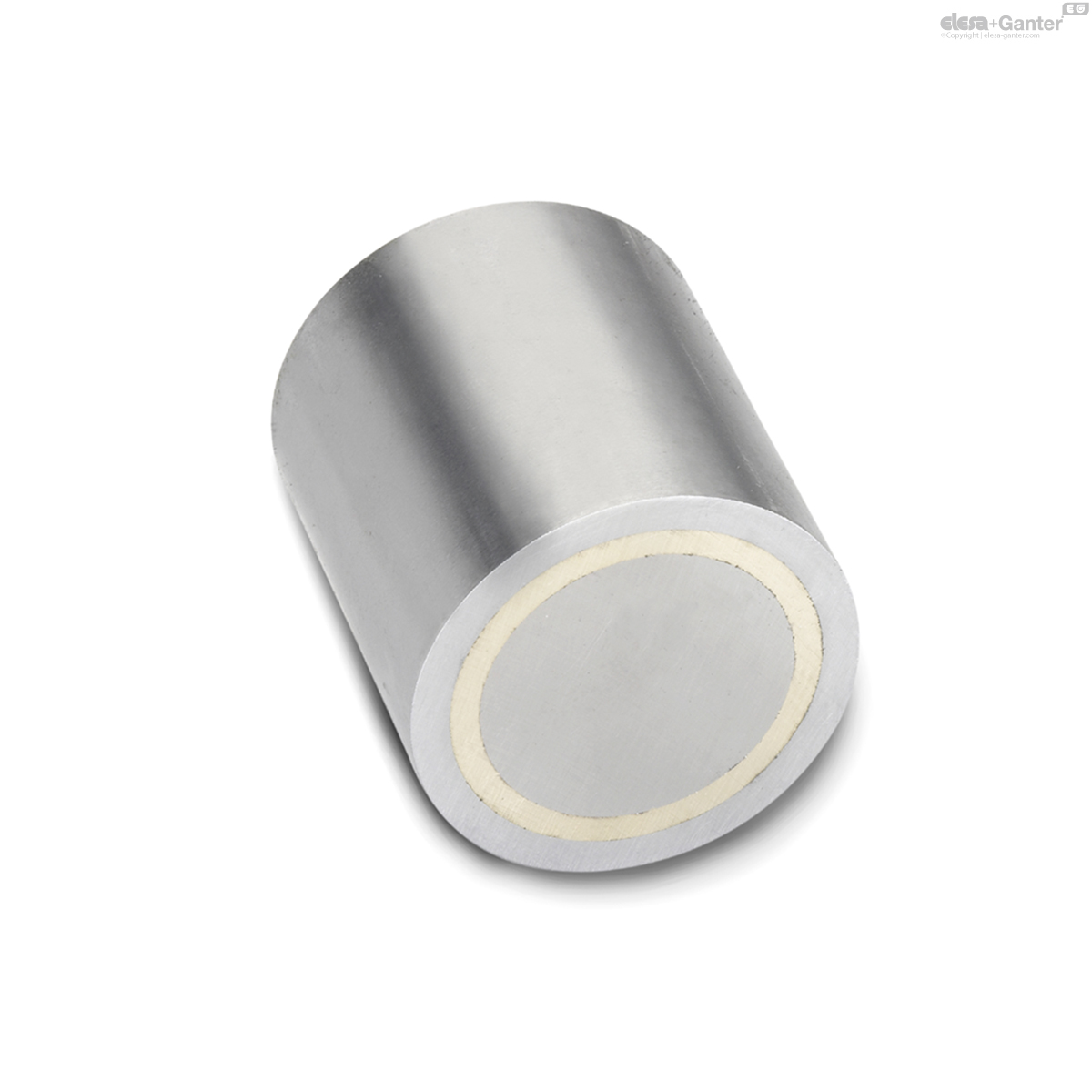

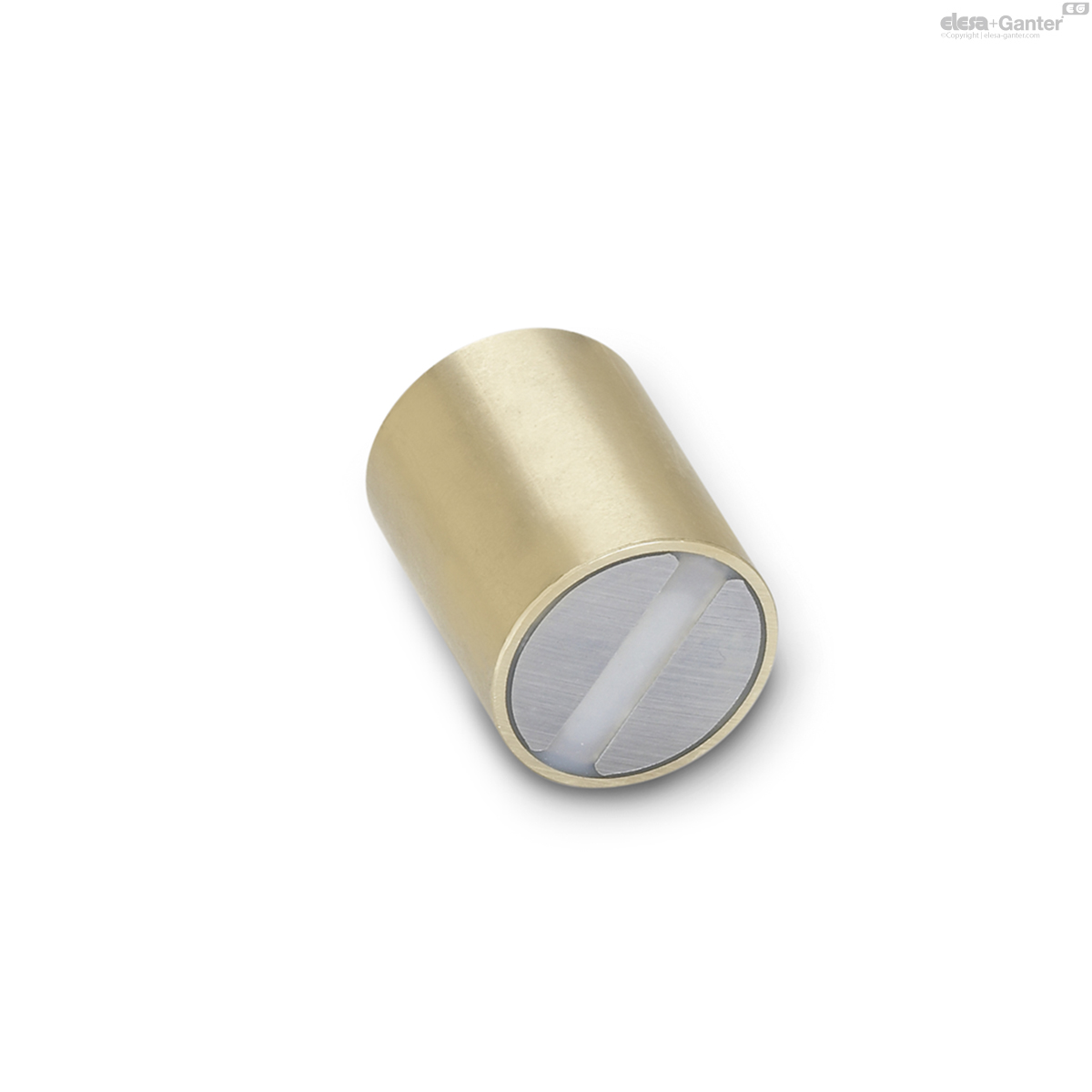

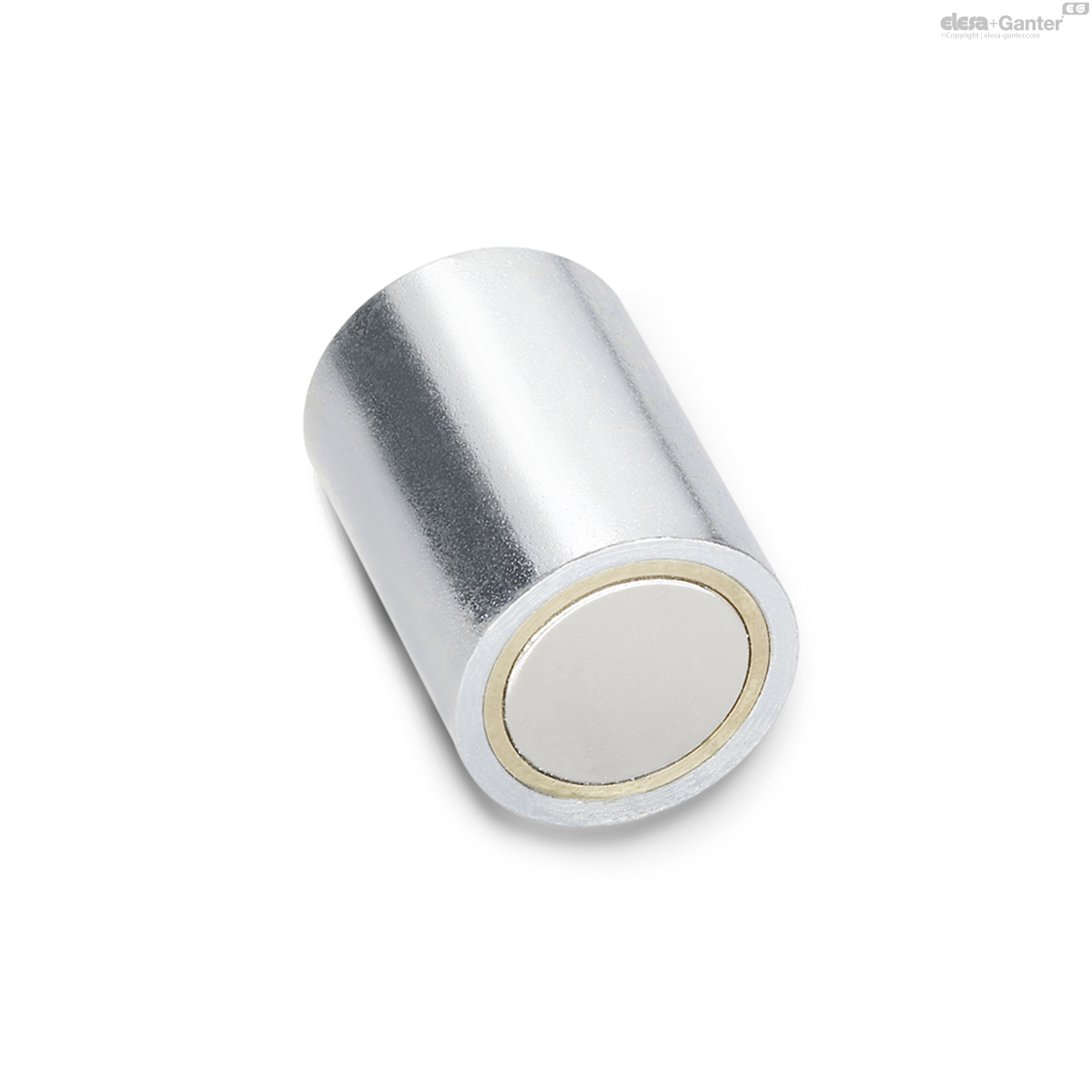

Retaining magnets GN 52.2 are combined with a steel housing and insulation of brass/aluminum or plastic into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
