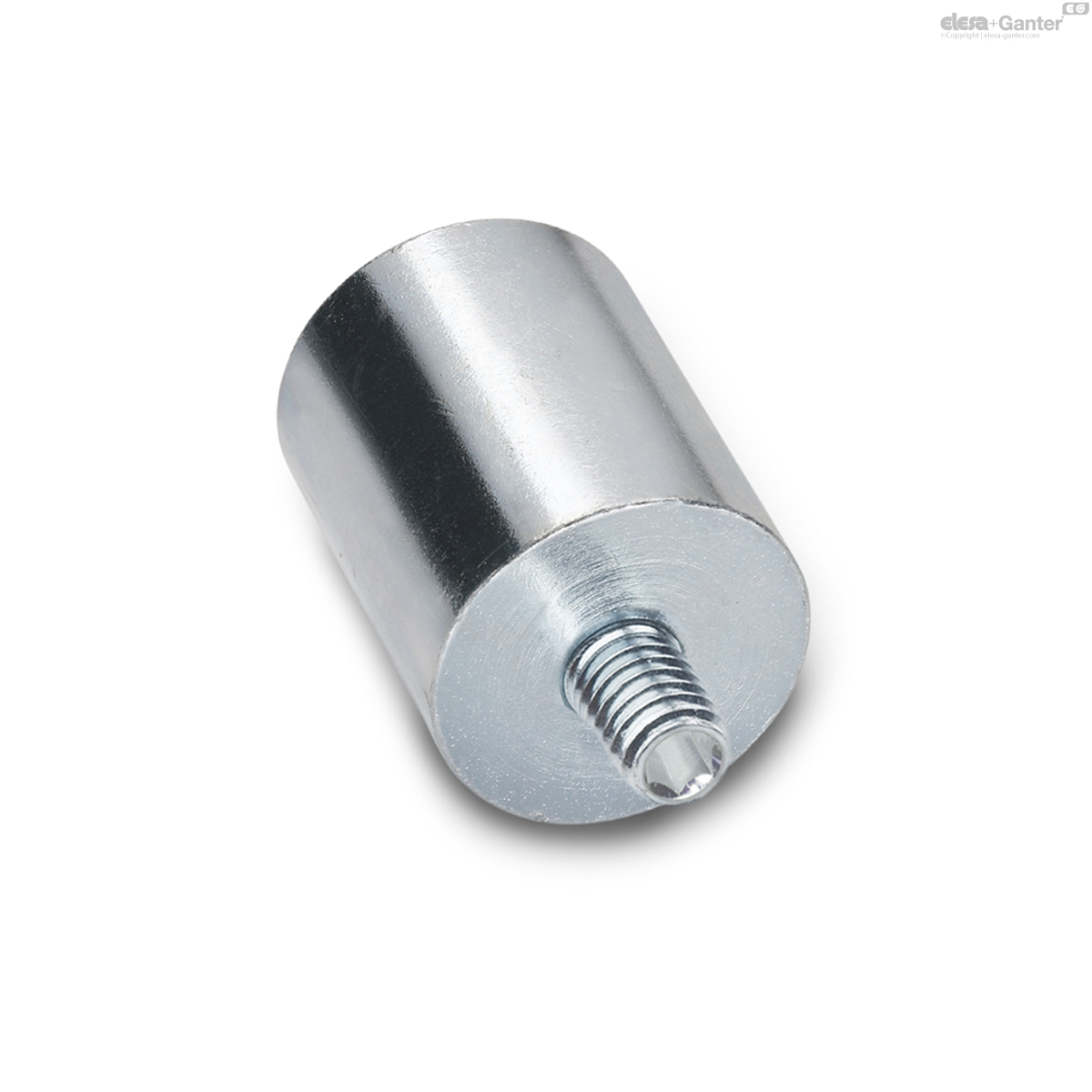

52.4-ND-6-M3-E GN 52.4 Retaining Magnets

52.4-ND-6-M3-E

GN 52.4 Retaining Magnets

Rod-Shaped, with Threaded Stud
All sizes and variants
  • RoHS

Eta: 1-2 weeks

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 52.4-ND-6-M3-E
d1 ±0.1
6
d2
M 3
h ±0.2
20
l
7
A/F
1.5
Nominal adhesive forces in N
6
weight
5
52.4-ND-6-M3-E drawing

Type

  • Type E: with threaded stud

Housing

Steel, zinc plated

Materials of the magnet:

AlNiCo AN

Aluminium, nickel, cobalt

Temperature resistant up to 450 °C

NdFeB ND

Neodymium, iron, boron

Temperature resistant up to 80 °C

Retaining magnets GN 52.4 are combined with a steel housing and insulation of brass/aluminum or plastic into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
