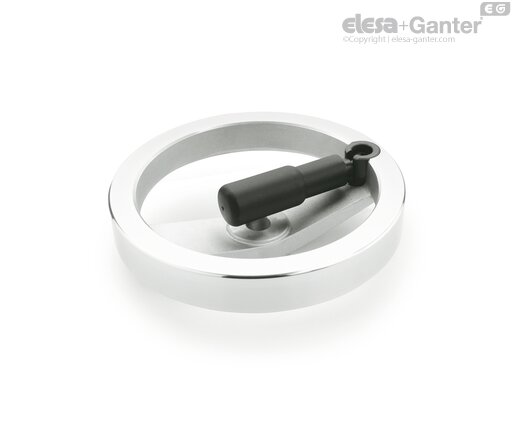

GN 322.3-BHandwheels with Retractable Handle

Without keyway

Aluminum, Handle Locked,

  • Icons/__logo__RoHS__.png
pdf Other documents
Without keyway
Without keyway
Without keyway
With keyway DIN 6885-1 P9
GN 322.3-K

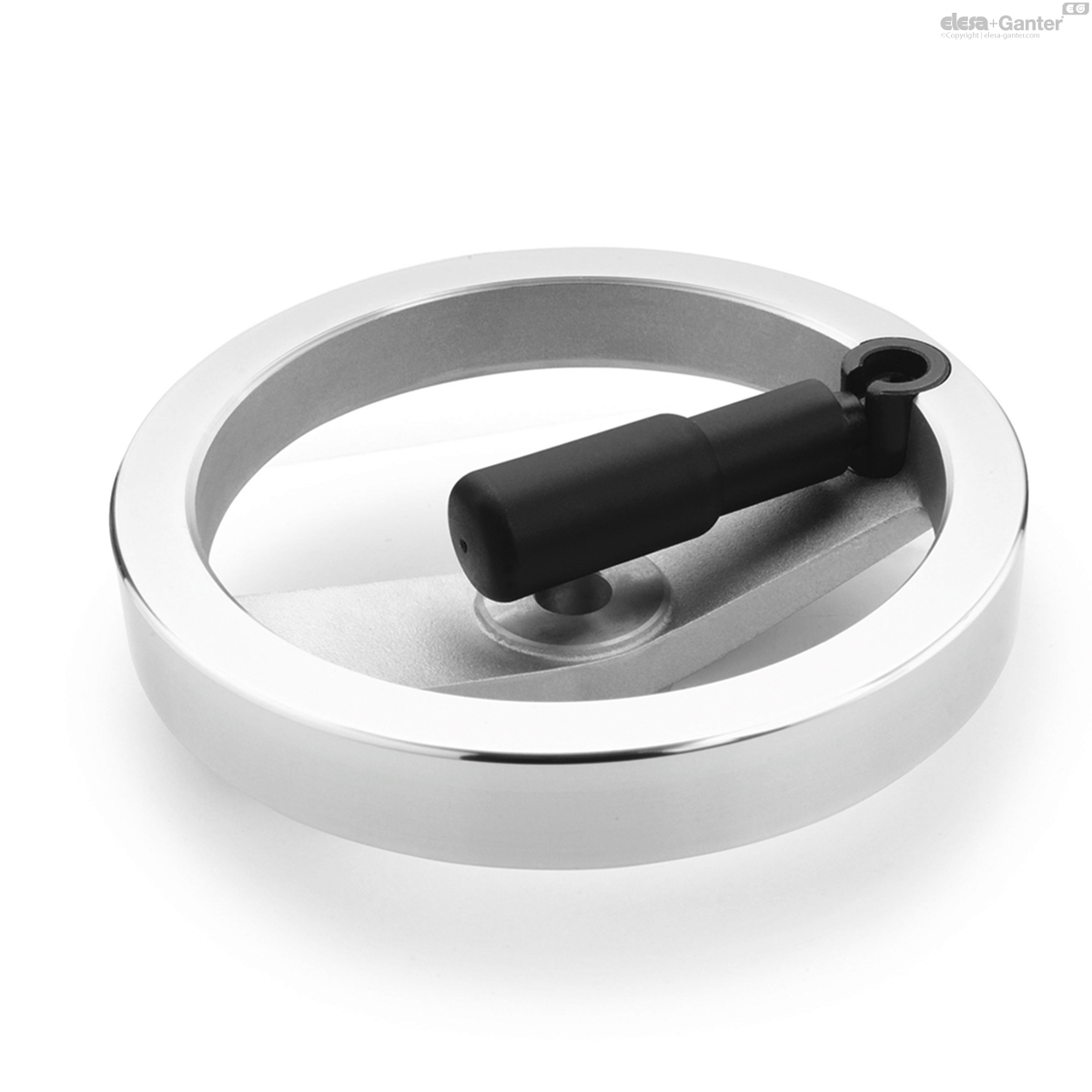

With keyway DIN 6885-1 P9
Without keyway
GN 322.3-B
Without keyway

GN 322.3-B

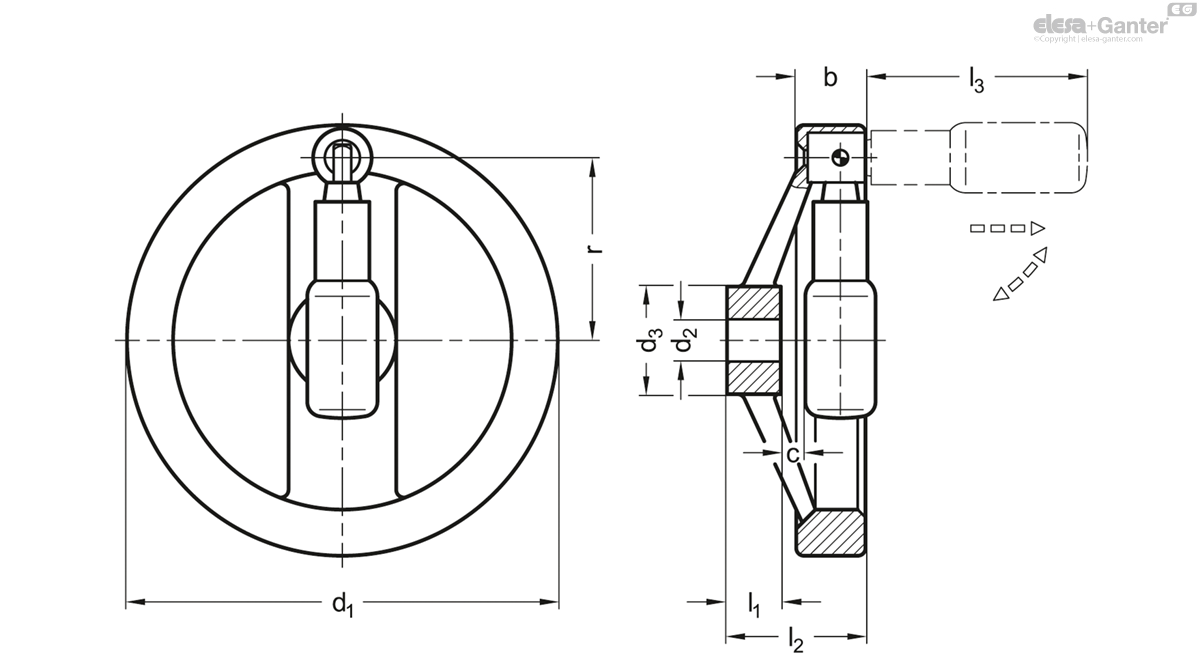

Catalogue
d1
d2H7 Bore
b
c
d3
l1
l2
l3
r
Ø Griff
GN 322.3-125-B12-R
125
12
24.5
6.5
31
18
44
60
50
22
440
GN 322.3-140-B14-R
140
14
24.5
6
36
19
45.5
75
57.5
24
550
GN 322.3-160-B14-R
160
14
25
6.5
36
20
47
75
67.5
24
700
GN 322.3-160-B16-R
160
16
25
6.5
36
20
47
75
67.5
24
649
GN 322.3-200-B18-R
200
18
25
7.5
42
24
52.5
85
84
25
1000
GN 322.3-200-B20-R
200
20
25
7.5
42
24
52.5
85
84
25
949
GN 322.3-250-B22-R
250
22
26.5
12
48
28
61
85
111
25
1364

Bore codes

  • Version B: Without keyway
  • Version K: With keyway DIN 6885-1 P9

Type

  • Type R: With revolving retractable handle

Wheel body

Aluminum

  • Hub machined
  • Wheel rim
  • Turned on all sides
  • High-polished
  • Radial and axial runout < 0,4
  • Unmachined body shot-blasted

Retractable handle GN 798.3

Plastic, Polyamide (PA)

  • Black, matte
  • Retracting mechanism
  • Steel, blackened

The handle in the handwheels GN 322.3 is locked in a conical bore in the operating position.

For reversal, it must first be pulled from the cone in axial direction.

A pressure spring holds the handle in both positions. When swung out, it automatically engages again.

  • GN 184 Countersunk Washers (for Axial Fixing)
Related products
Cast iron, without keyway

DIN 950-GG-B

Handwheels Cast Iron / Aluminum

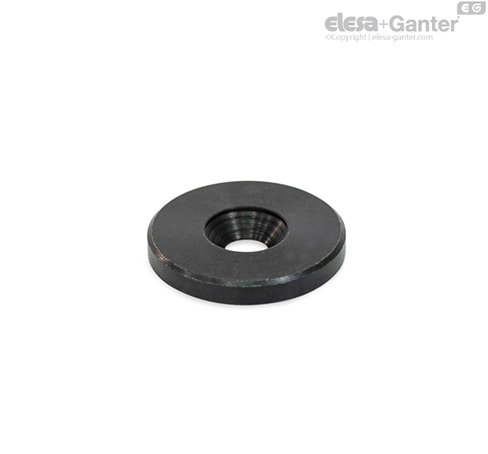

Countersunk Washers

GN 184

Countersunk Washers Steel

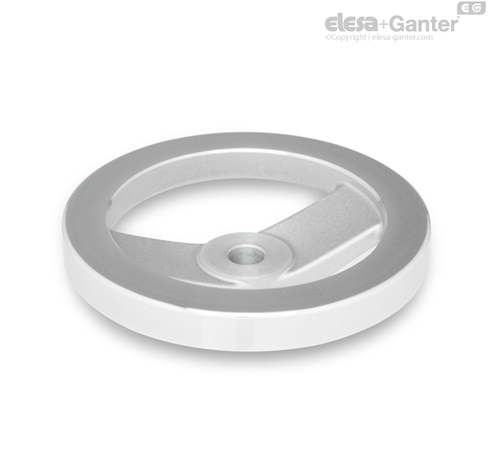

Without handle

GN 322-A

Spoked Handwheels Aluminum, Plain, Rim Polished

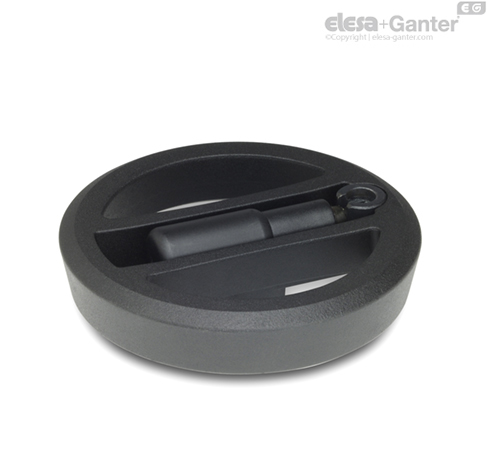

Without keyway

GN 924.3-B

Handwheels with Retractable Handle Aluminum, Handle Locked

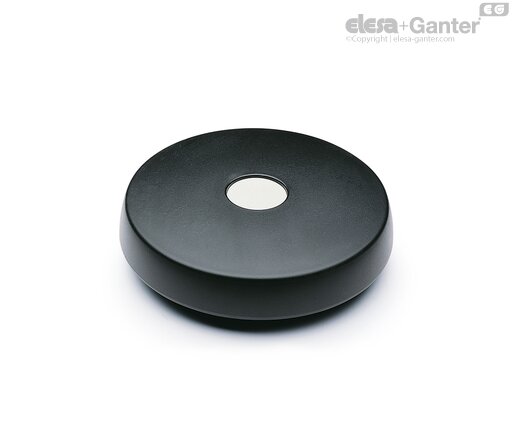

Without handle

VDS.

Solid handwheels Technopolymer

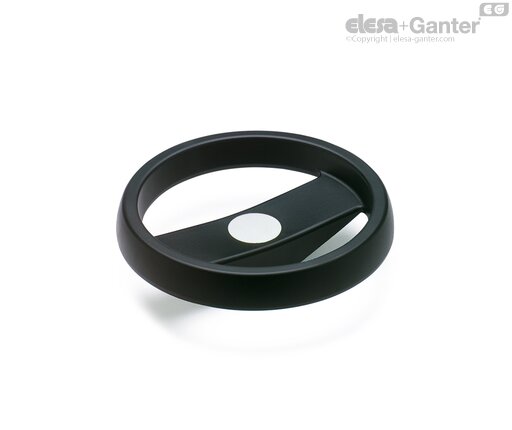

Without handle

VR.FP

Spoked handwheels Duroplast, not drilled hub

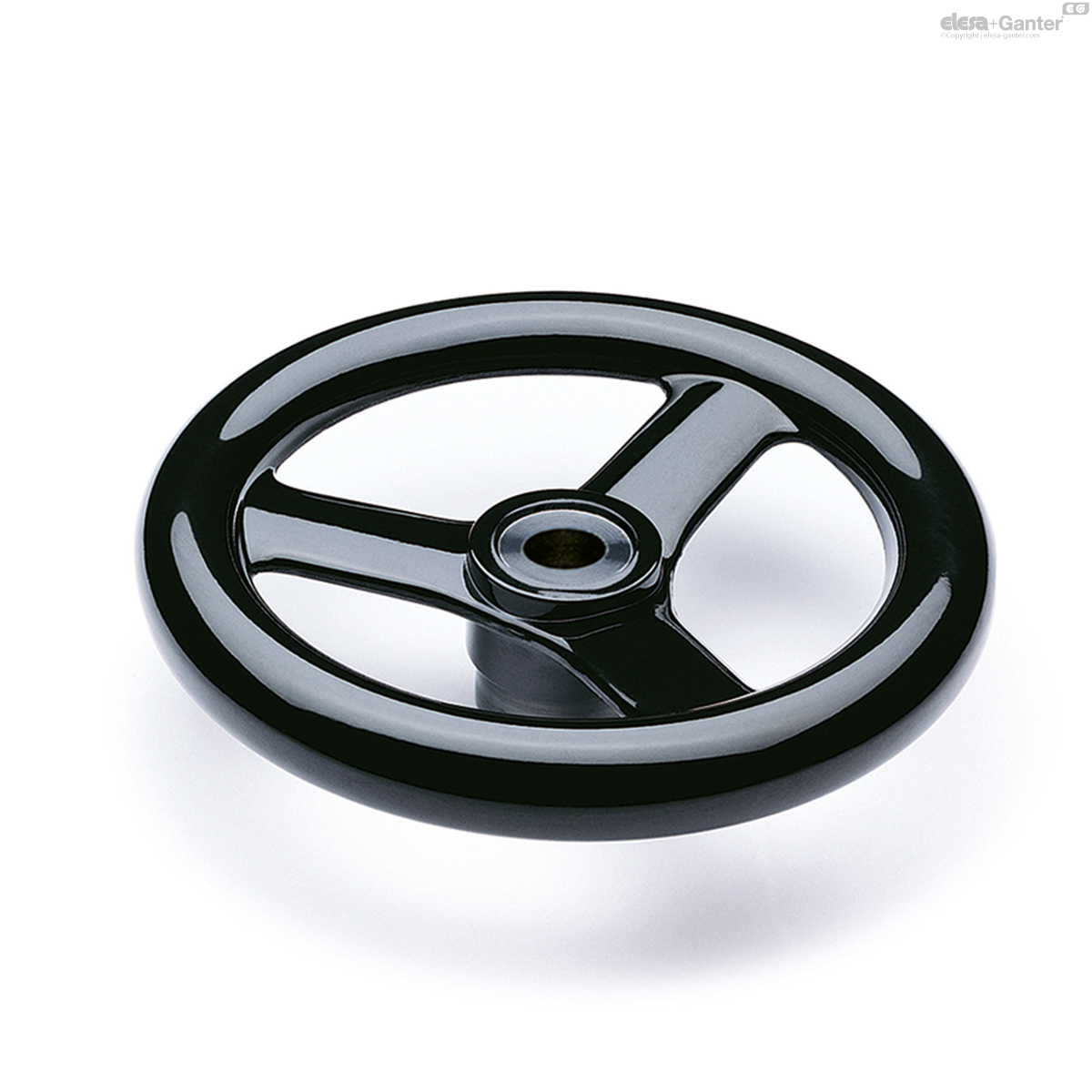

Without handle, drilled hub

VR.FP-A

Spoked handwheels Duroplast, not drilled hub

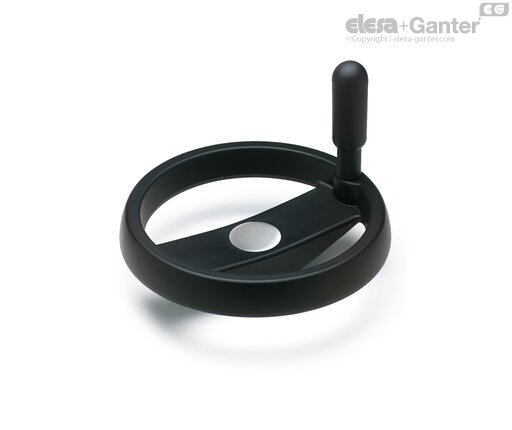

Revolving handle
