322.3-160-B14-R GN 322.3-B Without keyway

322.3-160-B14-R

GN 322.3-B Without keyway

Aluminum, Handle Locked,
  • RoHS

Eta: 1-2 weeks All sizes and variants of GN 322.3

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 322.3-160-B14-R
d1
160
d2H7 Bore
14
b
25
c
6.5
d3
36
l1
20
l2
47
l3
75
r
67.5
Ø Handle
24
700

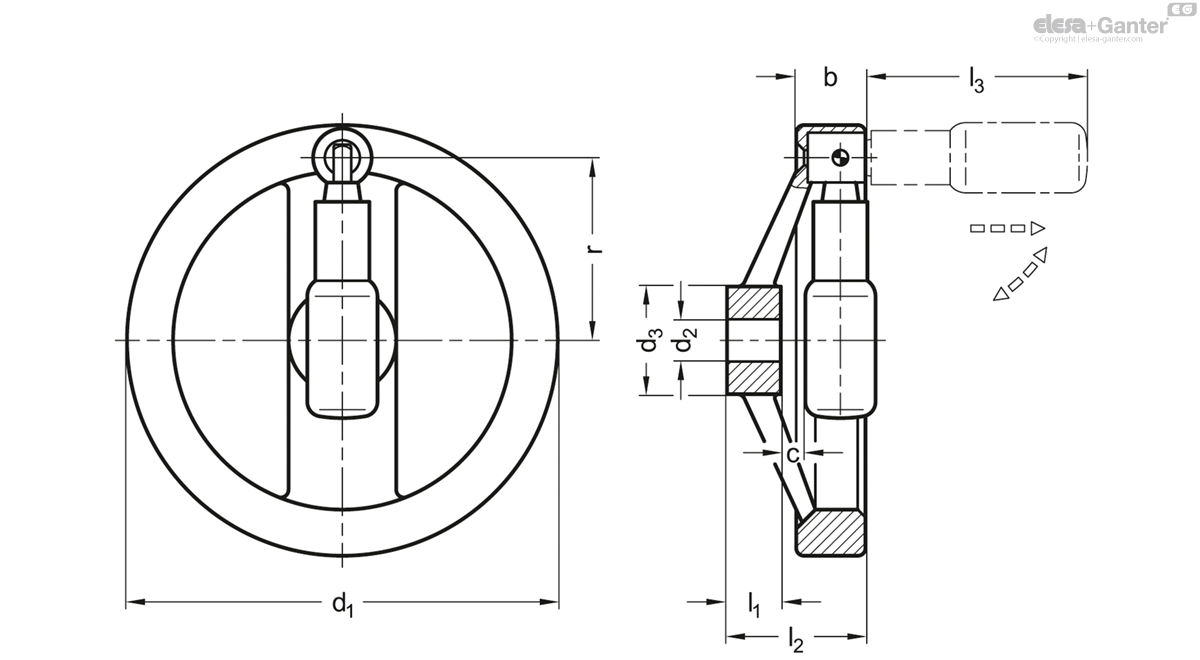

322.3-160-B14-R drawing

Bore codes

  • Version B: Without keyway
  • Version K: With keyway DIN 6885-1 P9

Type

  • Type R: With revolving retractable handle

Wheel body

Aluminum

  • Hub machined
  • Wheel rim
  • Turned on all sides
  • High-polished
  • Radial and axial runout < 0,4
  • Unmachined body shot-blasted

Retractable handle GN 798.3

Plastic, Polyamide (PA)

  • Black, matte
  • Retracting mechanism
  • Steel, blackened

The handle in the handwheels GN 322.3 is locked in a conical bore in the operating position.

For reversal, it must first be pulled from the cone in axial direction.

A pressure spring holds the handle in both positions. When swung out, it automatically engages again.

  • GN 184 Countersunk Washers (for Axial Fixing)
