Technical datasheet

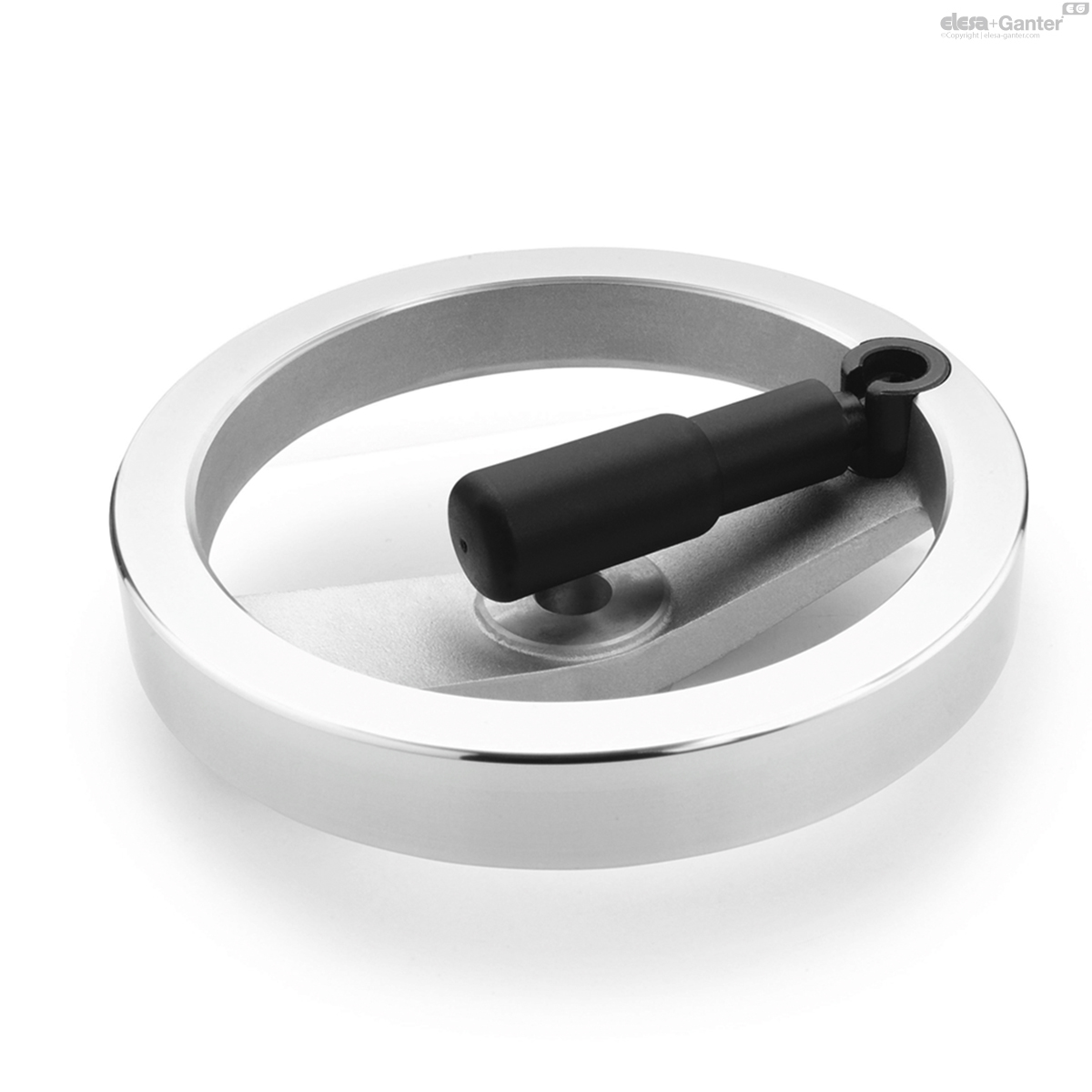

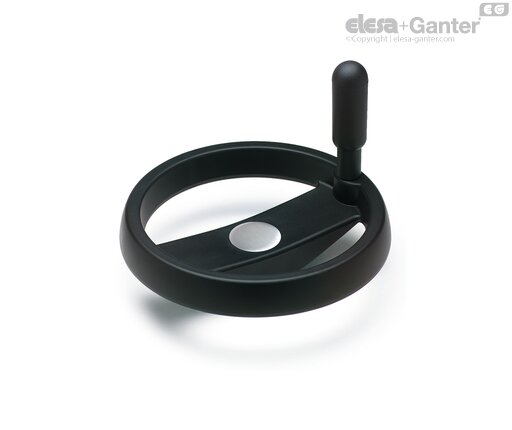

GN 322.3-BHandwielen met uitklapbaar handvat
Zonder spiebaan
Aluminium, handgreep vergrendeld
GN 322.3-B
|

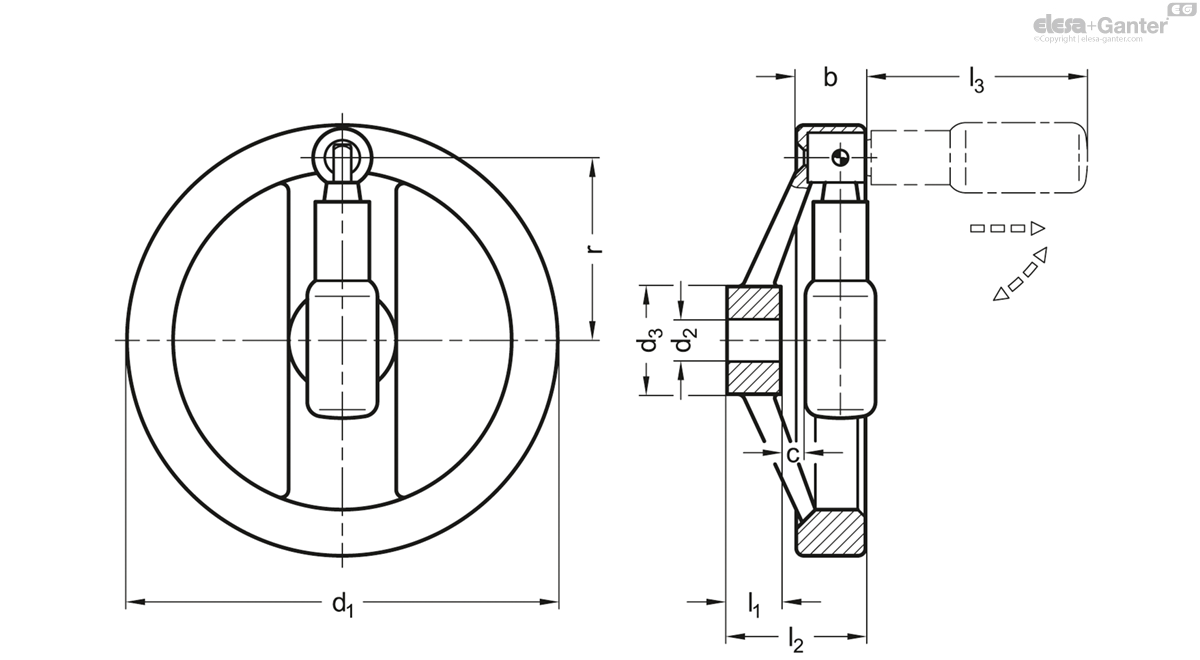

Code
|
d1
|
d2H7 Bore
|
b
|
c
|
d3
|
l1
|
l2
|
l3
|
r
|
Ø Handle
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
125
|
12
|
24.5
|
6.5
|
31
|
18
|
44
|
60
|
50
|
22
|
440
| ||
|
140
|
14
|
24.5
|
6
|
36
|
19
|
45.5
|
75
|
57.5
|
24
|
550
| ||
|
160
|
14
|
25
|
6.5
|
36
|
20
|
47
|
75
|
67.5
|
24
|
700
| ||
|
160
|
16
|
25
|
6.5
|
36
|
20
|
47
|
75
|
67.5
|
24
|
649
| ||
|
200
|
18
|
25
|
7.5
|
42
|
24
|
52.5
|
85
|
84
|
25
|
1000
| ||
|
200
|
20
|
25
|
7.5
|
42
|
24
|
52.5
|
85
|
84
|
25
|
949
| ||
|
250
|
22
|
26.5
|
12
|
48
|
28
|
61
|
85
|
111
|
25
|
1364
|
Bore codes
Bore codes
- Version B: Without keyway
- Version K: With keyway DIN 6885-1 P9
Type
Type
- Type R: With revolving retractable handle
Wheel body
Wheel body
Aluminum
- Hub machined
- Wheel rim
- Turned on all sides
- High-polished
- Radial and axial runout < 0,4
- Unmachined body shot-blasted
Retractable handle GN 798.3
Retractable handle GN 798.3
Plastic, Polyamide (PA)
- Black, matte
- Retracting mechanism
- Steel, blackened
The handle in the handwheels GN 322.3 is locked in a conical bore in the operating position.
For reversal, it must first be pulled from the cone in axial direction.
A pressure spring holds the handle in both positions. When swung out, it automatically engages again.
- GN 184 Countersunk Washers (for Axial Fixing)
