GN 269-BCranked Handles

Bore

Stainless Steel

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
pdf Other documents
Bore
Bore

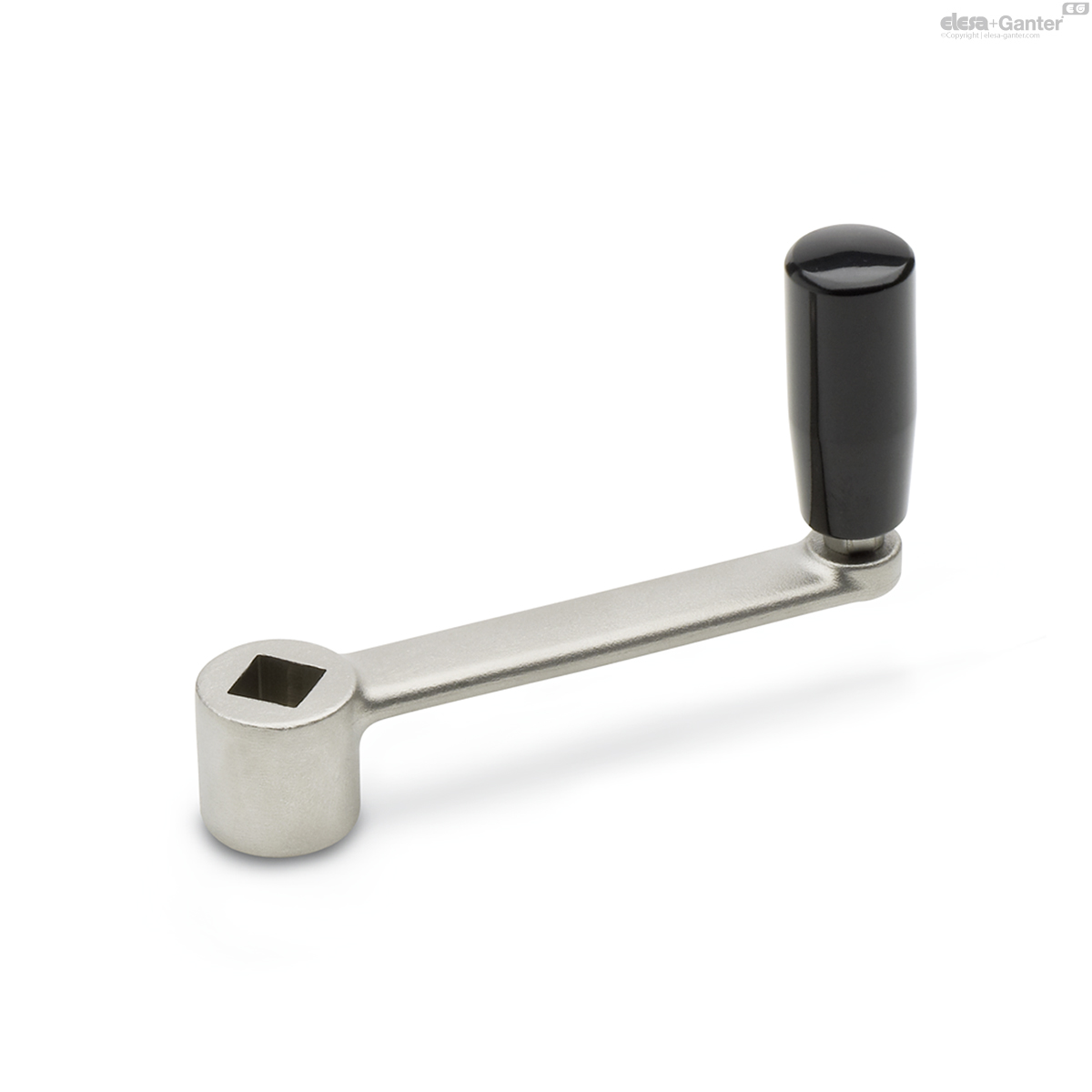

Square
GN 269-S
Square
Bore
GN 269-B
Bore

GN 269-B

Reset
Catalogue

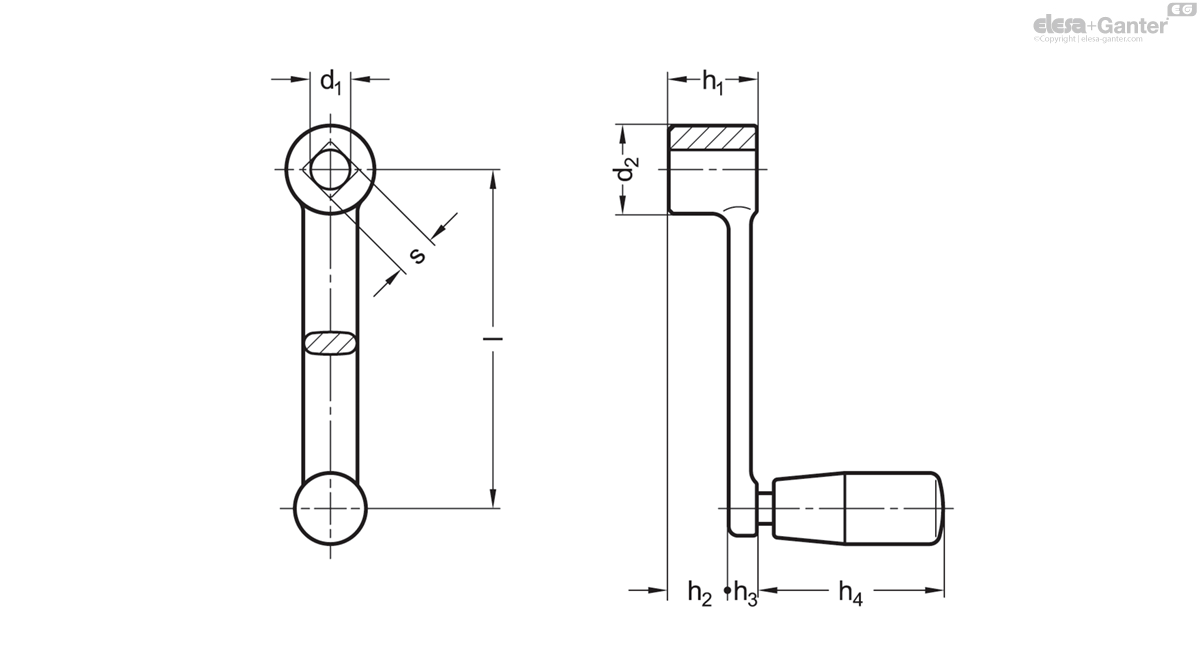

Length l
d1 H9
Bore
d2
h1
h2 ≈
h3
h4 ≈
Ø Handle
GN 269-80-B10
80
B 10
22
22
15.4
6.6
45
18
130
GN 269-100-B12
100
B 12
26
26
17.7
8.3
55
21
200
GN 269-125-B14
125
B 14
28
28
18.8
9.2
71
23
300
GN 269-160-B17
160
B 17
32
32
22.6
9.4
71
23
396
GN 269-200-B19
200
B 19
38
38
28
9.4
71
23
546
  • Icons/__logo__IF__.png

Body

Stainless steel precision casting AISI CF-8

Contact face of hub machined

Revolving handle

Plastic, phenolic resin (PF)

  • Black, shiny finish
  • Spindle
  • Stainless steel AISI 304

Cranked handles GN 269 have been designed to comply with stringent hygiene requirements.

The cylindrical handles are made of phenolic resin material which in general provides good stability when exposed to chemicals.

Related products
With fixed handle

DIN 469-F

Cranked Handles Cast Iron

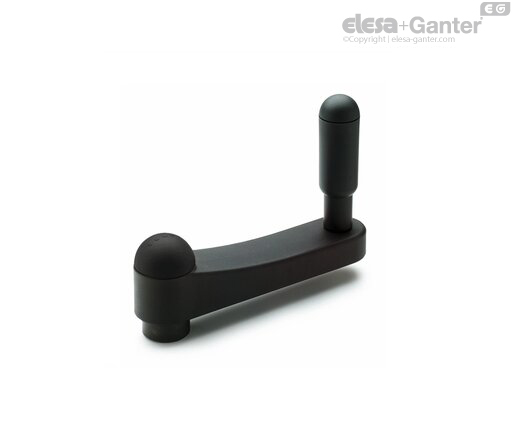

Crank handles

EKH.

Crank handles Technopolymer
Bore

GN 472.3-B

Cranked Handles with Retractable Handle Aluminum, Retractable Mechanism Steel

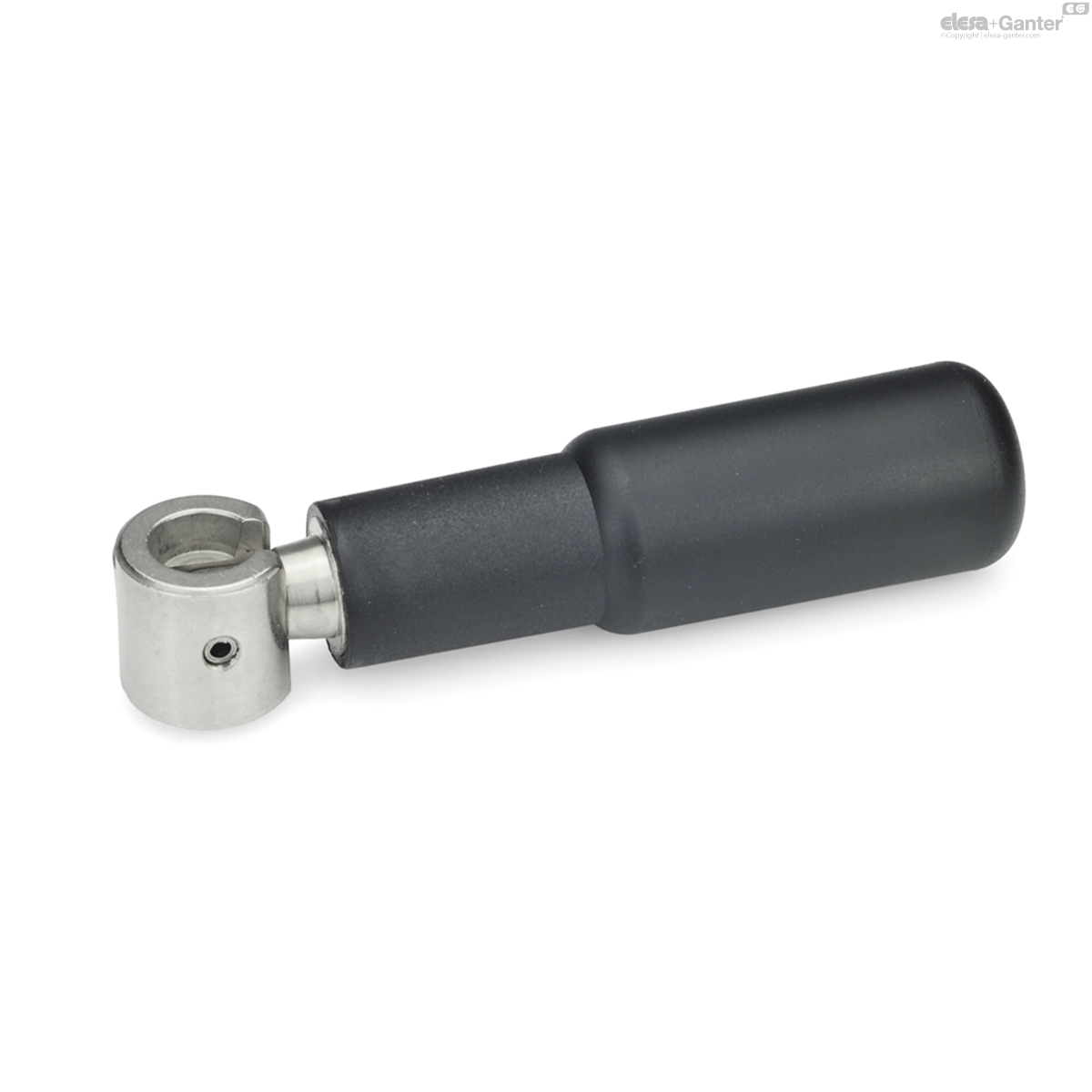

Retractable Handles
