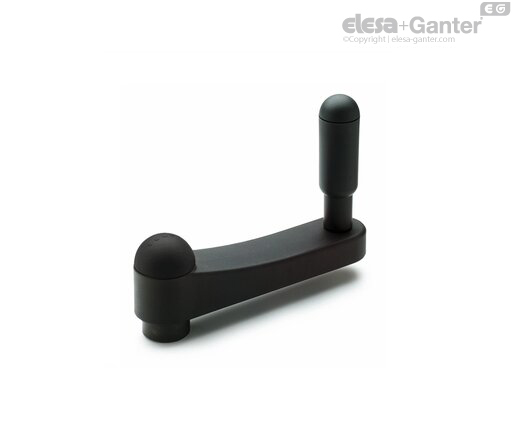

GN 269-BStalen handgrepen

Boring

Roestvrij staal

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
pdf Other documents
Boring
Boring
Vierkant
GN 269-S
Vierkant
Boring
GN 269-B
Boring

GN 269-B

Reset
Code
Length l
d1 H9
Bore
d2
h1
h2 ≈
h3
h4 ≈
Ø Handle
GN 269-80-B10
80
B 10
22
22
15.4
6.6
45
18
130
GN 269-100-B12
100
B 12
26
26
17.7
8.3
55
21
200
GN 269-125-B14
125
B 14
28
28
18.8
9.2
71
23
300
GN 269-160-B17
160
B 17
32
32
22.6
9.4
71
23
396
GN 269-200-B19
200
B 19
38
38
28
9.4
71
23
546
  • Icons/__logo__IF__.png

Body

Stainless steel precision casting AISI CF-8

Contact face of hub machined

Revolving handle

Plastic, phenolic resin (PF)

  • Black, shiny finish
  • Spindle
  • Stainless steel AISI 304

Cranked handles GN 269 have been designed to comply with stringent hygiene requirements.

The cylindrical handles are made of phenolic resin material which in general provides good stability when exposed to chemicals.
