269-160-B17 GN 269-B Bore

269-160-B17

GN 269-B Bore

Stainless Steel
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__IF__.png

Eta: 1-2 weeks All sizes and variants of GN 269

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 269-160-B17
Length l
160
d1 H9
Bore
B 17
d2
32
h1
32
h2 ≈
22.6
h3
9.4
h4 ≈
71
Ø Griff
23
396

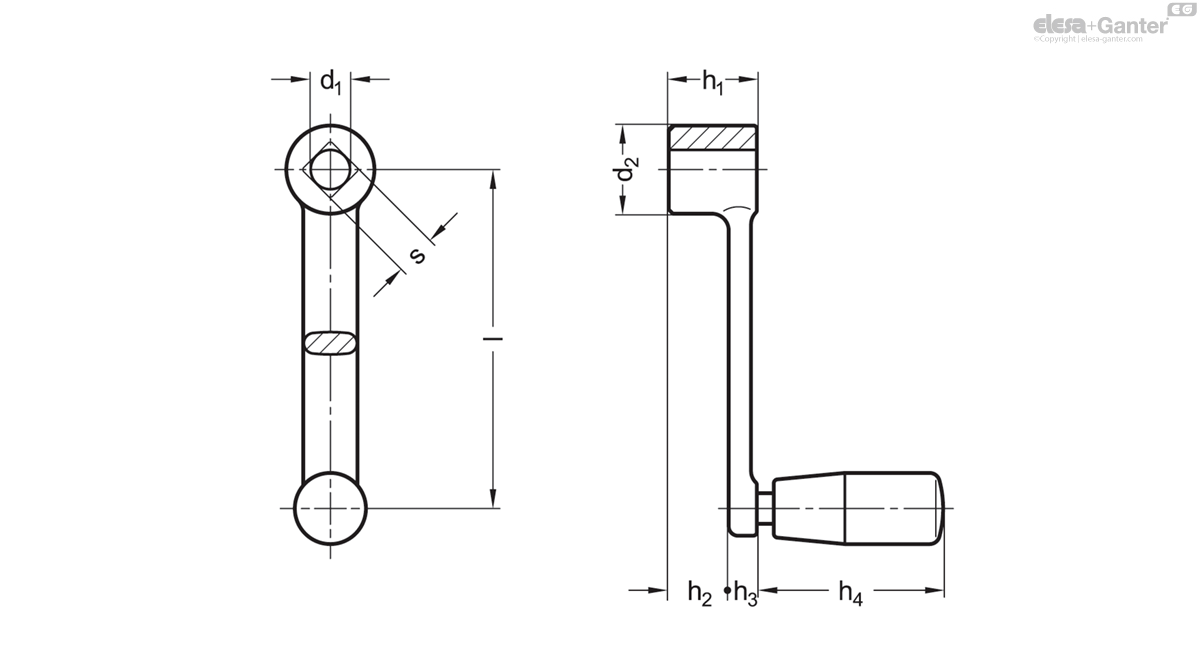

269-160-B17 drawing

Body

Stainless steel precision casting AISI CF-8

Contact face of hub machined

Revolving handle

Plastic, phenolic resin (PF)

  • Black, shiny finish
  • Spindle
  • Stainless steel AISI 304

Cranked handles GN 269 have been designed to comply with stringent hygiene requirements.

The cylindrical handles are made of phenolic resin material which in general provides good stability when exposed to chemicals.
