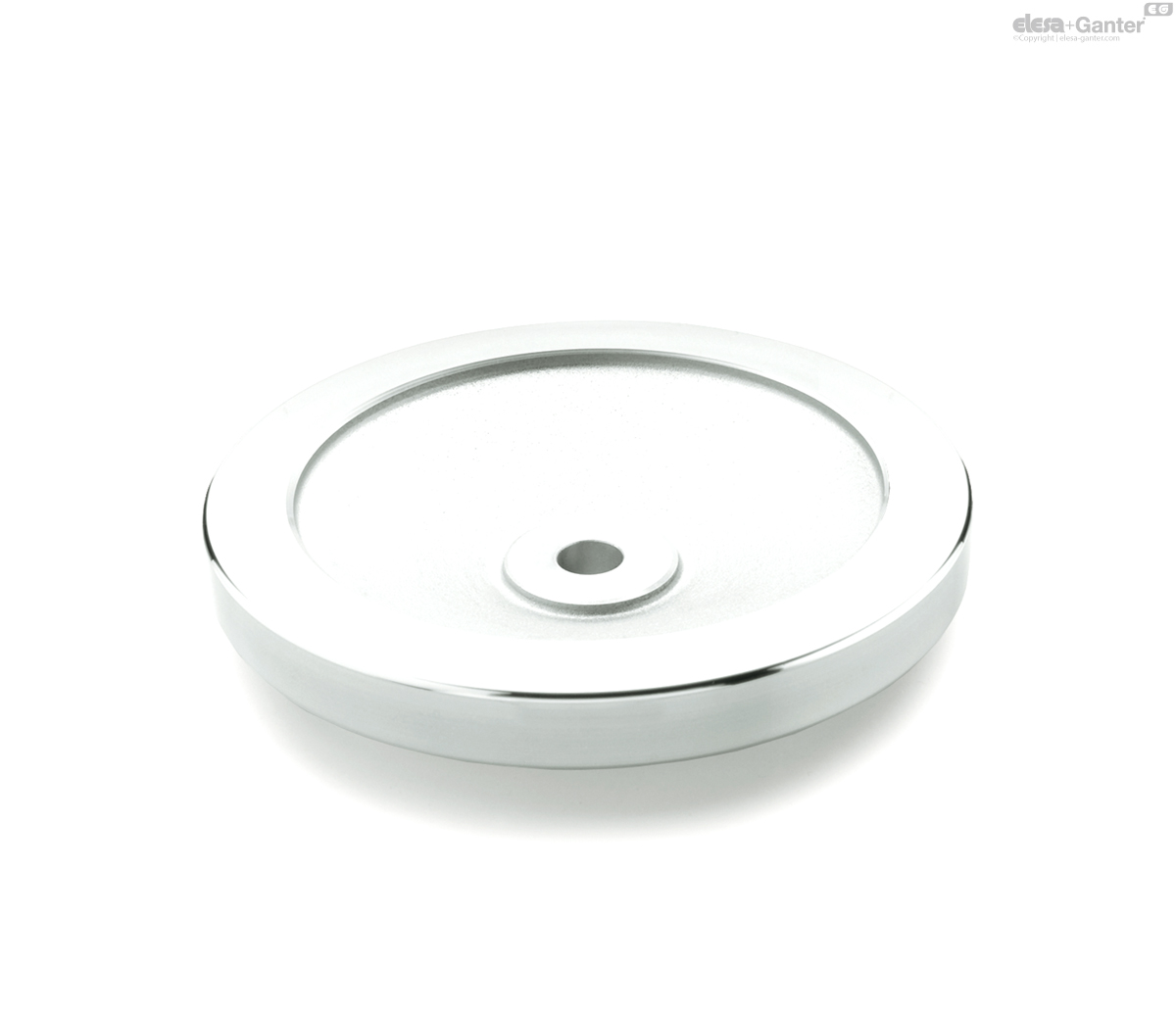

DIN 3670-BDisk Handwheels

Without keyway

Aluminum

  • Icons/__logo__RoHS__.png
pdf Other documents
Without keyway
Without keyway
Without keyway
DIN 3670-B
Without keyway

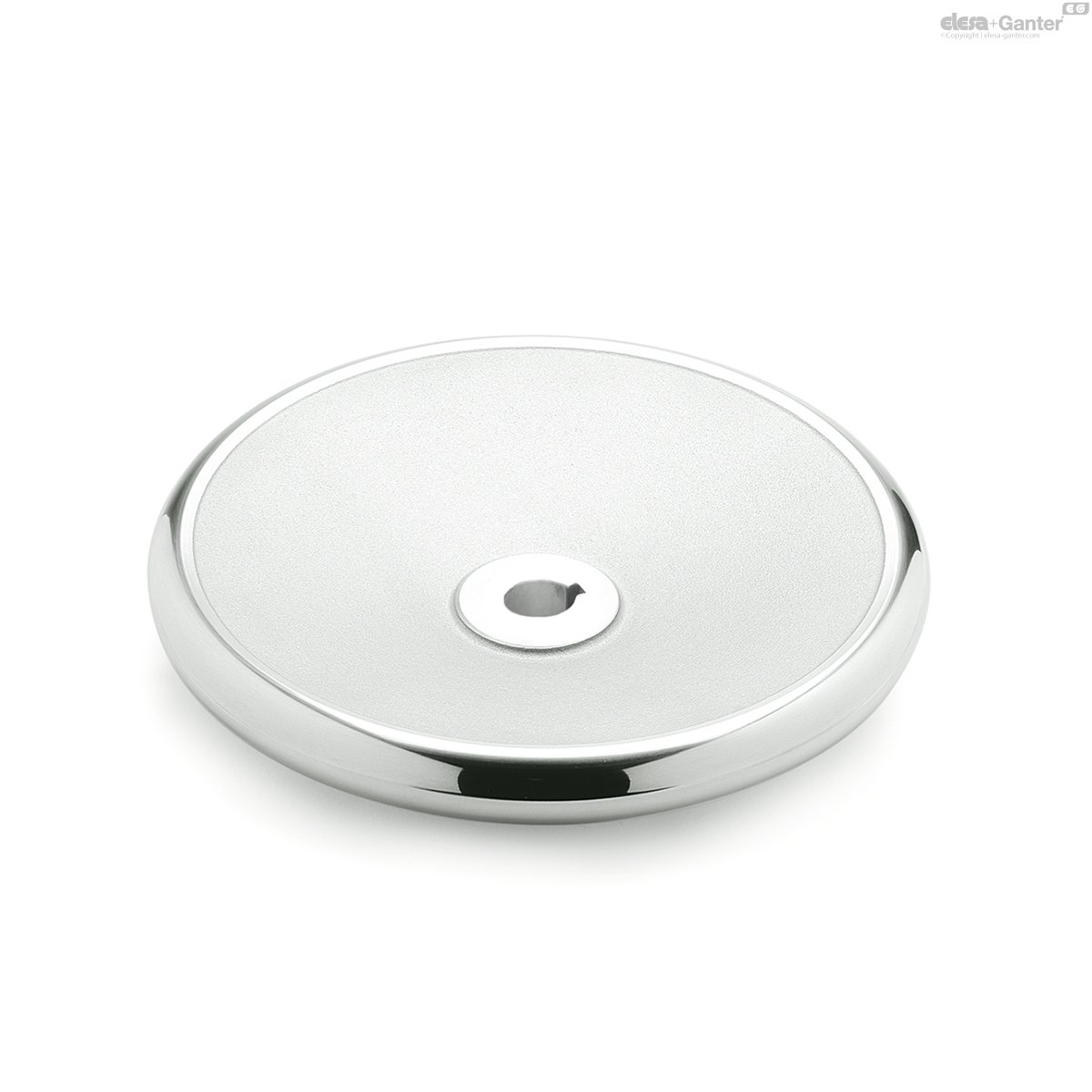

With keyway DIN 6885-1 P9
DIN 3670-K
With keyway DIN 6885-1 P9

DIN 3670-B

Catalogue

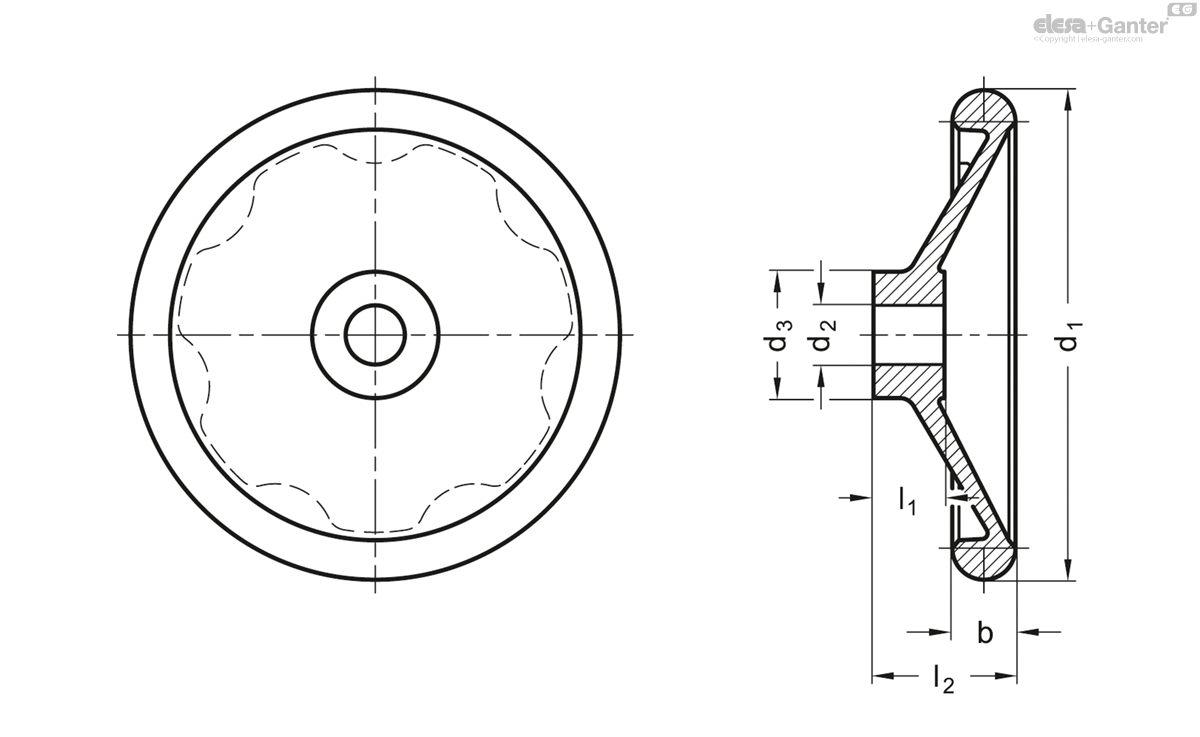

d1
d2H7 Bore
b
d3
l1
l2 ≈
80
10
14
26
16
29
128
80
12
14
26
16
29
127
100
10
15
28
17
33
188
100
12
15
28
17
33
185
125
12
16
31
18
36
306
125
14
16
31
18
36
289
160
14
18
36
20
40
514
160
16
18
36
20
40
510
200
18
22
42
24
45
943
200
20
22
42
24
45
938
200
22
22
42
24
45
940
250
22
26
48
28
50
1608
250
24
26
48
28
50
1596
250
26
26
48
28
50
1582
315
26
28
56
33
56
2695
315
28
28
56
33
56
2689
315
30
28
56
33
56
2683
400
30
32
65
38
63
5000
400
32
32
65
38
63
4342

Bore codes

  • Version B: Without keyway
  • Version K: With keyway DIN 6885-1 P9

Aluminum

  • Hub machined
  • Rim
  • turned and polished
  • Radial and axial runout of the rim < 0.4
  • Unmachined body shot-blasted

Disk handwheels DIN 3670 have recessed grips at their back. As a rule they are supplied without handle, but the mounting of a handle is possible.

The handwheel diameter d1=80 and d1=400 are not provided in the official standard sheet.

  • GN 184 Countersunk Washers (for Axial Fixing)
Related products
Countersunk Washers

GN 184

Countersunk Washers Steel
Without keyway

GN 321-B

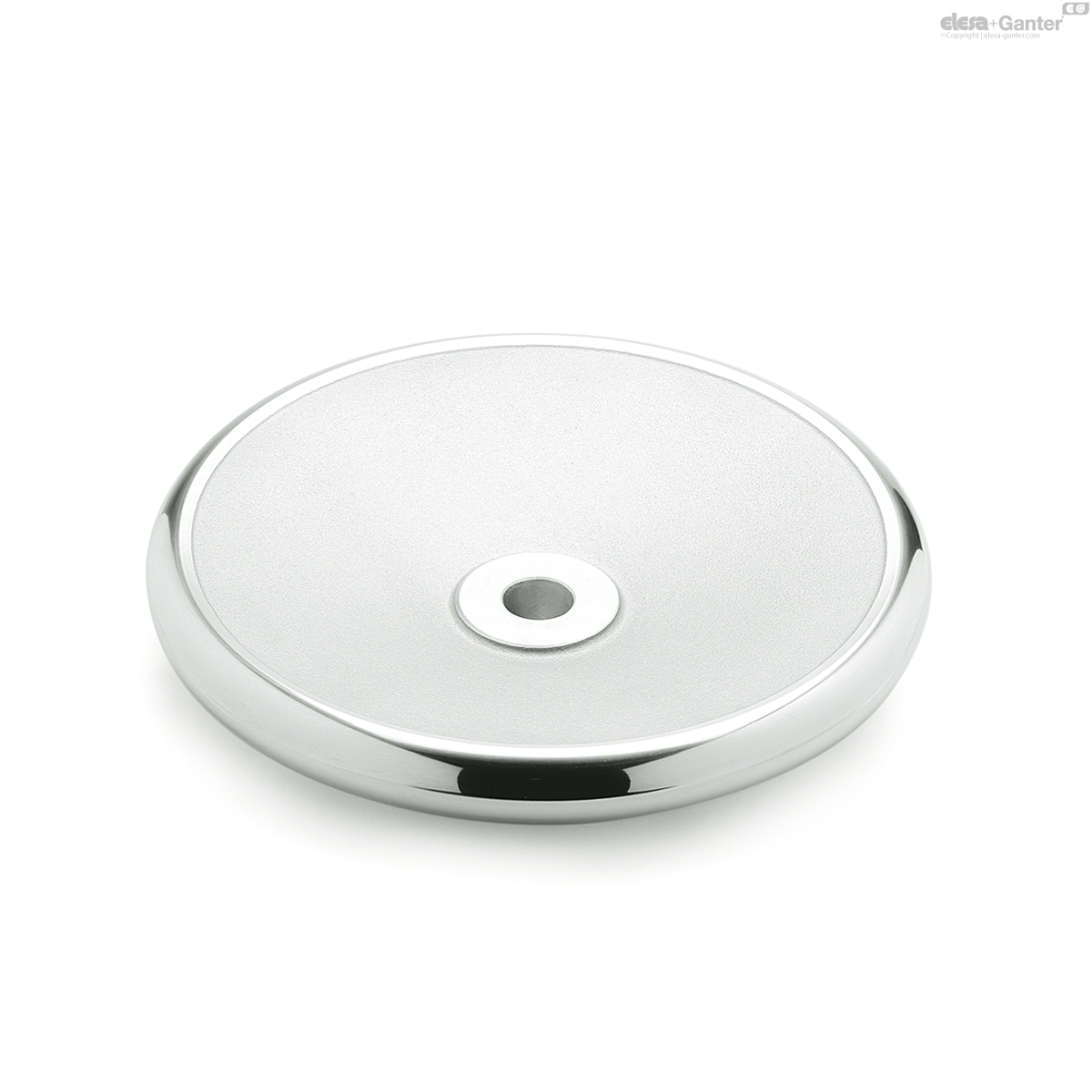

Disk Handwheels Aluminum, Plain, Rim Polished
Without keyway

GN 323-B

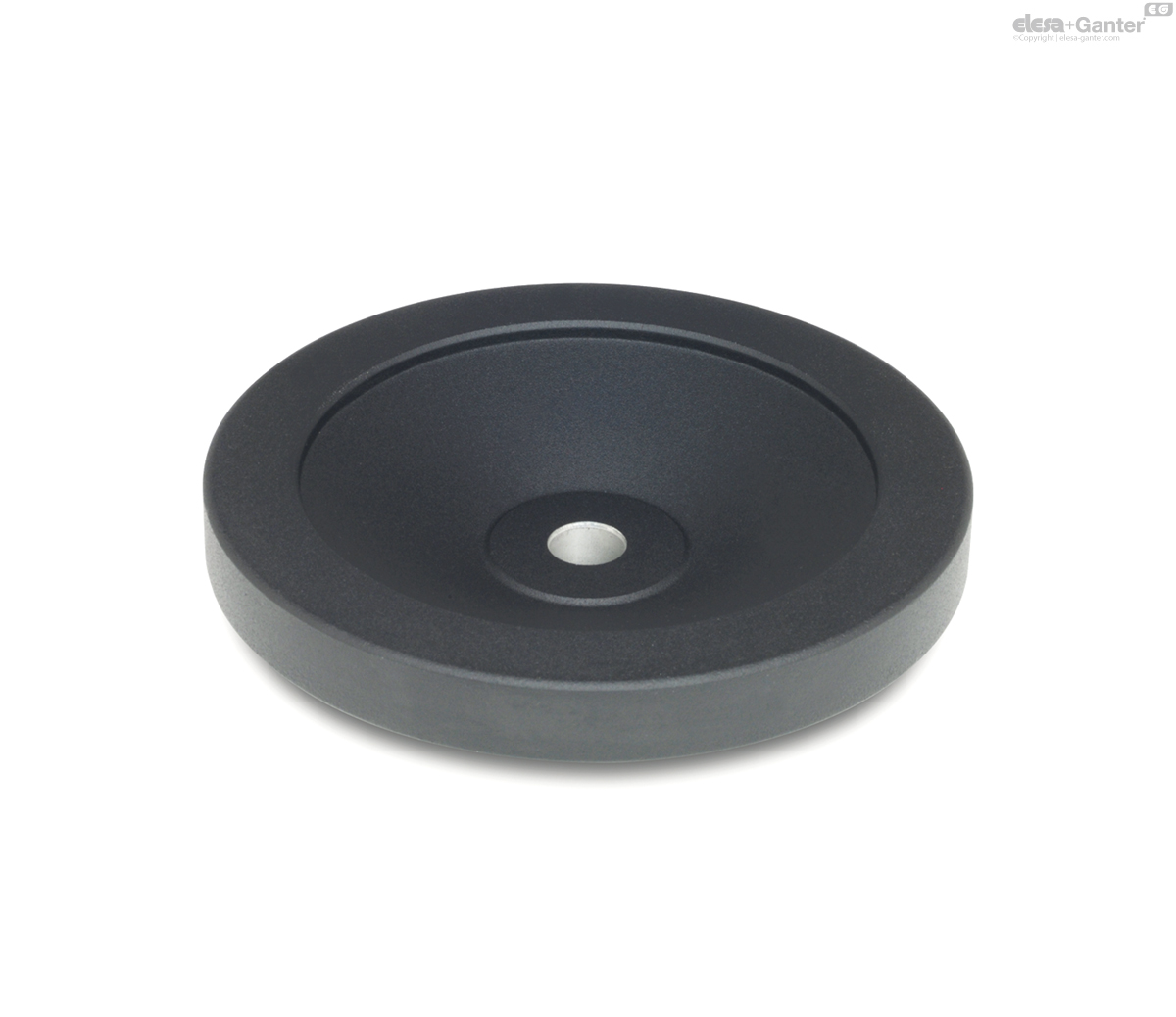

Disk Handwheels Aluminum, Black, Powder Coated

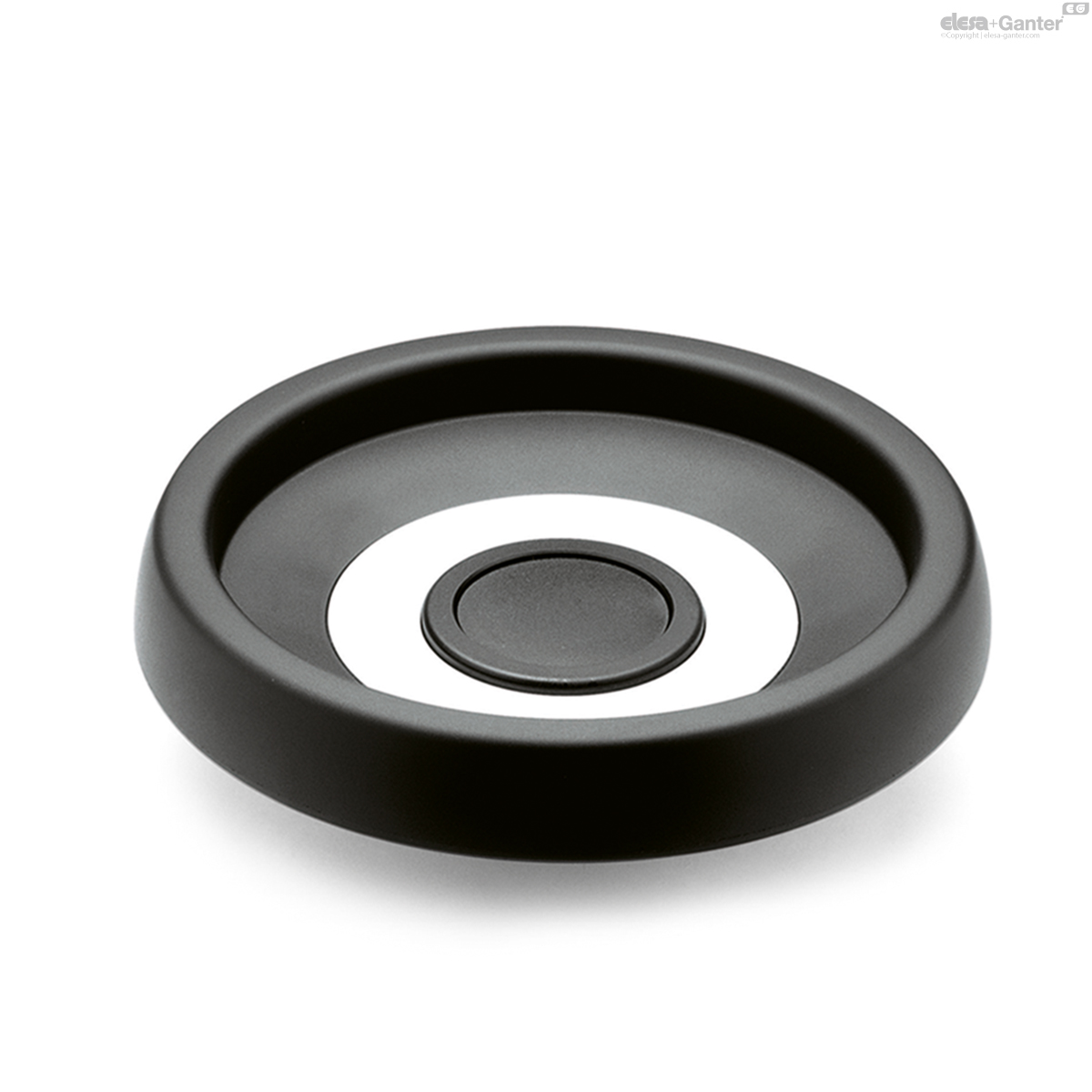

Without handle

GN 923-A

Disk Handwheels Aluminum, Powder Coated

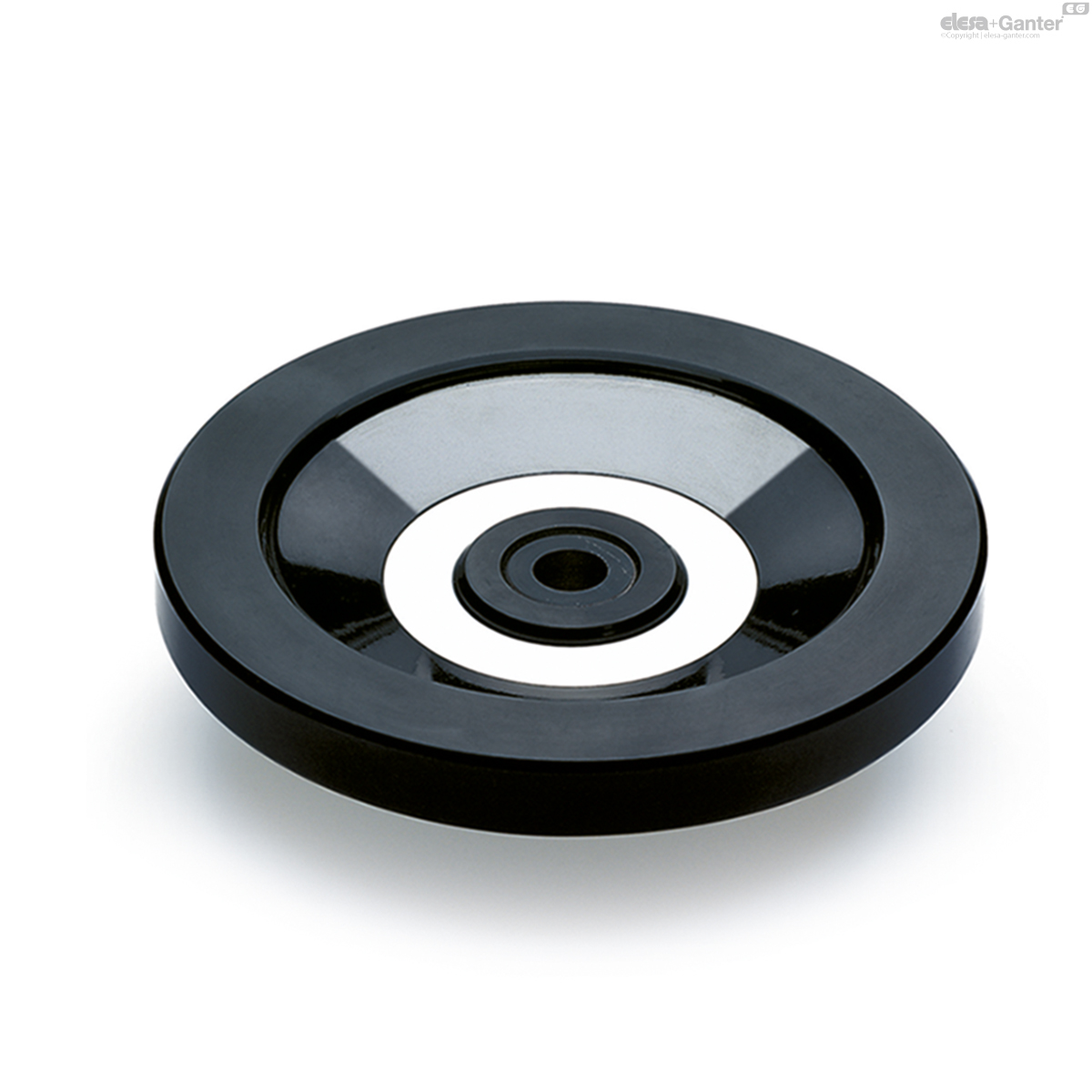

Without handle, drilled hub
