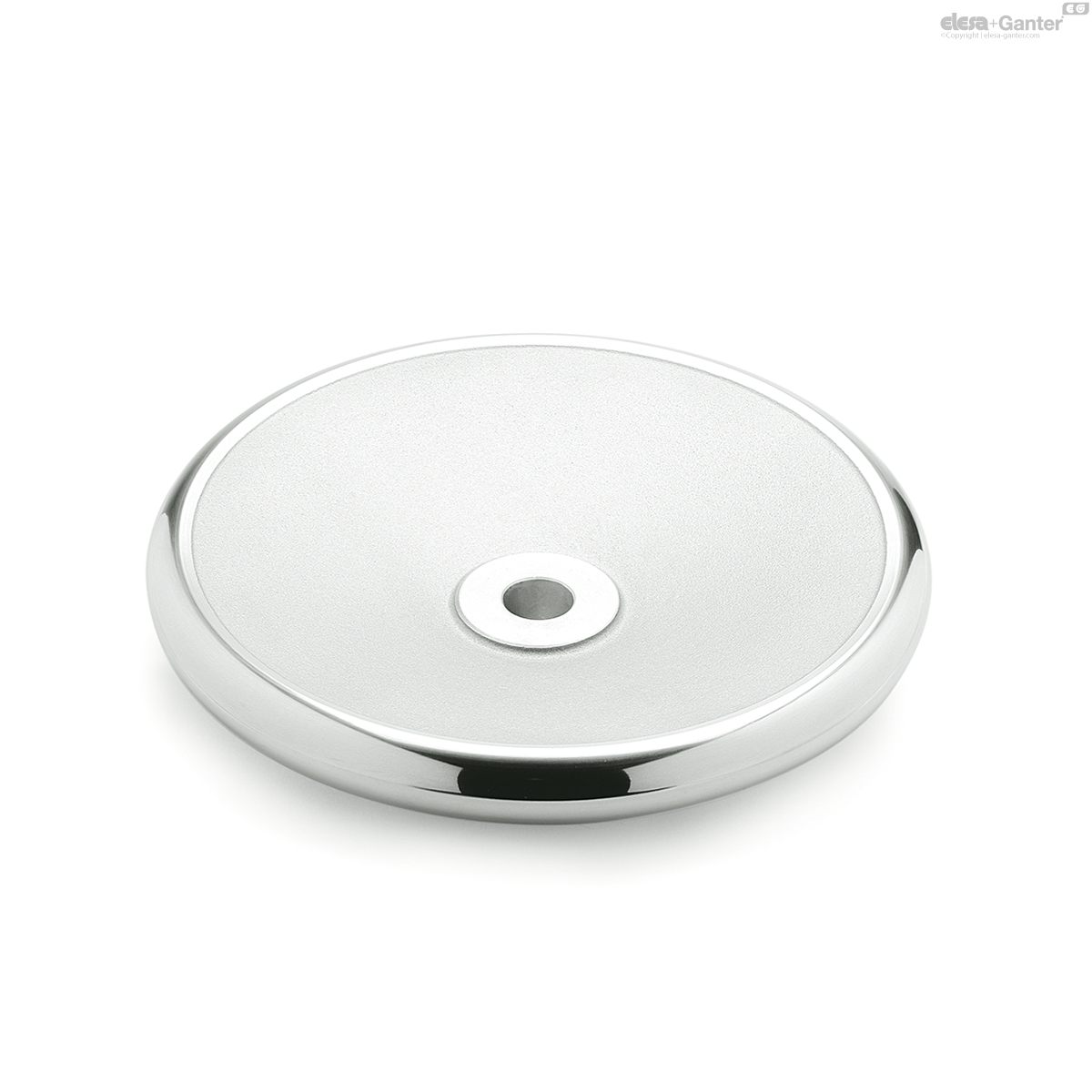

3670-250-B24 DIN 3670-B Without keyway

3670-250-B24

DIN 3670-B Without keyway

Aluminum
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of DIN 3670

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
DIN 3670-250-B24
d1
250
d2H7 Bore
24
b
26
d3
48
l1
28
l2 ≈
50
1596

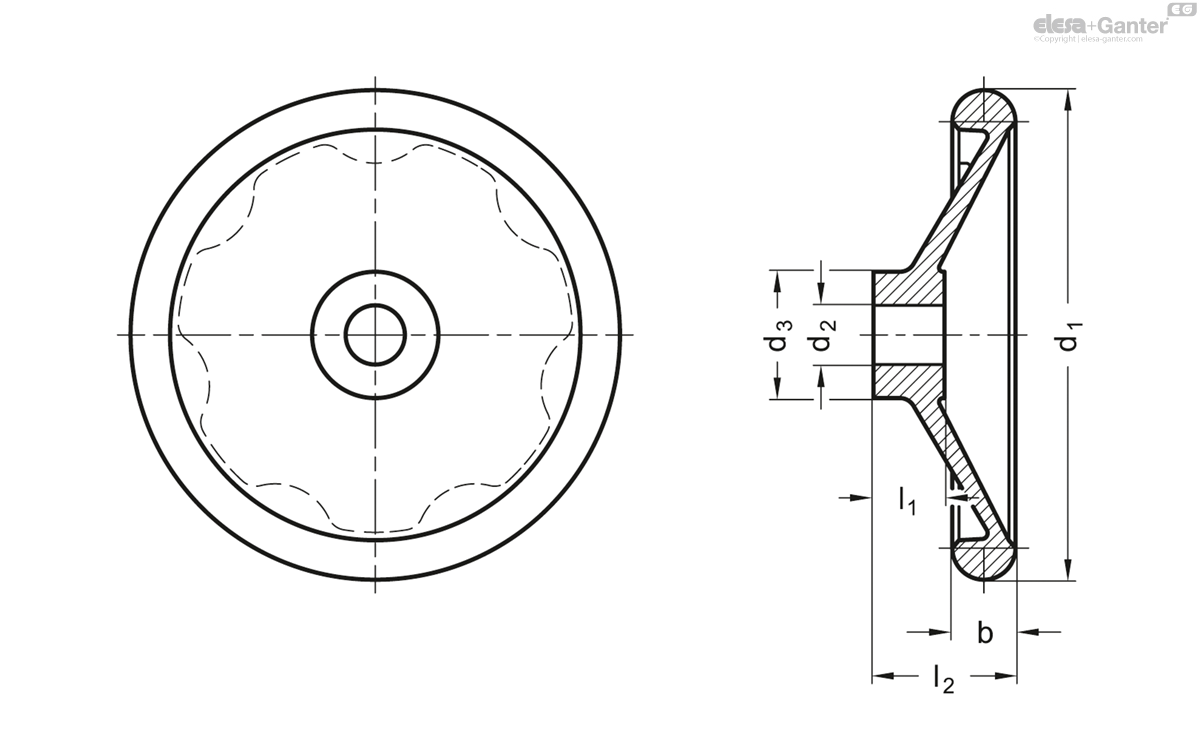

3670-250-B24 drawing

Bore codes

  • Version B: Without keyway
  • Version K: With keyway DIN 6885-1 P9

Aluminum

  • Hub machined
  • Rim
  • turned and polished
  • Radial and axial runout of the rim < 0.4
  • Unmachined body shot-blasted

Disk handwheels DIN 3670 have recessed grips at their back. As a rule they are supplied without handle, but the mounting of a handle is possible.

The handwheel diameter d1=80 and d1=400 are not provided in the official standard sheet.

  • GN 184 Countersunk Washers (for Axial Fixing)
