Technical datasheet

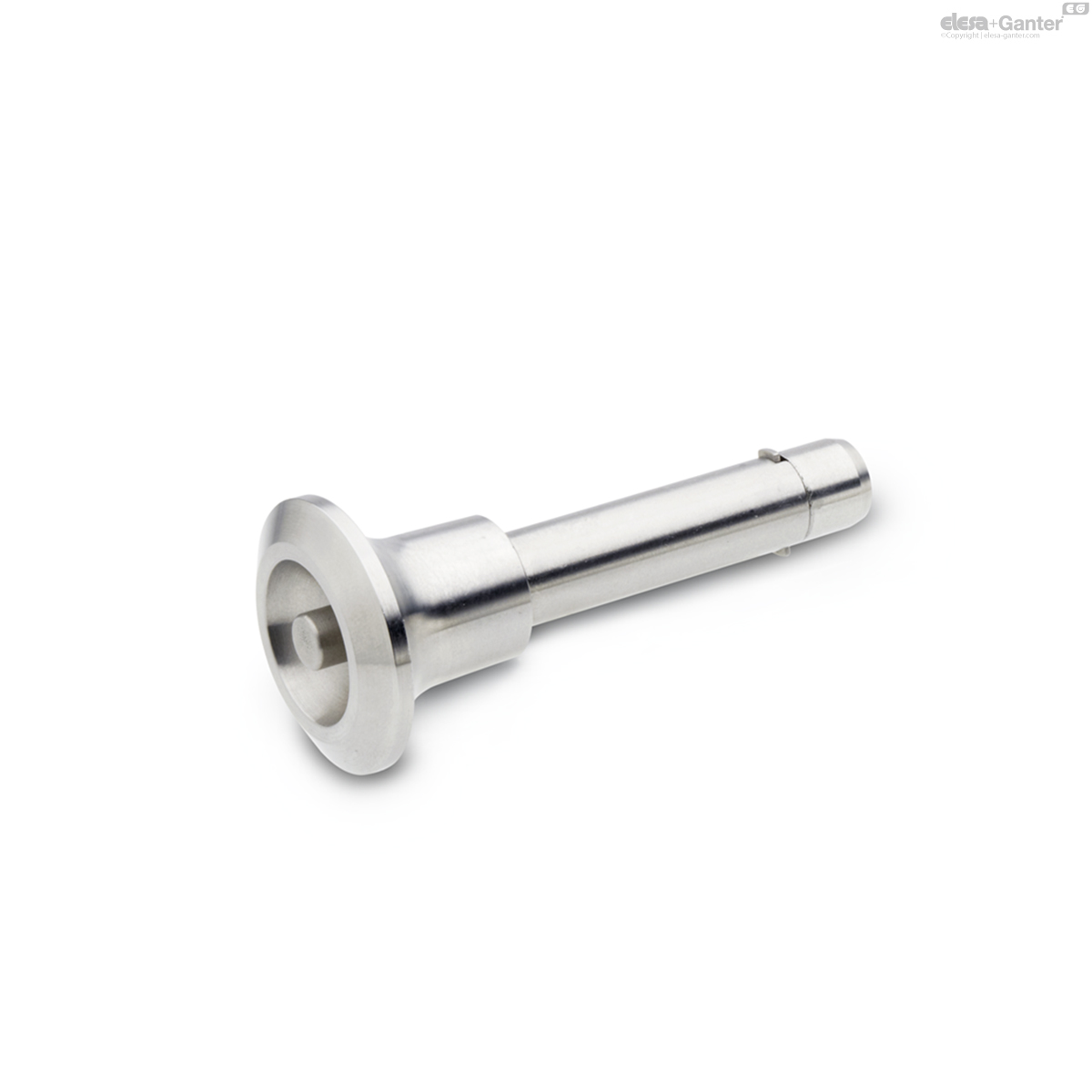

GN 114.6Edelstahl-Steckbolzen
Edelstahl-Steckbolzen
mit Axialsicherung (Sperrklinke)
GN 114.6
|
Katalog
|

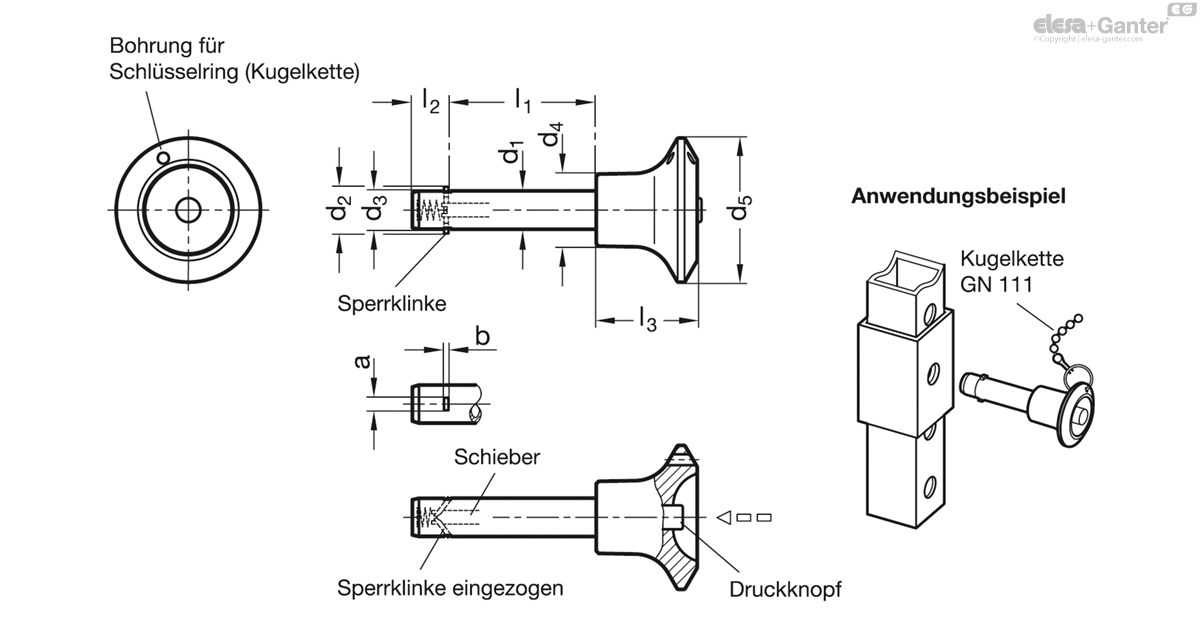

d1 -0.1
|
l1 +2
|
a
|
b
|
d2
|
d3
|
d4
|
d5
|
l2
|
l3
|
Load in kN ≈
(Double sided shear force) see information |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN 114.6-6-16
|
6
|
16
|
2.3
|
0.5
|
7.3
|
5.9
|
12
|
25
|
7
|
20
|
17
|
33
|
|
GN 114.6-6-20
|
6
|
20
|
2.3
|
0.5
|
7.3
|
5.9
|
12
|
25
|
7
|
20
|
17
|
34
|
|
GN 114.6-6-25
|
6
|
25
|
2.3
|
0.5
|
7.3
|
5.9
|
12
|
25
|
7
|
20
|
17
|
35
|
|
GN 114.6-6-30
|
6
|
30
|
2.3
|
0.5
|
7.3
|
5.9
|
12
|
25
|
7
|
20
|
17
|
36
|
|
GN 114.6-6-35
|
6
|
35
|
2.3
|
0.5
|
7.3
|
5.9
|
12
|
25
|
7
|
20
|
17
|
36
|
|
GN 114.6-6-40
|
6
|
40
|
2.3
|
0.5
|
7.3
|
5.9
|
12
|
25
|
7
|
20
|
17
|
38
|
|
GN 114.6-6-45
|
6
|
45
|
2.3
|
0.5
|
7.3
|
5.9
|
12
|
25
|
7
|
20
|
17
|
40
|
|
GN 114.6-6-50
|
6
|
50
|
2.3
|
0.5
|
7.3
|
5.9
|
12
|
25
|
7
|
20
|
17
|
40
|
|
GN 114.6-6-60
|
6
|
60
|
2.3
|
0.5
|
7.3
|
5.9
|
12
|
25
|
7
|
20
|
17
|
46
|
|
GN 114.6-6-70
|
6
|
70
|
2.3
|
0.5
|
7.3
|
5.9
|
12
|
25
|
7
|
20
|
17
|
50
|
|
GN 114.6-6-80
|
6
|
80
|
2.3
|
0.5
|
7.3
|
5.9
|
12
|
25
|
7
|
20
|
17
|
52
|
|
GN 114.6-8-16
|
8
|
16
|
2.8
|
0.6
|
9.8
|
7.9
|
15
|
30
|
8.4
|
21
|
35
|
53
|
|
GN 114.6-8-20
|
8
|
20
|
2.8
|
0.6
|
9.8
|
7.9
|
15
|
30
|
8.4
|
21
|
35
|
54
|
|
GN 114.6-8-25
|
8
|
25
|
2.8
|
0.6
|
9.8
|
7.9
|
15
|
30
|
8.4
|
21
|
35
|
57
|
|
GN 114.6-8-30
|
8
|
30
|
2.8
|
0.6
|
9.8
|
7.9
|
15
|
30
|
8.4
|
21
|
35
|
59
|
|
GN 114.6-8-35
|
8
|
35
|
2.8
|
0.6
|
9.8
|
7.9
|
15
|
30
|
8.4
|
21
|
35
|
60
|
|
GN 114.6-8-40
|
8
|
40
|
2.8
|
0.6
|
9.8
|
7.9
|
15
|
30
|
8.4
|
21
|
35
|
62
|
|
GN 114.6-8-45
|
8
|
45
|
2.8
|
0.6
|
9.8
|
7.9
|
15
|
30
|
8.4
|
21
|
35
|
65
|
|
GN 114.6-8-50
|
8
|
50
|
2.8
|
0.6
|
9.8
|
7.9
|
15
|
30
|
8.4
|
21
|
35
|
66
|
|
GN 114.6-8-60
|
8
|
60
|
2.8
|
0.6
|
9.8
|
7.9
|
15
|
30
|
8.4
|
21
|
35
|
73
|
|
GN 114.6-8-70
|
8
|
70
|
2.8
|
0.6
|
9.8
|
7.9
|
15
|
30
|
8.4
|
21
|
35
|
75
|
|
GN 114.6-8-80
|
8
|
80
|
2.8
|
0.6
|
9.8
|
7.9
|
15
|
30
|
8.4
|
21
|
35
|
80
|
|
GN 114.6-8-90
|
8
|
90
|
2.8
|
0.6
|
9.8
|
7.9
|
15
|
30
|
8.4
|
21
|
35
|
84
|
|
GN 114.6-8-100
|
8
|
100
|
2.8
|
0.6
|
9.8
|
7.9
|
15
|
30
|
8.4
|
21
|
35
|
86
|
|
GN 114.6-10-15
|
10
|
15
|
3.3
|
1
|
11.7
|
9.9
|
18
|
34
|
9.8
|
26
|
47
|
87
|
|
GN 114.6-10-20
|
10
|
20
|
3.3
|
1
|
11.7
|
9.9
|
18
|
34
|
9.8
|
26
|
47
|
87
|
|
GN 114.6-10-25
|
10
|
25
|
3.3
|
1
|
11.7
|
9.9
|
18
|
34
|
9.8
|
26
|
47
|
90
|
|
GN 114.6-10-30
|
10
|
30
|
3.3
|
1
|
11.7
|
9.9
|
18
|
34
|
9.8
|
26
|
47
|
93
|
|
GN 114.6-10-35
|
10
|
35
|
3.3
|
1
|
11.7
|
9.9
|
18
|
34
|
9.8
|
26
|
47
|
94
|
|
GN 114.6-10-40
|
10
|
40
|
3.3
|
1
|
11.7
|
9.9
|
18
|
34
|
9.8
|
26
|
47
|
99
|
|
GN 114.6-10-45
|
10
|
45
|
3.3
|
1
|
11.7
|
9.9
|
18
|
34
|
9.8
|
26
|
47
|
103
|
|
GN 114.6-10-50
|
10
|
50
|
3.3
|
1
|
11.7
|
9.9
|
18
|
34
|
9.8
|
26
|
47
|
106
|
|
GN 114.6-10-60
|
10
|
60
|
3.3
|
1
|
11.7
|
9.9
|
18
|
34
|
9.8
|
26
|
47
|
111
|
|
GN 114.6-10-70
|
10
|
70
|
3.3
|
1
|
11.7
|
9.9
|
18
|
34
|
9.8
|
26
|
47
|
116
|
|
GN 114.6-10-80
|
10
|
80
|
3.3
|
1
|
11.7
|
9.9
|
18
|
34
|
9.8
|
26
|
47
|
122
|
|
GN 114.6-10-90
|
10
|
90
|
3.3
|
1
|
11.7
|
9.9
|
18
|
34
|
9.8
|
26
|
47
|
128
|
|
GN 114.6-10-100
|
10
|
100
|
3.3
|
1
|
11.7
|
9.9
|
18
|
34
|
9.8
|
26
|
47
|
134
|
|
GN 114.6-10-110
|
10
|
110
|
3.3
|
1
|
11.7
|
9.9
|
18
|
34
|
9.8
|
26
|
47
|
140
|
|
GN 114.6-10-120
|
10
|
120
|
3.3
|
1
|
11.7
|
9.9
|
18
|
34
|
9.8
|
26
|
47
|
146
|
|
GN 114.6-12-20
|
12
|
20
|
3.8
|
1
|
13.7
|
11.9
|
18
|
34
|
11.3
|
26
|
75
|
94
|
|
GN 114.6-12-25
|
12
|
25
|
3.8
|
1
|
13.7
|
11.9
|
18
|
34
|
11.3
|
26
|
75
|
99
|
|
GN 114.6-12-30
|
12
|
30
|
3.8
|
1
|
13.7
|
11.9
|
18
|
34
|
11.3
|
26
|
75
|
104
|
|
GN 114.6-12-40
|
12
|
40
|
3.8
|
1
|
13.7
|
11.9
|
18
|
34
|
11.3
|
26
|
75
|
112
|
|
GN 114.6-12-35
|
12
|
35
|
3.8
|
1
|
13.7
|
11.9
|
18
|
34
|
11.3
|
26
|
75
|
109
|
|
GN 114.6-12-45
|
12
|
45
|
3.8
|
1
|
13.7
|
11.9
|
18
|
34
|
11.3
|
26
|
75
|
117
|
|
GN 114.6-12-50
|
12
|
50
|
3.8
|
1
|
13.7
|
11.9
|
18
|
34
|
11.3
|
26
|
75
|
121
|
|
GN 114.6-12-60
|
12
|
60
|
3.8
|
1
|
13.7
|
11.9
|
18
|
34
|
11.3
|
26
|
75
|
120
|
|
GN 114.6-12-70
|
12
|
70
|
3.8
|
1
|
13.7
|
11.9
|
18
|
34
|
11.3
|
26
|
75
|
138
|
|
GN 114.6-12-80
|
12
|
80
|
3.8
|
1
|
13.7
|
11.9
|
18
|
34
|
11.3
|
26
|
75
|
150
|
|
GN 114.6-12-90
|
12
|
90
|
3.8
|
1
|
13.7
|
11.9
|
18
|
34
|
11.3
|
26
|
75
|
155
|
|
GN 114.6-12-100
|
12
|
100
|
3.8
|
1
|
13.7
|
11.9
|
18
|
34
|
11.3
|
26
|
75
|
164
|
|
GN 114.6-12-110
|
12
|
110
|
3.8
|
1
|
13.7
|
11.9
|
18
|
34
|
11.3
|
26
|
75
|
172
|
|
GN 114.6-12-120
|
12
|
120
|
3.8
|
1
|
13.7
|
11.9
|
18
|
34
|
11.3
|
26
|
75
|
181
|
|
GN 114.6-16-30
|
16
|
30
|
4.8
|
1.2
|
18.7
|
15.9
|
22
|
40
|
14.2
|
32
|
138
|
181
|
|
GN 114.6-16-35
|
16
|
35
|
4.8
|
1.2
|
18.7
|
15.9
|
22
|
40
|
14.2
|
32
|
138
|
188
|
|
GN 114.6-16-40
|
16
|
40
|
4.8
|
1.2
|
18.7
|
15.9
|
22
|
40
|
14.2
|
32
|
138
|
196
|
|
GN 114.6-16-45
|
16
|
45
|
4.8
|
1.2
|
18.7
|
15.9
|
22
|
40
|
14.2
|
32
|
138
|
203
|
|
GN 114.6-16-50
|
16
|
50
|
4.8
|
1.2
|
18.7
|
15.9
|
22
|
40
|
14.2
|
32
|
138
|
212
|
|
GN 114.6-16-60
|
16
|
60
|
4.8
|
1.2
|
18.7
|
15.9
|
22
|
40
|
14.2
|
32
|
138
|
226
|
|
GN 114.6-16-70
|
16
|
70
|
4.8
|
1.2
|
18.7
|
15.9
|
22
|
40
|
14.2
|
32
|
138
|
242
|
|
GN 114.6-16-80
|
16
|
80
|
4.8
|
1.2
|
18.7
|
15.9
|
22
|
40
|
14.2
|
32
|
138
|
258
|
|
GN 114.6-16-90
|
16
|
90
|
4.8
|
1.2
|
18.7
|
15.9
|
22
|
40
|
14.2
|
32
|
138
|
272
|
|
GN 114.6-16-100
|
16
|
100
|
4.8
|
1.2
|
18.7
|
15.9
|
22
|
40
|
14.2
|
32
|
138
|
288
|
|
GN 114.6-16-110
|
16
|
110
|
4.8
|
1.2
|
18.7
|
15.9
|
22
|
40
|
14.2
|
32
|
138
|
303
|
|
GN 114.6-16-120
|
16
|
120
|
4.8
|
1.2
|
18.7
|
15.9
|
22
|
40
|
14.2
|
32
|
138
|
319
|
|
GN 114.6-16-130
|
16
|
130
|
4.8
|
1.2
|
18.7
|
15.9
|
22
|
40
|
14.2
|
32
|
138
|
334
|
|
GN 114.6-16-140
|
16
|
140
|
4.8
|
1.2
|
18.7
|
15.9
|
22
|
40
|
14.2
|
32
|
138
|
349
|
|
GN 114.6-16-150
|
16
|
150
|
4.8
|
1.2
|
18.7
|
15.9
|
22
|
40
|
14.2
|
32
|
138
|
365
|
|
GN 114.6-20-30
|
20
|
30
|
4.8
|
1.2
|
22.7
|
19.8
|
25
|
40
|
14.8
|
33
|
228
|
219
|
|
GN 114.6-20-35
|
20
|
35
|
4.8
|
1.2
|
22.7
|
19.8
|
25
|
40
|
14.8
|
33
|
228
|
228
|
|
GN 114.6-20-40
|
20
|
40
|
4.8
|
1.2
|
22.7
|
19.8
|
25
|
40
|
14.8
|
33
|
228
|
241
|
|
GN 114.6-20-45
|
20
|
45
|
4.8
|
1.2
|
22.7
|
19.8
|
25
|
40
|
14.8
|
33
|
228
|
256
|
|
GN 114.6-20-50
|
20
|
50
|
4.8
|
1.2
|
22.7
|
19.8
|
25
|
40
|
14.8
|
33
|
228
|
266
|
|
GN 114.6-20-60
|
20
|
60
|
4.8
|
1.2
|
22.7
|
19.8
|
25
|
40
|
14.8
|
33
|
228
|
293
|
|
GN 114.6-20-70
|
20
|
70
|
4.8
|
1.2
|
22.7
|
19.8
|
25
|
40
|
14.8
|
33
|
228
|
314
|
|
GN 114.6-20-80
|
20
|
80
|
4.8
|
1.2
|
22.7
|
19.8
|
25
|
40
|
14.8
|
33
|
228
|
330
|
|
GN 114.6-20-90
|
20
|
90
|
4.8
|
1.2
|
22.7
|
19.8
|
25
|
40
|
14.8
|
33
|
228
|
361
|
|
GN 114.6-20-100
|
20
|
100
|
4.8
|
1.2
|
22.7
|
19.8
|
25
|
40
|
14.8
|
33
|
228
|
383
|
|
GN 114.6-20-110
|
20
|
110
|
4.8
|
1.2
|
22.7
|
19.8
|
25
|
40
|
14.8
|
33
|
228
|
405
|
|
GN 114.6-20-120
|
20
|
120
|
4.8
|
1.2
|
22.7
|
19.8
|
25
|
40
|
14.8
|
33
|
228
|
427
|
|
GN 114.6-20-130
|
20
|
130
|
4.8
|
1.2
|
22.7
|
19.8
|
25
|
40
|
14.8
|
33
|
228
|
450
|
|
GN 114.6-20-140
|
20
|
140
|
4.8
|
1.2
|
22.7
|
19.8
|
25
|
40
|
14.8
|
33
|
228
|
472
|
|
GN 114.6-20-150
|
20
|
150
|
4.8
|
1.2
|
22.7
|
19.8
|
25
|
40
|
14.8
|
33
|
228
|
494
|
Knopf / Druckknopf / Schieber
Edelstahl 1.4305
Stift
Edelstahl 1.4305
Sperrklinke
Edelstahl-Blech nichtrostend, 1.4301
Druckfeder
Edelstahl nichtrostend, 1.4310
Edelstahl-Steckbolzen mit Axialsicherung GN 114.6 werden zum schnellen Fixieren, Verbinden und Sichern verschiedener Bauelemente eingesetzt. Eine typische Anwendung sind Lagerbolzen, die häufig montiert und wieder demontiert werden müssen.
Die rechteckigen Sperrklinken aus Edelstahl-Blech halten den Steckbolzen axial in der Bohrung. Mit dem Druckknopf werden diese eingezogen und nach dem Loslassen stellt die Druckfeder sie wieder in die Sperrstellung zurück.
Die Angaben über die Belastbarkeit sind theoretisch ermittelte Richtwerte unter Ausschluss jeglicher Haftung. Sie stellen generell keine Beschaffenheitszusage dar. Ob ein Produkt für den jeweiligen Einsatz geeignet ist, muss in jedem Einzelfall vom Anwender ermittelt werden.
Verwandte Produkte
GN 111.4
Spiral-Halteseile
Kunststoff, mit 2 Schlüsselringen
GN 111.5
Kugelketten
Edelstahl, mit zwei Schlüsselringen
GN 113.3
Edelstahl-Kugelsperrbolzen
Werkstoff 1.4305, mit Griffmulde

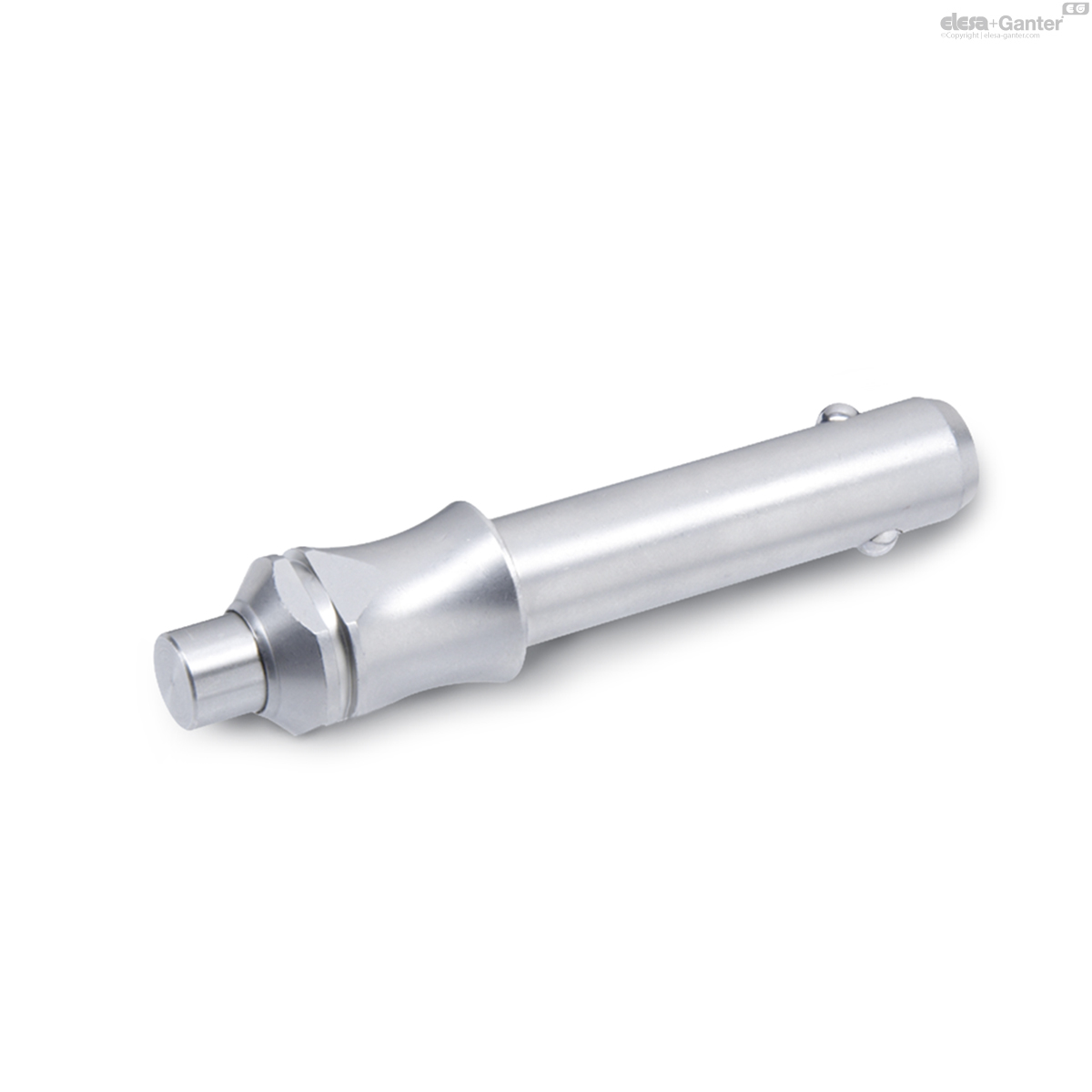

GN 113.5
Edelstahl-Kugelsperrbolzen
Werkstoff 1.4305, mit Kunststoff-Knopf

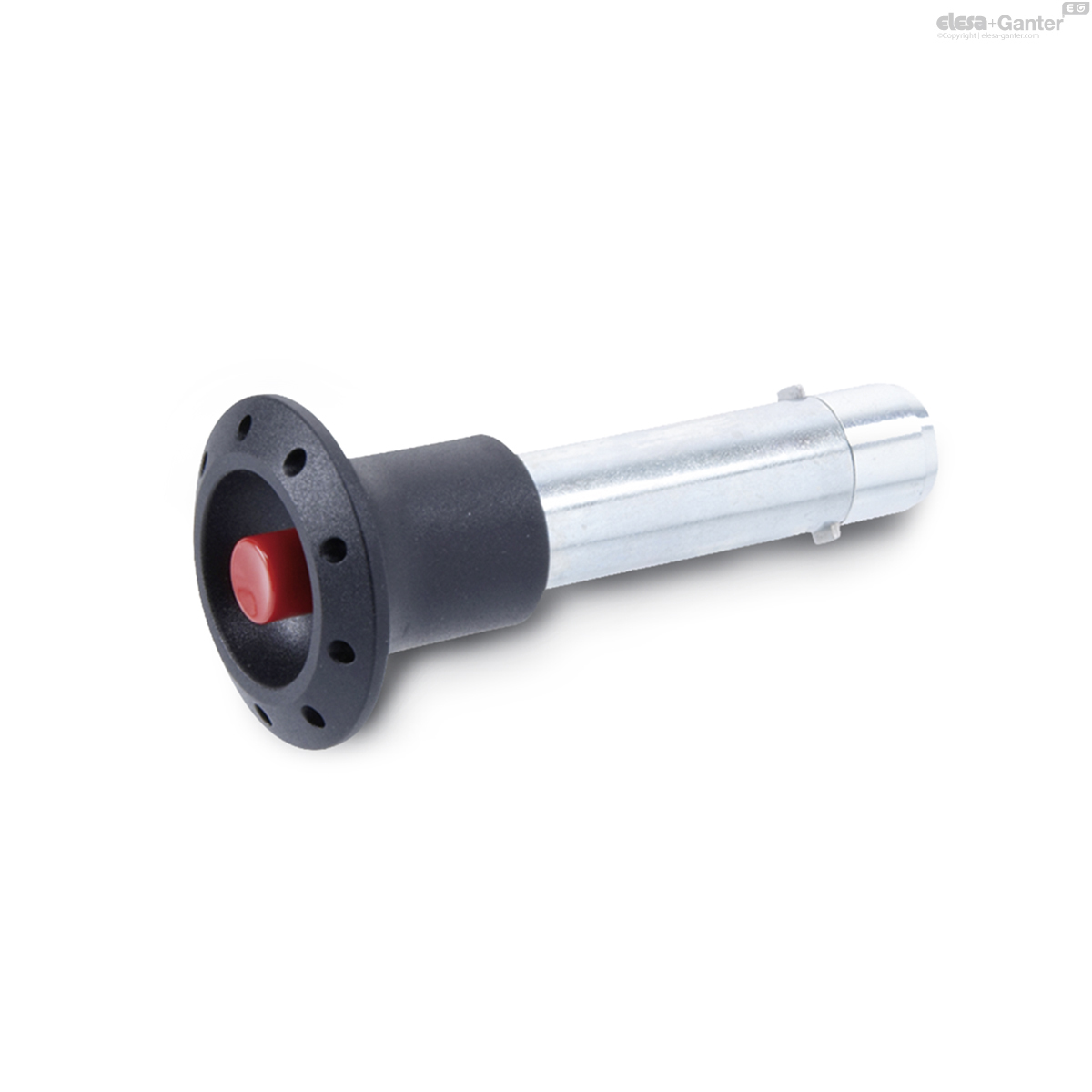

GN 114.2
Steckbolzen
Stahl, mit Axialsicherung (Sperrklinke)

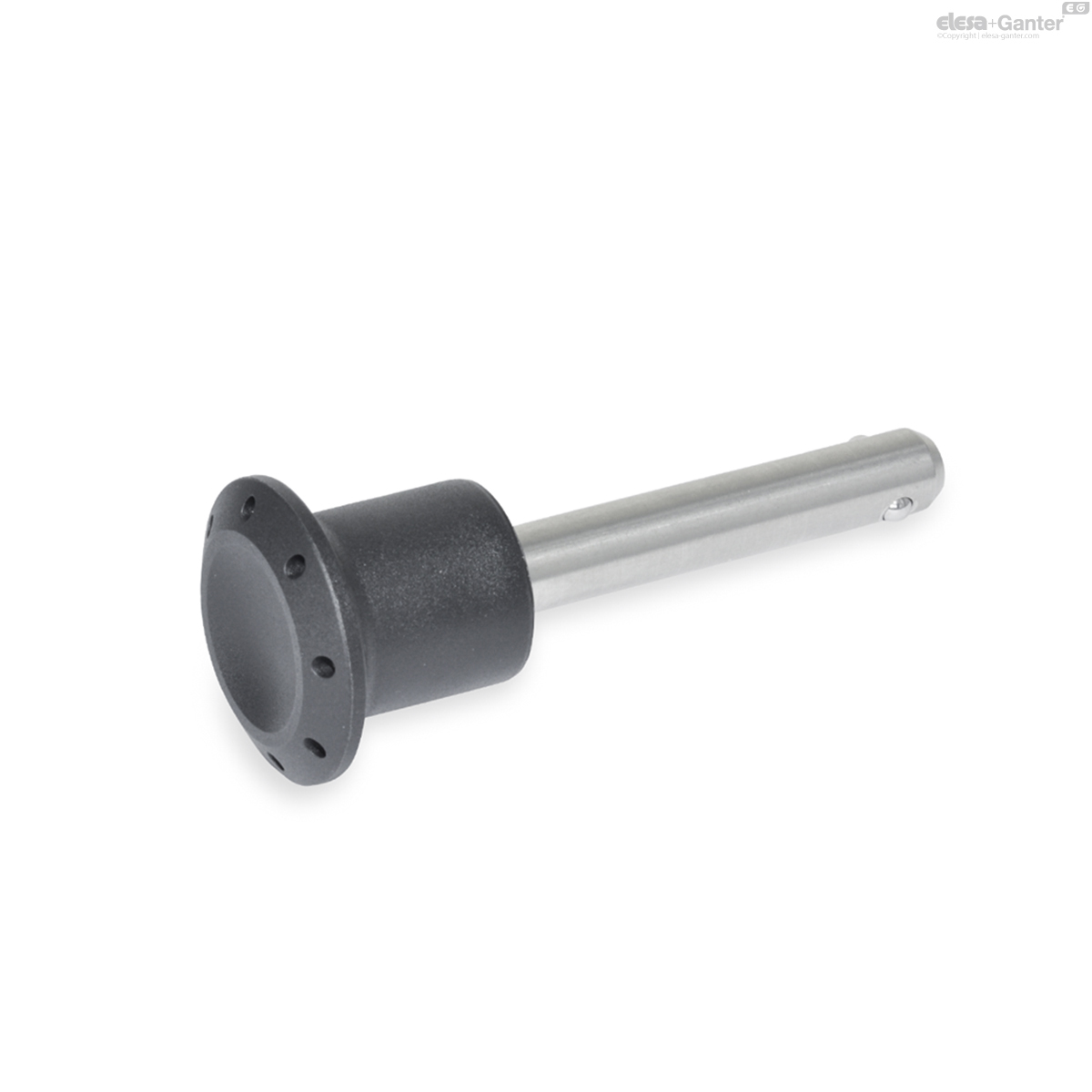

GN 124.2
Edelstahl-Steckbolzen
mit Axialsicherung (Kugelraste)

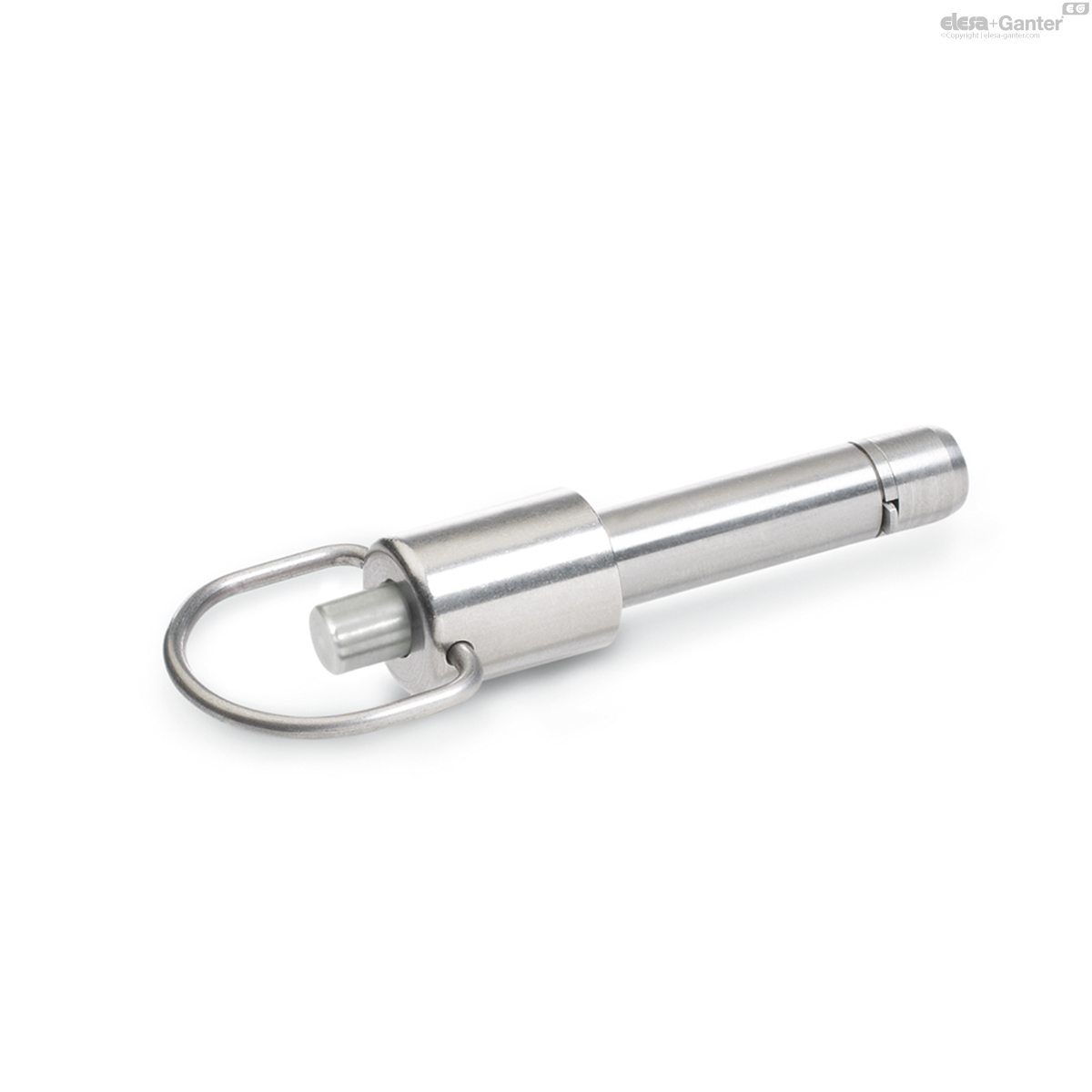

GN 214.6
