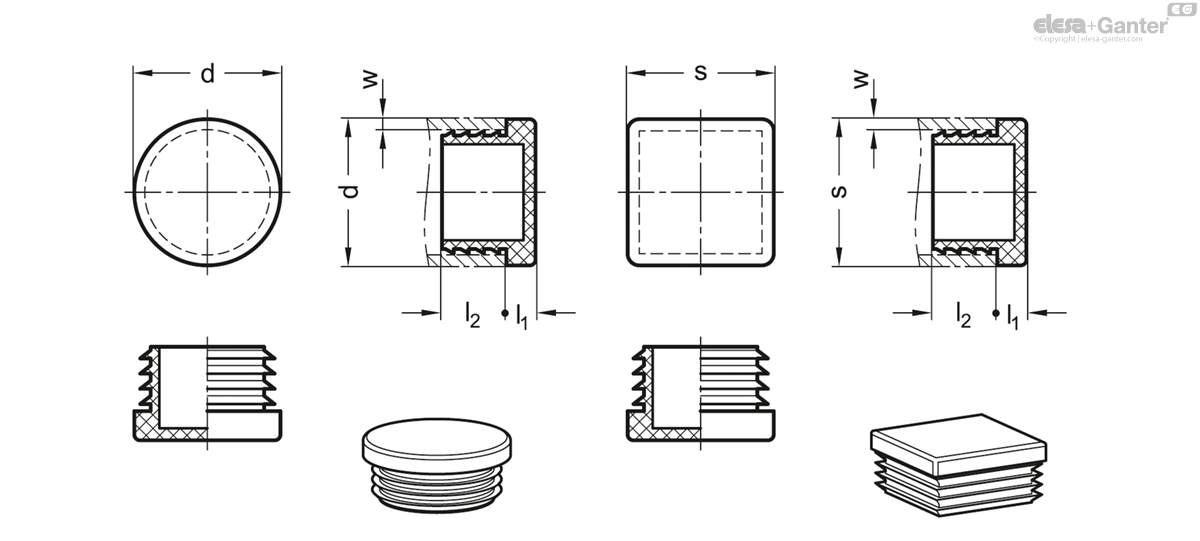

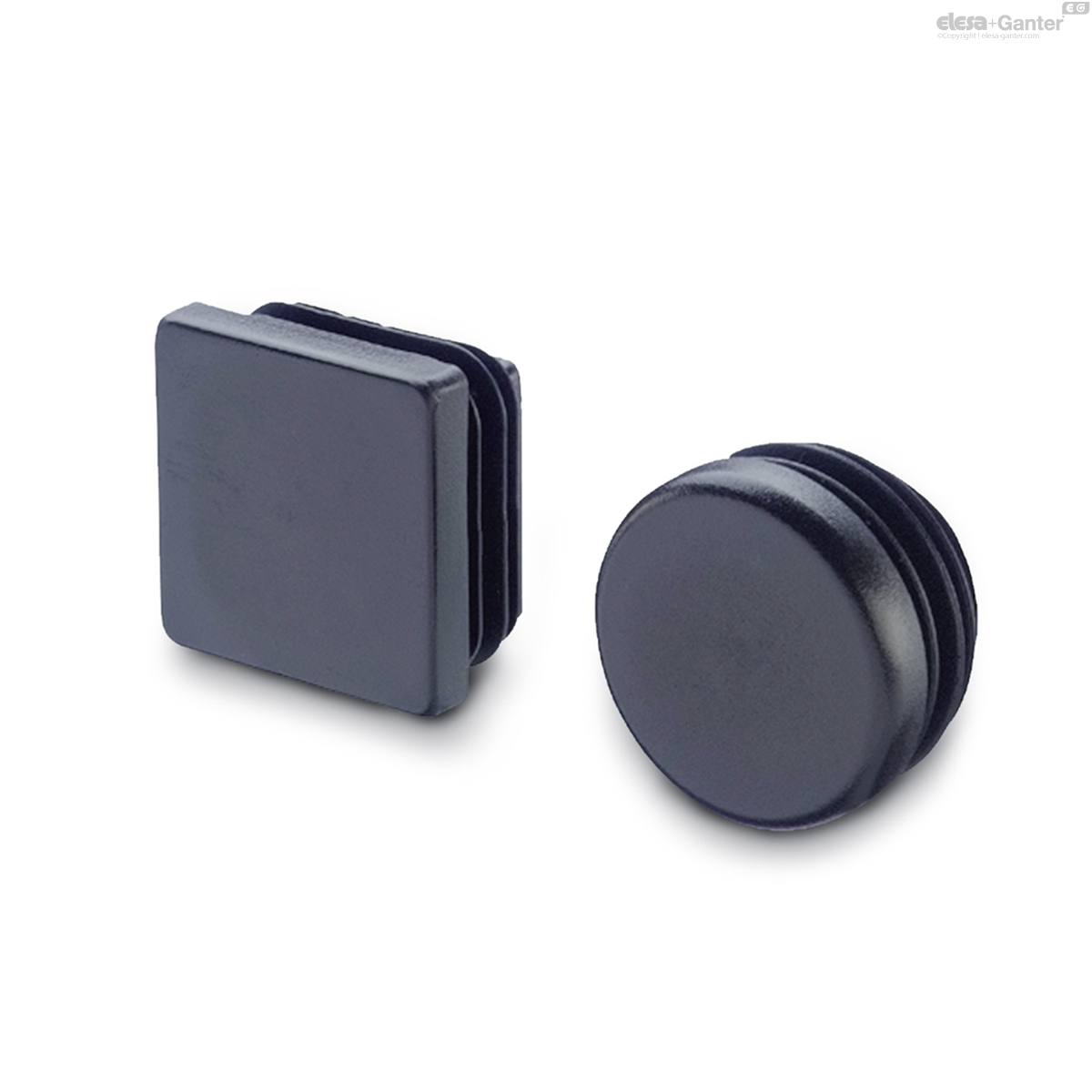

GN 991Endstopfen
Endstopfen
für Konstruktionsrohre GN 990
GN 991
|
Katalog
|
d
|
s
|
w
|
l1
|
l2
|
Für Rohre
GN 990 |
|
|
|---|---|---|---|---|---|---|---|---|
|
GN 991-D10-SW
|
D 10
|
-
|
1 ... 2
|
3.5
|
11
|
D 10
|
1
| |
|
GN 991-D12-SW
|
D 12
|
-
|
1 ... 2
|
3.5
|
11
|
D 12
|
1
| |
|
GN 991-D14-SW
|
D 14
|
-
|
1 ... 2
|
4
|
11.5
|
D 14
|
1
| |
|
GN 991-D15-SW
|
D 15
|
-
|
1 ... 2
|
5
|
11.5
|
D 15
|
2
| |
|
GN 991-D16-SW
|
D 16
|
-
|
1 ... 2
|
3
|
11
|
D 16
|
2
| |
|
GN 991-D18-SW
|
D 18
|
-
|
1 ... 2
|
5
|
11.5
|
D 18
|
2
| |
|
GN 991-D20-SW
|
D 20
|
-
|
1 ... 2.5
|
5
|
11.5
|
D 20
|
2
| |
|
GN 991-D25-SW
|
D 25
|
-
|
1 … 3
|
5
|
11.5
|
D 25
|
4
| |
|
GN 991-D30-SW
|
D 30
|
-
|
1 … 2.5
|
5
|
11.5
|
D 30
|
4
| |
|
GN 991-D32-SW
|
D 32
|
-
|
1 ... 3
|
5
|
12
|
D 32
|
4
| |
|
GN 991-D35-SW
|
D 35
|
-
|
1 ... 3
|
5
|
11.5
|
D 35
|
6
| |
|
GN 991-D40-SW
|
D 40
|
-
|
1 ... 3
|
5
|
11.5
|
D 40
|
7
| |
|
GN 991-D42-SW
|
D 42
|
-
|
1 ... 3
|
5
|
11.5
|
D 42
|
7
| |
|
GN 991-D45-SW
|
D 45
|
-
|
1 ... 3
|
5
|
11
|
D 45
|
8
| |
|
GN 991-D48-SW
|
D 48
|
-
|
1.2 … 3.6
|
5
|
11.5
|
D 48
|
8
| |
|
GN 991-D50-SW
|
D 50
|
-
|
2.5 … 3.6
|
5
|
11.5
|
D 50
|
9
| |
|
GN 991-D55-SW
|
D 55
|
-
|
3 … 5
|
5
|
14.5
|
D 55
|
10
| |
|
GN 991-D60-SW
|
D 60
|
-
|
3 … 5
|
5
|
17.5
|
D 60
|
15
| |
|
GN 991-V10-SW
|
-
|
V 10
|
0.8 … 2.5
|
4
|
8
|
V 10
|
1
| |
|
GN 991-V12-SW
|
-
|
V 12
|
1 ... 2
|
4
|
8
|
V 12
|
2
| |
|
GN 991-V16-SW
|
-
|
V 16
|
1 ... 2.5
|
5
|
6.5
|
V 16
|
4
| |
|
-
|
V 20
|
1 ... 3
|
5
|
6.5
|
V 20
|
5
| ||
|
GN 991-V25-SW
|
-
|
V 25
|
1 ... 3
|
5
|
6.5
|
V 25
|
7
| |
|
GN 991-V30-SW
|
-
|
V 30
|
1 ... 3
|
5
|
6.5
|
V 30
|
7
| |
|
GN 991-V35-SW
|
-
|
V 35
|
1 ... 3
|
5
|
9.5
|
V 35
|
8
| |
|
GN 991-V40-SW
|
-
|
V 40
|
1 ... 3
|
5
|
9.5
|
V 40
|
9
| |
|
-
|
V 45
|
1 ... 3
|
5
|
9.5
|
V 45
|
10
| ||
|
GN 991-V50-SW
|
-
|
V 50
|
2.6 … 4
|
5
|
9.5
|
V 50
|
18
|
Kunststoff (Polyethylen PE)
schwarz
Endstopfen GN 991 sind ausgelegt zum Verschließen von Rohrenden, wenn Sicherheitsgründe oder optische Aspekte dies erfordern.
Sie werden von Hand oder mit einem Schonhammer in die Rohre eingedrückt.
