GN 991Tube end plugs
Bouchons d'extrémité de tube

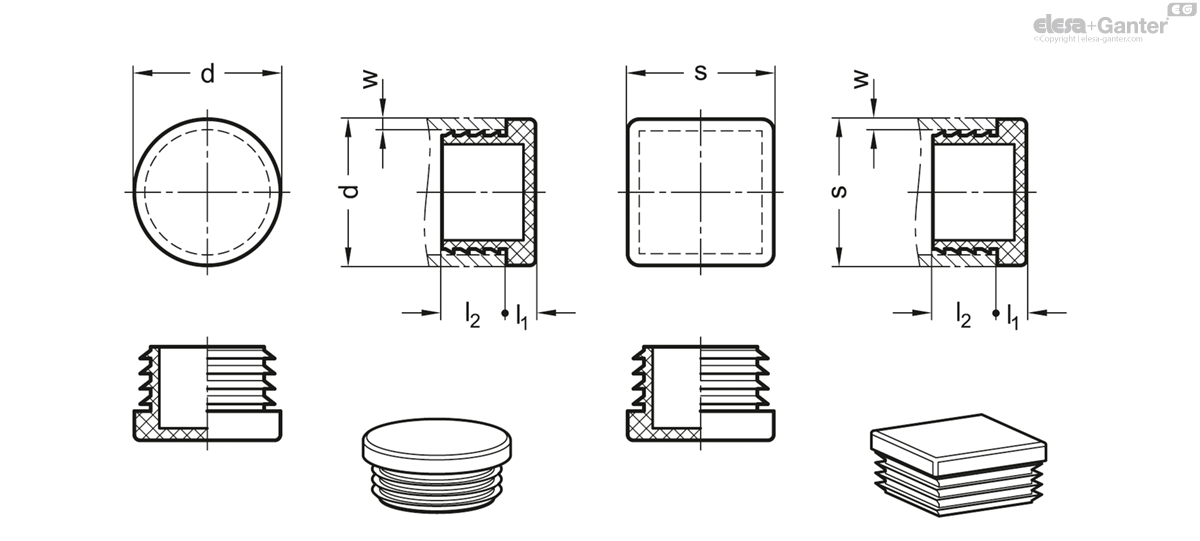

for construction tubes GN 990
GN 991
|
Code
|
d
|
s
|
w
|
l1
|
l2
|
For tube
GN 990 |
|
|
|---|---|---|---|---|---|---|---|---|
|
GN 991-D10-SW
|
D 10
|
-
|
1 ... 2
|
3.5
|
11
|
D 10
|
1
| |
|
GN 991-D12-SW
|
D 12
|
-
|
1 ... 2
|
3.5
|
11
|
D 12
|
1
| |
|
GN 991-D14-SW
|
D 14
|
-
|
1 ... 2
|
4
|
11.5
|
D 14
|
1
| |
|
GN 991-D15-SW
|
D 15
|
-
|
1 ... 2
|
5
|
11.5
|
D 15
|
2
| |
|
GN 991-D16-SW
|
D 16
|
-
|
1 ... 2
|
3
|
11
|
D 16
|
2
| |
|
GN 991-D18-SW
|
D 18
|
-
|
1 ... 2
|
5
|
11.5
|
D 18
|
2
| |
|
GN 991-D20-SW
|
D 20
|
-
|
1 ... 2.5
|
5
|
11.5
|
D 20
|
2
| |
|
GN 991-D25-SW
|
D 25
|
-
|
1 … 3
|
5
|
11.5
|
D 25
|
4
| |
|
GN 991-D30-SW
|
D 30
|
-
|
1 … 2.5
|
5
|
11.5
|
D 30
|
4
| |
|
GN 991-D32-SW
|
D 32
|
-
|
1 ... 3
|
5
|
12
|
D 32
|
4
| |
|
GN 991-D35-SW
|
D 35
|
-
|
1 ... 3
|
5
|
11.5
|
D 35
|
6
| |
|
GN 991-D40-SW
|
D 40
|
-
|
1 ... 3
|
5
|
11.5
|
D 40
|
7
| |
|
GN 991-D42-SW
|
D 42
|
-
|
1 ... 3
|
5
|
11.5
|
D 42
|
7
| |
|
GN 991-D45-SW
|
D 45
|
-
|
1 ... 3
|
5
|
11
|
D 45
|
8
| |
|
GN 991-D48-SW
|
D 48
|
-
|
1.2 … 3.6
|
5
|
11.5
|
D 48
|
8
| |
|
GN 991-D50-SW
|
D 50
|
-
|
2.5 … 3.6
|
5
|
11.5
|
D 50
|
9
| |
|
GN 991-D55-SW
|
D 55
|
-
|
3 … 5
|
5
|
14.5
|
D 55
|
10
| |
|
GN 991-D60-SW
|
D 60
|
-
|
3 … 5
|
5
|
17.5
|
D 60
|
15
| |
|
GN 991-V10-SW
|
-
|
V 10
|
0.8 … 2.5
|
4
|
8
|
V 10
|
1
| |
|
GN 991-V12-SW
|
-
|
V 12
|
1 ... 2
|
4
|
8
|
V 12
|
2
| |
|
GN 991-V16-SW
|
-
|
V 16
|
1 ... 2.5
|
5
|
6.5
|
V 16
|
4
| |
|
-
|
V 20
|
1 ... 3
|
5
|
6.5
|
V 20
|
5
| ||
|
GN 991-V25-SW
|
-
|
V 25
|
1 ... 3
|
5
|
6.5
|
V 25
|
7
| |
|
GN 991-V30-SW
|
-
|
V 30
|
1 ... 3
|
5
|
6.5
|
V 30
|
7
| |
|
GN 991-V35-SW
|
-
|
V 35
|
1 ... 3
|
5
|
9.5
|
V 35
|
8
| |
|
GN 991-V40-SW
|
-
|
V 40
|
1 ... 3
|
5
|
9.5
|
V 40
|
9
| |
|
-
|
V 45
|
1 ... 3
|
5
|
9.5
|
V 45
|
10
| ||
|
GN 991-V50-SW
|
-
|
V 50
|
2.6 … 4
|
5
|
9.5
|
V 50
|
18
|
Plastic (Polyethylen PE)
black

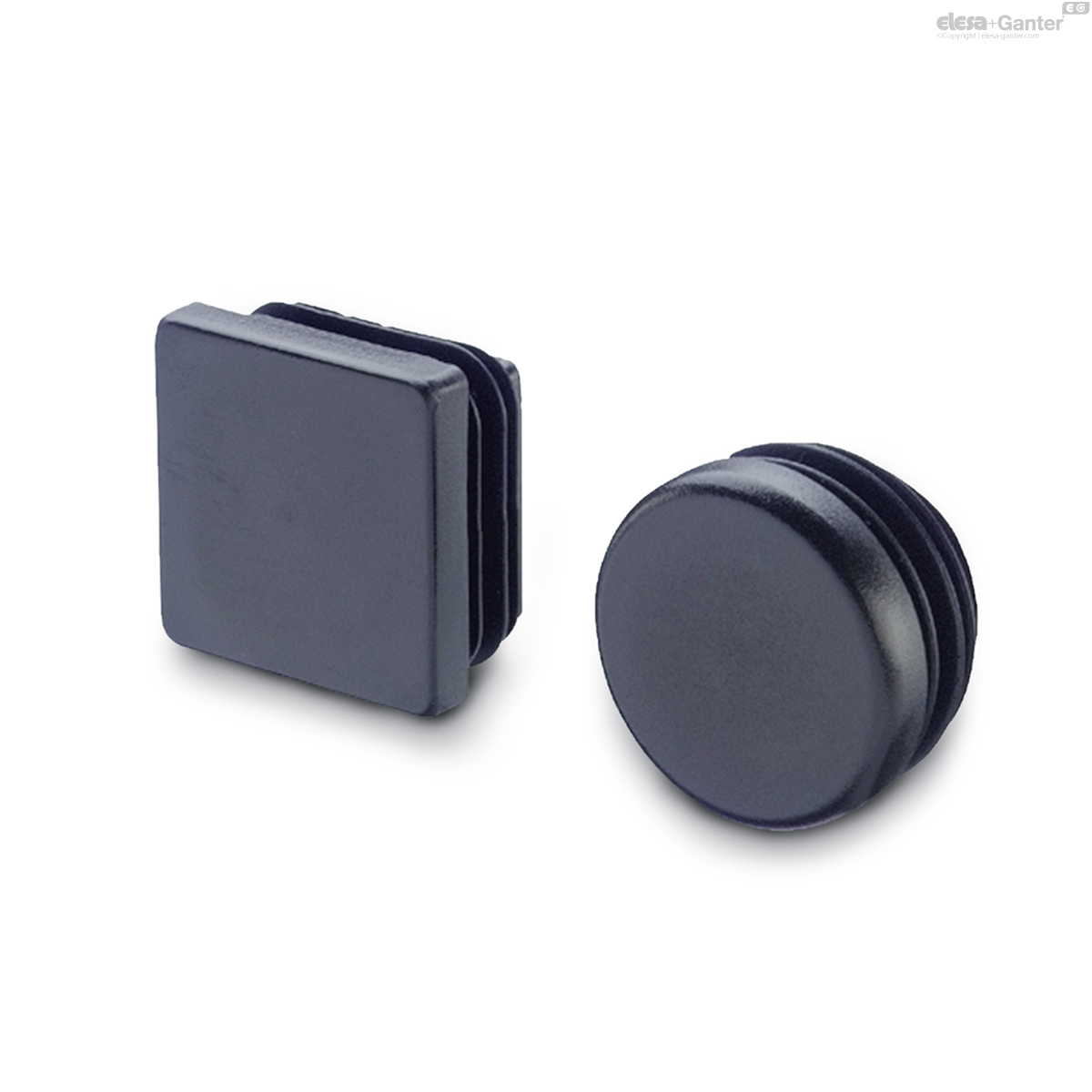

Tube end plugs GN 991 have been designed for sealing tube ends for safety or optical reasons.
They are pressed into the tube end either by hand or with a mallet.
