Technical datasheet
GN 991Tube end plugs
Eindpluggen voor buizen
for construction tubes GN 990

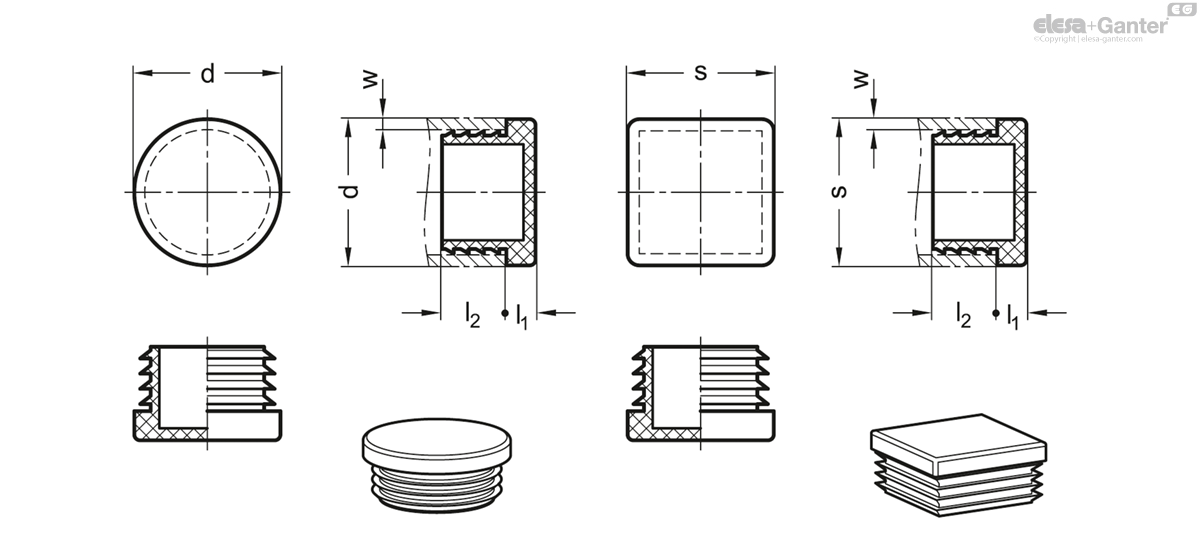

GN 991
|
Code
|
d
|
s
|
w
|
l1
|
l2
|
For tube
GN 990 |
|
|
|---|---|---|---|---|---|---|---|---|
|
GN 991-D10-SW
|
D 10
|
-
|
1 ... 2
|
3.5
|
11
|
D 10
|
1
| |
|
GN 991-D12-SW
|
D 12
|
-
|
1 ... 2
|
3.5
|
11
|
D 12
|
1
| |
|
GN 991-D14-SW
|
D 14
|
-
|
1 ... 2
|
4
|
11.5
|
D 14
|
1
| |
|
GN 991-D15-SW
|
D 15
|
-
|
1 ... 2
|
5
|
11.5
|
D 15
|
2
| |
|
GN 991-D16-SW
|
D 16
|
-
|
1 ... 2
|
3
|
11
|
D 16
|
2
| |
|
GN 991-D18-SW
|
D 18
|
-
|
1 ... 2
|
5
|
11.5
|
D 18
|
2
| |
|
GN 991-D20-SW
|
D 20
|
-
|
1 ... 2.5
|
5
|
11.5
|
D 20
|
2
| |
|
GN 991-D25-SW
|
D 25
|
-
|
1 … 3
|
5
|
11.5
|
D 25
|
4
| |
|
GN 991-D30-SW
|
D 30
|
-
|
1 … 2.5
|
5
|
11.5
|
D 30
|
4
| |
|
GN 991-D32-SW
|
D 32
|
-
|
1 ... 3
|
5
|
12
|
D 32
|
4
| |
|
GN 991-D35-SW
|
D 35
|
-
|
1 ... 3
|
5
|
11.5
|
D 35
|
6
| |
|
GN 991-D40-SW
|
D 40
|
-
|
1 ... 3
|
5
|
11.5
|
D 40
|
7
| |
|
GN 991-D42-SW
|
D 42
|
-
|
1 ... 3
|
5
|
11.5
|
D 42
|
7
| |
|
GN 991-D45-SW
|
D 45
|
-
|
1 ... 3
|
5
|
11
|
D 45
|
8
| |
|
GN 991-D48-SW
|
D 48
|
-
|
1.2 … 3.6
|
5
|
11.5
|
D 48
|
8
| |
|
GN 991-D50-SW
|
D 50
|
-
|
2.5 … 3.6
|
5
|
11.5
|
D 50
|
9
| |
|
GN 991-D55-SW
|
D 55
|
-
|
3 … 5
|
5
|
14.5
|
D 55
|
10
| |
|
GN 991-D60-SW
|
D 60
|
-
|
3 … 5
|
5
|
17.5
|
D 60
|
15
| |
|
GN 991-V10-SW
|
-
|
V 10
|
0.8 … 2.5
|
4
|
8
|
V 10
|
1
| |
|
GN 991-V12-SW
|
-
|
V 12
|
1 ... 2
|
4
|
8
|
V 12
|
2
| |
|
GN 991-V16-SW
|
-
|
V 16
|
1 ... 2.5
|
5
|
6.5
|
V 16
|
4
| |
|
-
|
V 20
|
1 ... 3
|
5
|
6.5
|
V 20
|
5
| ||
|
GN 991-V25-SW
|
-
|
V 25
|
1 ... 3
|
5
|
6.5
|
V 25
|
7
| |
|
GN 991-V30-SW
|
-
|
V 30
|
1 ... 3
|
5
|
6.5
|
V 30
|
7
| |
|
GN 991-V35-SW
|
-
|
V 35
|
1 ... 3
|
5
|
9.5
|
V 35
|
8
| |
|
GN 991-V40-SW
|
-
|
V 40
|
1 ... 3
|
5
|
9.5
|
V 40
|
9
| |
|
-
|
V 45
|
1 ... 3
|
5
|
9.5
|
V 45
|
10
| ||
|
GN 991-V50-SW
|
-
|
V 50
|
2.6 … 4
|
5
|
9.5
|
V 50
|
18
|
Plastic (Polyethylen PE)
black

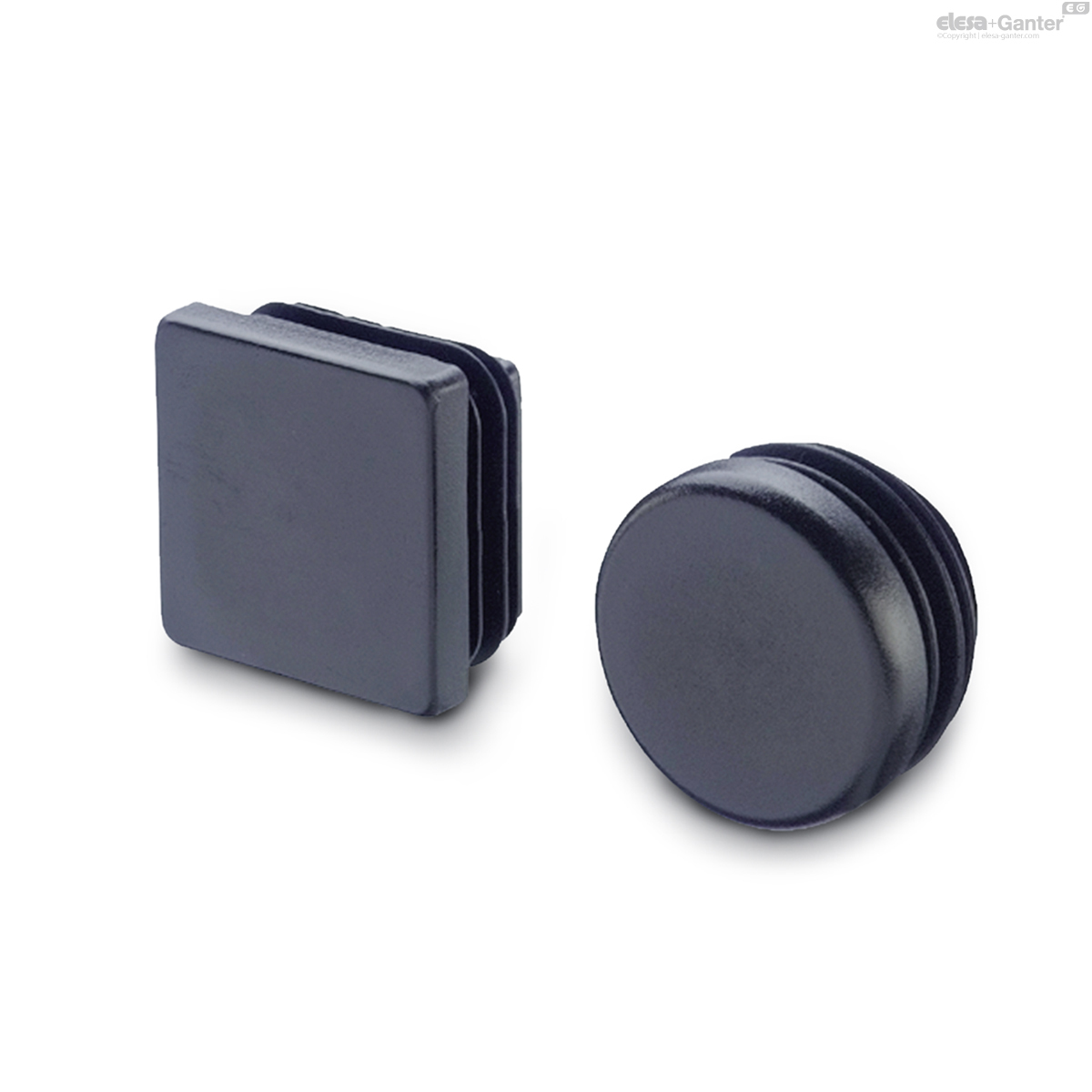

Tube end plugs GN 991 have been designed for sealing tube ends for safety or optical reasons.
They are pressed into the tube end either by hand or with a mallet.
