GN 862-APVPneumatische snelspanners

Gevorkte klemarm, met twee flensringen

met verticale montagebasis

Technical datasheet

GN 862-APV

Gevorkte klemarm, met twee flensringen

GN 862-CPV

Gevorkte klemarm, met twee flensringen en klemschroef GN 708.1

GN 862-EPV

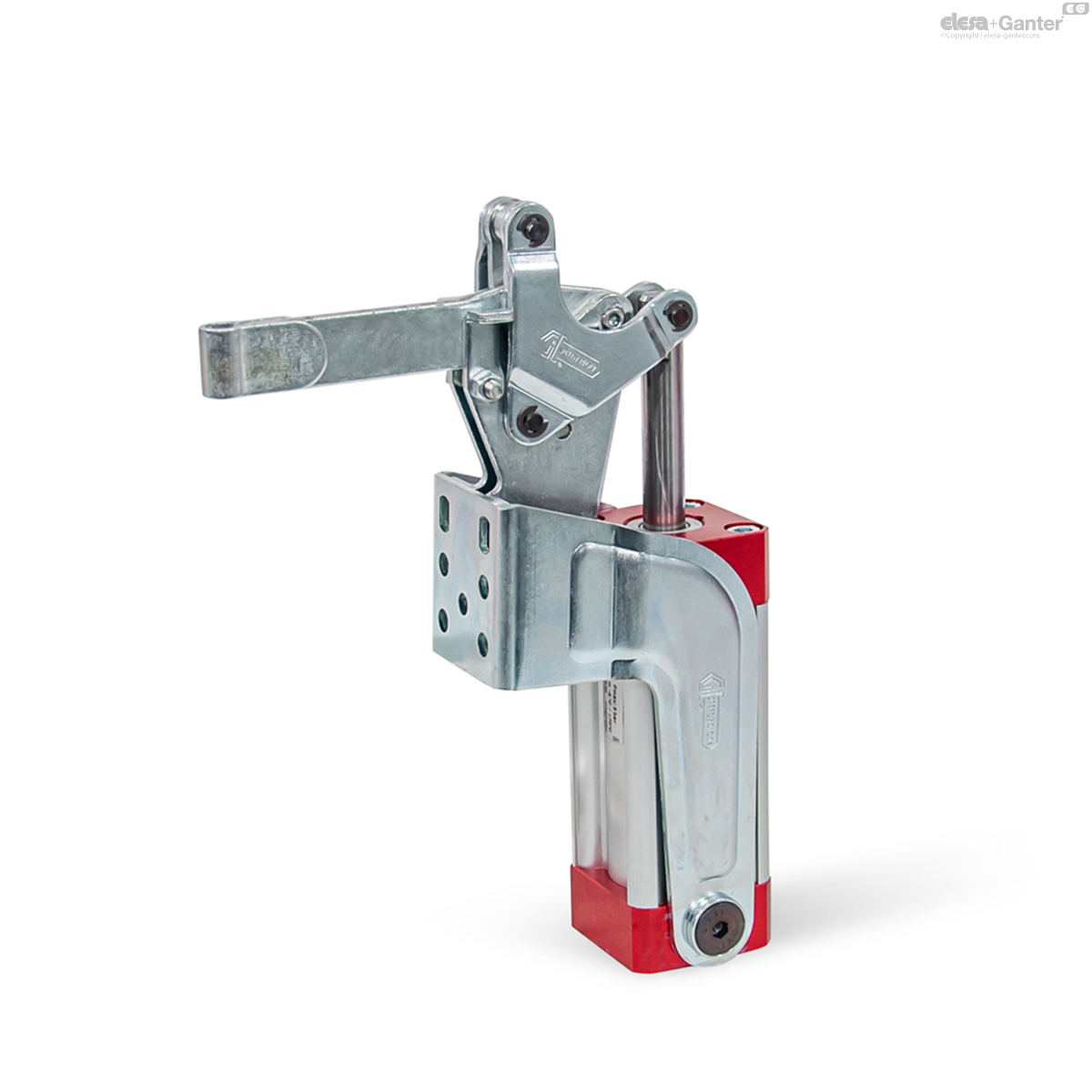

Stevige klemarm, met klem voor lassen

GN 862-APV

Reset

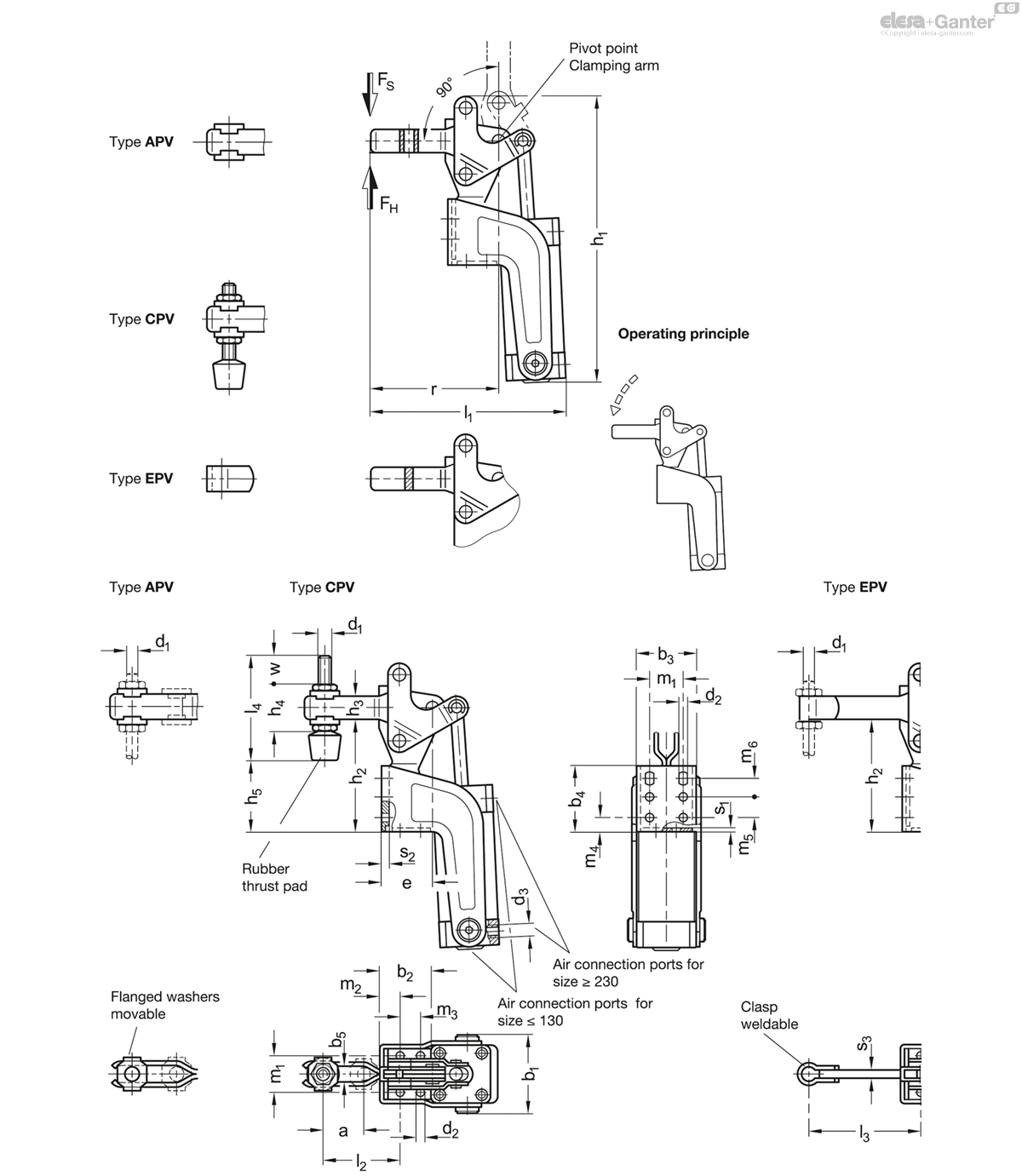

Code	Size	F_H in N	F_S in N	a	b₁	b₂	b₃	b₄	b₅	d₁	d₂	d₃

GN 862-75-APV-M	75	750	570	20	47	25.5	40	30	5.2	M 5	4.5	M 5
GN 862-130-APV-M	130	1100	610	28	51	33	47	49	6.2	M 6	5.6	G 1/8
GN 862-230-APV-M	230	2200	1260	40	58	38	46	51	8.5	M 8	6.5	G 1/8
GN 862-330-APV-M	330	2600	1800	45	70	52.5	56	79	10.5	M 10	8.5	G 1/4

Types

Type APV: Forked clamping arm, with two flanged washers

Type CPV: Forked clamping arm, with two flanged washers and clamping screw GN 708.1

Type EPV: Solid clamping arm, with clasp for welding

Coding

Coding M: Magnetic piston

Sheet metal parts

Case-hardened steel C10

Zinc plated, blue passivated

Bearing pins hardened

Bearing rivets

Case-hardened

Air cylinder bearing pins

Case-hardened

Double-action air cylinder

Max. pressure 6 bar

All moving parts

Lubricated with special grease

Clamping screw GN 708.1, type A

Steel, zinc plated, blue passivated

Rubber thrust pad 85 Shore A

The clamping principle of toggle clamps GN 862 is identical in construction and dimensions to the manually operated vertical toggle clamps GN 812.

To ensure an extended life of the mechanical parts as well as the air cylinders the operating pressure should not exceed 6 bar and a compressed air maintenance unit should be installed upstream.

Toggle clamps GN 862 have a permanent magnet integrated into the piston. In conjunction with sensors GN 3380, it is possible to detect the end position, such as for implementing machine controls.
